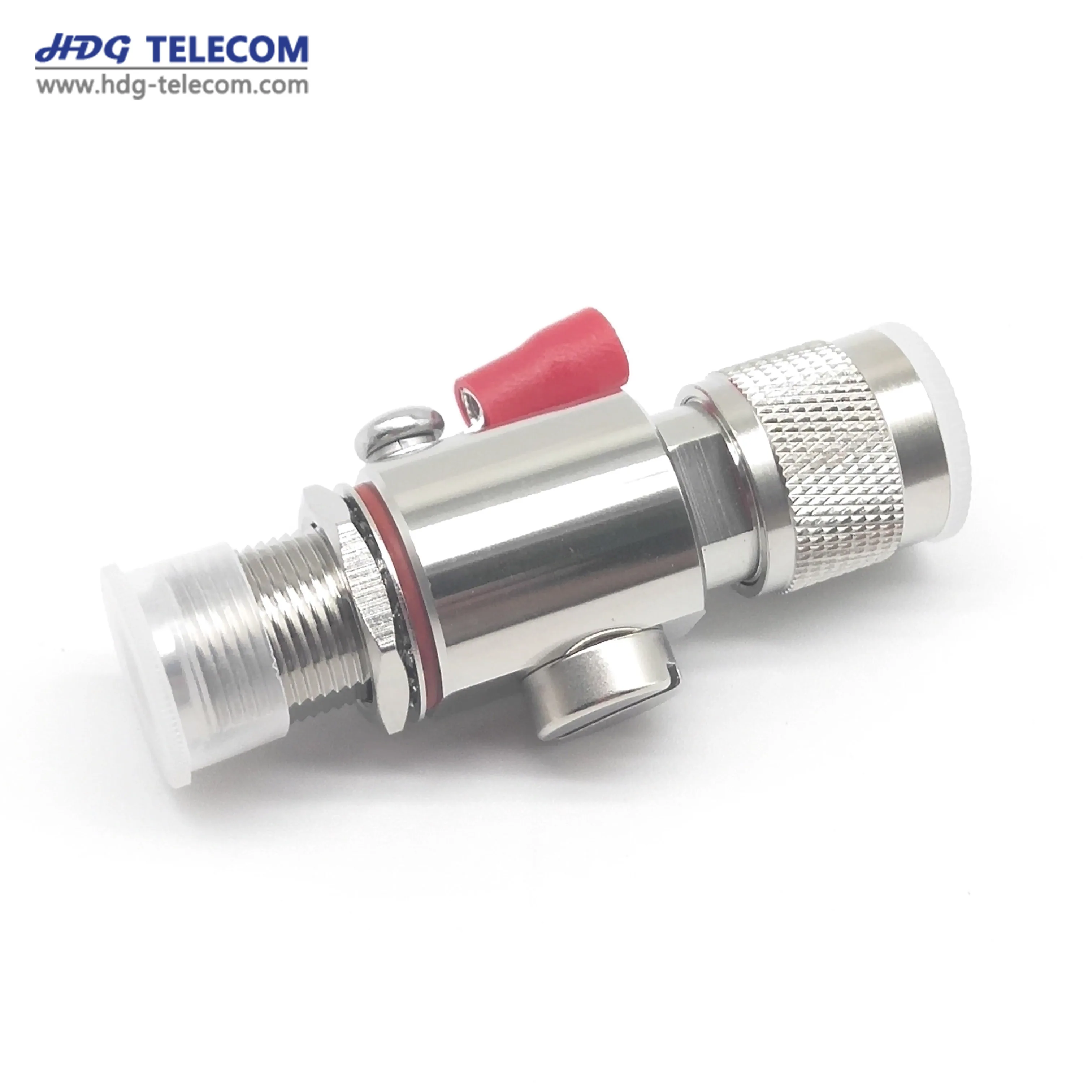

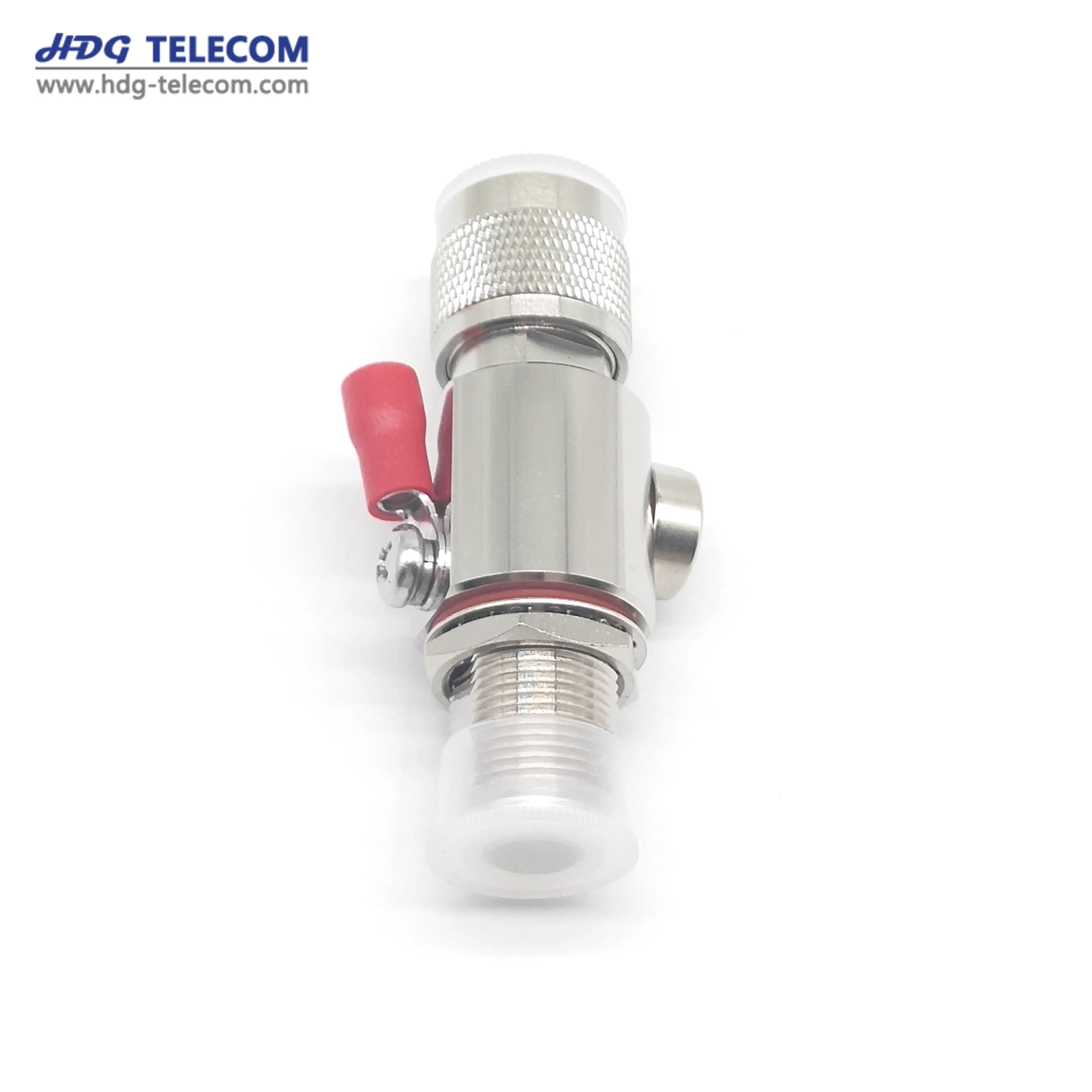

N Type gas discharge tube surge arrester with low price
N Type gas discharge tube surge arrester with low price provide excellent lightning protection and outstanding RF performance.All designs have low return loss, low insertion loss and low intermodulation.We offer various gas discharge tube lightning arresters at competitive prices.
Application Guide
N Type gas discharge tube surge arrester with low price
1.Various transmit-receive system of radio-frequency signal ; 2.Network signal wireless transmit-receive equipment ; 3.Industrial control signal wireless transmit-receive equipment ; 4.Satellite television (SATV) receiving equipment ; 5.Surveillance signal wireless transmit-receive equipment 6.Ohter wireless communication equipment ; 7.Ohter radio-frequency signal equipment .
Specification
Specification
Description
Model
N Type gas discharge tube surge arrester with low price
Working frequency (GHz)
DC-3GHz
VSWR
≤1.18
Dielectric Resistance
≥5000mΩ
Center contact resistance
≤1.0mΩ
Outer contact resistance
≤1.0mΩ
Insertion loss
≤0.5 dB
Peak Dischange Current(KA)
10/20
Peak power(w)
200
Note: For latest information, please contact us
Packing & Delivery
Our usual packing is export carton with tape and packing belt, pallet packing or other packing is also available by your requirement.
Sample usually delivery by DHL、TNT、FedEx、UPS, batch cargo delivery by air or sea, other transport mode is available by your requirement.
