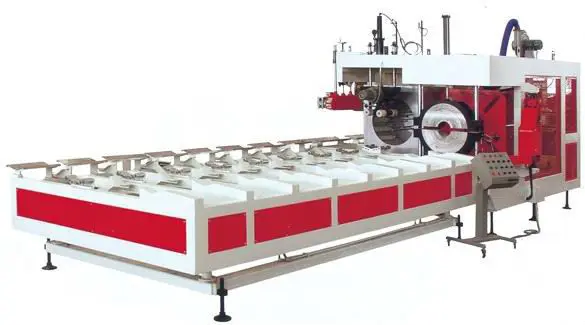

PVC Pipe Belling Machine
- Category: >>>
- Supplier: Ningbo Mengkwa Machinery Co. Ltd.
Share on (60510880339):
Product Overview
Description

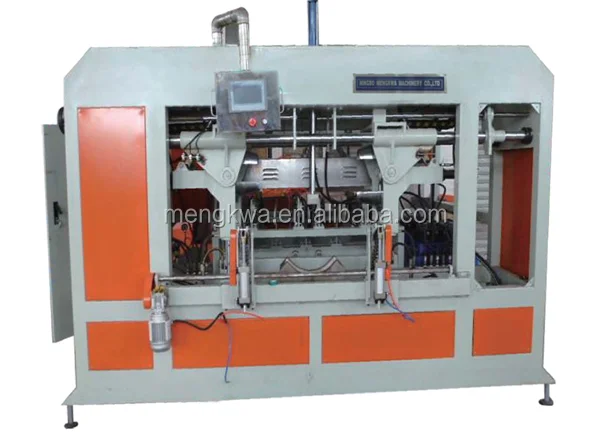

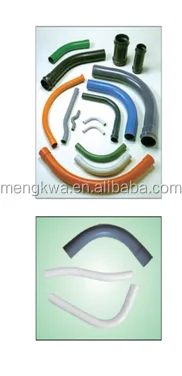

Automatic Cuttiing Bending Belling Machine(16-63,75-160mm)

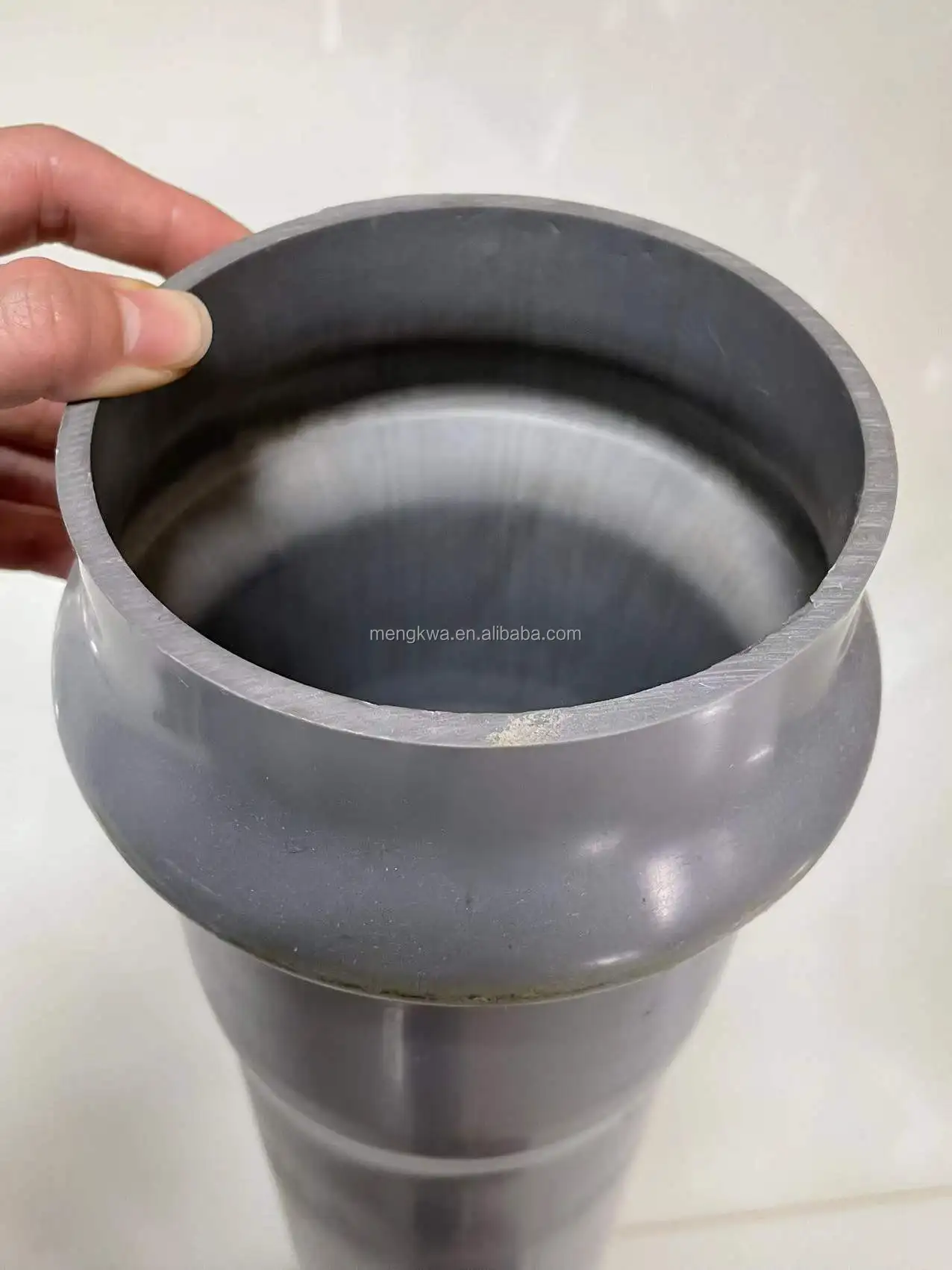

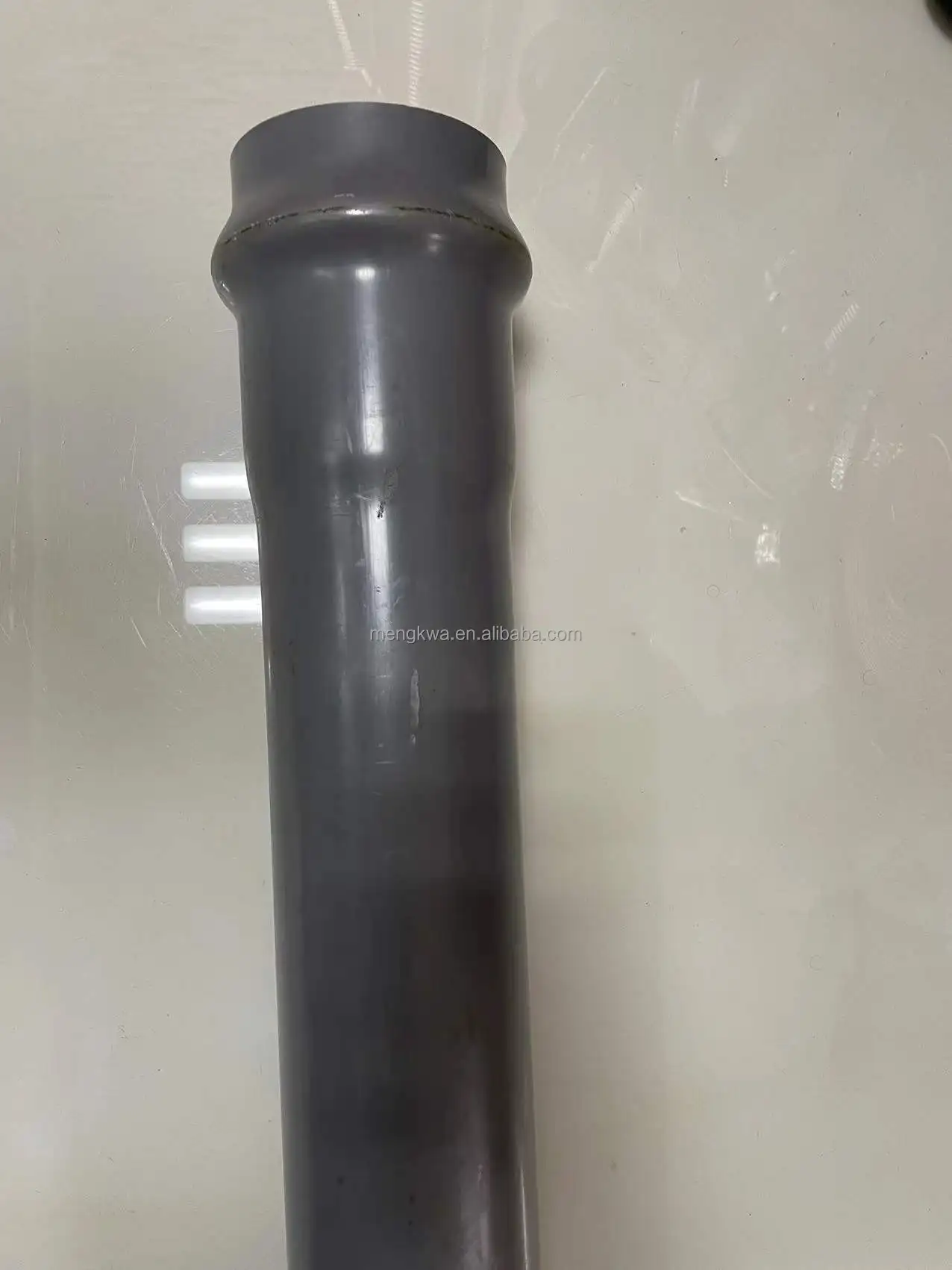

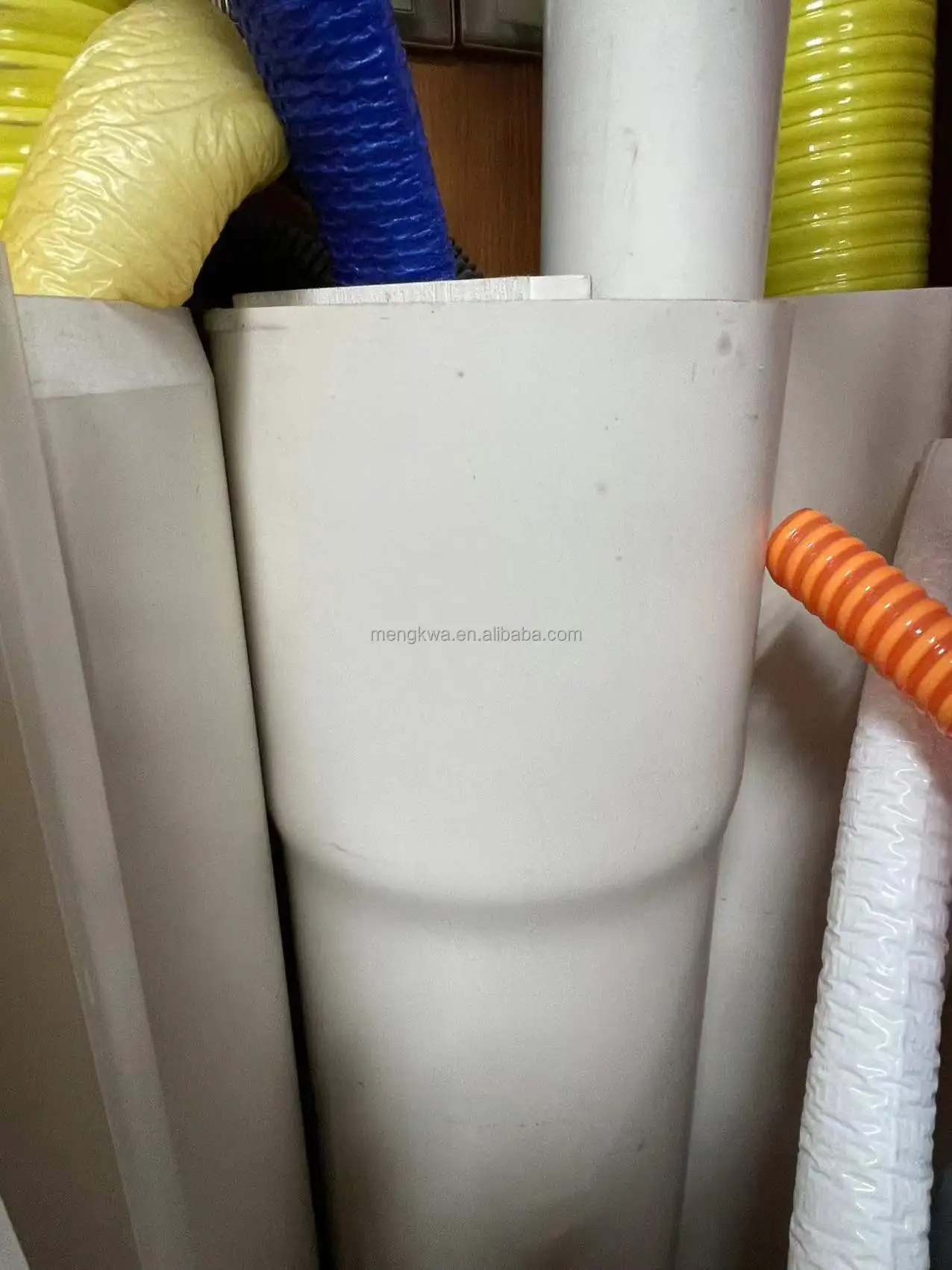

The machine can be used for the belling of PVC solid wall pipe, pvc double-wall corrugated pipe and PE double-wall corrugated pipe.The belling type:U type andR type.
Main Technical Parameter:
| Model | SGK160 | SGK250 | SGK400 | SGK630 | SGK1000 |
| Pipe OD(mm) | 40-160 | 50-250 | 160-400 | 315-630 | 500-1000 |
| Pipe Length(m) | 3-8 | 3-8 | 4-8 | 4-8 | 6-8 |
| Hydraulic working pressure(mpa) | 5 | 6.3 | 6.3 | 8 | 8 |
| Compressed air pressure(mpa) | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 |
| Total power(kw) | 18 | 18 | 25 | 32 | 50 |
| Total weight (kg) | 2300 | 2500 | 3000 | 3500 | 8000 |
| Overall size(L*W*H)mm | 7000*1530*1963 | 7300*1730*1950 | 7900*2140*2125 | 8423*2970*2650 | 10000*4600*2570 |
| Production speed(s) | 45-500 | 50-600 | 60-900 | 150-1200 | 500-2500 |
| Forming mode: With pressurized cylinder (or vacuum pump)and expandable belling moulds |
| Cooling mode: Water-cooled |
| R-type belling moulds: 3Cr13 for collapsible core,40Cr for die block,and other mater are 45#steel,electro- plating for surface treatment |
