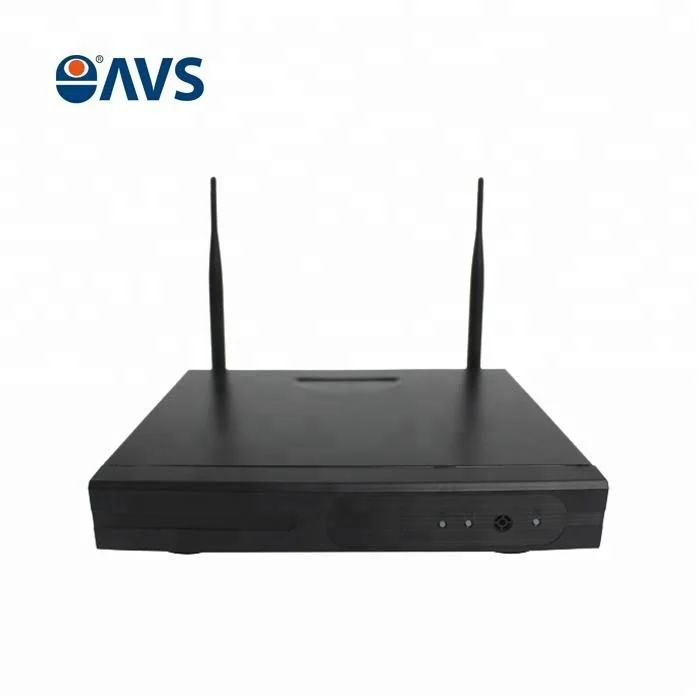

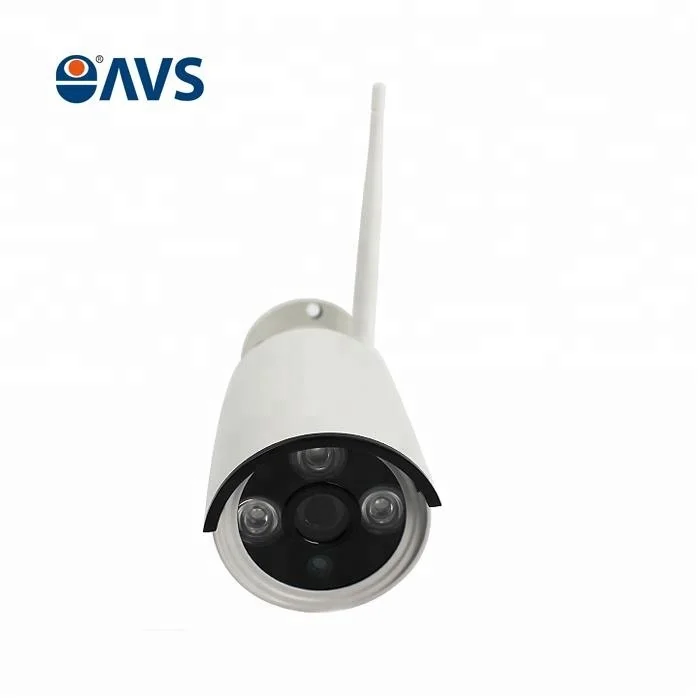

Excellent Quality HD 1080P Mobile Viewing Wireless 8CH CCTV IP Camera NVR Kit
- Category: >>>
- Supplier: Shenzhen Avs Technology Co. Ltd.
Share on (60510908585):
Product Overview
Description
Excellent Quality HD 1080P Mobile Viewing Wireless 8CH CCTV IP Camera NVR Kit
Product Description
Features
Wifi P2P Wireless IP Camera Kit Special Features
- NVR has router function. It can produce LAN signal and the IPC can recognize & connect that LAN signal automatically. No need extra setting. So no matter the install place have network or not. This kit can work in wireless.
- The LAN signal can transmitted upto 100m in the open area. When all 4 cameras used at the same time and there exist many walls the max transmit distance will around 30M. Actually distance will based on the thickness and material of the walls.
- Support wireless and wired mode. Plug and play. Plug a network cable to the WAN slot. The kit will achieve network.
- Remote access via IOS and Android Phone
Specifications
| Wireless NVR Specification | ||
| Model | AVS-8CH1080IPK | |
| Operating System | Embedded Linux OS | |
| AV(audio/video)input | Network Video | 8CH |
| Network video input broadband | 20Mbps | |
| Audio Bitrate | 64Kbps | |
| AV (audio/video) output | HDMI output | 1024x768,1366x768, |
| 1440x900,1920x1080p | ||
| VGA output | 1024x768,1366x768, | |
| 1440x900,1920x1080p | ||
| AV CODEC Specification | Video Resolution | 1080P Realtime |
| Synch-playback | 8CH | |
| Video Control | Video/Capture mode | Maual,Time,Motion,Alarm |
| Playback mode | Real time,Routine,Event | |
| Backup | USB backup | |
| Alarm | Alarm Input | 4ch (optional) |
| Alarm Output | 1ch (optional) | |
| Hard Disk | Type | 1*SATA interface |
| Support Capacity | 1-4 TB | |
| External Interface | Network Interface | 1 adaptable RJ45 10M/100M, 1 WIFI interface |
| USB Interface | 2 USB 2.0 | |
| Network Control | Protocol | UPnP (play&plug)/SMTP (email survice) / PPPoE (dial-up) |
| DHCP (Automatically obtain an IP address), etc | ||
| Others | Power Supply | DC12V3A |
| Power Consumption (W) | ≤5W(Without HDD) | |
| Operate Temperature (°C) | -10℃~+55℃ | |
| Working Humidity (%) RH | 10%~90% | |
| Size | 257mm(W)×210mm(V)×45mm(H) | |
| Weight(excluding HDD) | 0.75kg | |
Product image

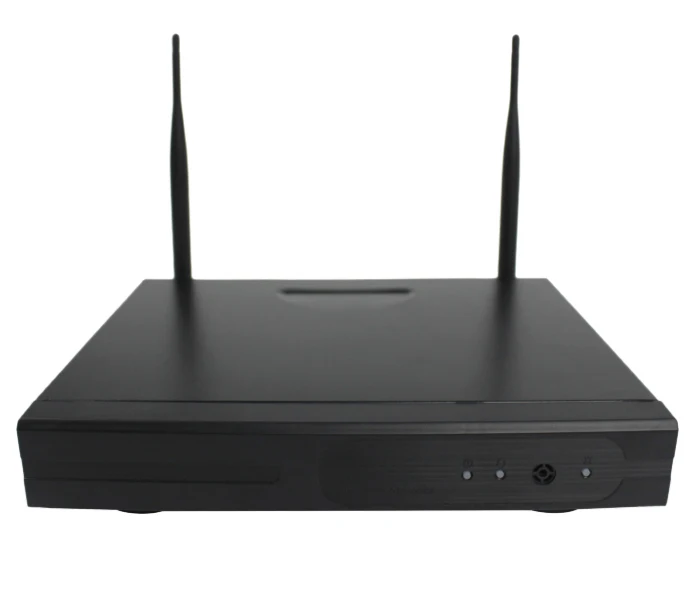

NVR Image
| Wireless IPC Specification | |
| Sensor | 1/2.9” Progressive Scan Sensor |
| Signal System | PAL/NTSC |
| Resolution | 1920 x 1080 (1080P) |
| Minimum illumination | Color: 0.1 Lux; B/W: 0.01 Lux |
| Shutter | 1/25s to 1/25,000s |
| Lens | 3.6mm Megapixel lens |
| White Balance | Auto |
| Day&Night | Auto / Color / BW |
| Interface | RJ45 / WIFI 802.11b/g/n |
| Anti-thunder Level | Standard IEC61000-4-5 |
| Working Temperature/Humidity | -10℃ to +50℃ / 30% to 80% RH |
| Working Temperature/Humidity | -20℃ to +60℃ / 20% to 90% RH |
| Power Input | DC12V-1A |
| Size | 205(L)×70(W)×55 (H)mm |
| Weight | 0.48KG |
| Waterproof | IP67 |

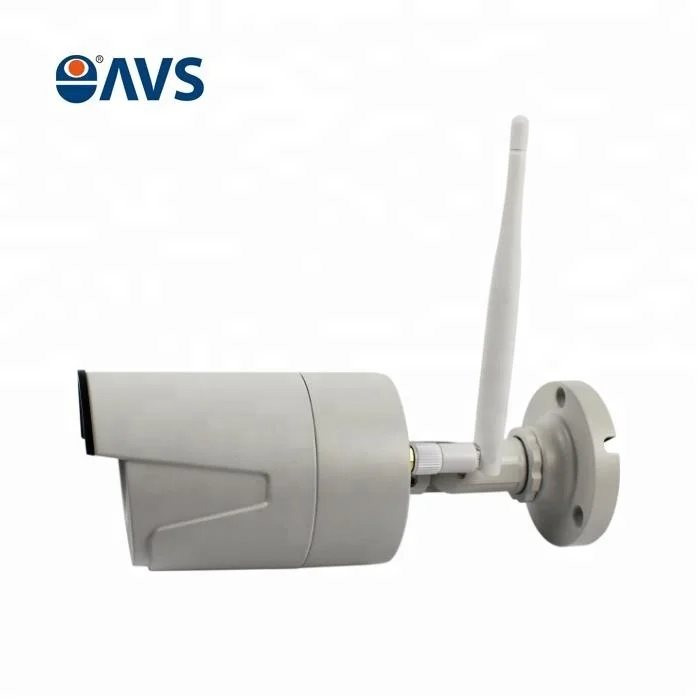

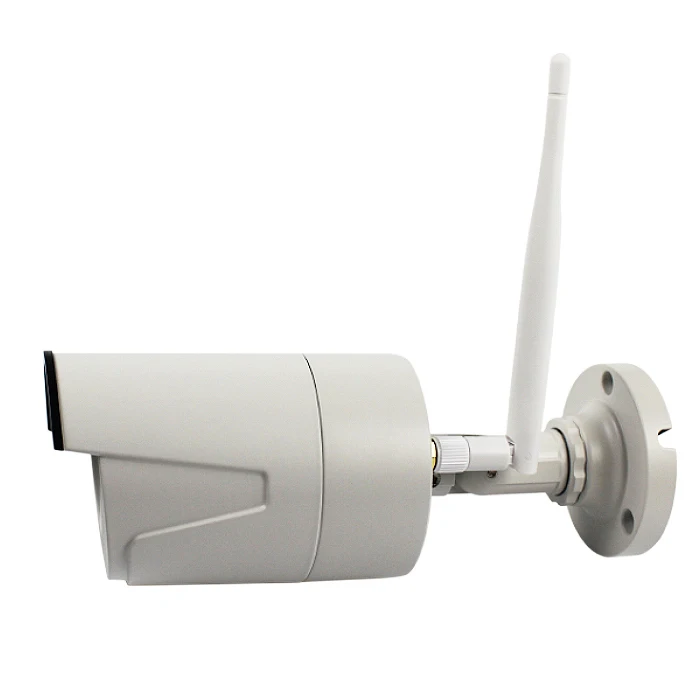

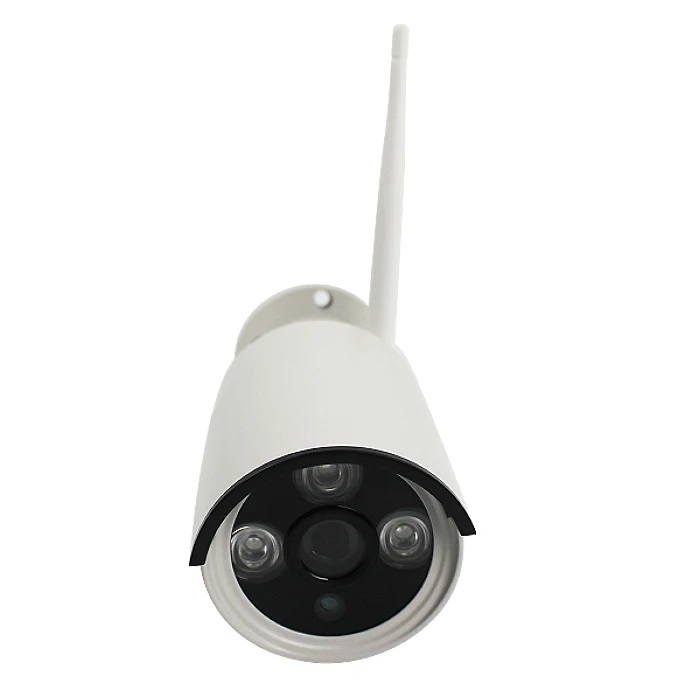

IPC Image
Accessories Image
12V 3A Power Adapter(NVR)

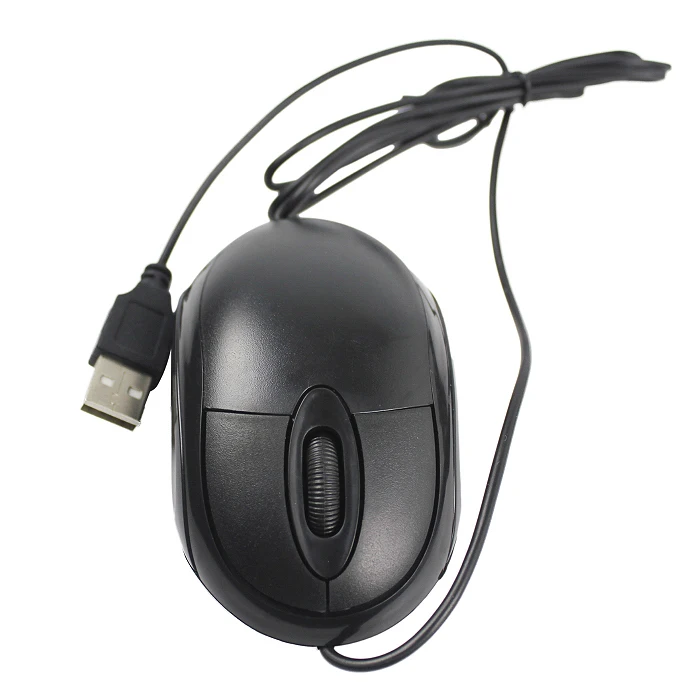

Mouse
LAN waterproof Slot
Packaging & Shipping

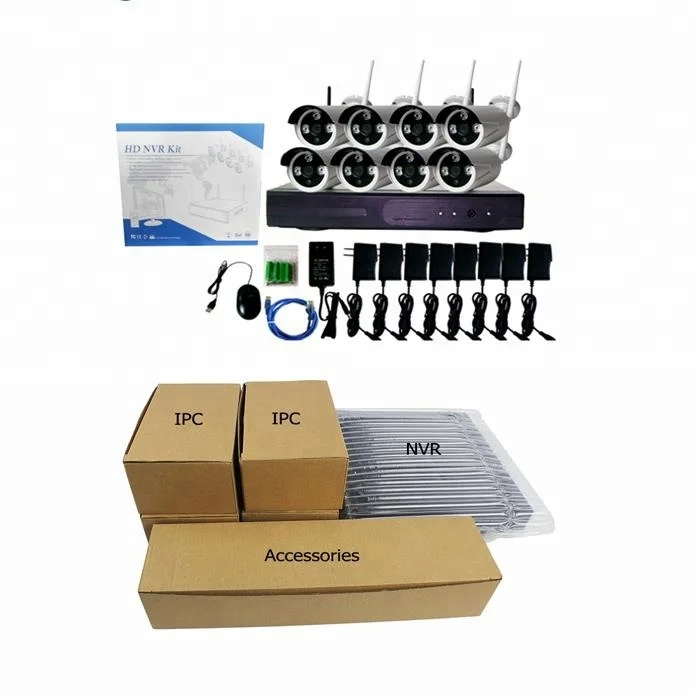

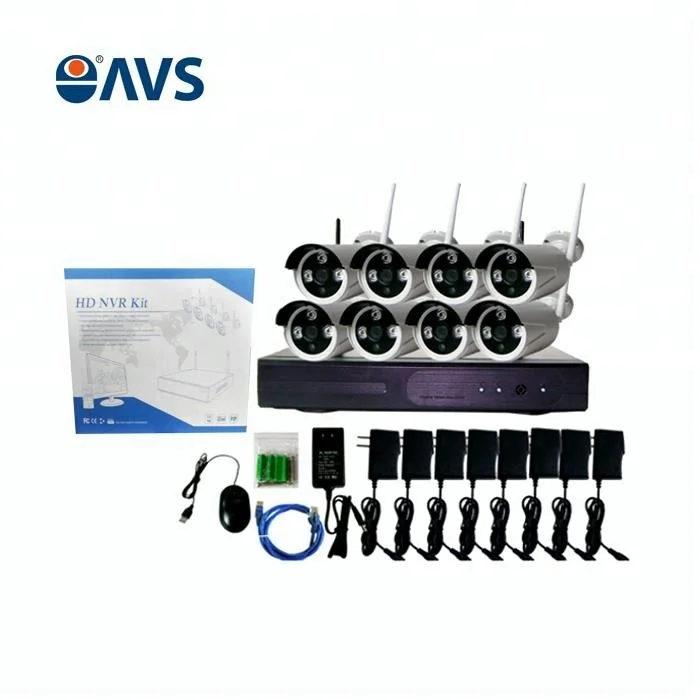

What’s in the package?
1. 8 pcs1080P Network camera+1pcs 8ch1080P NVR
2. 1pcs network cable +1pcs12V 3A+4pcs 12V 2A power supply
3. English User Manual+CD(CMS,mobile app,manual), Mouse
Related Products

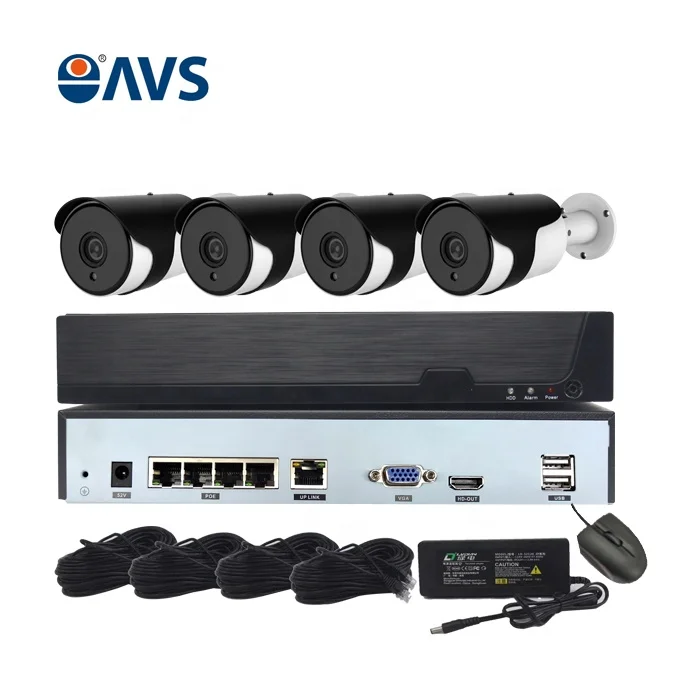

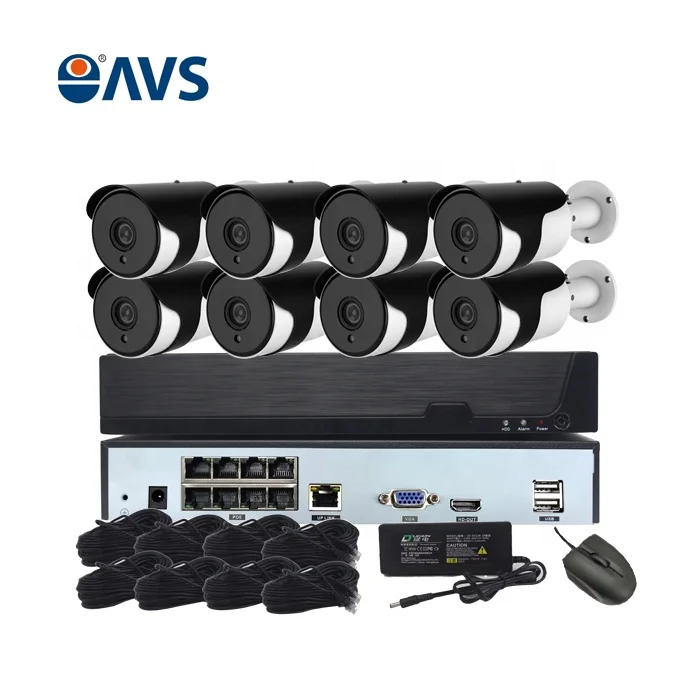

POE Kits:
Company Information
Customer Visiting
Team Working
Product Certificates
Trade Information
| Price Term | EXWork, CFR, FCA, FOB, CIF, DAP XXX |
| Order MOQ | 50-100pcs |
| Port | Shenzhen, Hong kong |
| Shipping Term | Express, by air, by sea, by truck, by railway |
| Payment Term | T/T, Western Union, Paypal, Money Gram, Trade Assurance |
| Production Capacity | 20000pcs per month |
| Lead Time | 7-15 days |
| Package | Color box, netural box |
