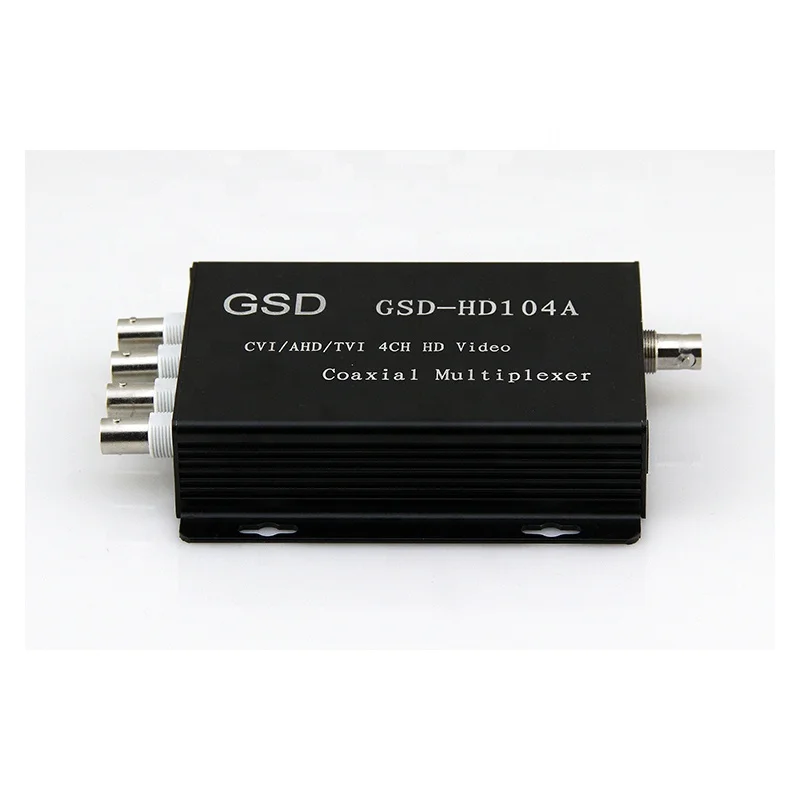

Unique 4 channel cctv ahd/cvi/tvi video coaxial multiplexer for cctv cameras
Product Description
This product uses special compression modulation technology, on the front end (transmitter) let 4-channel CVI/AHD/TVI hd camera to compressed, then made into digital signal in coaxial cable transmission. The back-end (receiver) through modulation, reductive into 4-channel hd signals for hd DVR (CVI/TVI/AHD) or matrix use after decompression. This series of products can be divided into the 100 meters, 200 meters, 300 meters and other transmission distance and different models.
It supports 4 channel video signals in one coaxial cable by way of Frequency Division Multiplexing, with alldata transmission real-time and all images high-definition and non-delay. It is suitable for improvement of old projects and building under new projects.
Key features
1. It’s designed according to projects with minimum installation volume requirement.
2.4-CH video in one coaxial cable transmission.
3.FDM technology is easy for multi-channel signals transmission only in one coaxial cable without any delay and interference.
4. Perfect support coaxial video line, 75-3, 75-5, RG59 wire, etc.
AHD (made by XM): perfect quality effect, support 1080p, 720p
CVI (made by DAHUA): perfect quality effect, support 1080p, 720p
TVI (made by Hikvision): general quality effect, support 1080p, 720p
Solution in the upgrade, Hikvision 720p is in progress...please focus on us, thanks…
AHD/CVI/TVI, these three solutions can not mix and match the transmission signal at the same time. Single solution and 4-CH transmission signals is more stable!
