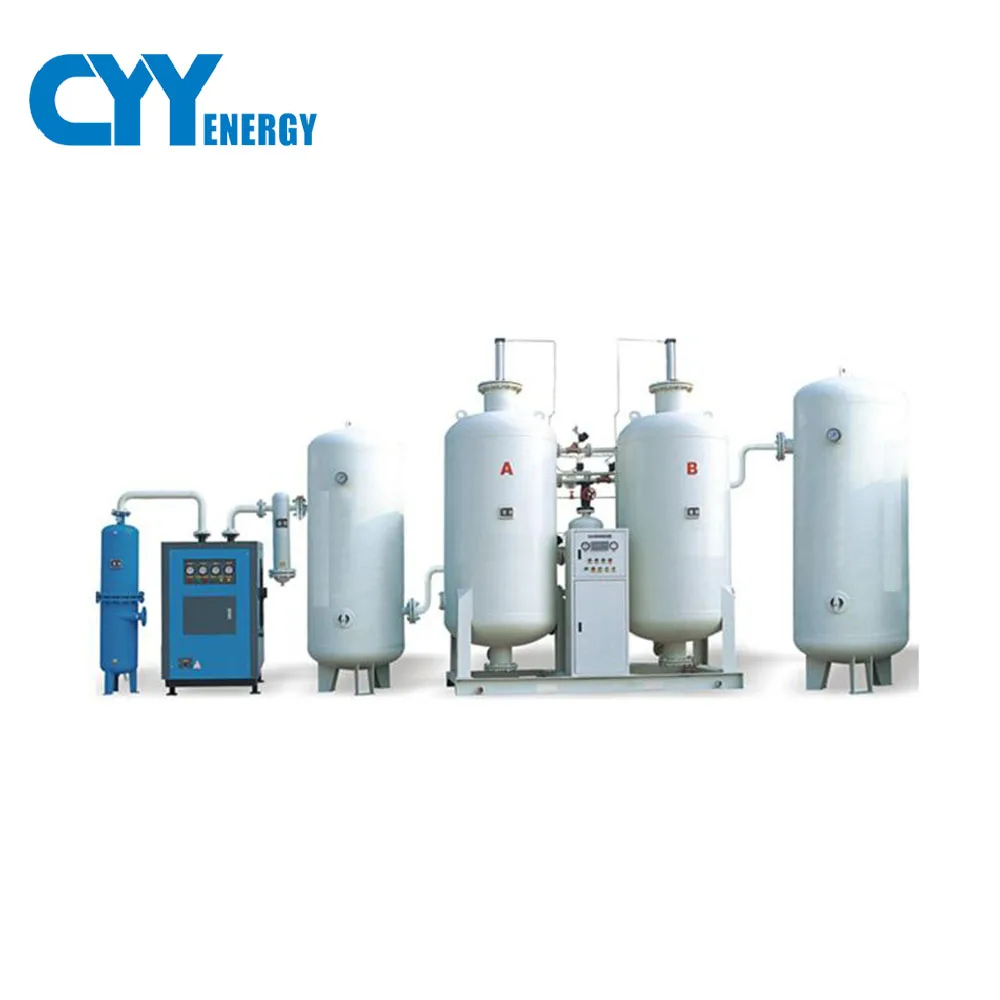

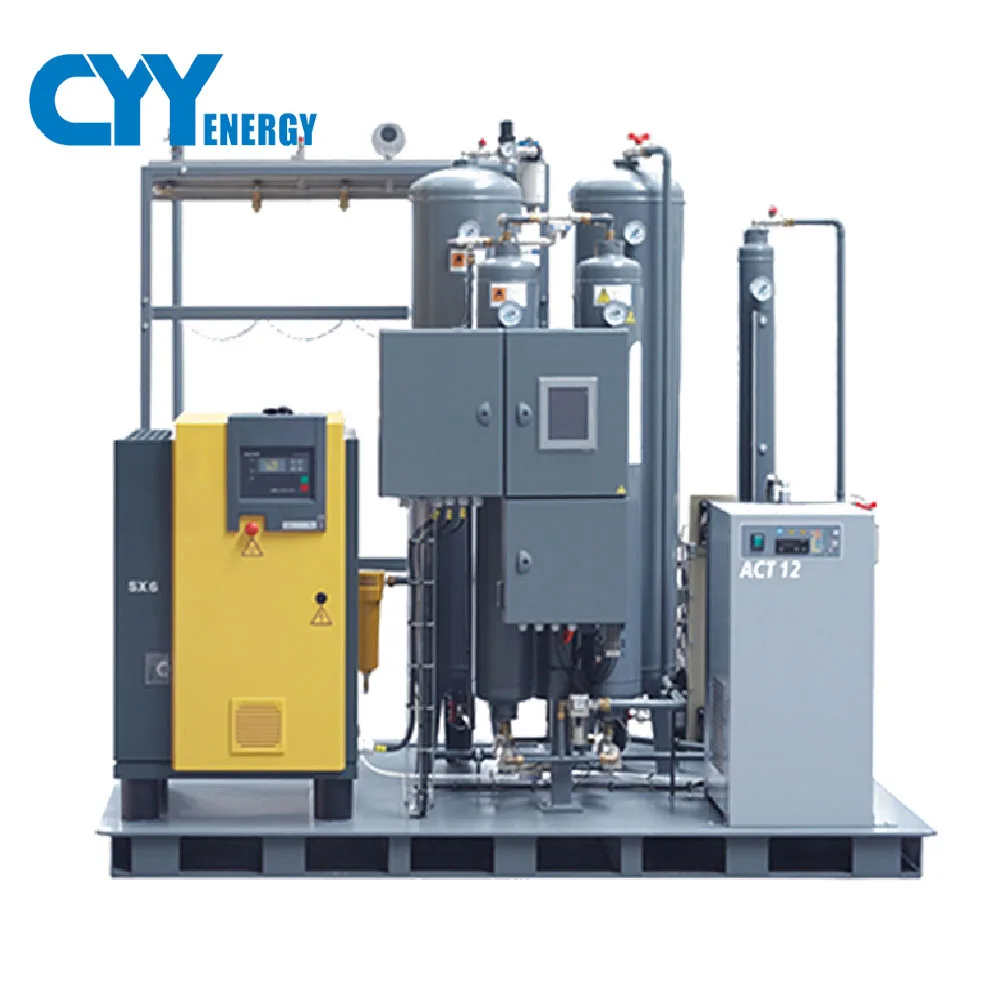

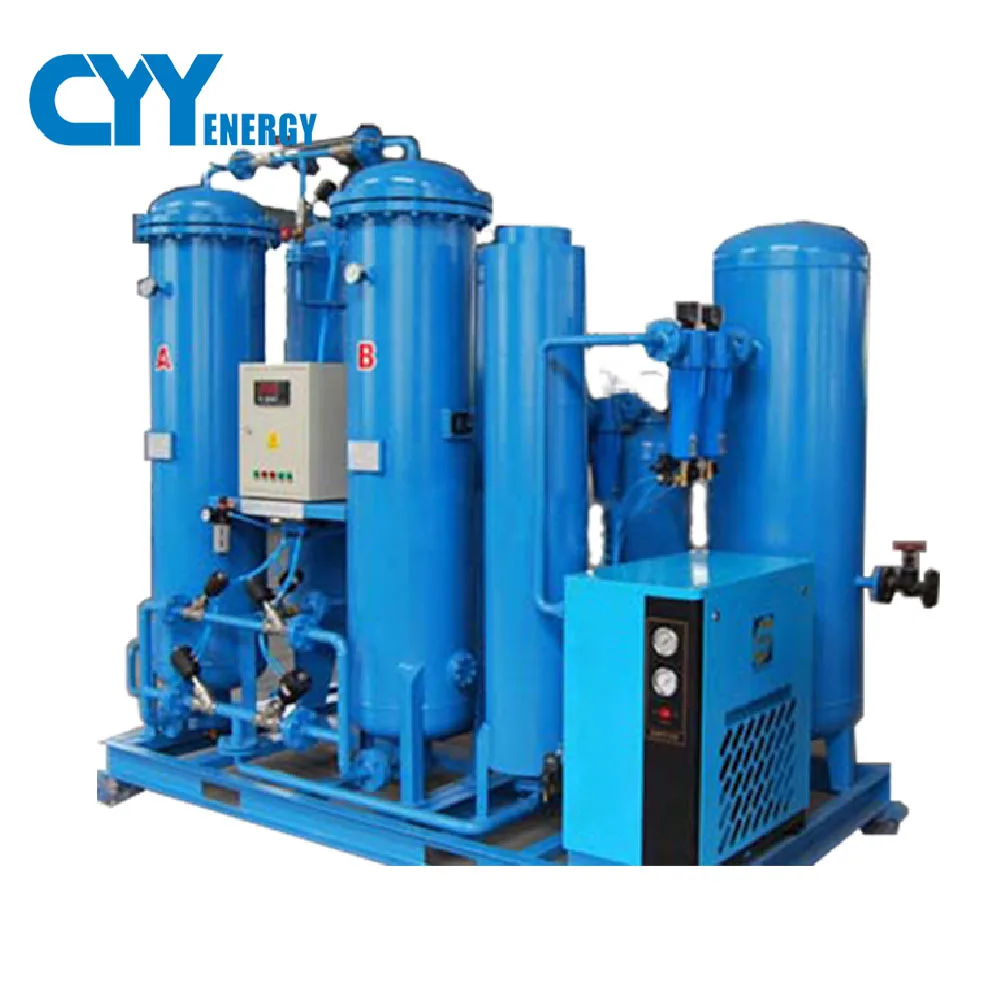

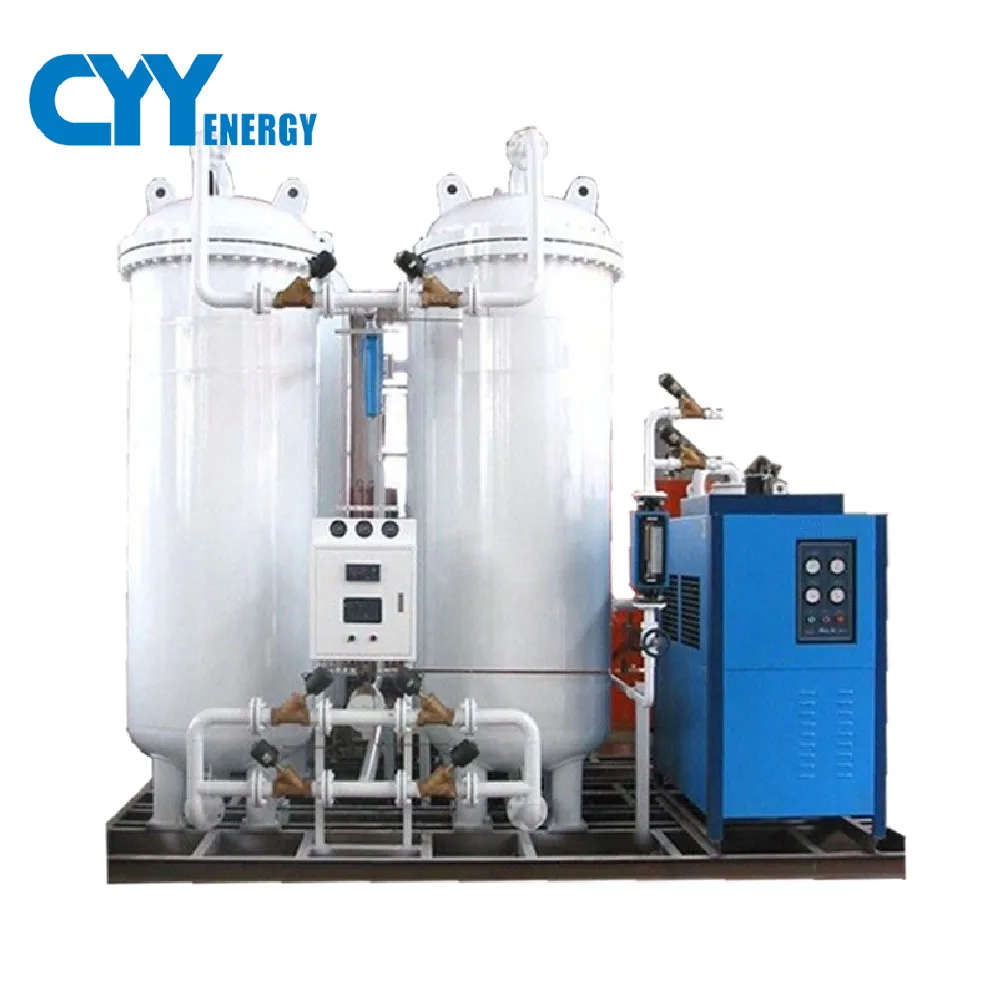

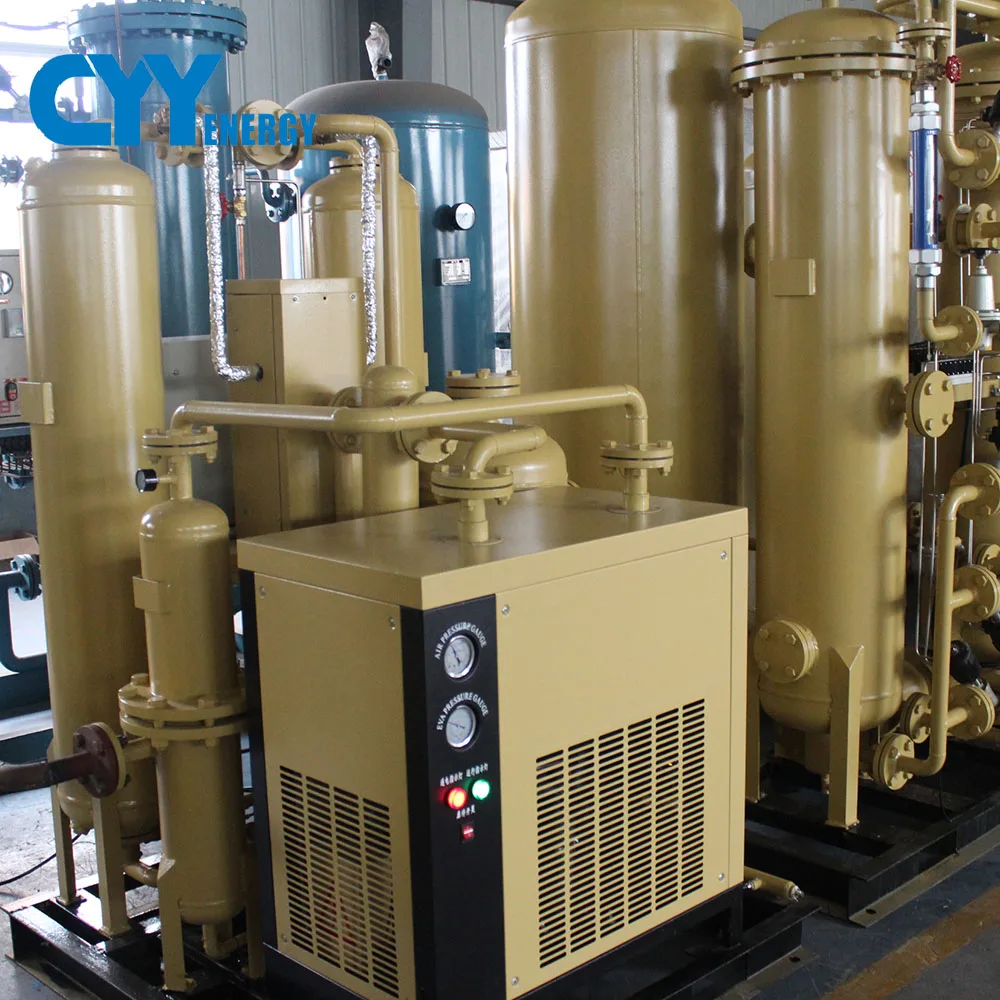

PSA medical oxygen generating system manufacture for sale

Product Overview

Description

We offer a wide range of PSA oxygen/nitrogen gas generators to be installed onsite for all industrial oxygen/nitrogen applications. Our oxygen/nitrogen gas generators are based on the well-known PSA (Pressure Swing Adsorption) technology using two pressurized columns with molecular sieves providing your business with unlimited oxygen/nitrogen generation on demand.

PSA
parameters	Oxygen	Nitrogen
Gas production	5-200Nm³/h	5-3000Nm³/h
Purity	70-94%	95-99.999%
Export pressure	0.1-0.5MPa	0.1-0.8MPa
Atmospheric pressure dew point	≤-40℃



VPSA (vacuum pressure swing adsorption) oxygen production equipment mainly consists of blower, vacuum pump, oxygen adsorption tower, balance tank, switching valve and PLC control system. The raw material air is pressurized by the blower, cooled by the cooler, adsorbed by the adsorption tower, and desorbed by the vacuum pump to finally separate the oxygen from the raw air.



VPSA
Oxygen production	100-10000Nm³/h
Oxygen purity	50-94%(Adjustable)
Oxygen consumption	0.30-0.38KWh/Nm³ when the purity of oxygen is 93%
