Track Pad for Excavator Undercarriage Parts Good Quality Chain on Pave MJJ400B Rubber Crawler Excavator Online Support 400*72.5
- Category: >>>
- Supplier: Hangzhou Shengchi Machinery Co. Ltd.
Share on (60511400718):
Product Overview
Description
Product Description

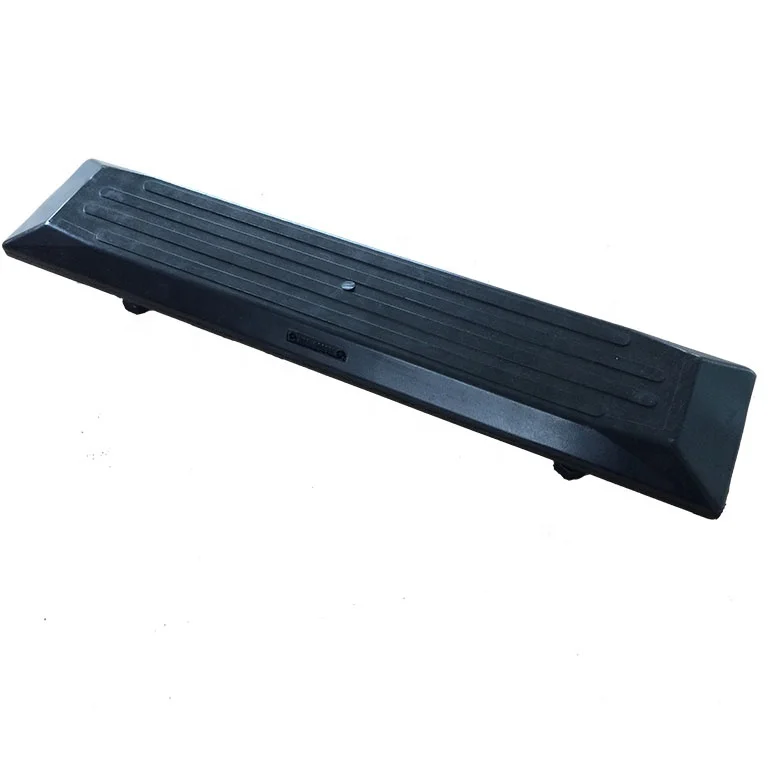

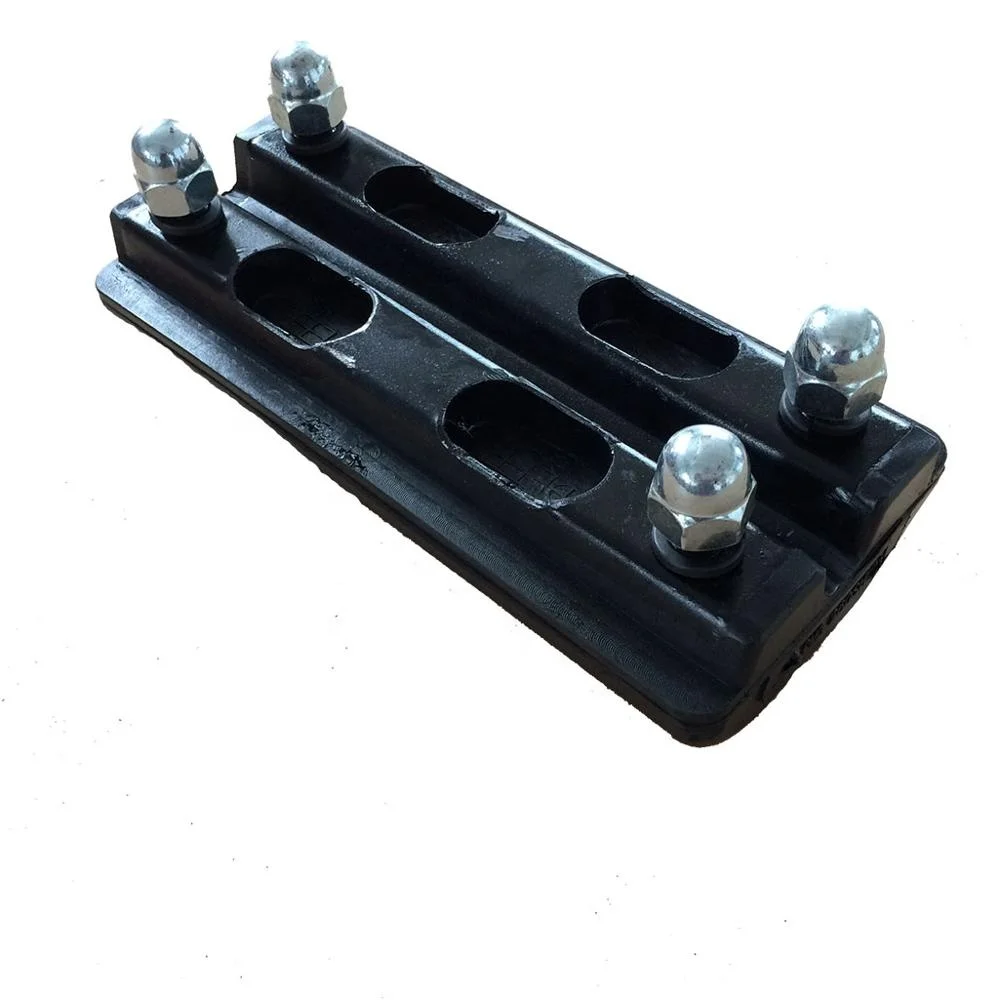

Excavator Parts RP BOLT B600L Rubber Track Pads Bolt-On Type for sale
Type of rubber tracks:
Range of Application:

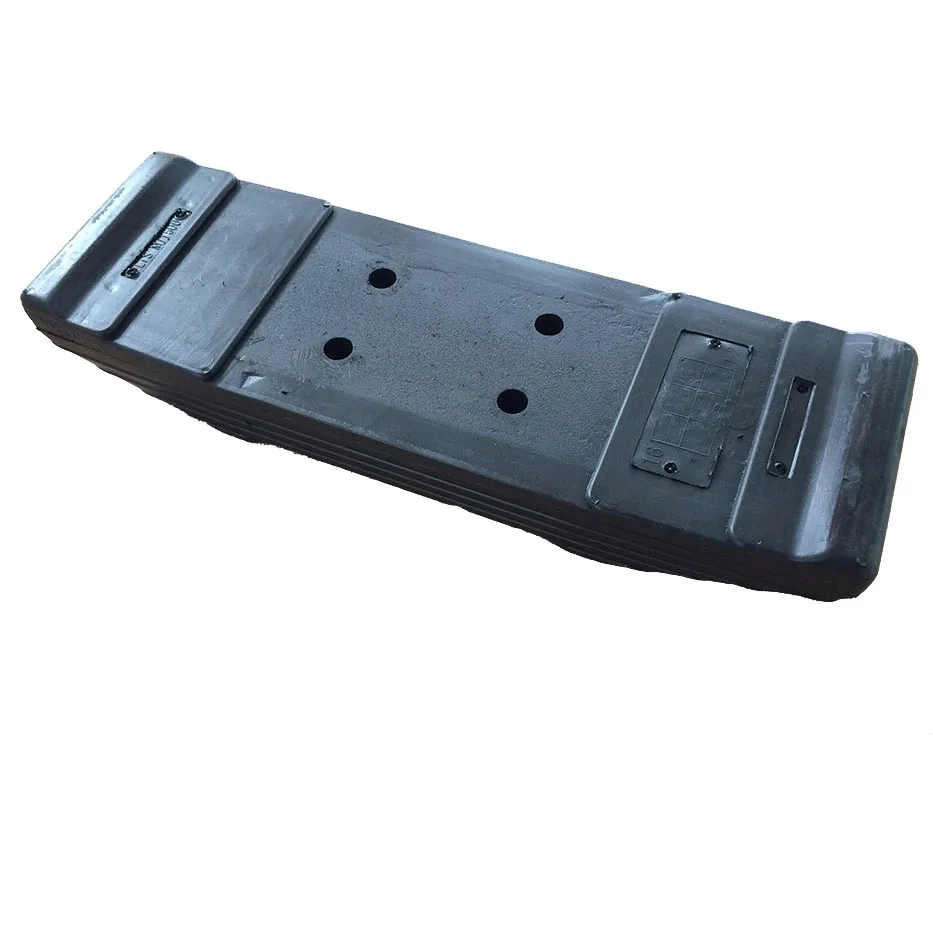

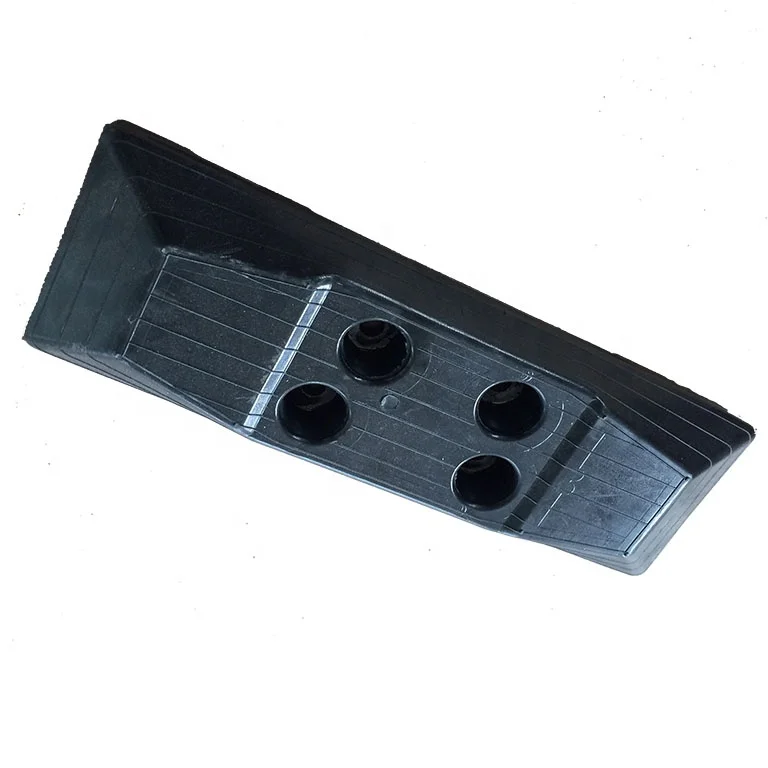

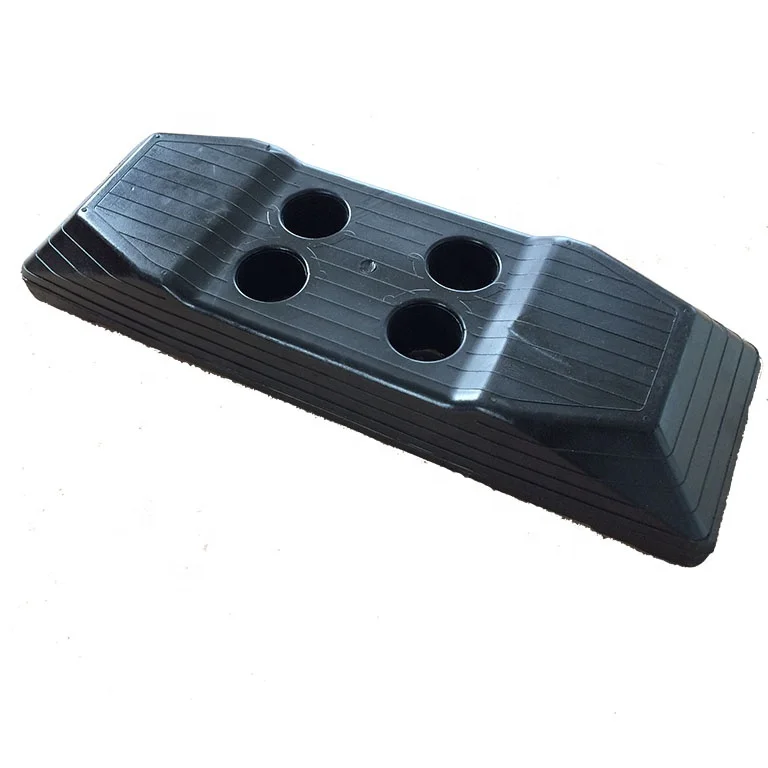

1). Bolt-on: Work if your existing steel pads have pre-drilled holes
2). Clip-on: Use clips that wrap around the pad and work with most styles of pads.

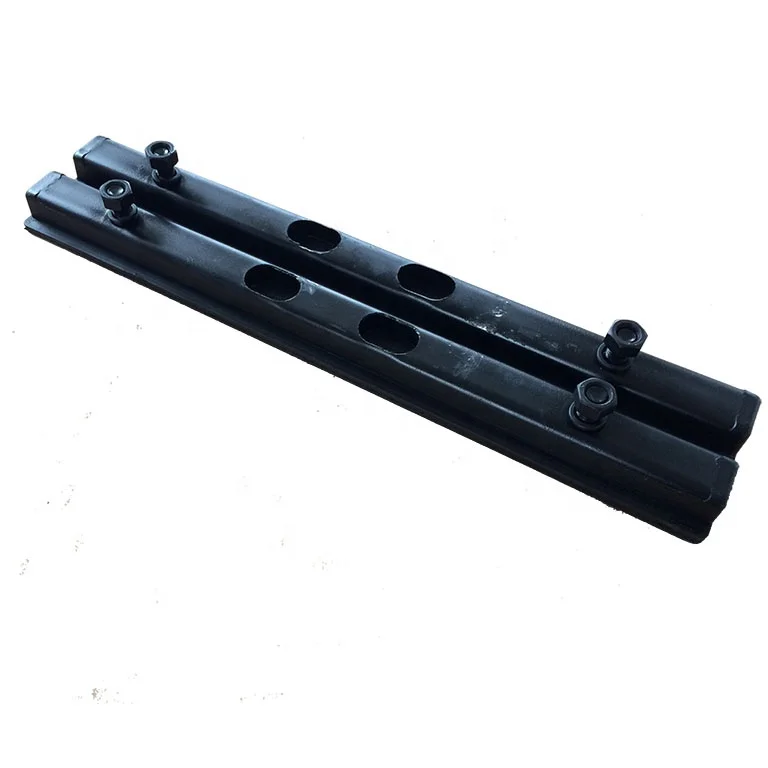

3). Chain-on : Bolt directly to the chain so there is no triple-grouser shoe involved
3). Chain-on : Bolt directly to the chain so there is no triple-grouser shoe involved
Warranty: Guarantee one year under normal use
Range of Application:

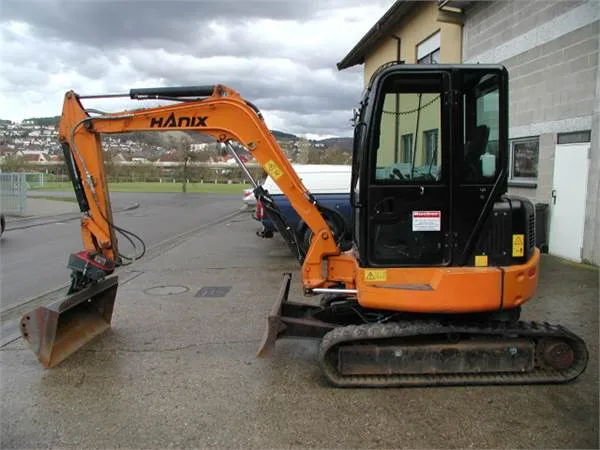

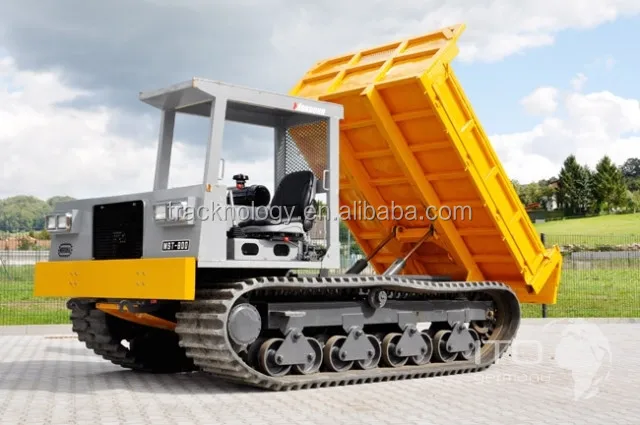

Excavator , Paver , Tractor , Loading machinery , Non excavator machinery , Grasp machinery , Drilling Machinery.........
Moden | External (L*W*H) | Nr.of Bolt | Bolt diameter | D | W1 | H1 | H2 |
MG230 | 230*70*38 | 2 | 12 | 150 | 51 | 15 | |
MG250 | 250*70*38 | 2 | 12 | 150 | 51 | 15 | |
MG300 | 300*70*38 | 2 | 12 | 199 | 51 | 15 | |
MG300A | 300*106*38 | 4 | 12 | 200 | 34 | 14 | |
MG300S | 300*70*38 | 2 | 12 | 199 | 51 | 15 | |
MG350 | 350*70*38 | 2 | 12 | 199 | 51 | 15 | |
MG350B | 350*105*38 | 4 | 12 | 220 | 36 | 11 | 14 |
MG350D | 350*105*38 | 4 | 12 | 290 | 36 | 11 | 14 |
MG400B | 400*105*38 | 4 | 12 | 300 | 36 | 11 | 14 |
MG400D | 400*105*38 | 4 | 12 | 300 | 36 | 11 | 14 |
MG400G | 400*105*45 | 4 | 12 | 300 | 31 | 18 | |
MG400S | 400*70*38 | 2 | 12 | 300 | 51 | 15 | |
MG450A | 446*105*38 | 4 | 12 | 350 | 36 | 11 | 14 |
MG450D | 446*126*48 | 4 | 14 | 350 | 41 | 20 | |
MG450B | 446*126*48 | 4 | 14 | 350 | 41 | 20 | |
MG450H | 446*126*48 | 4 | 14 | 350 | 31 | 18 | |
MG450FK | 446*128*46 | 4 | 14 | 350 | 41 | 20 | |
MG450G | 450*105*45 | 4 | 12 | 350 | 33 | 22 | |
MG475D | 470*136*52 | 4 | 16 | 350 | 43 | 20.5 | |
MG500 | 495*124*58 | 4 | 16 | 400 | 35 | 26 | |
MG500A | 495*138*52 | 4 | 16 | 400 | 44 | 19 | |
MG500B | 495*155*52 | 4 | 16 | 400 | 37 | 15.8 | |
MG500D | 495*126*56 | 4 | 16 | 400 | 37 | 19 | |
MG500L | 495*126*58 | 4 | 16 | 400 | 37.5 | 25 | |
MG600 | 595*138*73 | 4 | 20 | 400 | 49 | 26 | |
MG600B | 595*140*58 | 4 | 16 | 400 | 43 | 26 | |
MG600L | 595*126*58 | 4 | 16 | 400 | 37.5 | 25 | |
MG700K | 695*148*68 | 4 | 20 | 400 | 49 | 26 |
Rubber Track Tread Patterns and OEM Track Sizes
A wide range of track designs and track patterns are available for specific machine applications and working conditions. Ask one of our professional sales associates which patterns are available for your machine.
A wide range of track designs and track patterns are available for specific machine applications and working conditions. Ask one of our professional sales associates which patterns are available for your machine.
Details Images
Packing & Delivery
Packing of Mini Crawler Excavator Rubber Track
1.Standard exported wooden pallet FCL LCL
2.Fumigate seaworthy packing
3.Customized
1.Standard exported wooden pallet FCL LCL
2.Fumigate seaworthy packing
3.Customized
Company Profile
About Us
Hangzhou Shengchi Machinery Co,Ltd was established to be an outstanding manufacturer of excavator attachments and undercarriages and advance construction machine parts professions. Currently, our undercarriage products are mainly involved in track roller, top
roller, sprocket, rubber track and so on. Most of them are being exported to Europe, Japan and UK.
Taking care for all customers, offering quality products, listening to what customers want has always been our philosophy.
roller, sprocket, rubber track and so on. Most of them are being exported to Europe, Japan and UK.
Taking care for all customers, offering quality products, listening to what customers want has always been our philosophy.

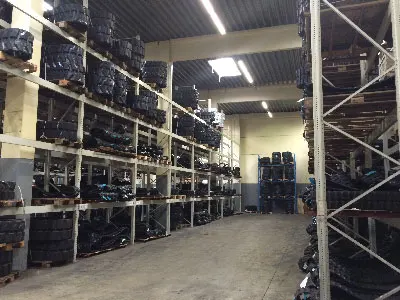

Workshop -Undercarriage
Workshop -Attachments
Application scenarios
If you have a mass of count products with new type, we also can develop the new one for you if you are interested in our company.
If you don’t find the type you want at follows, please give us the particular information of the type you want, and we’ll do our best to help you.
If you don’t find the type you want at follows, please give us the particular information of the type you want, and we’ll do our best to help you.
