Product Overview

Description


Robotic Automatic Paint Shop for Automotive Parts








































Power              • 400-500KW (415V,3-PHASE,50HZ)
Spindle Conveyor


              • SS track
              • Sprocket: GI finish
              • VFD control
              • Speed: 3-11mtrs/min adjustable





Deionzing Booth




              • W1.5m*D2.4m*H2.2m
              • Structure: SS304
              • Exhaust Blower: 8000 m³/hr
              • Ion Producer: with ion nozzle
              • photo sensor





Spray Booth




              • Size:3.5*2.5*2.8m
              • SS structure: SS304
              • Water Tank: SS304
              • Explosion-proof lighting system
              • HEPA Filter: efficiency 99.99%
              • Exhaust fan, Air volume-12000 m³/hr
              • With explosion proof glass  observation window
              • Spray Gun: IWATA
              • Paint Pump: GRACO





Rotation Unit




              • Selt-rotation system: 2 sets (clockwise and anti-clockwise)
              • Gun Stand: SS (with scale) and angle variable
              • Selt-rotation motor: 0.375KW
              • Photo Sensor





Oven




              • IR tunnel oven and UV oven
              • TEM:50-90 degree
              • Heating pipe and UV lamp
              • Mirror stainless steel inner wall
              • T50mm rockwool thermal insulation
              • SCR unit





Control Panel




              • PLC touching screen
              • overload alarm
              • interlock for security
              • MCCB: international brand


              • VFD: well-known brand






Turnkey Robotic Automatic Paint Shop for Automotive Parts:

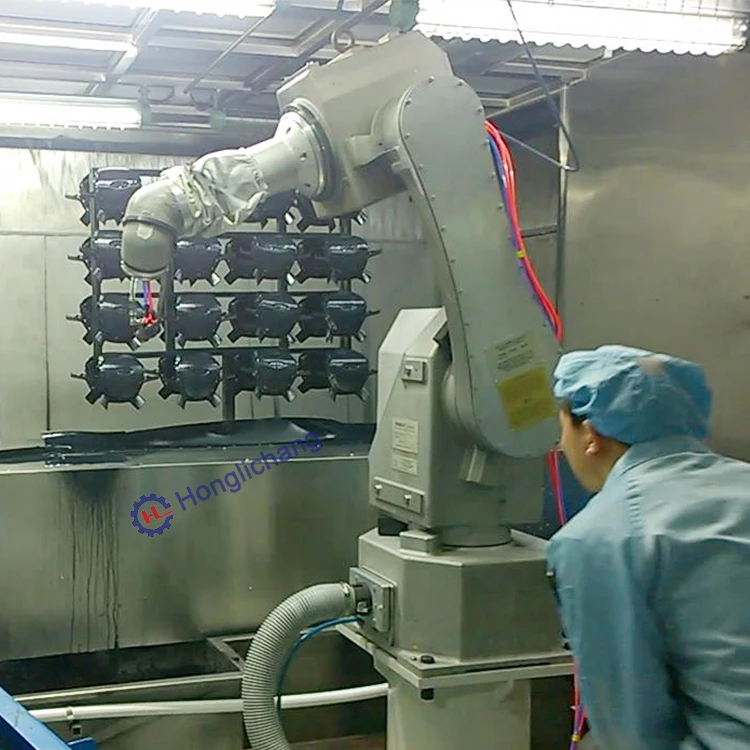

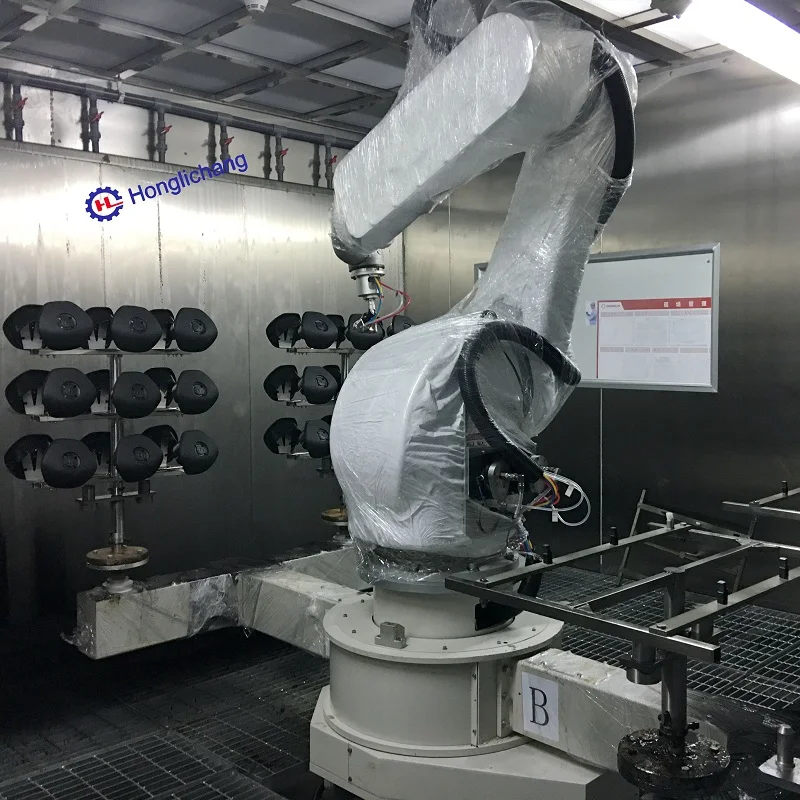

1. 6-axis robot spray painting type paint shop for automotives
2. Robotic Automatic Paint Shop for Car Parts wiht power & free conveyor
3. SS spray paint booth with humidity control, air supply & exhaust
4. turnkey Robotic Automatic Paint Shop for automotives
5. wet-on-wet processing paint shop: primer - base coat - top coat
6. 10000 class clean room for this Robotic Automatic Paint Shop for automotives
7. main electronic parts from Germany, Japan & Taiwan


Product Description


02





01





1_05





Hot sale


Hot sale 1





Company Information


FACTORY 1.jpg


08





Packaging & Shipping


3725





FAQ





 FAQ


 Q1:Are you trading company or manufacturer?


  A1:We are 100% manufacturer,professional supplier of spray painting line for over 12   years.





Q2:How hong is your delivery time?


 A2:Generally it is 40-45 workdays,it is according to the layout.





Q3:What is your terms of payment?


 A3:Multiple,we can disscuss.





 Q4:What is your Pre-sales service?


 A4: *Inquiry and consulting support.


        *Technology solution and quotation.


        *Customer visit our factory and check our production.





Q5:Where is factory? Can visit?


 A5:Yes,of course.


Office: A901, Building No.2, Tianan Digital Park, Longgang, Shenzhen, China - 518172


Factory: 11, Phase-2, Butterfly Ridge Industrial Park, Heyuan, Guangdong, China - 517583





Q6:Could you provide the design for me?


  A6:Absolutely,we can.We are a manufacturer and designer.Just let me know your product informations and requirements like product sizes,pictures,material,output,field map,technological process,or price budget and so on.We will make a layout according to your requirments.
