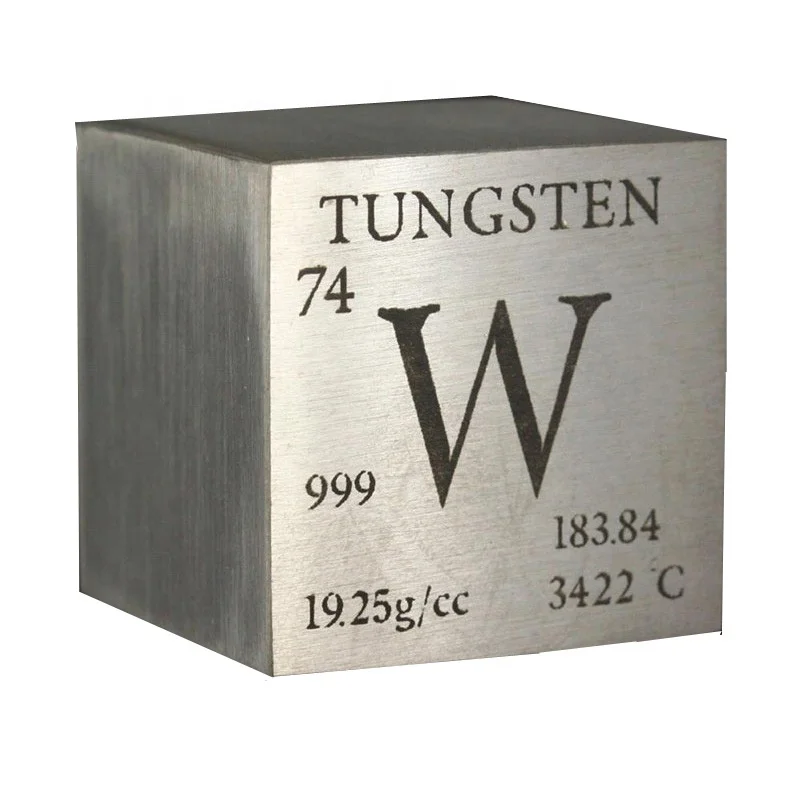

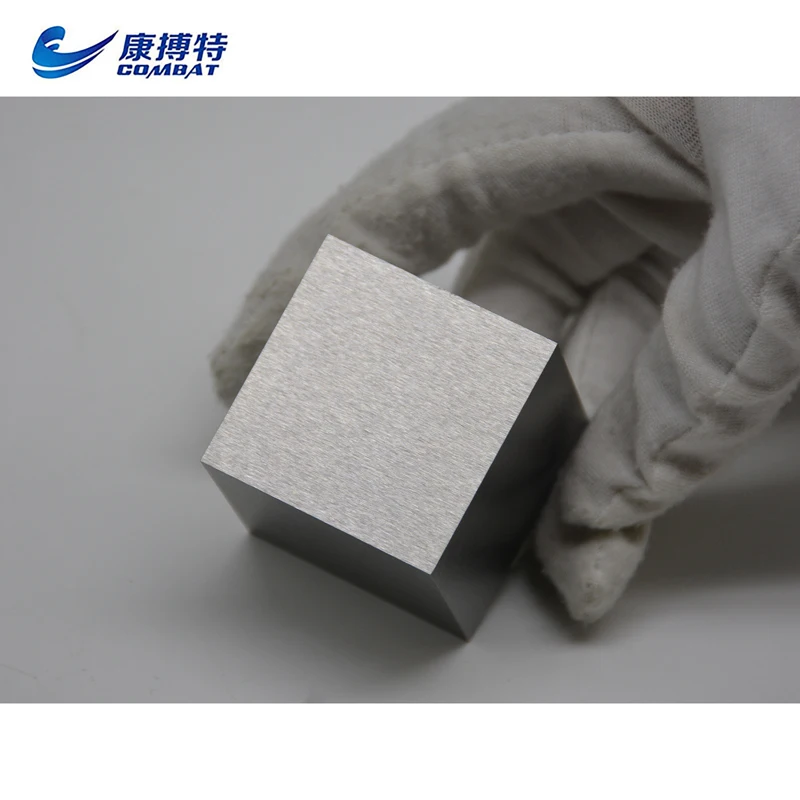

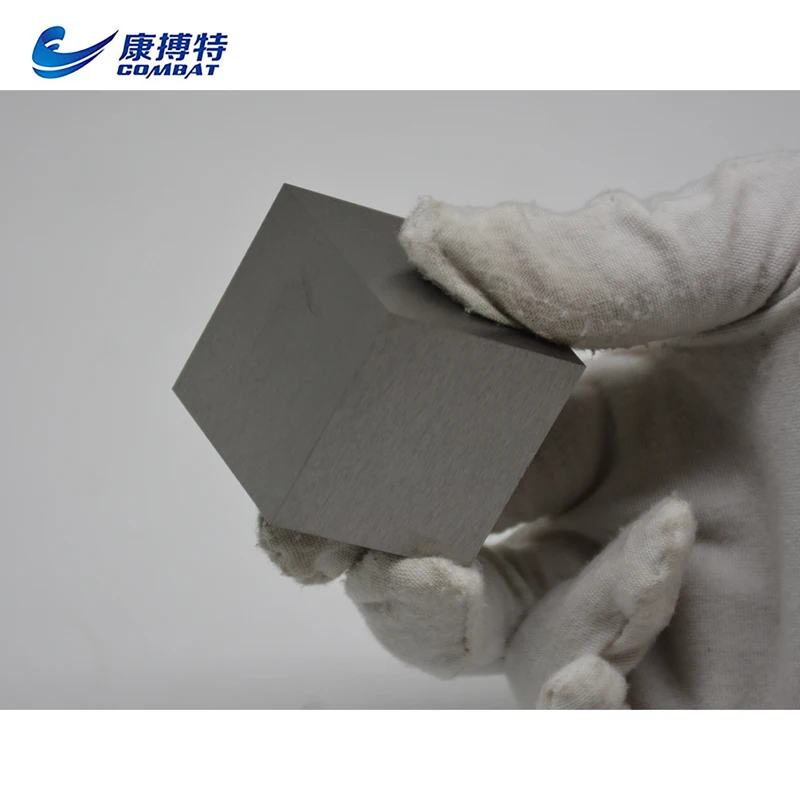

Tungsten Nickel Iron is a high-density alloy suitable for high-temperature environments and applications such as bearing assembly, ballast, casting, step soldering, and radiation shielding. Tungsten,nickel and iron alloys are available in numerous machined shapes such as bar, ingot, ribbon, wire, shot, sheet, and foil, in various dimensions.
Type
Density (g/cm³)
Tensile Strength (MPa)
Elongation (%)
Hardness (HRC)
85W-10.5Ni-4.5Fe
15.8~16.0
700-980
20-33
20-28
90W-7Ni-3Fe
16.9~17.15
700-980
20-33
24-32
90W-6Ni-4Fe
16.8-17.0
700-980
20-33
24-32
91W-6Ni-3Fe
17.1-17.3
700-980
16-25
25-32
92W-5Ni-3Fe
17.3-17.5
700-980
18-24
25-32
92.5W-5Ni-2.5Fe
17.4-17.6
700-980
24-30
25-32
93W-4Ni-3Fe
17.5-17.6
700-980
15-25
26-30
93W-4.9Ni-2.1Fe
17.5-17.6
700-980
18-28
26-30
93W-5Ni-2Fe
17.5-17.6
700-980
15-25
26-30
95W-3Ni-2Fe
17.9-18.1
600-750
8-15
28-35
95W-3.5Ni-1.5Fe
17.9-18.1
600-750
8-13
28-35
Our Company
Luoyang Combat Tungsten & Molybdenum Materials Co., Ltd. (hereafter referred to as “Luoyang Combat”) is a RMB 20 million joint-stock enterprise, with annual sales over RMB 200 million. Luoyang Combat specialized in the production, selling, import and export of tungsten, molybdenum, titanium and tantalum products.
Our products are widely used in lighting, glass, medical, wielding, military, aerospace, aviation, machinery, and furnace etc. Our production line is equipped with complete production and detection facilities, fine technique and high-level capacity. Our products reached ASTM standard and are favored by users.
We always pursue the best quality, biggest market and highest reputation. And we are infused with spirit of unity and struggle, healthy development, making top grade product and establishing a world first-class enterprise. With modern management concept, reliable product quality and considerate service, our products are popular on domestic and international markets, such as South Korea, Japan, Singapore, Russia, USA,UK, Germany.
Luoyang Combat Tungsten & Molybdenum Material Co., Ltd. established in 2008, is a professional engaged in the research, development, sale and service of tungsten, molybdenum, titanium, tantalum, niobium as well as alloy products. Our products are widely used in lighting, glass, medical, welding, aerospace, aviation, machinery, and furnace etc. Luoyang Combat has established a one-stop production line of wires, plates, bars, rods, etc. We are located in luoyang with convenient transportation access. We have a general investment of 500 million RMB and a plant area of 12,000 Square meter. Our sales volume reached 380 million RMB in 2019, increasing about 20% year by year. Combat sticks to the spirit of unity and hard work, pursuing healthy development and top grade products and aim to bulid a first-class enterprise. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. In addition, we have obtained I S O 9 0 0 1 certificates. Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as America, Canada, Korean, Japan, German, Switzerland, Mexico, etc. We also welcome OEM and ODM orders. Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements.

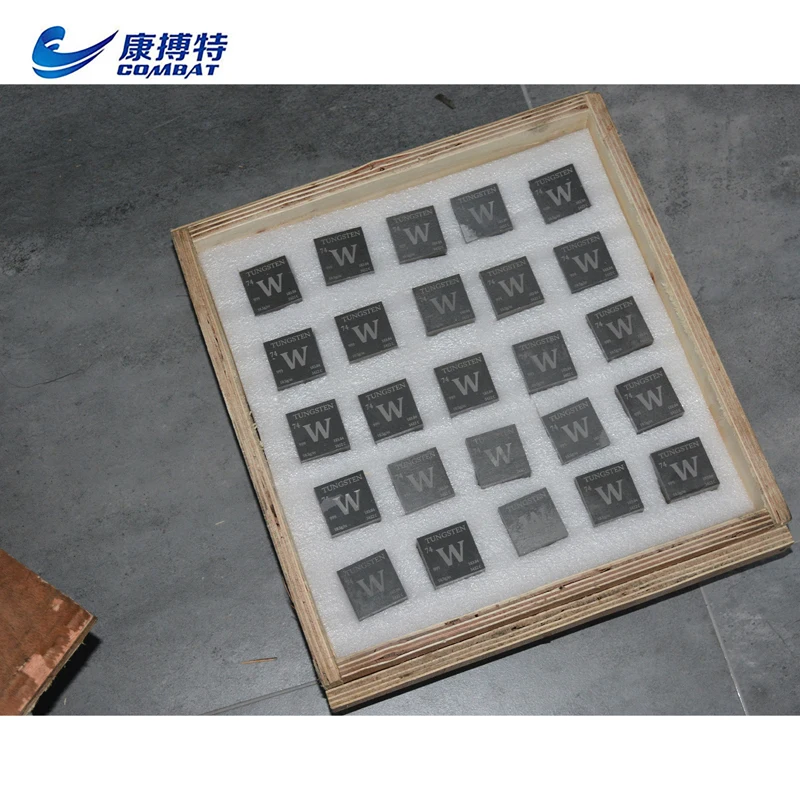

Packing & Delivery
The product will be sent by air freight. If you need large amount, we will arrange shipping for you.
FAQ
Q:What kind of molybdenum wire can you provide?
A:For pure molybdenum wires, we can supply Mo-1 black and white molybdenum wire(which is processed by electronic-polishing, chemical process or annealed) , specification ranges from 0.015mm-5mm, and the purity and density can reach to 99.95% and 10.2g/cm3.
3.2
Q:Can pure molybdenum wire be used as spray molybdenum wire? What specifications can you recommend?
A:Yes, currently the most commonly used spraying molybdenum wires are pure molybdenum wire and molybdenum lanthanum alloy wire, we can provide both of them.
The most common specifications of the spraying molybdenum wire we export are 3.17mm 3.175mm and 3.2mm.
3.3
Q:What is the weight of one coil 0.18mm wire and how long it is?
A:The net weight of each roll is about 520g, gross weight is about 610g. Our 0.18mm EDM wire is 2000m per coil. The surface is usually graphite black.
3.4
Q:What kind of molybdenum rod can you provide?
A:We can produce 99.95% purity molybdenum rods with a diameter of 0.8-120mm, and the length can be produced according to your needs. In addition, we can provide black , ground, and polished surfaces. The surface roughness can be less than 0.8um.
3.5
Q. what’s the surface of Molybdenum rod?
A: Black-surface is “as swaged or”as drawn”; retaining a coating of processing lubricants and oxide.
Cleaned-surface is chemically cleaned to remove all lubrication and oxides.
Ground-surface is centerless ground to remove all coating and to achieve precise diameter control.
3.6
Q:Regarding high temperature resistance performance, what is the difference between pure molybdenum, MoLa & TZM?
A:In the vaccum working environment, pure molybdenum can withstand the high temperature of up to 1800degrees. But its normal use temperature is 1100~1700 degrees.
MoLa and TZM both can withstand the hightemperature of 1800~2100 degrees.
Besides, Compared to pure molybdneum and MoLa, TZM has higher strength & excellent wear resistance in the high temperature environment becasue of the addition of titanium and zirconium
