Commercial Fried Food Frying Machine Fish Ball Fryer Equipment
- Category: >>>
- Supplier: Henan Gelgoog Machinery Co. Ltd.
Share on (60511628134):
Product Overview
Description
This machine is work with fried food machinery, suitable for food factory and frying company,the energy is gas. The temperature and frying time can be adjusted according to different foods,so it is an idea frying equipment.
Product Description
Features of Automatic Frying Machine for Pork Skin

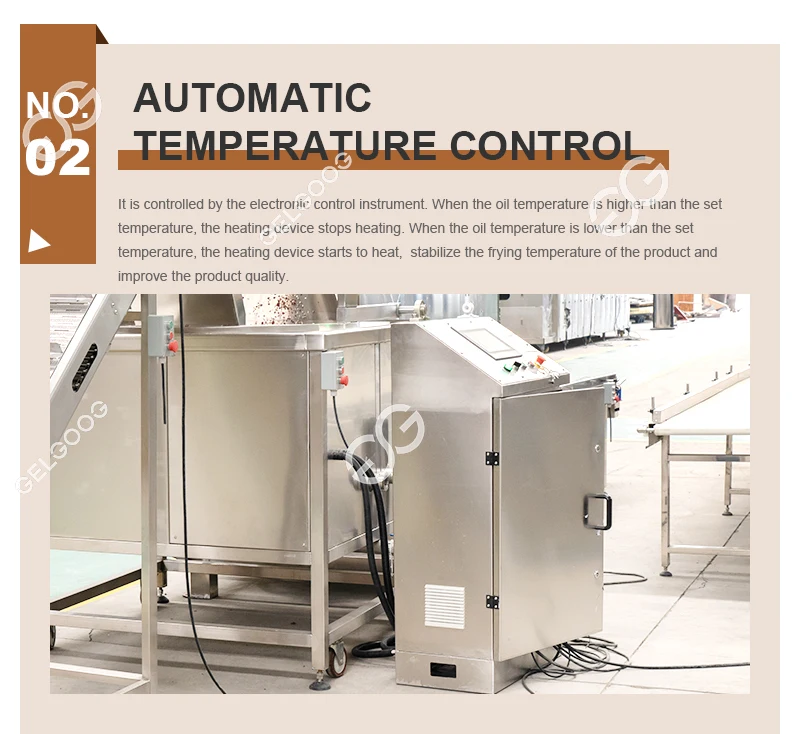

1. Intelligent temperature control, from 0-230 degrees adjustable;

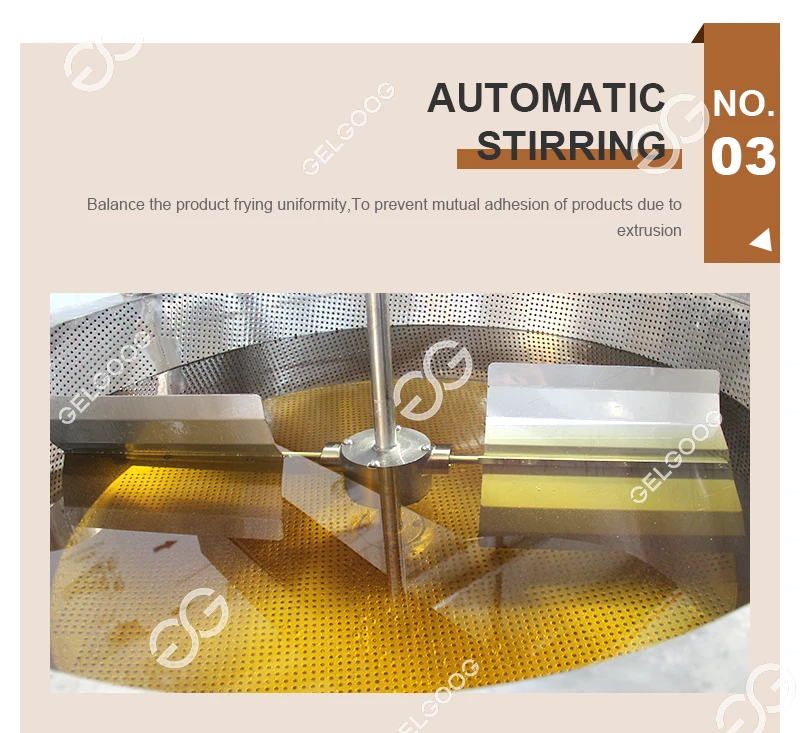

2. Automatic feeding, automatic mixing and automatic discharging;
3. Lower part is equipped with a temperature measuring device, and water temperature can be set;
4. Oil-water separation surface set observation glass tube and drain valve detection device, make water level more accurate;
5. Oil-water mixed frying technology, extending frying oil service life.
RELATED PRODUCT
PRODUCT PARAMETER
Model | ZYD1000 | ZYQ1000 |
Heating | Electric | Gas |
Power | 36kw | 0.75kw |
Size | 1500*1400*1700mm | 2100*1400*1700mm |
Weight | 400kg | 700kg |
Basket Size | φ1000*400mm | φ1000*400mm |
Oil Volume | 320L | 320L |
Gas Consumption | 12 | |
Capacity | 100-150kg/h | 100-150kg/h |
Working Principle of Fish Ball Fryer Machine
1.Turn off the oil-discharging valve,put oil into oil tank(Below frying frame 100mm)
2.Connect the gas pipe well and make sure no gas leakage,and connect electric power
3.Connect the gas pipe to burner in the machine, adjust the pressure of gas to 3300Pa,then open the valve
4.Set the temperature in the electric cabinet, then turn on the heating switch,the burner start to heating,turn on the stirring
button at this time
5.Check the raw material each the effect which user requests,stop stirring,then press the button of discharging,wait for a moment
when the frying frame raise to half to let the oil out,then put the material out directly
2.Connect the gas pipe well and make sure no gas leakage,and connect electric power
3.Connect the gas pipe to burner in the machine, adjust the pressure of gas to 3300Pa,then open the valve
4.Set the temperature in the electric cabinet, then turn on the heating switch,the burner start to heating,turn on the stirring
button at this time
5.Check the raw material each the effect which user requests,stop stirring,then press the button of discharging,wait for a moment
when the frying frame raise to half to let the oil out,then put the material out directly
Detailed Images
