19/16/12mm Micro CVBS CCD Camera 34*34mm 2.1/2.5/2.8/3.6/4.2/6/8/12/16mm Board Lens 34x34mm with audio industrial Camera RCA
- Category: >>>
- Supplier: Shenzhen HDV Electronics Co. Ltd.
Share on (60511658184):
Product Overview
Description
MINI CCD Camera 34*34mm 420TVL 480TVL 550TVL 600TVL 700TVL 0.01Lux 2.1/2.5/2.8/3.6/4.2/6/8/12/16mm board Lens
Order symbol:
HDV-M34A-L3.6 420TVL MINI CCD Camera with 3.6mm Lens
HDV-M34B-L3.6 480TVL MINI CCD Camera with 3.6mm Lens
HDV-M34C-L3.6 550TVL MINI CCD Camera with 3.6mm Lens
HDV-M34D-L3.6 600TVL MINI CCD Camera with 3.6mm Lens
HDV-M34E-L3.6 700TVL MINI CCD Camera with 3.6mm Lens

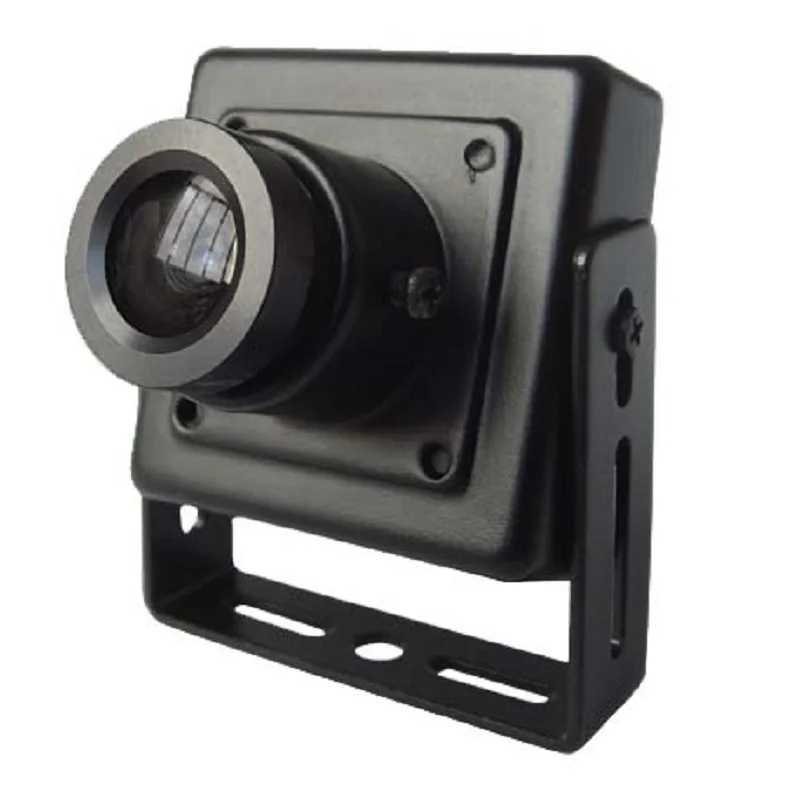

This is mini camera with a pinhole lens. The size of the square case of this camera can be 19*19/16*16/12*12mm. This mini surveillance camera is wiht high resolution and supports 700 TV lines of resolution. This camera comes with a 3.7mm pinhole lens which provides a wide angle of view (about 90 degrees. This camera is extremely small in size yet has the same lens angle of view and great picture as many of our other high resolution security cameras. This camera come with a U type holder and power and video cable leads.
These cameras can easily be in walls, clocks, toys, and just about any object you want. Custom cameras can be fabricated from just about anything to conceal these mini CCTV cameras.
Featues:
- 1/3" Sony CCD
- M12 Board lens
- 34*34mm, 85g
- 0.5Lux, Day to Night
- DC 12V, 80mA, Optional 5V
- PAL or NTSC optional
- Manual focus
- Angle of view around 80 degrees (without any distortion)
- BNC Connector Standard,
- Used: Banks'ATM, FPV
- Features:Pinhole,Day to Night,White Balance,Auto
- Can be customized by your requirements
Product Description
| M34 Series | Model | M34A-L3.6 | M34B-L3.6 | M34C-L3.6 | M34D-L3.6 | M34E-L3.6 |
| Name | Sony Mini Snake Camera | |||||
| Camera | Image Sensor | 1/3"Sony Super HAD II CCD | 1/3"Sony 960H CCD | |||
| DSP | Sony IC | Sony IC | Sony IC | Nextchip 2040 | Sony Effio | |
| Resolution | 420TVL | 480TVL | 550TVL | 600TVL | 700TVL | |
| Min.Illumination | 0.5Lux | 0.5Lux | 0.01Lux | 0.01Lux | 0.01Lux | |
| Effective Pixels | PAL: 500(H)x582(V) NTSC:510(H)x492(V) | PAL:976(H)x582(V) NTSC:976(H)x494(V) | ||||
| Frame | PAL 25fps, NTSC 30fps | |||||
| Standard Lens | 3.6mm board lens @ F1.2 View angle:90° | |||||
| Optional Lens | 1.8/2.1/2.5/2.8/3.6/4.2/6/8/12/16mm lens | |||||
| Elec Shutter | 1/50(1/60)s to 1/100,000s | |||||
| Day& Night | Electronic Day& Night | |||||
| White Balance | Auto | |||||
| Synchronization | Internal Synchronization | |||||
| Video Output | 1Vp-p Composite Output (75Ω/BNC) | |||||
| S/N Ratio | More than 48dB | |||||
| BLC | Auto | |||||
| AGC | Auto | |||||
| Industrial Standard | Power Supply | 12 V DC ± 10% | ||||
| Working Temp | -20 °C - 60 °C (14 °F-140 °F),Humidity 90% or less (non-condensing) | |||||
| Impact Protection | IEC60068-2-75 test, Eh, 50J; EN50102, up to IK10. | |||||
| Output | RCA Connector | |||||
| Shell Color | Black | |||||
| Dimension | 34*34mm | |||||
| Weight | 38g | |||||
| Accessories | Free | Brackets *1,Screw *2,Cable *1,Manul book *1 | ||||
| OSD Menu Over 600tvl | Adjust | HLC/D-WDR/White balance/Gain Control/Shutter speed/Privacy Mask/ Motion Detenction/ OSD LanguageBLC/ 2 DNR/ATR Setting/Display/ Definition/Day/Night | ||||
Lenses Optional
Packaging & Shipping
Packing List:
1pc cctv camera
1pc manual
1pc color box
Single Size: 95*65*65mm(LXWXH)
Shipping information:
1. We ship most packages within 48 hours by DHL, UPS ,TNT or EMS(3-7 Day). This allows them to be tracked and insured for loss or damage. If you would like us to ship by a faster method, you can select this option
when you finish your order. DHL, UPS ,TNT or EMS don't ship or deliver on weekends or holidays.
2.Transportation by sea be the mode ( of transportation ) we usually adopt for our export. And COSCO, SITC, PIL, SINOKOR and other
major shipping companies established a good and close relations of cooperation.
