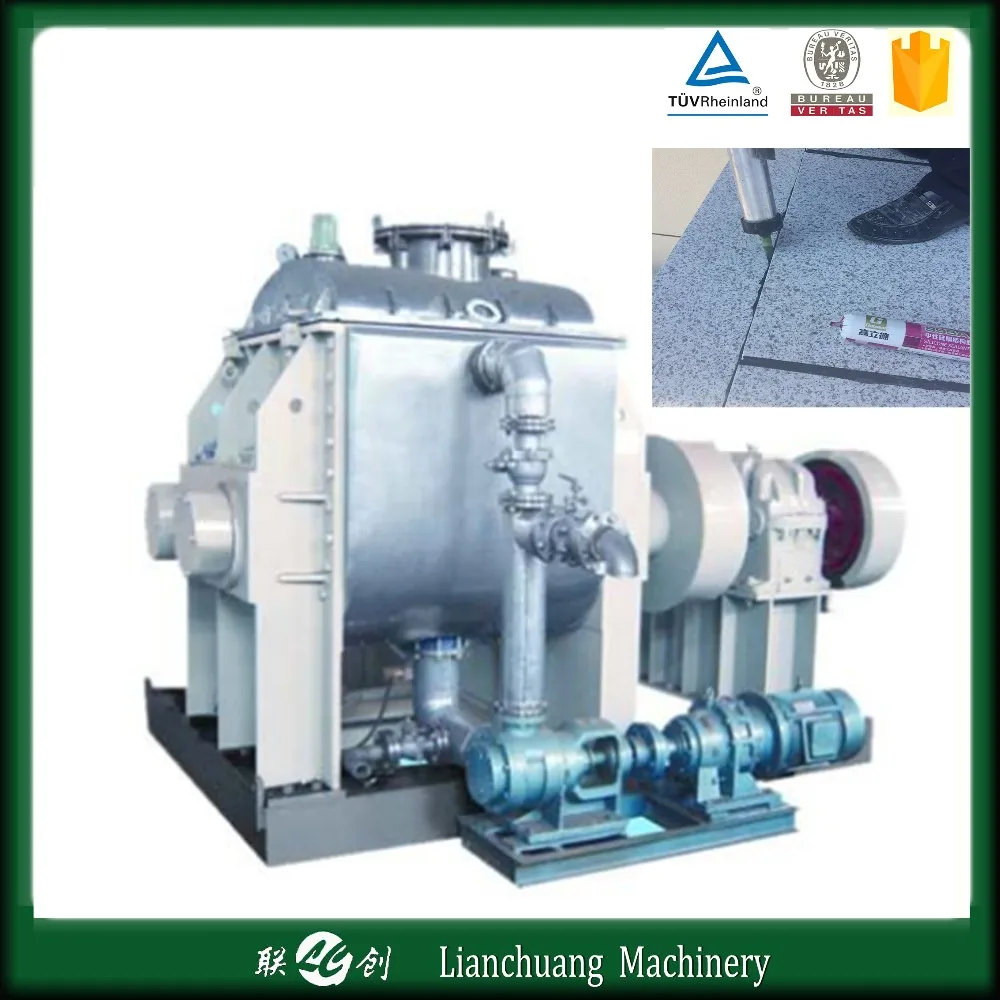

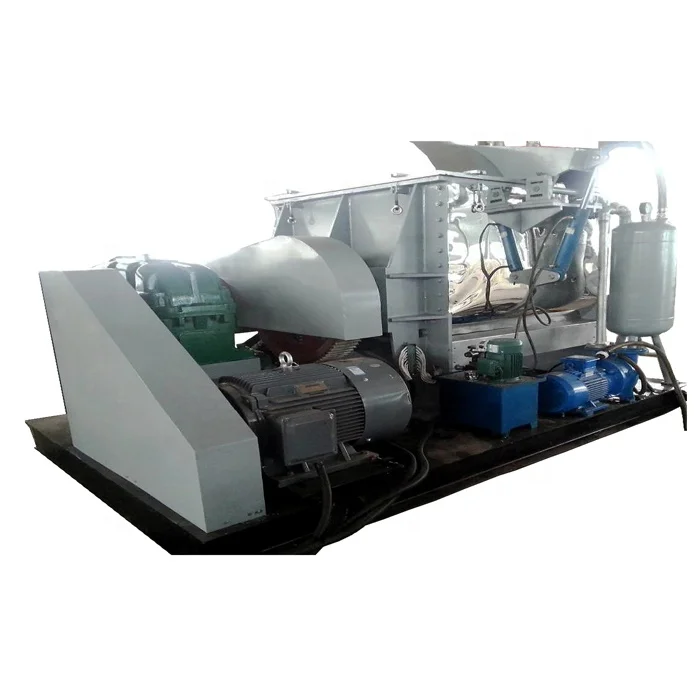

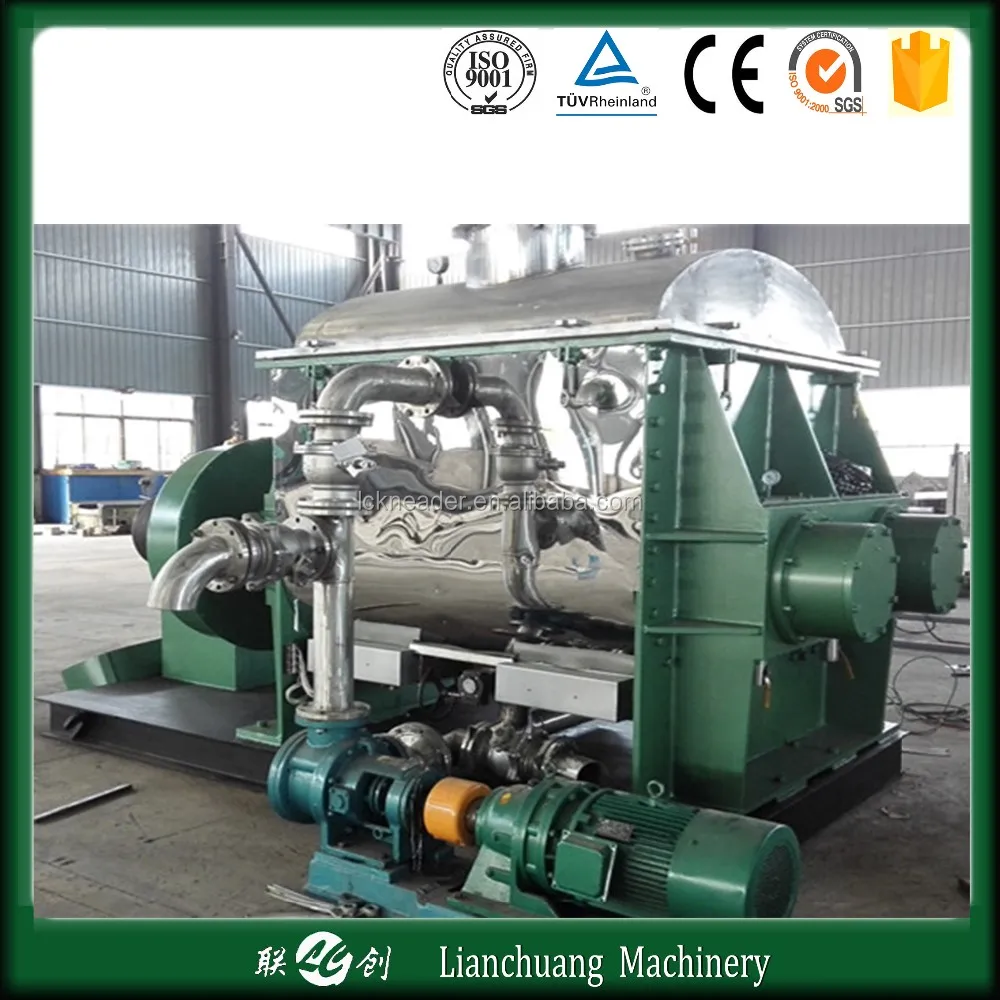

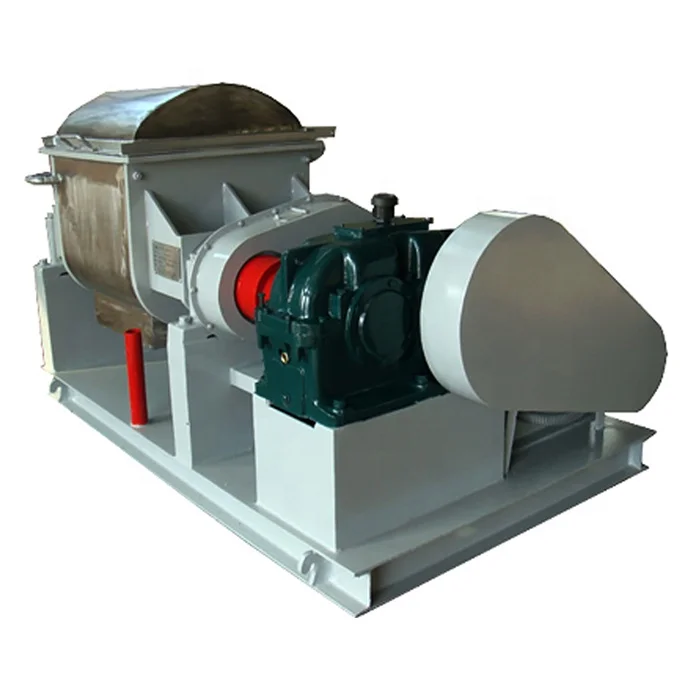

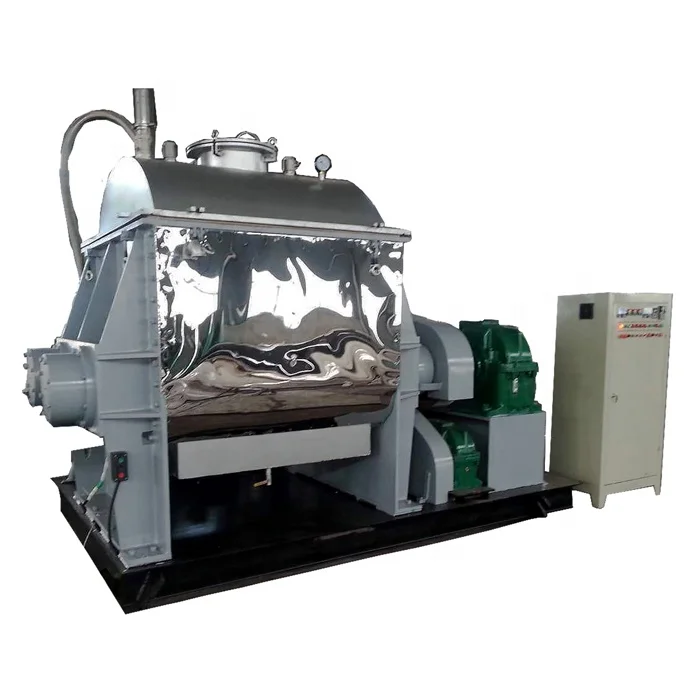

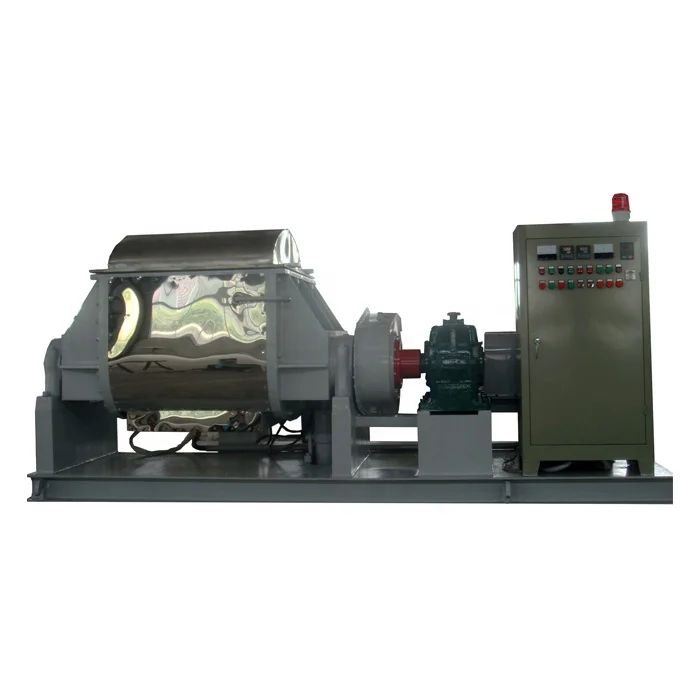

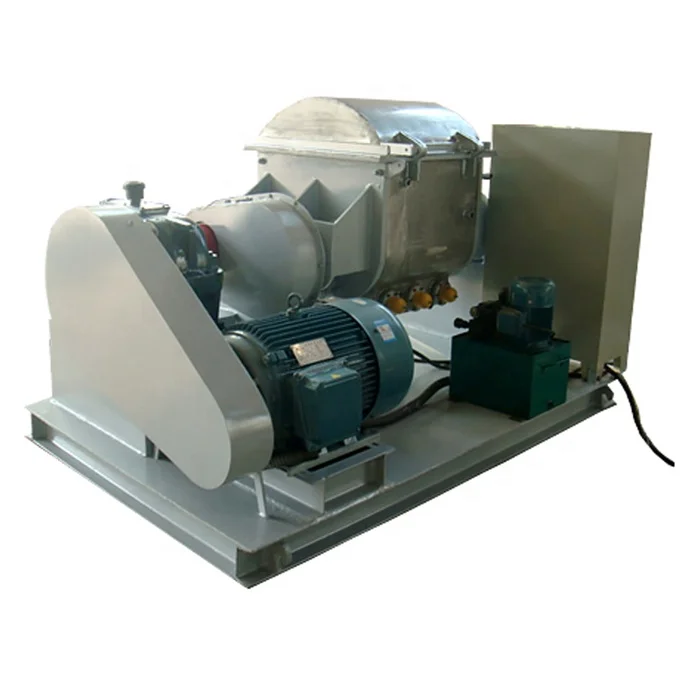

stainless steel vacuum butyl rubber glue adhesive Kneader mixer machine

Product Overview

Description



The Technical Data for the butyl sealant Kneader machine:



Type	Volume Capacity  (L)	Working Capacity(L)	Motor Power(KW)	Discharging methods	Heating method
NHJ-1L	1	0.6	0.75	Tank tilting, Ball valve, Screw  extruding	steam, eletric heating oil, hot water
NHJ-2L	2	1.2	0.75
NHJ-5L	5	3.0	1.5
NHJ-10L	10	6.0	2.2
NHJ-20L	20	12.0	3.0
NHJ-50L	50	30.0	3-5
NHJ-100L	100	60.0	5-7.5
NHJ-200L	200	120.0	7.5-11
NHJ-300L	300	180.0	11-15
NHJ-500L	500	300.0	15-22
NHJ-800L	800	480.0	22-40
NHJ-1000L	1000	600.0	40-45
NHJ-1500L	1500	900.0	30-55
NHJ-2000L	2200	1300.0	45-75
NHJ-3000L	3000	1800.0	55-90
NHJ-5000L	5000	3000.0	90-160
NHJ-8000L	8000	4800.0	110-200



The Features of the Butyl sealant Kneader machine:



1) Available models normal pressure, high pressure and vacuum, with touch part melted by stainless steel.

2) Temperature adjustment: heated by oil, steam or electricity, cooled by water.

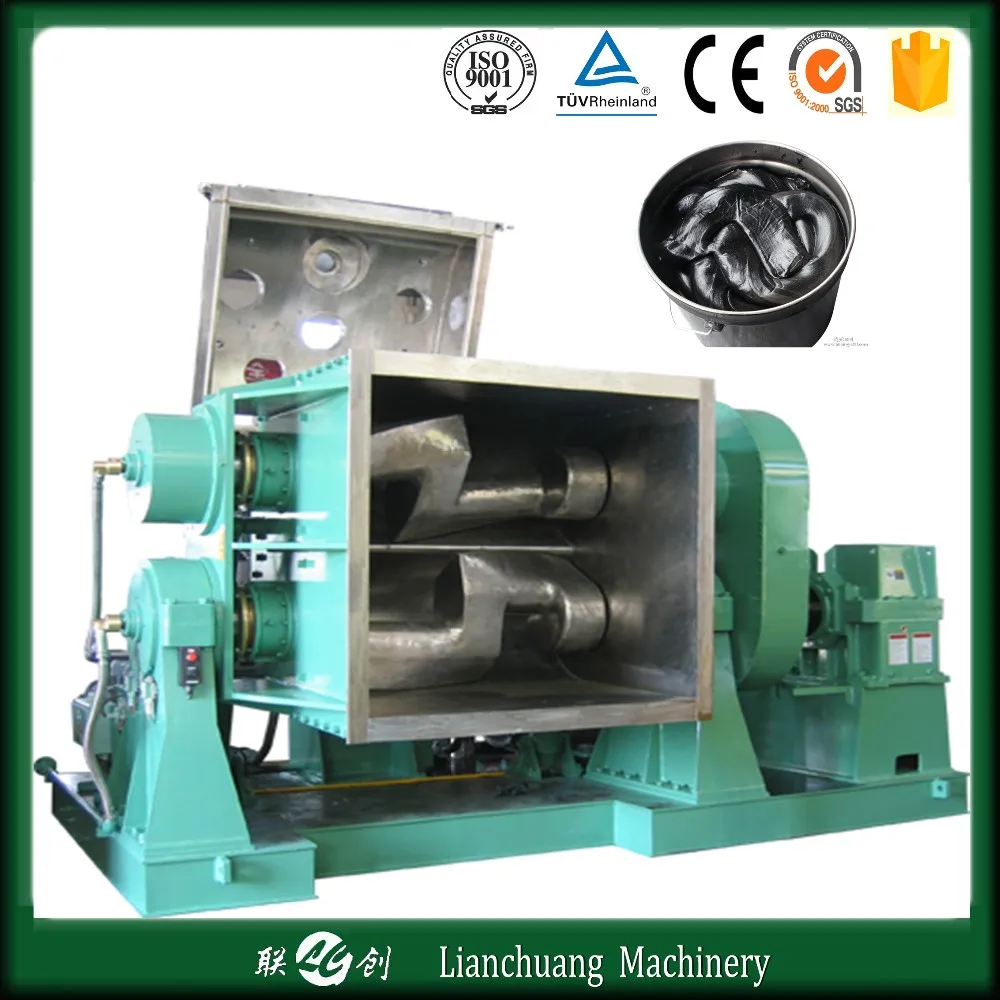

3) The blades made by cast steel, with Sigma or Z shape, whcich makes silicone rubber products stirred and mixed fully.

4) Discharge method: Tank-tilting, bottom pump and screw-extruding discharge.

5) The seal of shaft agitator is adopted with unique balance construction of vacuum box.

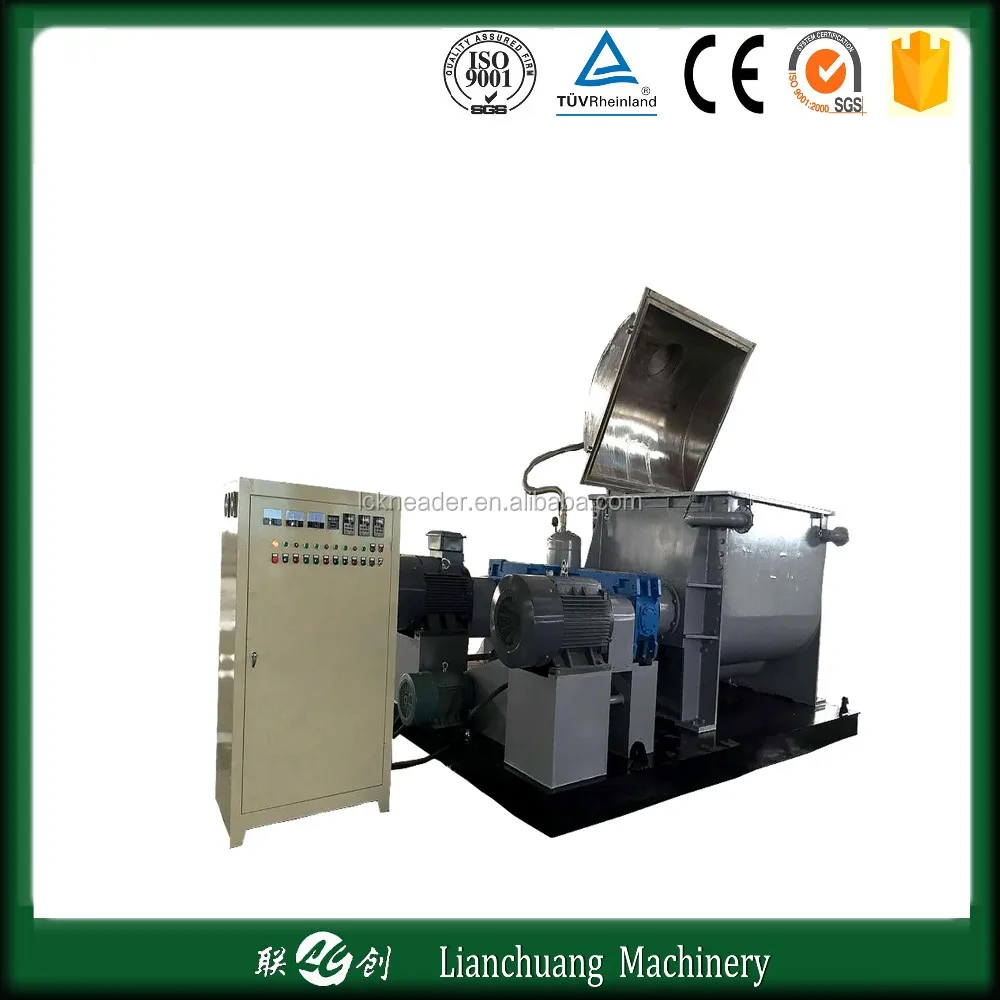

6) The cover is controlled by manual, mainly hydraulic system.

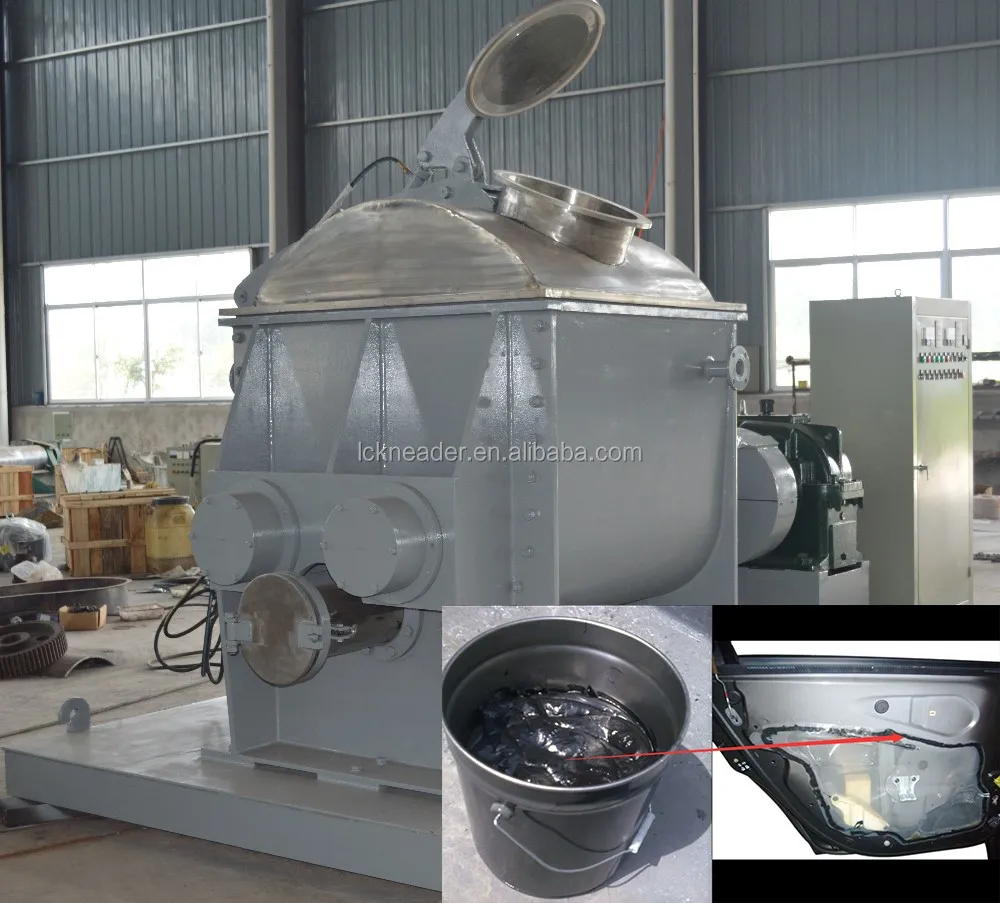

Application of the butyl sealant kneader:
