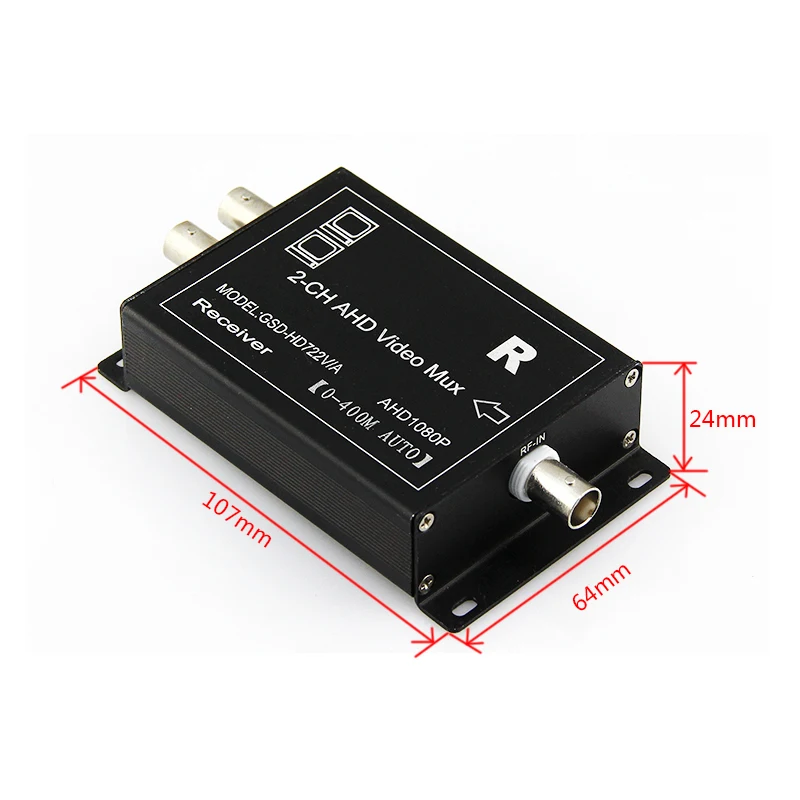

2 channel hd coaxial video multiplexer for cctv cameras

This product uses special compression modulation technology, on the front end (transmitter) let 2-channel CVI/AHD/TVI hd camera to compressed, then made into digital signal in coaxial cable transmission. The back-end (receiver) through modulation, reductive into 2-channel hd signals for hd DVR (CVI/TVI/AHD) or matrix use after decompression. This series of products can be in adaptive adjust transmission distance within 0-500m.

.

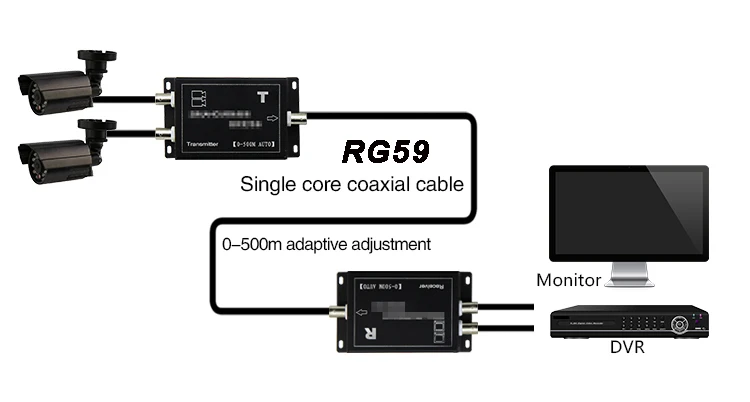

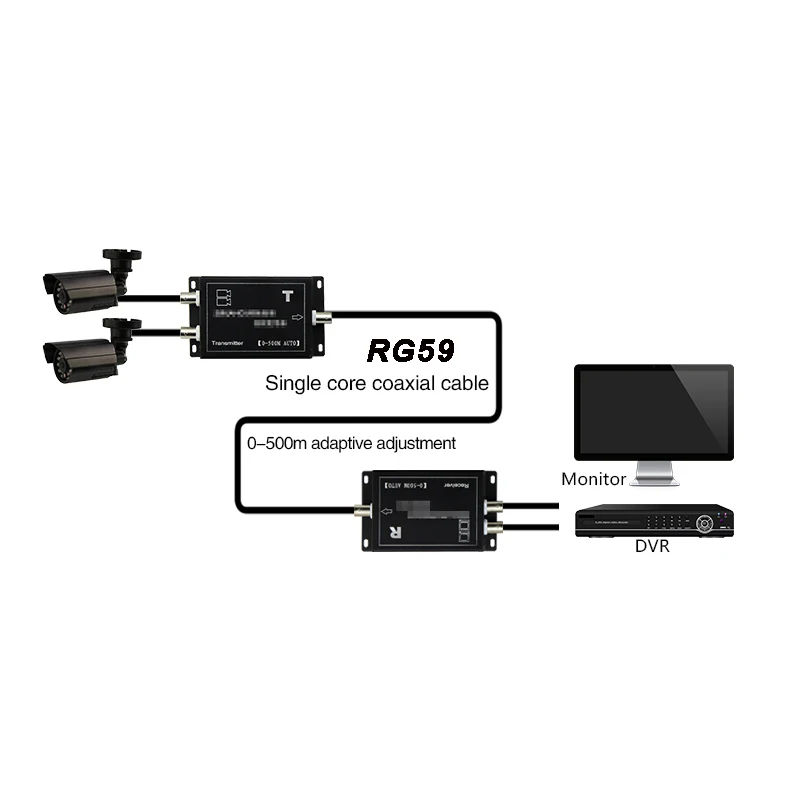

It supports 2 channel video signals in one coaxial cable by way of Frequency Division Multiplexing, with all data transmission real-time and all images high-definition and non-delay. It is suitable for improvement of

old projects and building under new projects.

1. It’s designed according to projects with minimum installation volume requirement.

2.2-CH video in one coaxial cable transmission.

3. FDM technology is easy for multi-channel signals transmission only in one coaxial cable without any delay and interference.

4. Perfect support coaxial video line, 75-3, 75-5, RG59 wire, etc.

AHD (made by XM): perfect quality effect, support 1080p, 960p, 720p

CVI (made by DAHUA): perfect quality effect, support 960p, 720p

TVI (made by Hikvision) is in progress...please focus on us, thanks…
