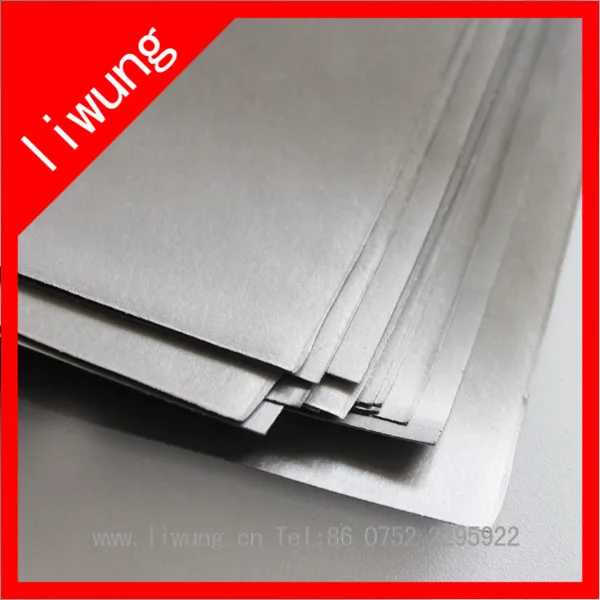

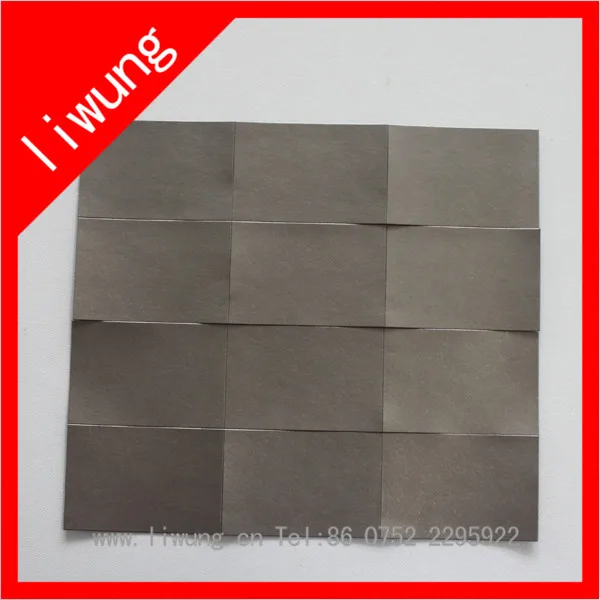

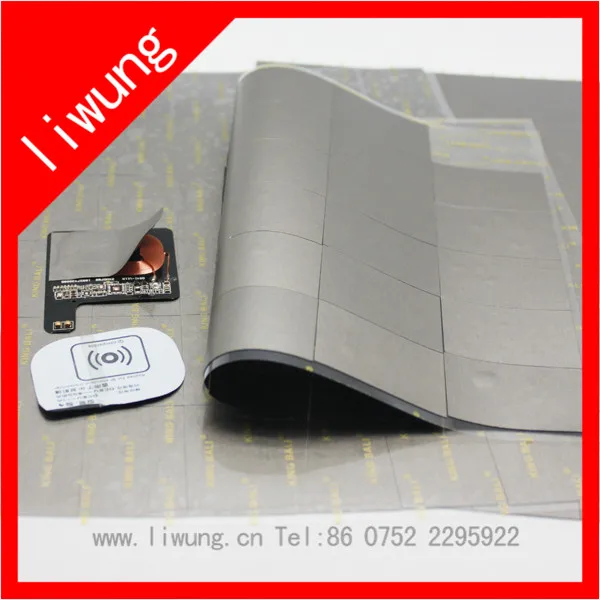

Magnetic Shielding Material Wave Absorb Material Sheet Ferrite Absorbing Material Ferrite Sheet

Product Overview

Description



Kingbali Electromagnetic Wave Absorber

Features

King Bali 1800 series magnetic absorber is tailored for EMI wave/harmonic noise/crosstalk

occured on PCB label or any EMI noise inside enclosure of consuming electronic

equipments.Non-condutive PSA is for better insulation separation and easier/reliable

mounting.Per needed,and can be laminated with foil tape and conductive fabric tape to equip the

absorber with perfect shielding function for some special uses.Supply with a soft release liner for

easier handling and die-cut.







How it works

1800 Series magnetic aborber is generally fit for absorbing EMI

wave that in the range of several tens of MHz to several

GHz.particular for absorbing scattered noise generated

from PCB and RF signal chips, and signal bridge

likes FFC/FPC cables,etc.



Application modes

EMI Absorber (absorbing material products)

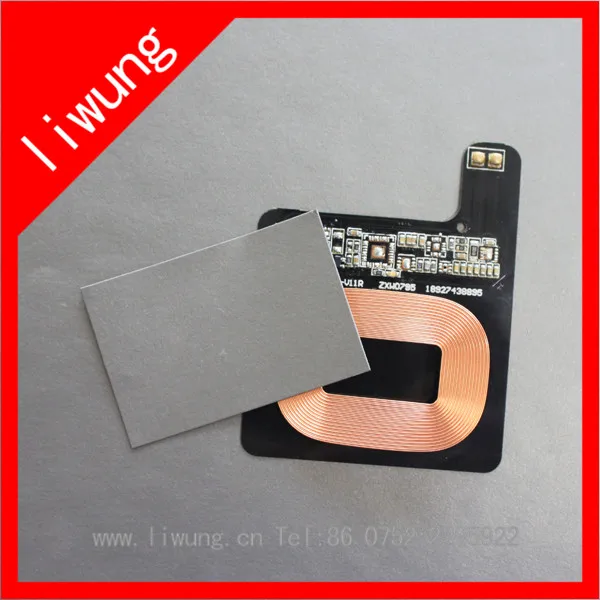

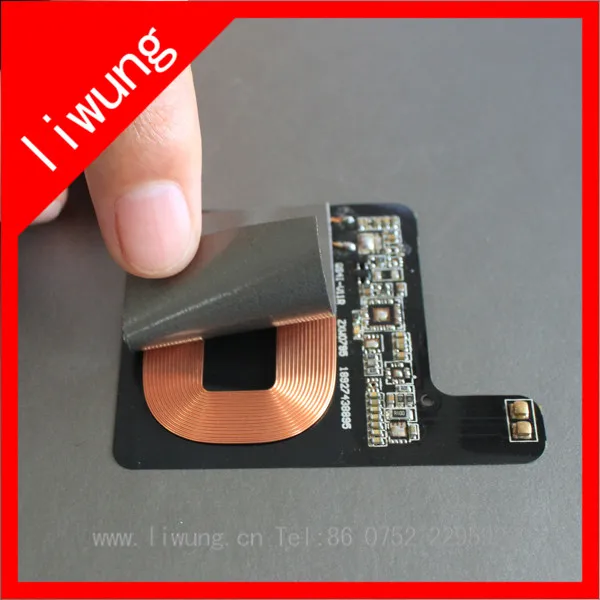

- Smart phone and PDA phone circuit board the electromagnetic wave absorption.

- mobile phone circuit board, notebook of electromagnetic interference absorption.

Fox WLAN, RF Module internal interference prevention and control.

- suitable for GSM, PHS mobile phone and base station application.

- absorption signal and power lines brought out the noise

- PC, OA affairs machine, digital camera, 3 c products of the electromagnetic wave

absorption



Research confirms that the best performance ferrite absorbing materials, which has an

absorption band of high absorption rate, matching the thickness of the thin and so on.

This material will be used in electronic devices can absorb electromagnetic radiation

leakage, to achieve the purpose of eliminating electromagnetic interference. According

to the laws of electromagnetic wave propagation in the medium from the low magnetic

guide the direction of high permeability, the use of high magnetic permeability ferrite

electromagnetic wave guided by resonance, absorbs radiant energy of electromagnetic

waves, and then by coupling electromagnetic energy to convert into heat.
