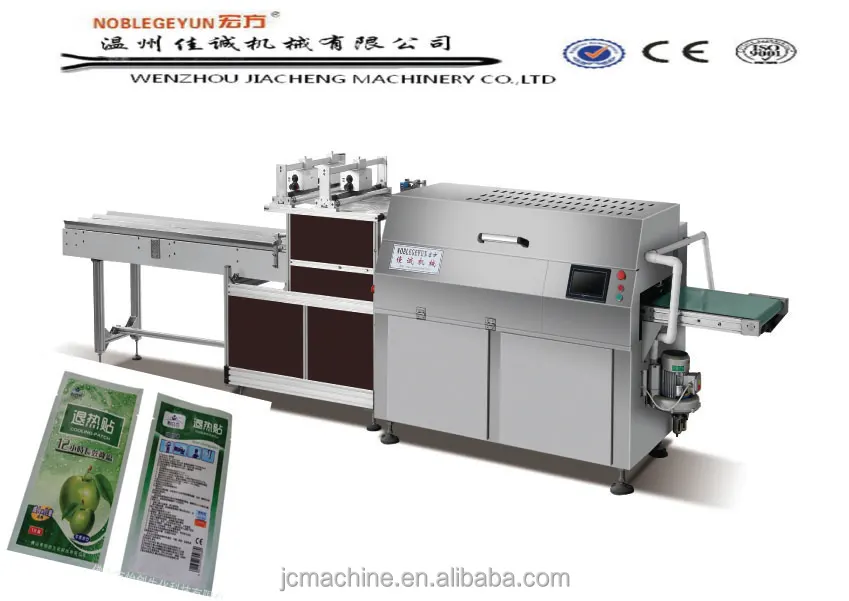

HFS 400A Automatic Cooling Patch Horizontal Flow Pack Machine

Product Application

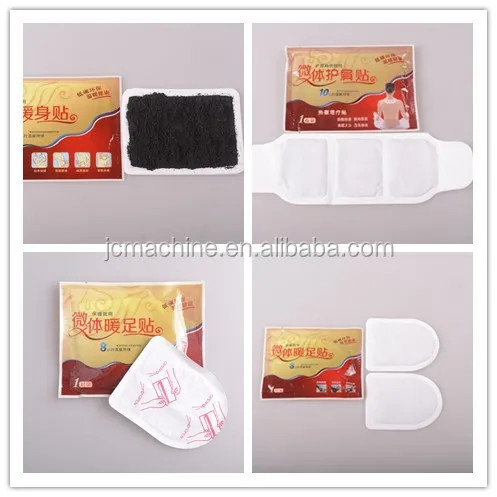

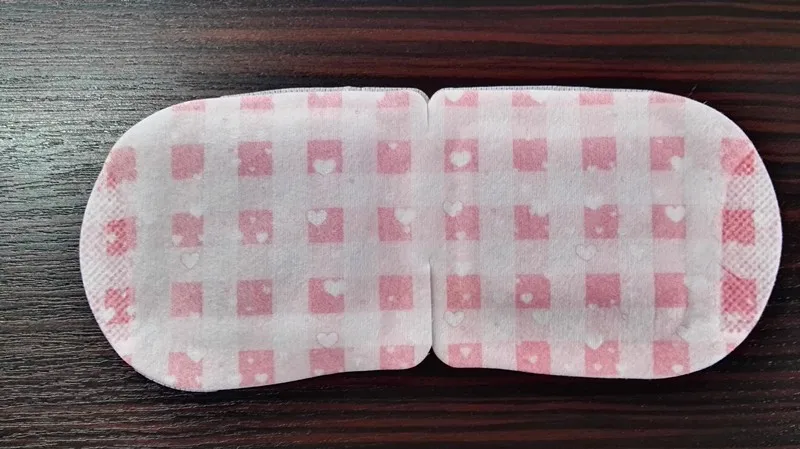

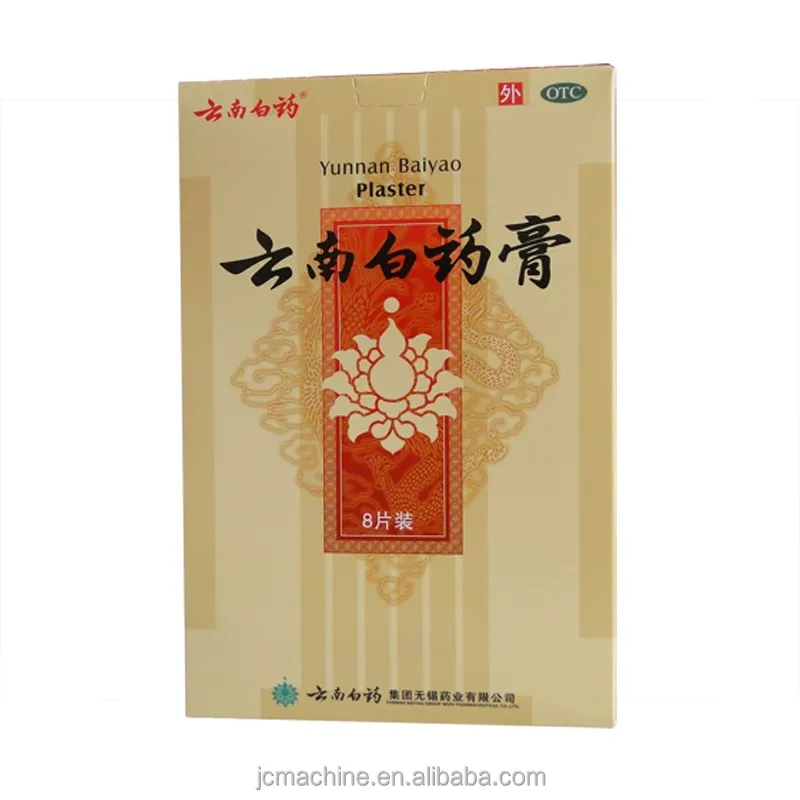

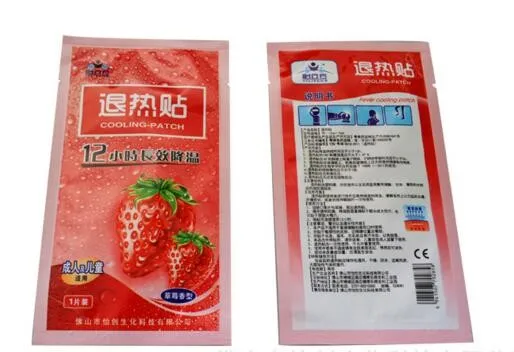

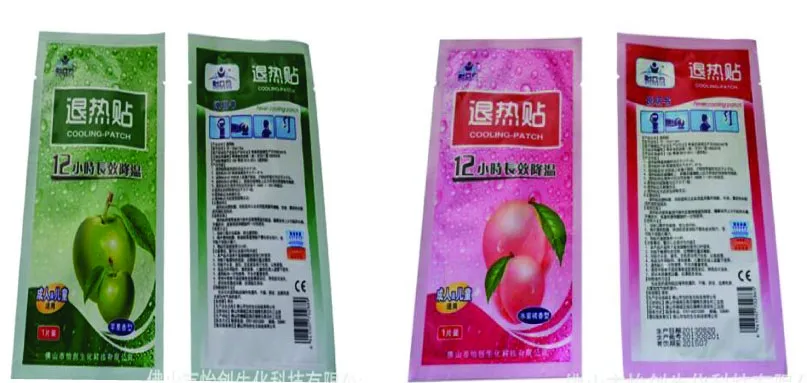

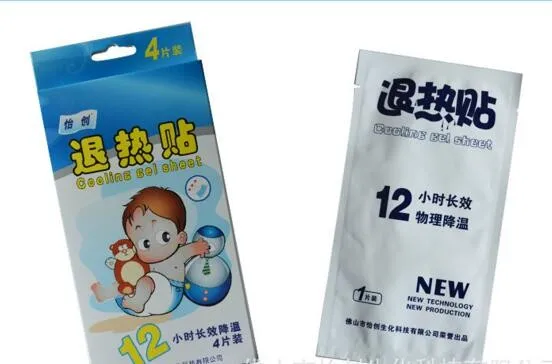

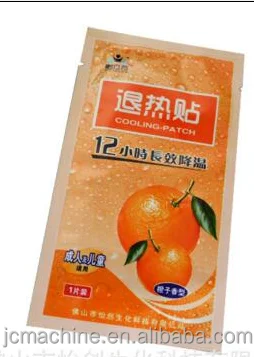

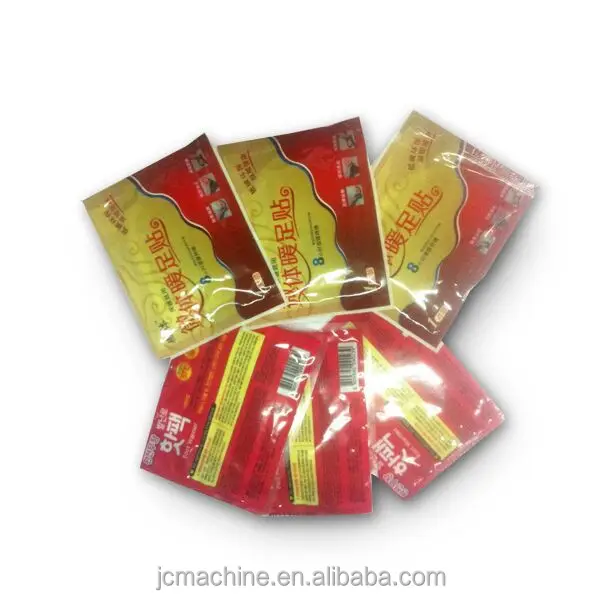

HFS-400A Full-automatic horizontal four edge sealing packing machine, Our company reseach this machine depond on packaging market with high intelligent quality. This equipment conform to the new "GMP" medicine and food "QS" standard requirements.This machine with high automation packing, operate safe and easy, set light/electricity/gas integration, Full automatic feeding and printing lot number/production date, sealing side, tearing, part cutting, die cutting, finished products in one line. Adopte servo motion control system four axis linkage, It has some advantages, such as automatic marking, synchronous tracking. Longitudinal and lateral roll heat sealing mechanism using temperature controlled sealing good, slitting sliced adjustable incision formation mechanism position, ensure the product quality and appearance is smooth and beautiful. Greatly reduce labor costs, take up little place, economical and practical. this machine be used in medicine (such as: plaster stick), health (such as: warm baby fever stick, medicament, MATS, cool post, mobile phones, drive midge tint.) ect..

Main Features

1,Driven by the four axis servo synchronization, Man-machine interface touch contact, Through the servo motion control system tocontrol the position and speed of mechanical moving parts by real-time. Make each actuator positioning precision automatic synchronization, On the premise of improving packaging speed to ensure the quality of the packaging.

2,The roll of film cutting structure make packaging design version for accurate and beautiful, photoelectric tracking for the system to make sure the precise performance of the bag sealing, and cutting to the version. To ensures the unity of packaging products, and have the function of automatic counting.

3,Quick and convenient adjustment.No need to change mould could adjust the bag length stepless. And longitudinal sealing, transverse sealing, automatic feeding, batch number, cut to tear the mouth, cross-cutting actuators, can be adjusted by man-machine interface.



4,Using high precision pressure type vertical and horizontal heat sealing roller as sealing mould quadrilateral sealing.Pocket refined aesthetic level sealing fastness, package of good quality, high efficiency.

5,Quickly packing speed, accuracy automatic feeding. Using continuous feeding reciprocating pushing structure, the structure is convenient for cleaning and maintenance.

6,Add structure of film damping. To ensure the stability straightness and tension of membrane stroke , thereby greatly improving the pouched smooth and beautiful.

7,Strong adaptability of packaging materials, automatic control the sealing temperature, and high control precision. Adapt to domestic and foreign production of a variety of packaging film, such as PET/AL/PE, PET/PE, NY/AL/PE, NY/PE.
