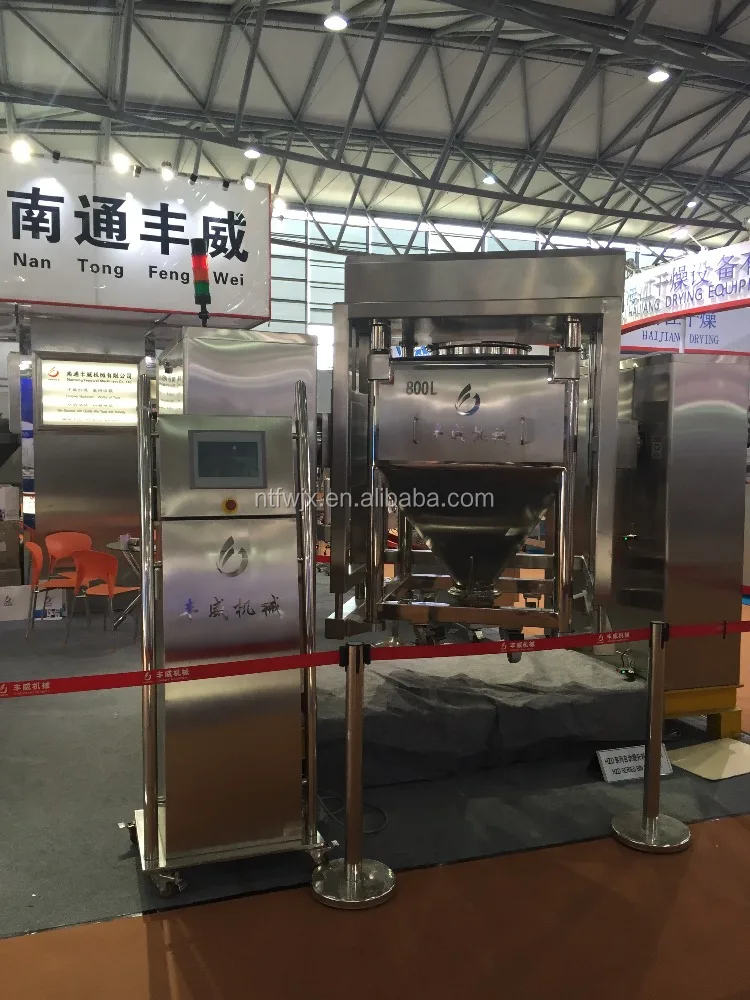

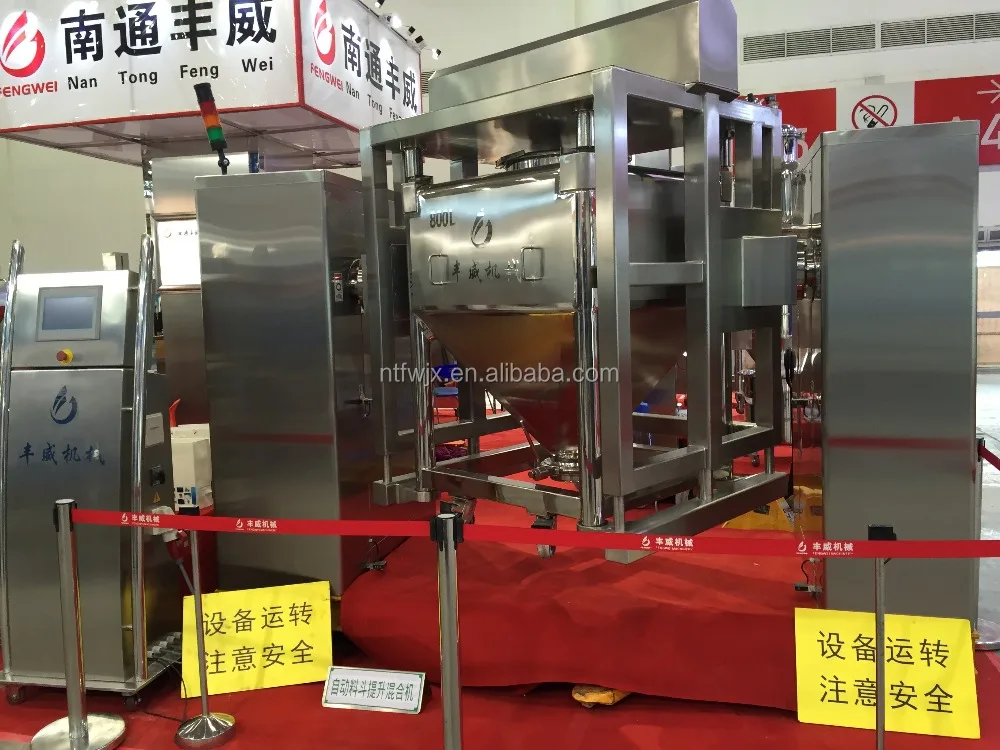

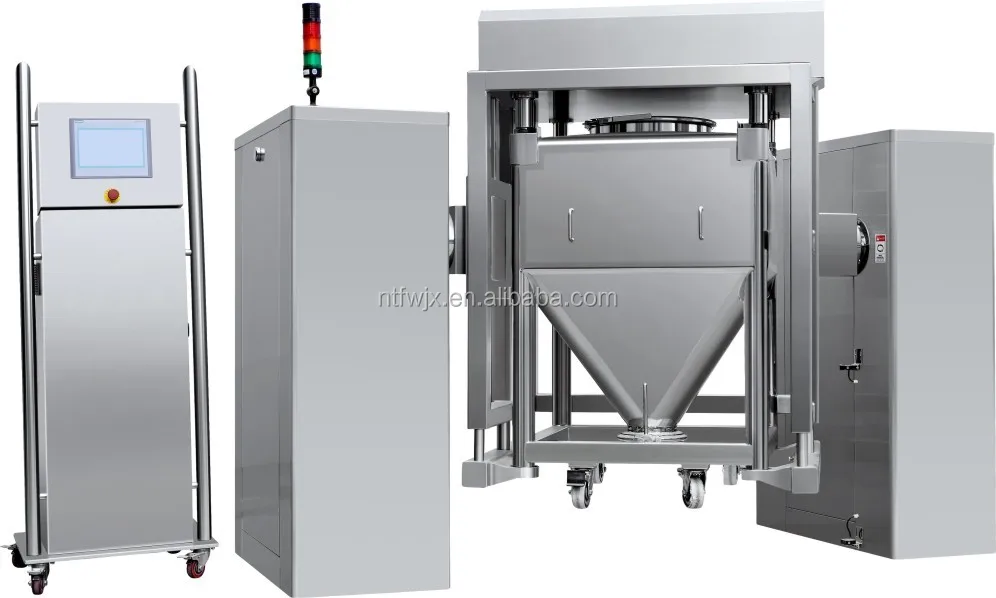

HZD 800 High efficient pharmaceutical Bin Blender

Purpose:

The machine can automatically complete all actions including lifting, clamping, mixing, lowering, etc. An automatic lifting hopper mixer and several mixing hoppers of different specifications can meet the mixing requirements of large batches and diversified varieties of products. It is an ideal machine for mixing in pharmaceutical plants. It is also widely used in such industries as medicine, chemical industry, food, etc.

Principle:

The machine is composed of machine base, gyrator, driving system, lifting system, braking system and control system. When it works, push the mixing hopper into the gyrator. Press the “confirm” button on the touch screen to automatically lift the mixing hopper to the designated position and automatically clamp it. After the pressure sensor receives the clamping signal, the mixing system will be driven to work and mixing will be carried out according to the set time and rotation speed. After the set parameters are reached, the gyrator will automatically stop vertically. At the same time, the braking system works and the mixing is finished. Then the lifting system will work. The mixing hopper in the gyrator will fall to the designated position and stop automatically, and process data will be printed. Then the mixing hopper is pushed out and transferred to the next procedure.

Feature:

The gyrator (mixing hopper) forms an included angle of 30° with the rotation axis. The materials in the mixing hopper rotate along with the gyrator and make tangential movement along the hopper walls, producing strong turning and high-speed tangential movement and achieving the best mixing effect. PLC automatic control is adopted. It is provided with the infrared safety device and the discharging butterfly valve with the misoperation preventer to ensure safe production. The materials can go through different working procedures in the same vessel without the need of frequent material transferring, material charging, etc. The machine effectively controls dust pollution and cross contamination, reduces loss of materials, controls material layering, optimizes production processes, and fully meets the requirements for medicine production in GMP.

Packaging: standard export wooden case

Delivery Terms: 20-45 days after receiving deposit

Our Service:
1.Your enquiry or questions will reponse once we receive it!
2.Providing technical data,high-definition pictures,flow chart that all you need
3.Supply the validation documents and certificates.
4.OEM/ODM is available.
5.Providing long-term after-sale service,door-to-door service and corporate training

Why choose us
1.Specialized in designing, developing and manufacturing
2.Above 130 National patents,national and provincial technology innovation awards
3.Provincial Pharma Equipment Engineering Technology Research Center
4.National High-Tech,National Pharma Equipment Industry Association,Provincial new special expertise Enterprises
5.Manufacture the solid preparation production line equipment for above 500 domestic and oversea enterprises
6.Modern production workshop and production line of high-end manufacturing equipment
7.Professional and efficient after-sales service management
8.Competitive price and prompt delivery
9.Meet ISO9001 and CE
10.OEM/ODM available

FAQ

1.How long for the delivery?
Within 20-45 days after receiving the deposit.

2.What's the payment terms?
T/T, L/C etc.

3.OEM and ODM?
Yes

4.How long is the warranty period?
One year after shipment

More questions, please contact us.
