Product Overview

Description

_01

Product Description
Product description

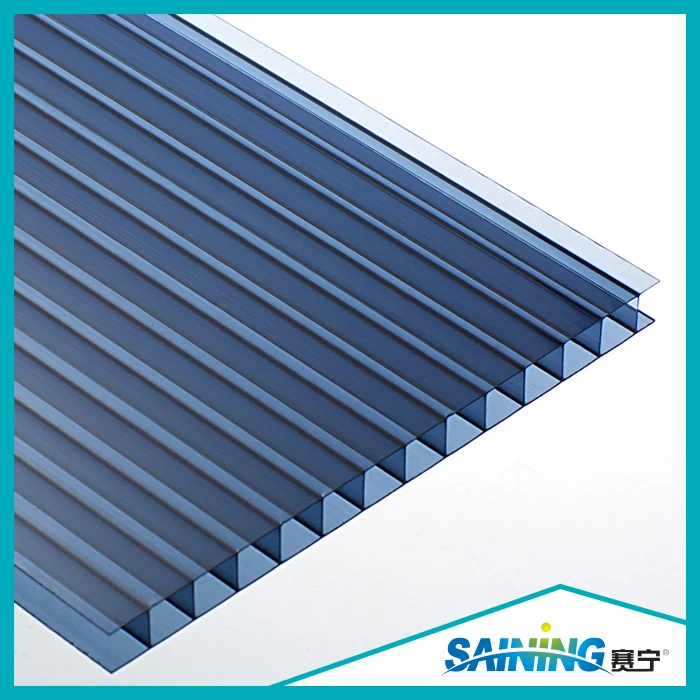

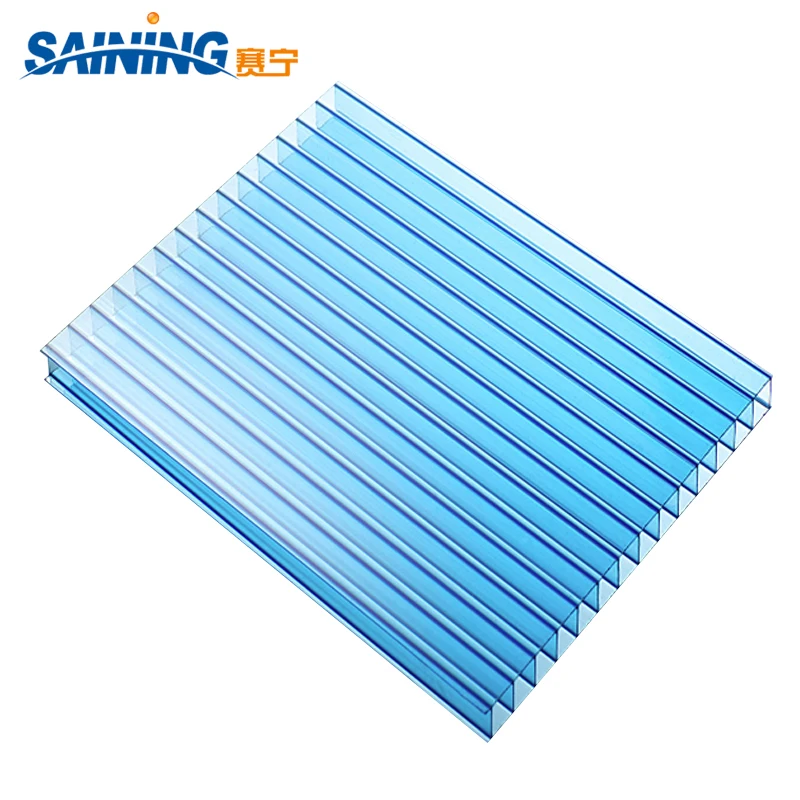

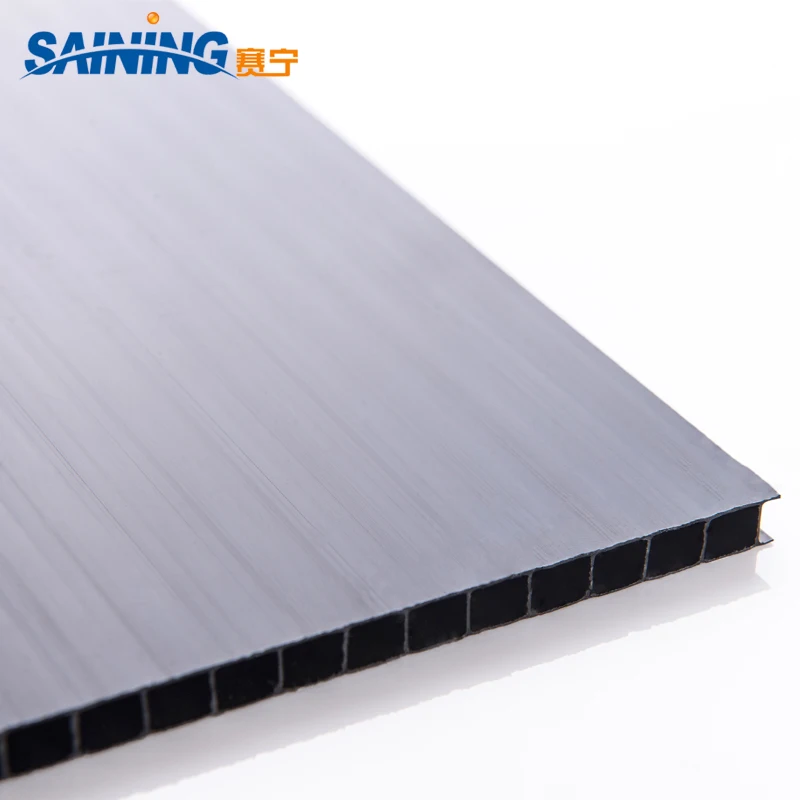

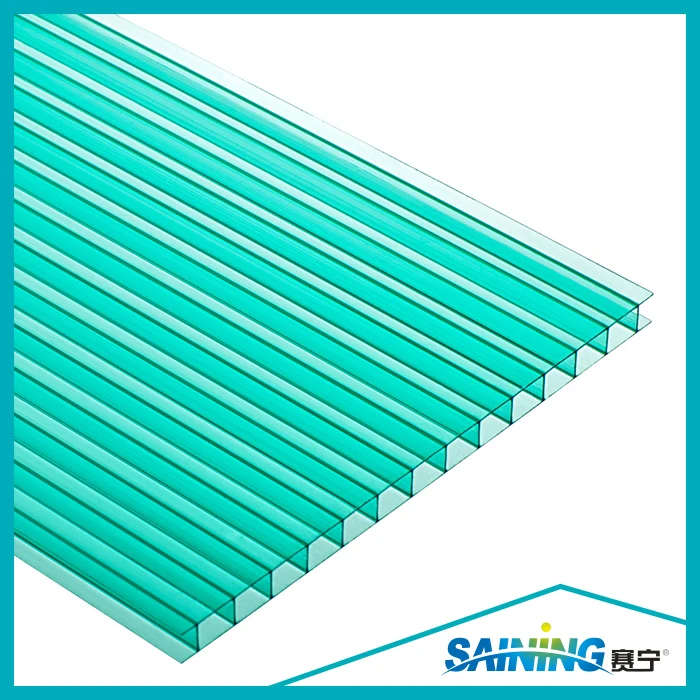

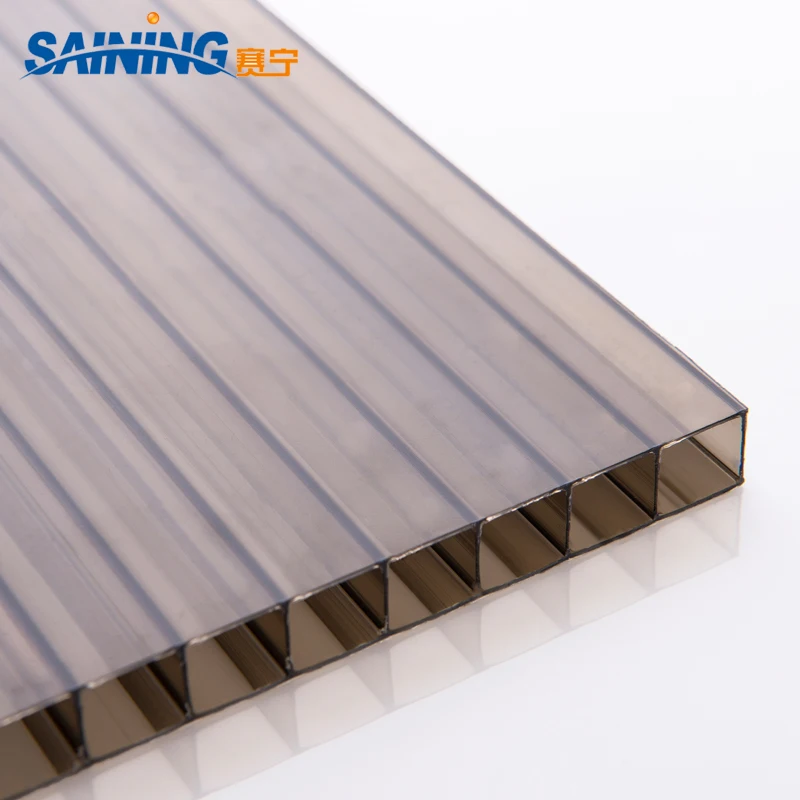

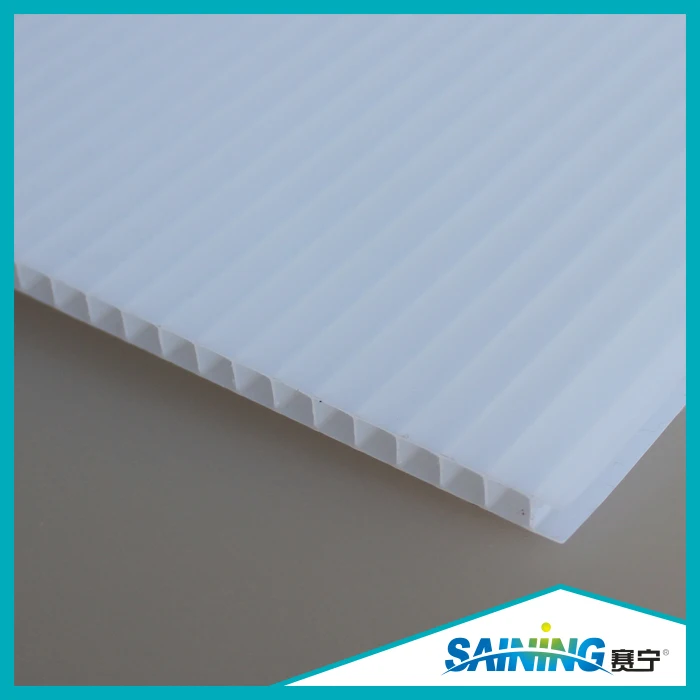

Polycarbonate twin-wall sheet      Product Standard & Technical Parameters
Thickness(mm)Weight(kg/m2)Minimunbending radius(mm)Minimun spanTransparency(%)Sound insulation(db)
40.97015008314
61.3105020008217
81.5140027008118
101.7175033007919
121.9210036007620
Technical Parameters
Impact strengthTransparencySpecific grevityCoefficient of thermal expansionService temperatureHeat conductivity
2.1j/m-2.3j/m40%-80%1.2g/cm³0.065mm/m°C-40°C—120°C3.0-3.9w/m²°C

Tensile strengthFlexural strengthModulus of elasticityEffect of sound insulationTensile stress at breakElongation at break
≥60N/mm100N/mm²2400Mpa10mm two laminates reduced 10db≥65Mpa  >100%

packagingBoth sides with PE film, the end with paper tape, logo on the pe film. Other package are available based on customers' requirement.
delivery7-10 days after receipt of deposit.
capacity for 20 GP2.1m*5.8m*4mm600 sheet
2.1m*5.8m*6mm400 sheet
2.1m*5.8m*8mm300 sheet
2.1m*5.8m*10mm240 sheet
2.1m*5.8m*12mm200 sheet
capacity for 40GP2.1m*5.8m*4mm1200 sheet2.1m*11.8m*4mm600 sheet
2.1m*5.8m*6mm800 sheet2.1m*11.8m*6mm400 sheet
2.1m*5.8m*8mm600 sheet2.1m*11.8m*8mm300 sheet
2.1m*5.8m*10mm480 sheet2.1m*11.8m*10mm240 sheet
2.1m*5.8m*12mm400 sheet2.1m*11.8m*12mm200 sheet
capacity for 40HQ2.1m*5.8m*4mm1350 sheet2.1m*11.8m*4mm675 sheet
2.1m*5.8m*6mm900 sheet2.1m*11.8m*6mm450 sheet
2.1m*5.8m*8mm674 sheet2.1m*11.8m*8mm337 sheet
2.1m*5.8m*10mm540 sheet2.1m*11.8m*10mm270 sheet
2.1m*5.8m*12mm450 sheet2.1m*11.8m*12mm225 sheet
Brief introduction
A. Product Range
1).Twin-walls polycarbonate sheet thickness: 4,6,8,10,12 Width: 2100mm.
2).Triple-walls polycarbonate sheet thickness: 8,10,12,14,16. Width: 2100mm.
3).Four-walls polycarbonate sheet thickness: 8,10,12,14,16,18,20mm. Width: 2100mm.
4).Honeycomb polycarbonate sheet thickness: 6,8,10,12,14mm. Width: 2100mm.
5).X-structure polycarbonate sheet thickness: 14,16,18,20,25,30mm.
6).Solid polycarbonate sheet [Compact] thickness:0.9-8.0mm.
   Width: 1220,1560,1820,2100mm.Usually 1220*2440mm, 2050*3000mm
7).Corrugated polycarbonate sheet: 0.8-2.5mm. Width is different.

B.Length:

No limit(Recommend 5800, 6000, 11800,12000mm to suit 20'container &40'container).

C.Color:

clear/transparent, lake blue, green, blue, opal, white, brown/bronze, silvery gray, red, yellow, etc.
