HD video transmitter 1km 5km wireless long range COFDM AV sender

Product Overview

Description

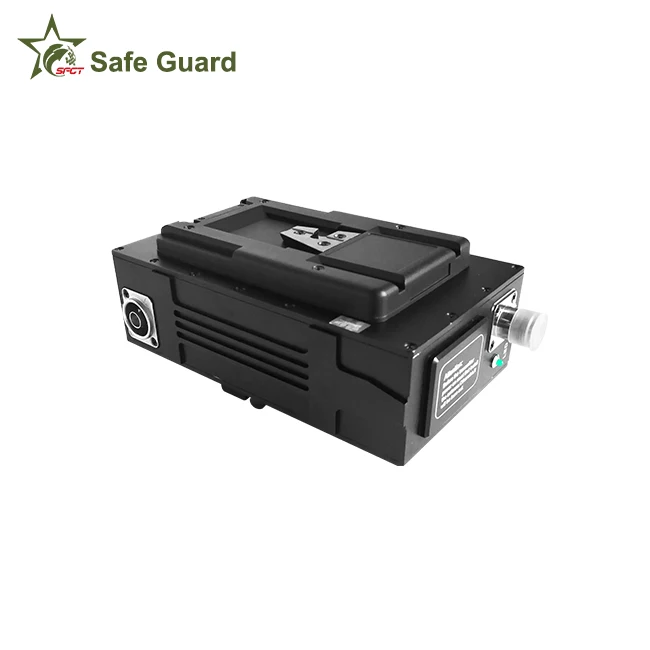

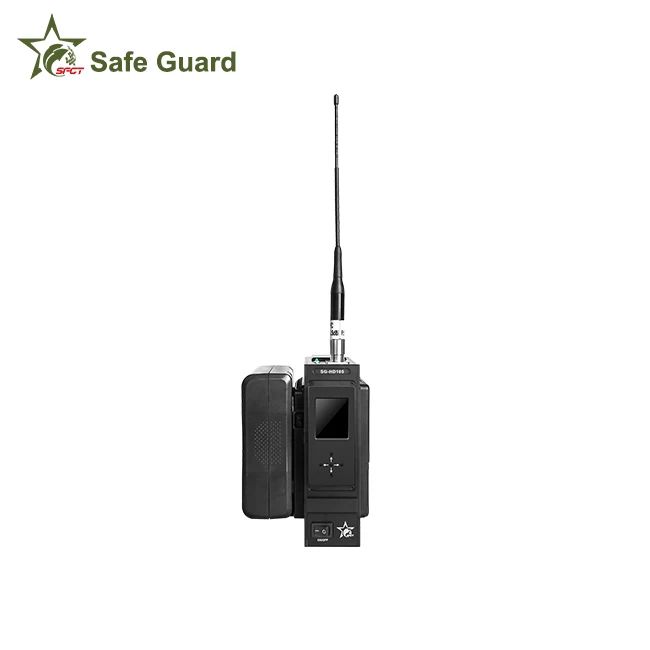

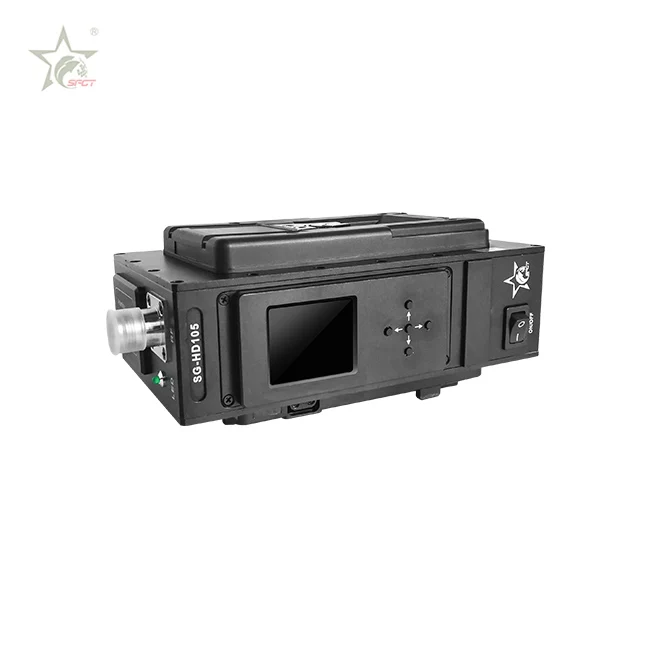

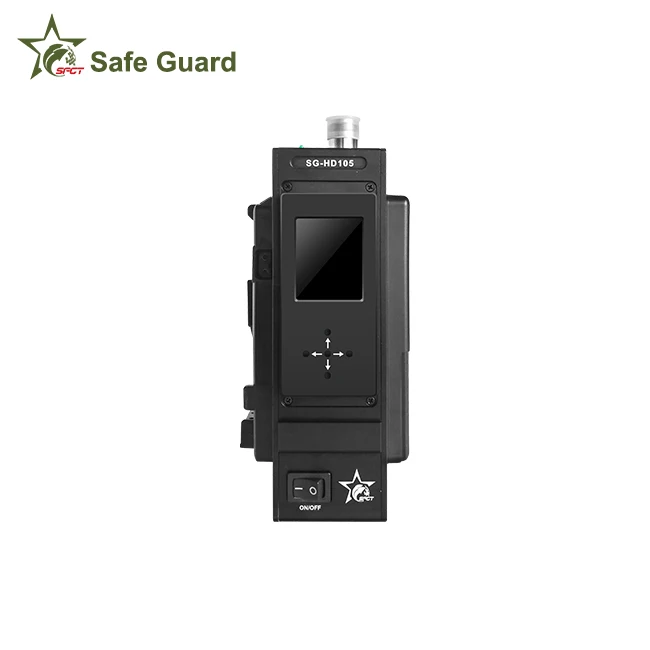

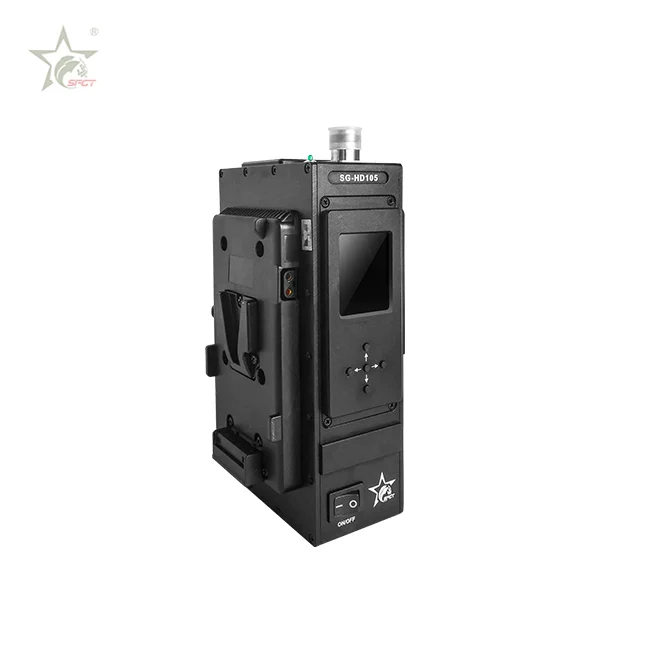

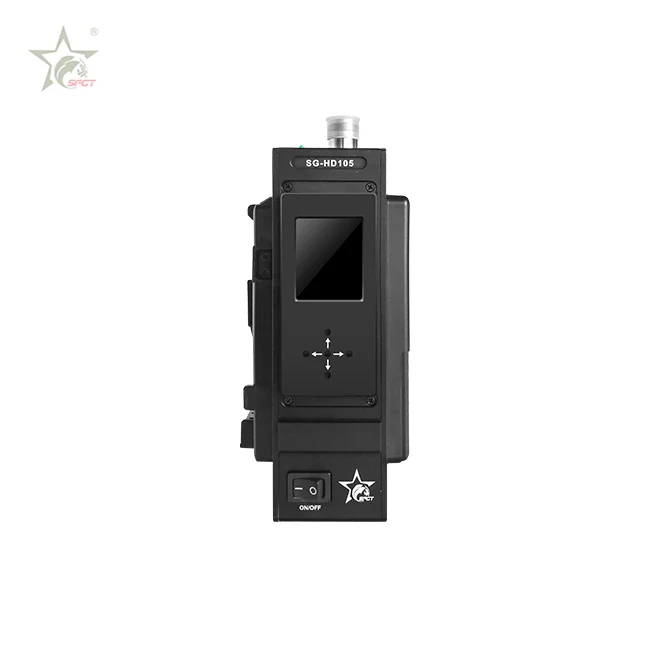

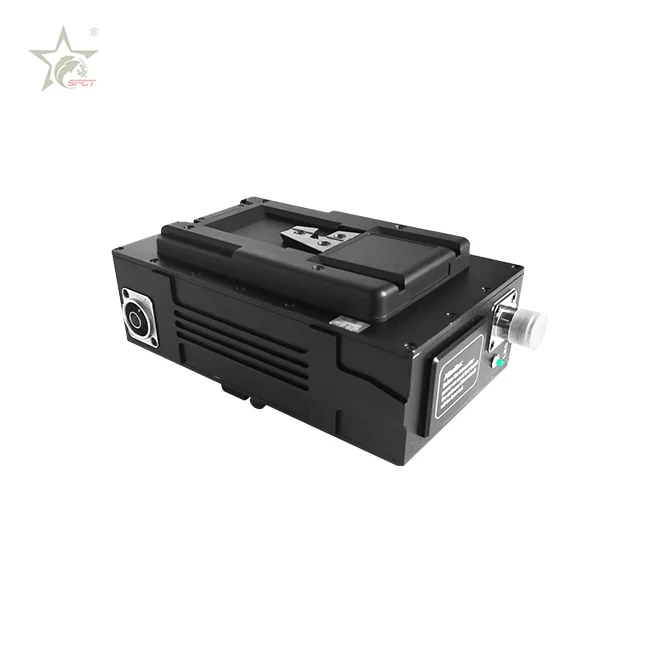

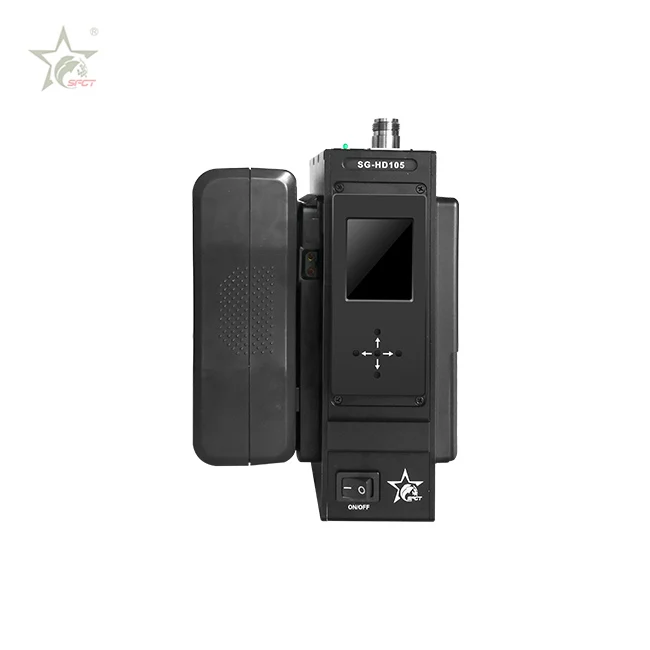

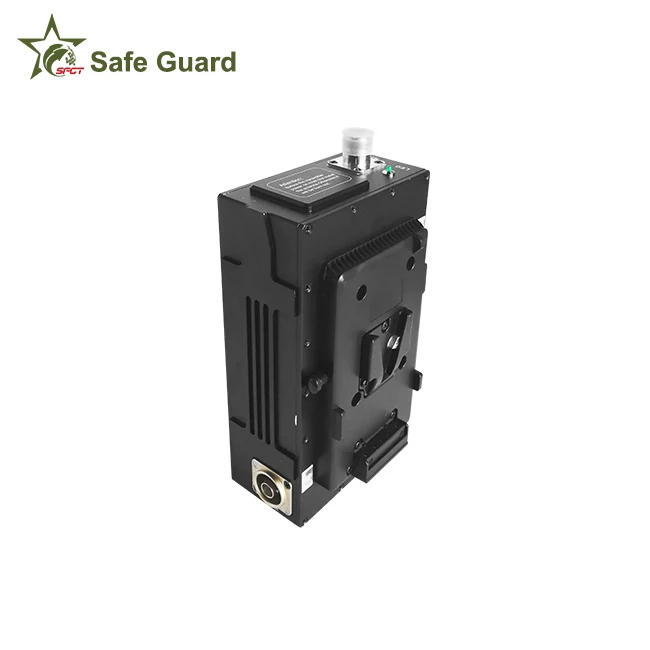

HD video transmitter 1km- 5km wireless long range COFDM AV sender

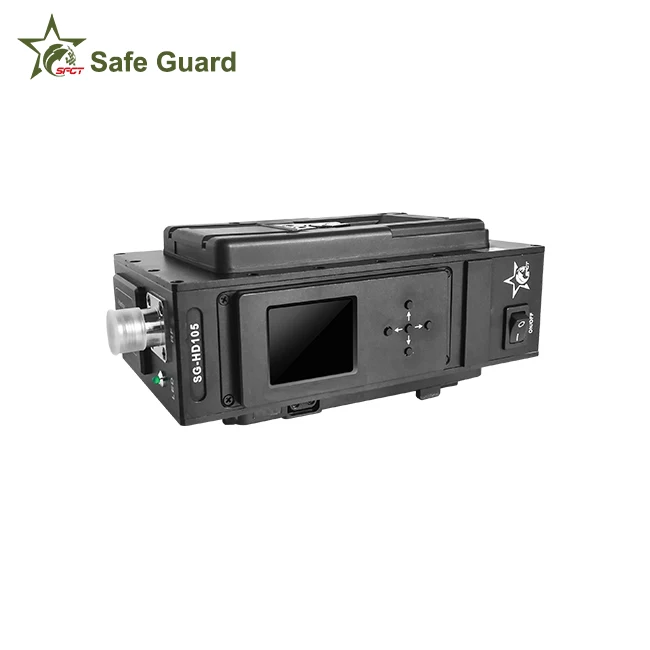

Designed for both HD and SD cameras, SG-HD105 transmitter is an innovative product of wireless HD links for advanced and professional for electronic news gathering, television outside broadcasts and studio applications.

SG-HD105 HD transmitter adopts the latest COFDM modulation technology and H.264 encoding that complete video audio transmission in high-speed motion and NLOS(non line of sight) conditions with low delay.

What's more, the diversity receiving technology greatly improves the receive quality in all working conditions, high definition picture quality and capability.





Features:

1)COFDM modulation,stability signal
2)HD-SDI and BNC input
3)Bandwidth 2/2.5/4/8MHz adjustable
4)HD & composite video input
5)Balanced stereo audio input.
6)Dual V battery mounts
7)1-8W rf power output adjustable
8)Live broadcasting ,low delay time





DC Input	DC11-16V
Working Current	1.9A@12V
Frequency range Output	300-800MHz(optional), 1.2G/2.4G/4.4GHz (customized)
Modulation	COFDM,2K ,QPSK
RF bandwidth	2/2.5/4/8MHz(adjustable)
RF Power output	3-5W(adjustable)
SHG	>52dBc
Encryption	AES128/256bits
Constellation	QPSK,16QAM,64QAM
FEC	1/2,2/3,3/4,5/6,  7/8
Guard Interval	1/32,1/16,1/8,1/4
Carrier	2K,8K
Flatness	Full band≤2dB,8MHz≤0.5dB
AV input	BNC: D1 standard definition HDMI: HD1080i/1080P, 720P, 576, 480 or HD-SDI:HD1080i/1080P, 720P, 576, 480
CNR(weighting)	58dB
Sloping field SNR(unweighted)	≥50dB
Balanced audio input range	Vmax=±15V
Unbalanced audio input range	Vmax=3Vpp
Audio channel	Stereo L/R audio channel
Standard	SMPTE 425M (Level A and Level B), SMPTE 424M, SMPTE 292, SMPTE 259M-C SMPTE 272M  SMPTE 299M
Input range	800±80(mV)
Audio encoding mode	MPEG1 Layer2
CBER	<2.0E-4
Video resolution	Minimum 1280*720@50i Maximum 1920×1080P/I@60hz
Video coding	H.264
Video rate	500kbps-16.68Mbps(autoadaptation)
Max speed rate	450km/h
Format	NTSC/PAL
OperatingTemperature	-25℃~55℃
Storage Temperature	-40℃~70℃
Dimension	180*110*85mm(with dual V mounts)
Weight	1.6kg





F&Q:
Q1.Could you do design for us?
Yes, when we know your requirement, we could customize the
equipment for you.

Q2.what's your advantages ?
A. advanced technology
B. Strictly quality control when producing.
C. Good service

Q3.How about the shipping?
For small orders, we will send the goods by International Express like
HK Fedex, DHL, TNT or UPS. usually it takes about 7work days to arrive. If
big quantity we will ship by Ocean transportation, it takes about one and half
month to arrive. if urgnet, you can select shipping by Air, but freight charge
will be more expensive.

Q4.What's the terms of payment?

TT, Paypal, Western Union, AliPay

Q5. What's' your After-sale service?
All products have pass strict inspection before they go out.
Belong to the product quality problem, provide free repair within one year.
Provide lifetime maintenance service
