Supply 19'' waterproof anti-vandal monitor touch screen

Product Description

MAIN FEATURES:

·Narrow bezel,ultra-thin design

·Low power consumption

·Using four points for accurate positioning

·Used in longitudinal and transverse screen installation

·Single Touch

·High stability, won't be drifted with the change of time and environment

·Strong adaptability, without interference of the current, voltage and stati electricity suitable for some of the bad environmental conditions



1.MECHANICAL



Housing

Metal

Touch Panel Size (out line)

420.0±0.5 (L) x345.0±0.5 (W) ×9.0±1.0 (H) mm

Active Area

378.0±0.5 (L) x303.0±0.5 (W) mm

Net Weight

1.65kg

Aspect Ratio

4:3

Glass

3mm general tempered glass(customizable)

Light transparence :>92%(depending on anti-reflective surface coating)



2.TOUCH CHARACTERISTICS



Touch Method

Finger, Gloved finger or stylus pen

Touch Activation Force

No pressure required

Touch Accuracy

1.5mm(central area),2.5mm(marginal area)

Resolution

4096(L) X 4096(W)

Touch Depth

<5mm

Response Time

≤16ms

Touch Sylus Diamete

8mm

Touch Intensity

Over 5000 millions single touch



3.ELECTRICAL



Power Requirements

DC 5V±5%,500mA

Operating Current

150mA-180mA

Power Dissipation

<2.0 W,  typical at +5VDC.Average power dissipation is 800mW.

Electrostatic Protection

Per EN6100-4-2 2008:Level 3.Contact discharge 4KV,air discharge 8KV.



4. ENVIRONMENT



Temperature

operating:0 ~ 50



storage:-30 ~ 60

Humidity

operating:20% ~ 85% RH ,40 non-condensing



storage: 0% ~ 95% RH ,40 non-condensing

Light Resistance Test

Incandescent lamp (220V,60W) ,operating distance over 200mm

Interface

Interface

Waterproofness

IP65

Operating Environment

indoor and outdoor

Screen Requirement

LED,LCD,PDP.etc

5. SOFTWARE(Firmware)

Scanning

Auto full screen scanning

Touch Trigger

Drop, raise, move on plane

Output

Coordinate output

Supported OS

Microsoft Windows  8 / 7 / XP / 2000 / VISTA

Linux

Firmware Update

Support usb firmware update

Driver

Install the driver or PNP

Sleep And Wake Up Function

Support

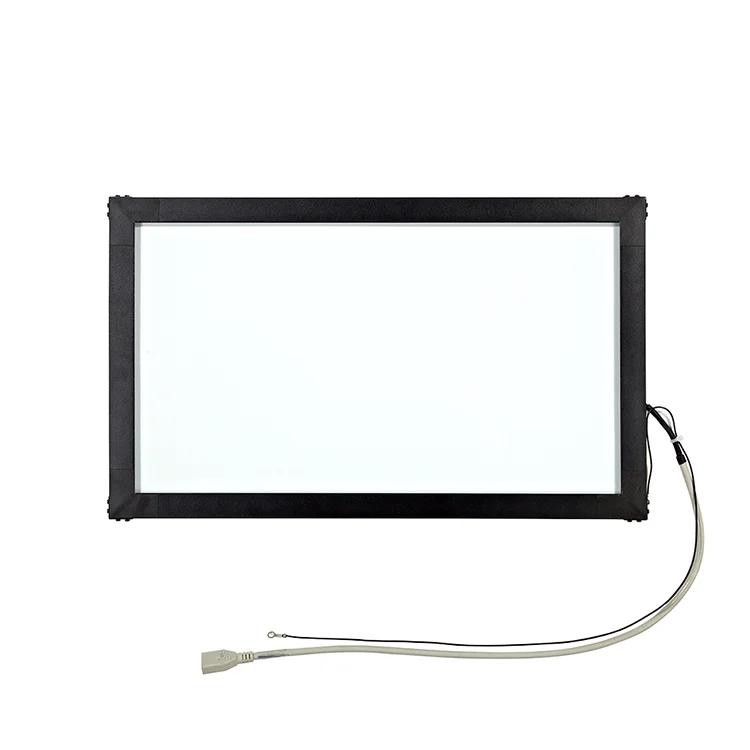

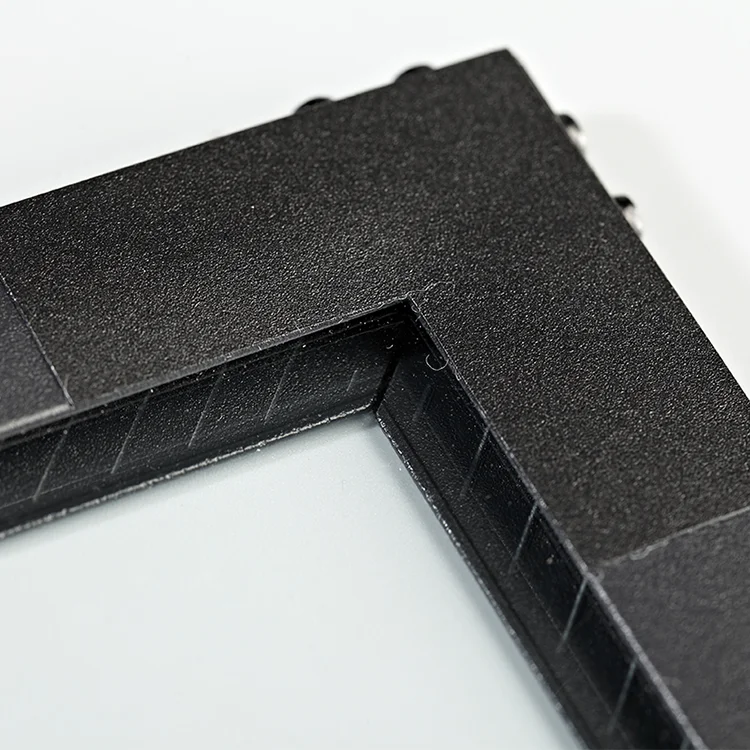

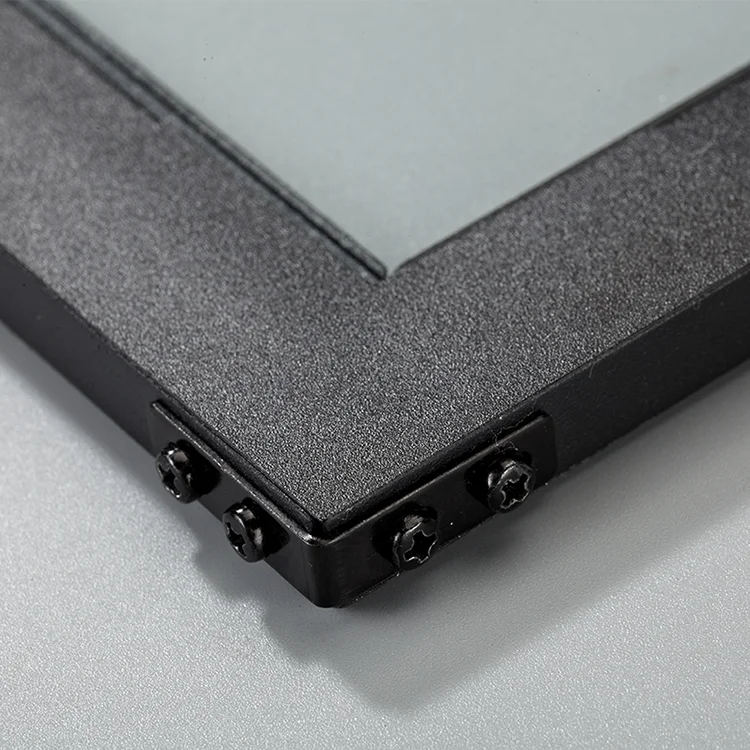

Product Pictures

anti-vandal touch screen










KeeTouch Other Product pictures:



anti-vandal touch screen.jpg
