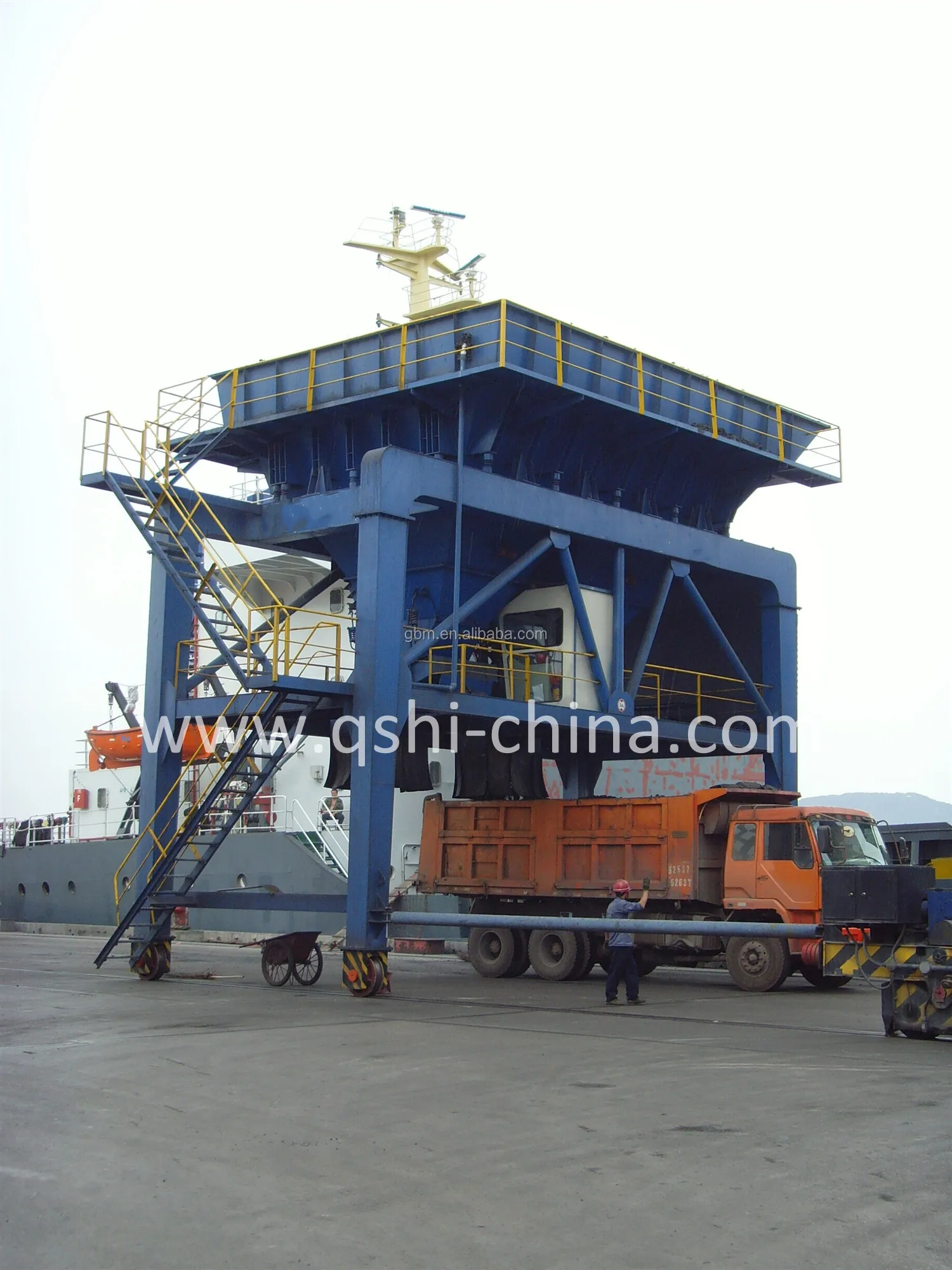

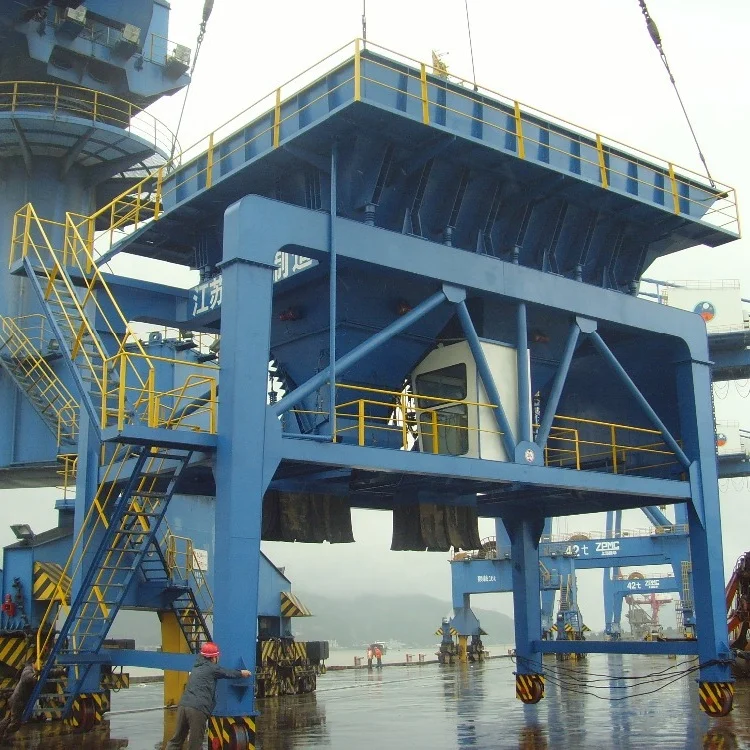

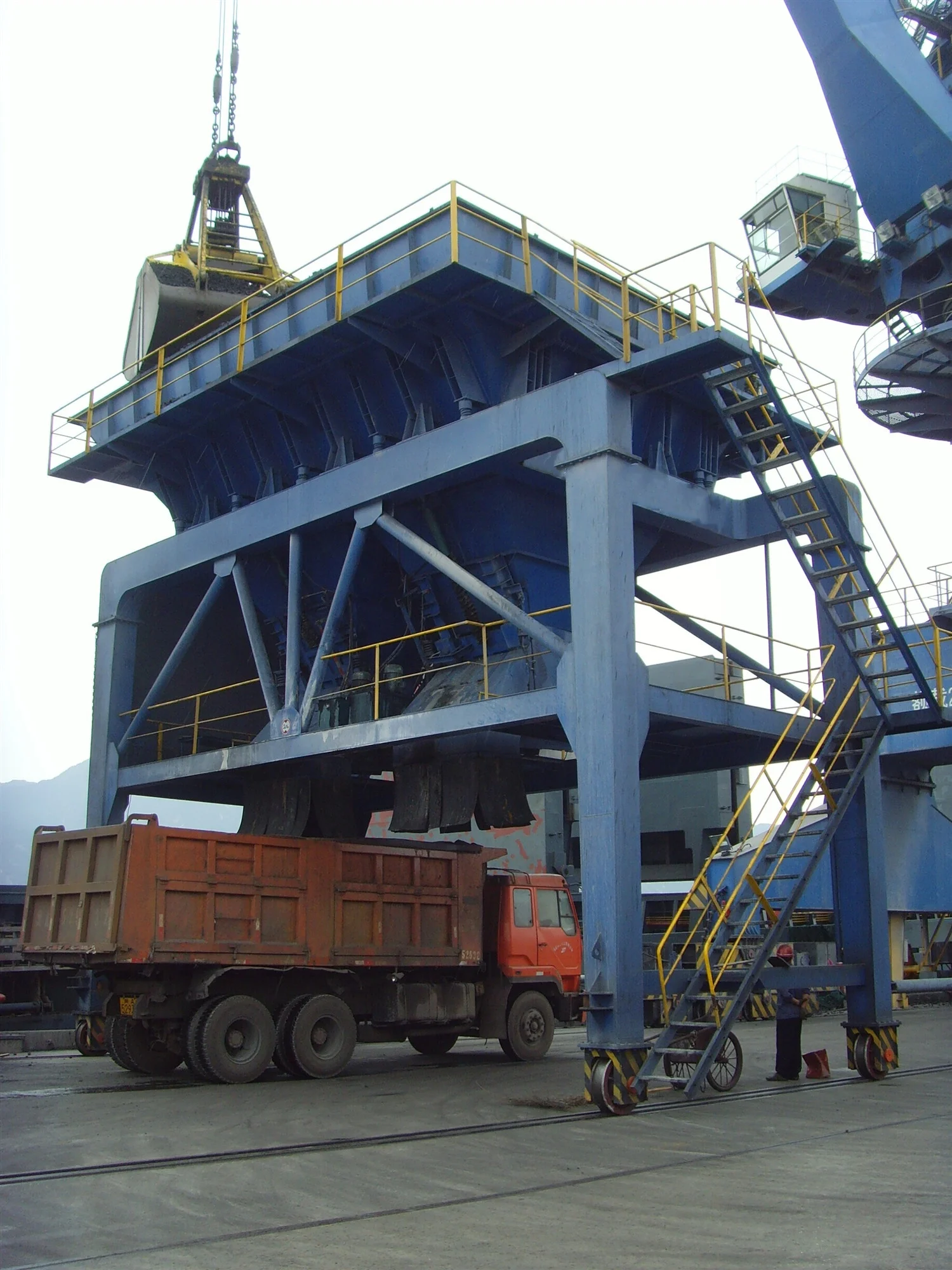

Dust Trap mobile Hopper for Port Unloading Bulk Cargo
- Category: >>>
- Supplier: Shanghai Guanbo Machinery Equipment Co. Ltd.
Share on (60513006011):
Product Overview
Description
Product introduction
This equipment is mainly used for the unloading and loading of bulk cargoes. The bulk cargo is grabbed by a portal grab crane, and
the grabbing materials are run to the loading and unloading by the relevant operation mechanism of the gate grab crane. Above the
system, the grab is opened by the PLC control system of the portal crane and the bulk cargo is unloaded into the unloading funnel
of the loading and unloading system; an electrohydraulic push rod control device is located on the discharge opening of the
unloading funnel. It is used to control the flow of material, so that it is safe and effective when loading the vehicle, which
greatly improves work efficiency.
the grabbing materials are run to the loading and unloading by the relevant operation mechanism of the gate grab crane. Above the
system, the grab is opened by the PLC control system of the portal crane and the bulk cargo is unloaded into the unloading funnel
of the loading and unloading system; an electrohydraulic push rod control device is located on the discharge opening of the
unloading funnel. It is used to control the flow of material, so that it is safe and effective when loading the vehicle, which
greatly improves work efficiency.
Drawing
Technical Parameter
No | Model | Volume CBM | Loading Weight (t) | Hopper weight(t) | Max. Total Weight(t) | Unloading Capacity(t/h) | Note |
1 | GBMTD40 | 40CBM | 60 | 16 | 80 | 300-600 | 1 outlet |
2 | GBMTD50 | 50CBM | 80 | 19 | 100 | 400-800 | |
3 | GBMTD60 | 60CBM | 100 | 21 | 125 | 500-1000 | |
4 | GBMTD70 | 70CBM | 120 | 25 | 145 | 600-1250 | |
5 | GBMTD80 | 80CBM | 140 | 27 | 170 | 800-1600 | |
6 | GBMTD100 | 100CBM | 160 | 30 | 190 | 1000-2000 | |
7 | GBMTD60-2 | 60CBM | 200 | 33 | 235 | 1250-2500 | 2 outlets |
8 | GBMTD70-2 | 70CBM | 120 | 27 | 150 | 1250-2500 | |
9 | GBMTD80-2 | 80CBM | 140 | 30 | 170 | 1000-2000 | |
10 | GBMTD100-2 | 100CBM | 160 | 33 | 195 | 1600-3200 |
