Q69 дробеструйное оборудование/стальная пластина структура Дробеструйная Очистительная Машина для продажи
- Category: Abrator >>>
- Supplier: Qingdao Binhai Jincheng Foundry Machinery Co. Ltd.
Share on (60513296288):
Product Overview
Description

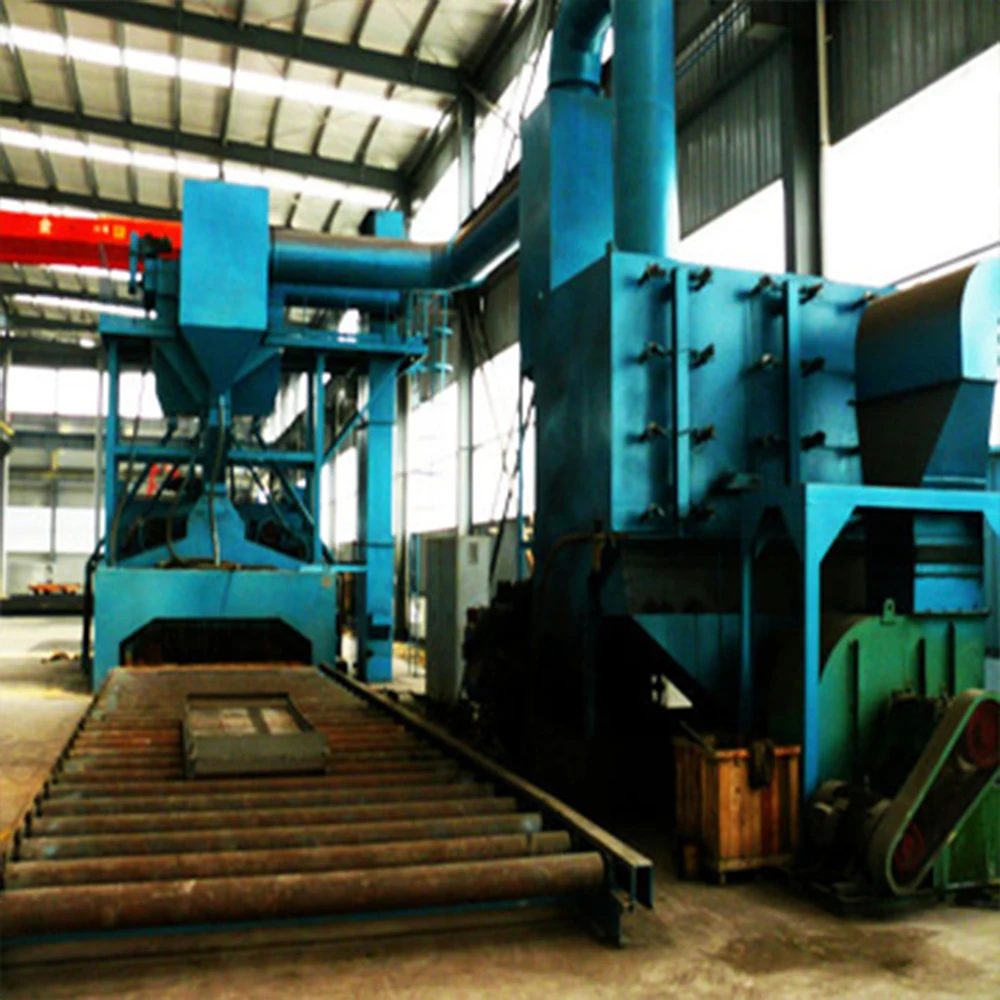

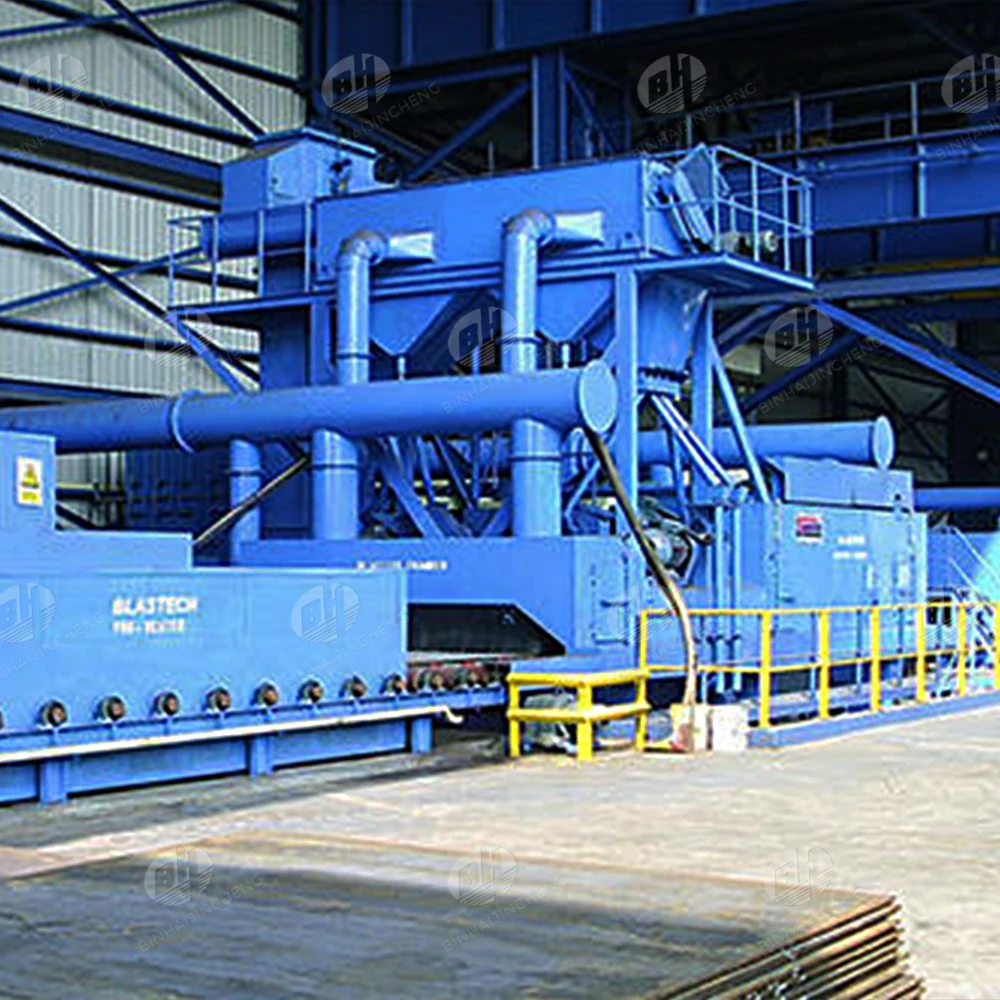

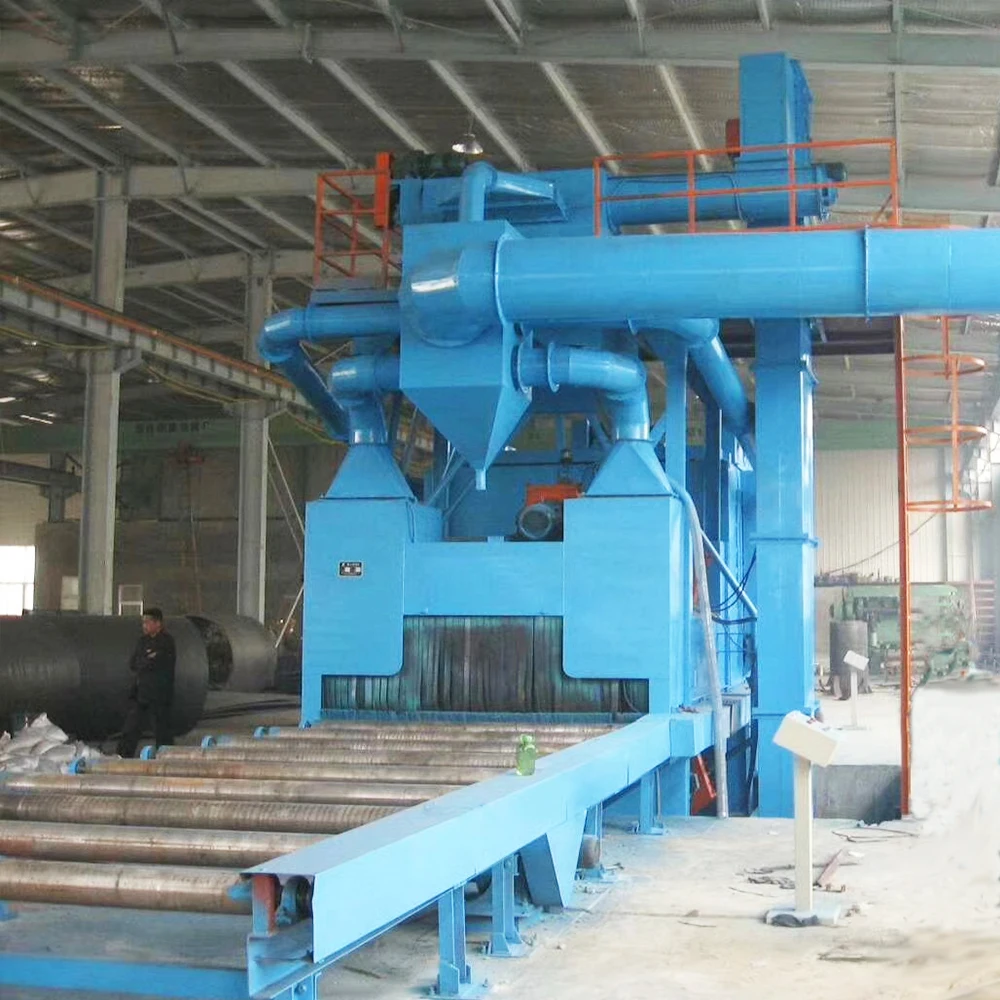

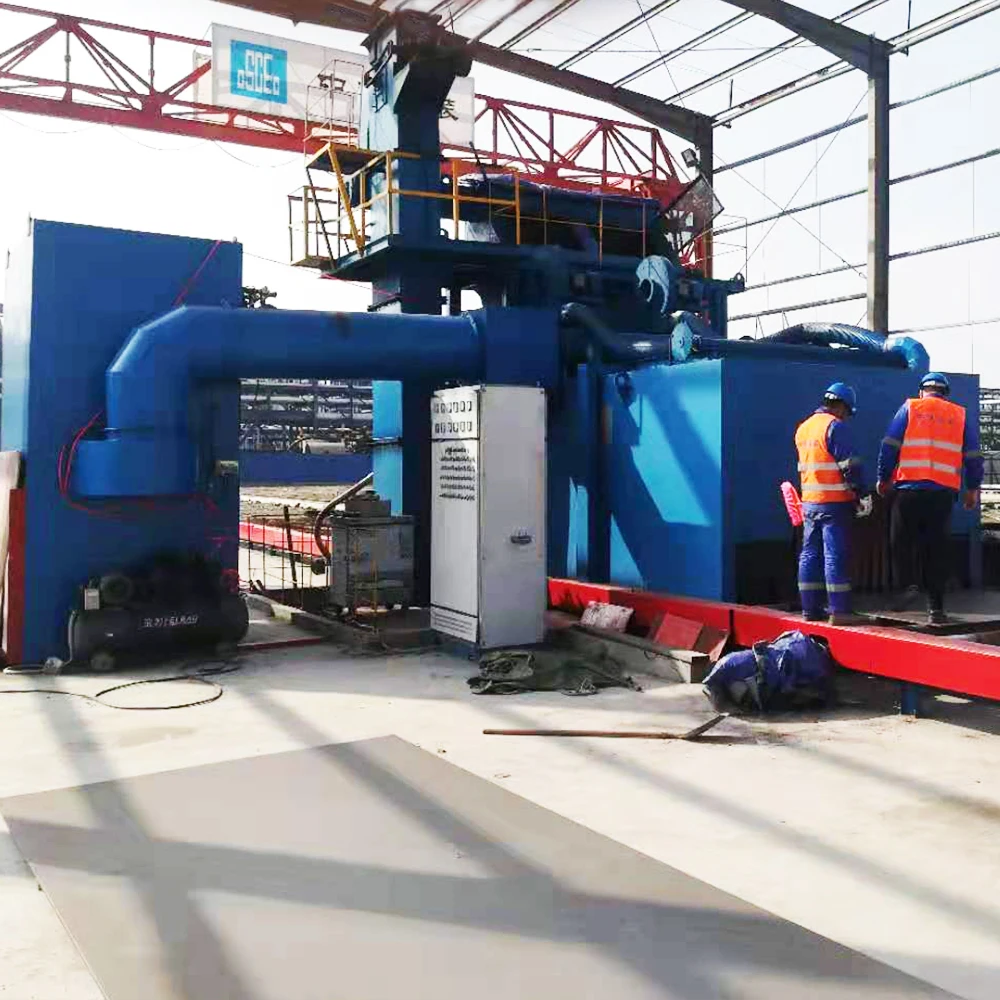

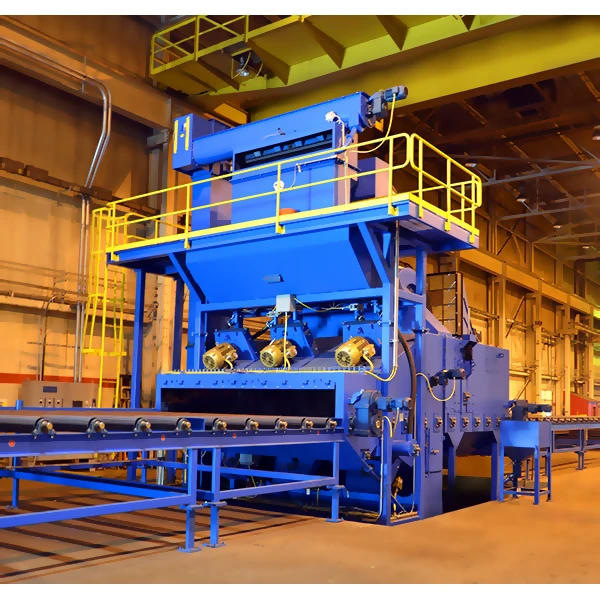

Q69 Roller Shot Blasting Equipment/Steel Plate Structure Shotblast cleaning Machine
Product Description

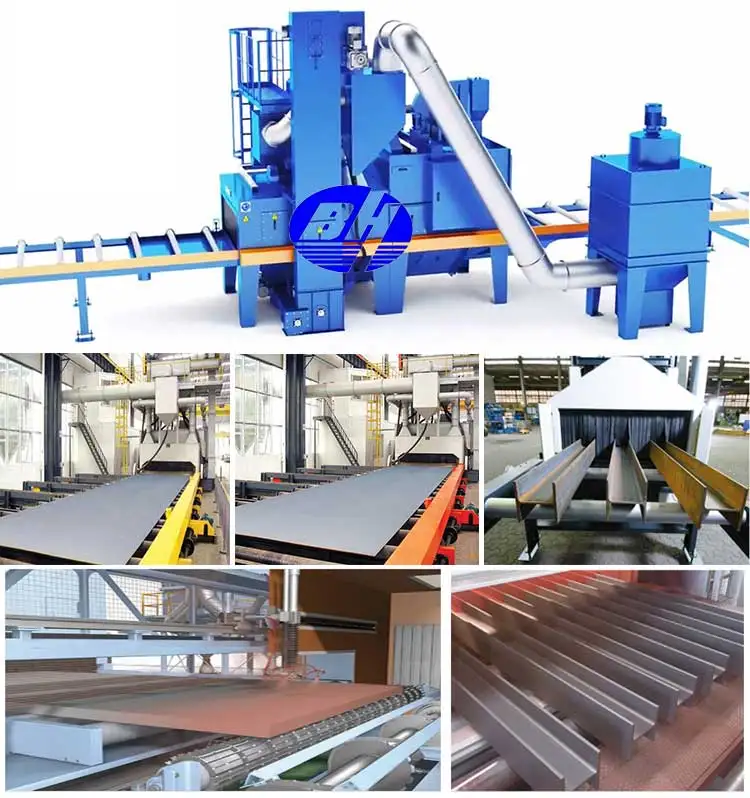

Steel plate sand blasting machine (pretreatment line process )refers to blasting derusting and processing technology of coated with a layer of protection primer in surface before the steel plate processing (i.e., raw materials) .Steel plate after pretreatment can improve the mechanical products and corrosion resistance of metal components, improve the anti-fatigue performance of steel plate and prolong its service life; At the same time can also optimize the steel surface status of the production process, feed and precision blanking is advantageous to the CNC cutting machine. In addition, because before the processing rules for comparing the shape steel, is beneficial to mechanical descaling and automatic spray paint, so the steel pretreatment can greatly improve the efficiency of cleaning work, reduce the labor intensity of the cleanup and pollution to the environment. Not only because of this, the steel plate pretreatment in the process has been applied in developed countries, and caused many industry is becoming more and more attention in domestic, many enterprises have the agenda of the steel pre process mentioned the technical transformation
//www.binhaimachinery.com/Viedoin.asp?id=129
parameter | Q698 | Q6912 | Q6915 | Q6920 | |
The effective cleaning width(mm) | mm | 800 | 1200 | 1500 | 2000 |
The room feed-in size | mm | 1000 x400 | 1400 x400 | 1700 x400 | 2200 x400 |
The length of cleaning workpiece(mm) | mm | 1200-12000 | 1200-1600 | 1200-12000 | 1200-12000 |
The speed of wheel conveyer(m/min)) | m/min | 0.5-4 | 0.5-4 | 0.5-4 | 0.5-4 |
The thickness of cleaning steel sheet (mm) | mm | 3-60 | 3-60 | 1.5-60 | 3-60 |
Steel spectification | mm | 800 x300 | 1000 x300 | 1500 x300 | 2000 x300 |
The quantity of shot blasting (kg/min) | kg/min | 4 x180 | 4 x250 | 4 x250 | 6 x250 |
The first enclosed quantity (kg) | kg | 4000 | 4000 | 4000 | 4500 |
Roll brush adjusting height (mm) | mm | 200 | 200 | 350 | 450 |
Air capacity | m3/h | 22000 | 17560 | 19000 | 19550 |
Exterior size |
mm | 25017x4500 x9015 | 12180 x4250 x7095 | 15200 x5370 x6797 | 30650 x6850 x9095 |
Total power | kw | 90 | 78.3 | 113.5 | 156.6 |

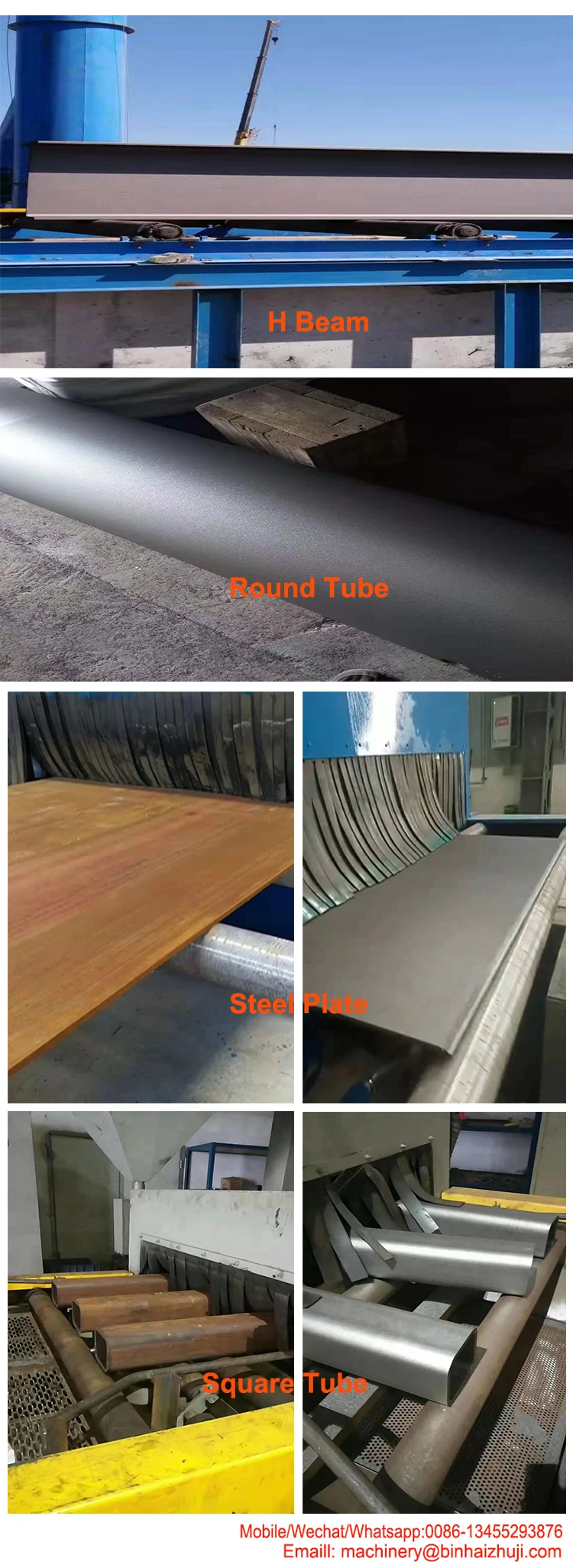

Cleaning effect:
Advantages of steel plate sand blasting machine as follows:
(1) Improve corrosion resistance of mechanical products and metal material
(2) Improve the anti-fatigue performance of steel and prolong its
service life
(3) The optimization status of process of steel surfaces
(4) Advantageous to the CNC cutting and precision blanking
(5) Good for mechanical descaling and automatic spraying antirust paint
(6) Greatly improve the efficiency of cleaning
(7) Reduce the labor intensity of the cleanup
(8) Low to reduce environmental pollution
Packaging & Shipping
Our Services
1. considerate 24 hours after-sale service and Technial Assistance.
2. The guarantee period : 3 years under normal use. replace the damage parts within this period, except the wearable parts
3. responsible for providing technical information, equipment installation manual, certificate, packing list to the buyer
4. Customized design is available. 20 years experience with 40 professional engineers
5. installation ,debugging and training can be provided to our customer by our well-trained and professional engineers and staff for free
6. Protection of sales are provided to our distributor all over the world .
7.We are manufacturer, specializing in producing all kinds of machinery for more than 20 years, competitive with good quantity.
8.welcome to visit our facotry, we will pick you up any time .
9. Strict quality control to eliminate substandard products and shoddy work, not only to reduce the cost to reduce the quality
Company Information
Qingdao Binhai Jincheng Foundry Machinery Co.,Ltd
have more than 30 year experience in foundry machine industry. We have 10 skillfull technical engineers and more than 100 experienced workers. Our products occupy 30% of China local market with good reputation.
Our company focus on design, research, develop and produce shot blasting machines,sand blasting rooms, sand processing equipments, environmental protection equipment, etc. Regarding of shot blasting machines, we have roller conveyor type, overhead chain type, hook type, tumble belt type, wire mesh type, road surface type, and some special big shot blasting equipment for cleaning the wire roll coil and stainless steel roll. All machines are professionally designed by our highly-experienced engineers with Auto CAD & Solidworks. OEM & ODM service is available.
