ONN M3W cnc light IP65 24V machine work light for cnc machines led machine light
- Category: >>>
- Supplier: Shenzhen ONN Semi-Conductor Lighting Co. Ltd.
Share on (60513299840):
Product Overview
Description

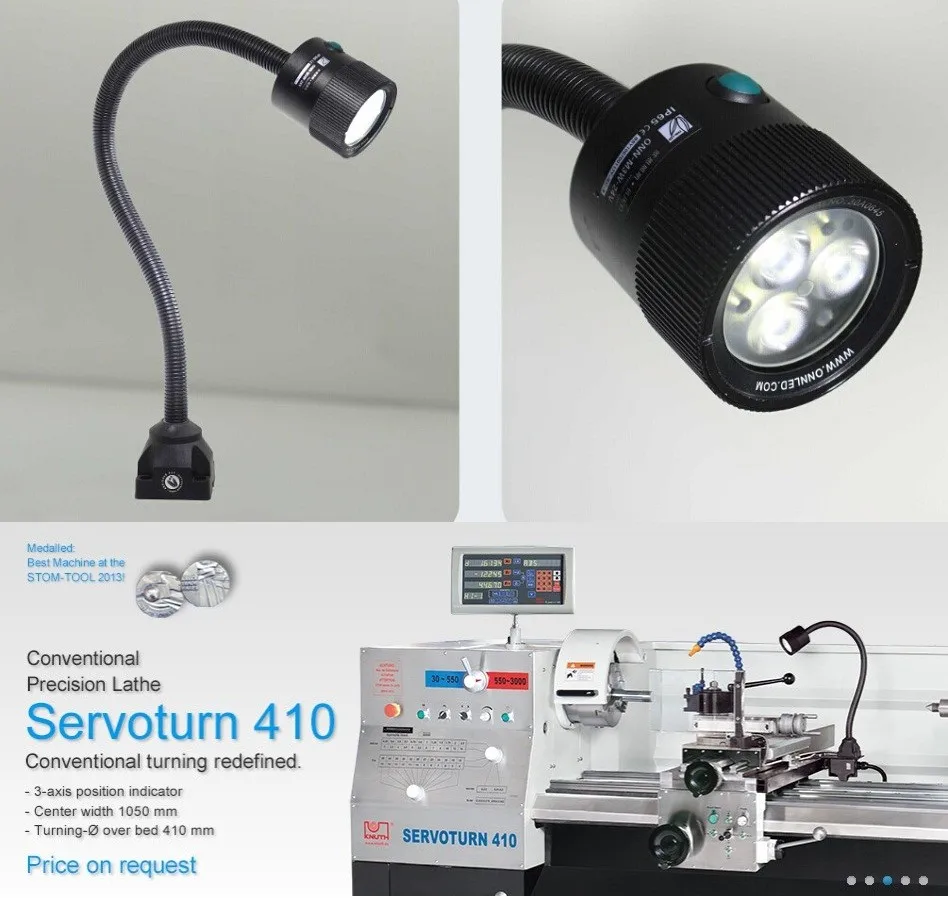

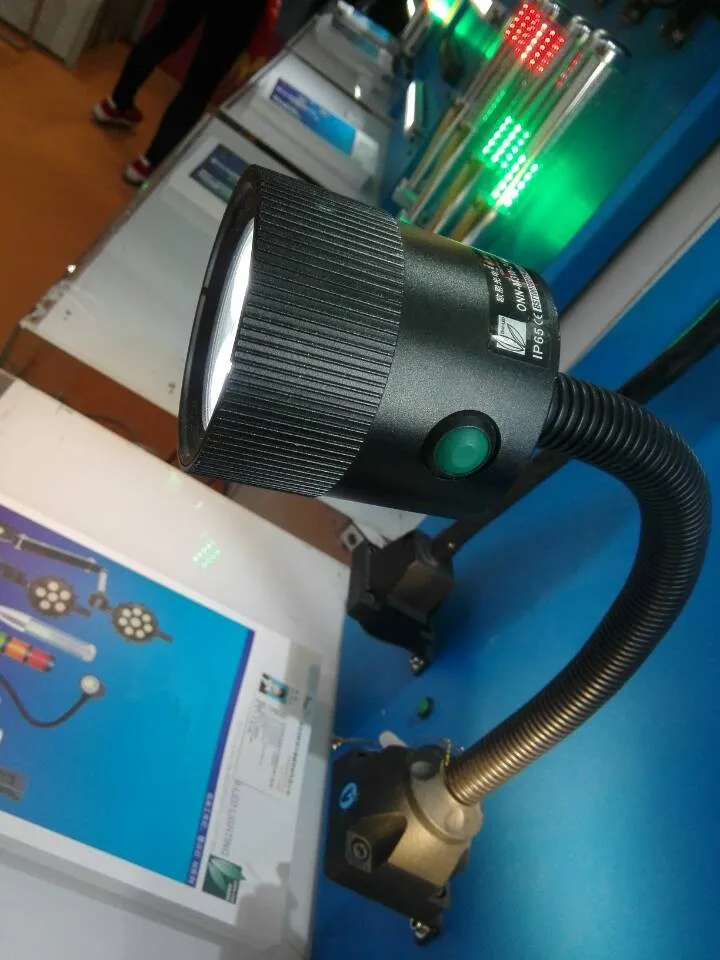

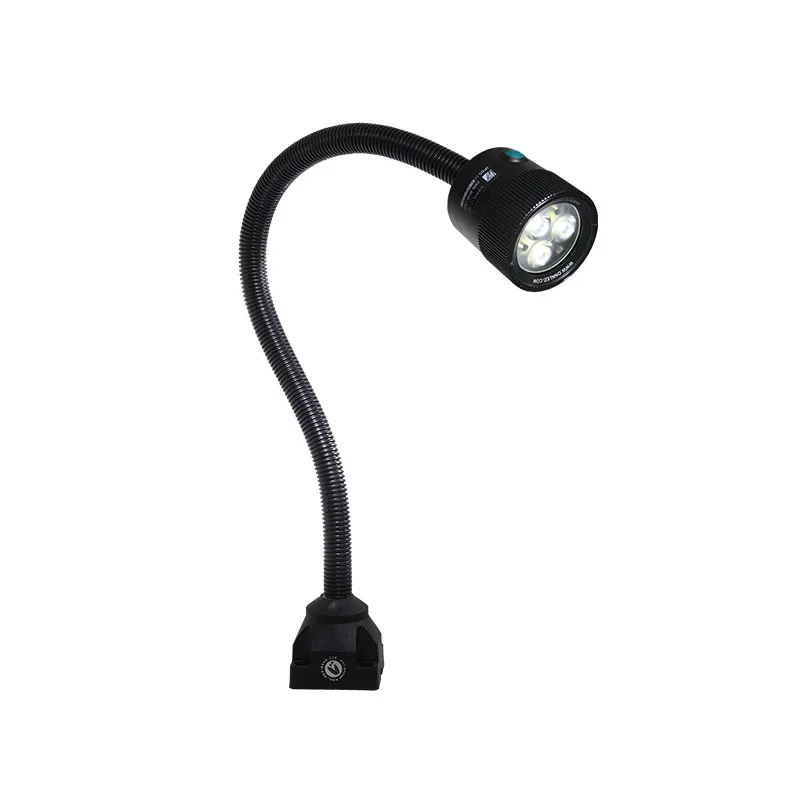

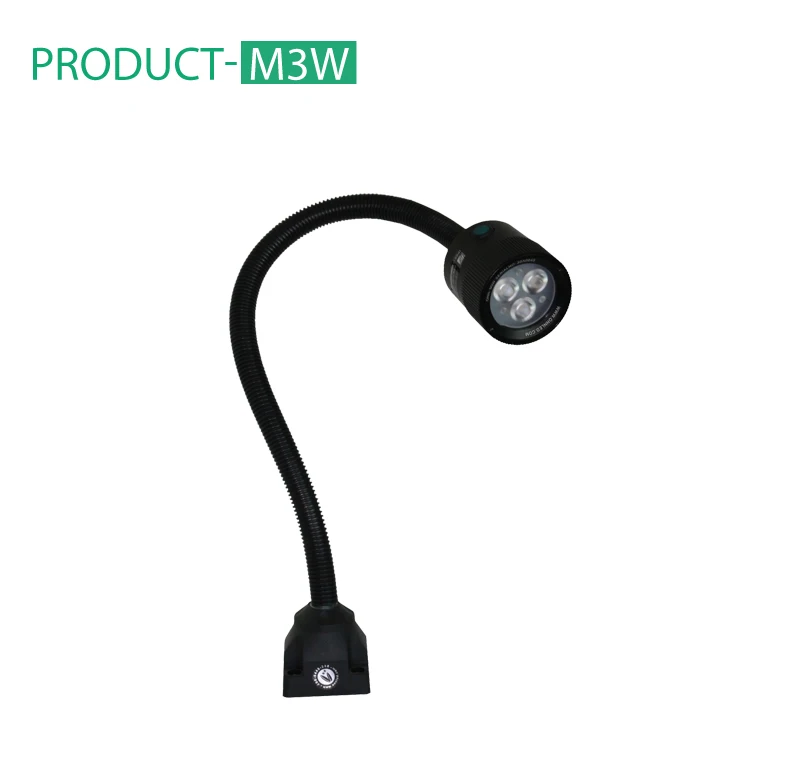

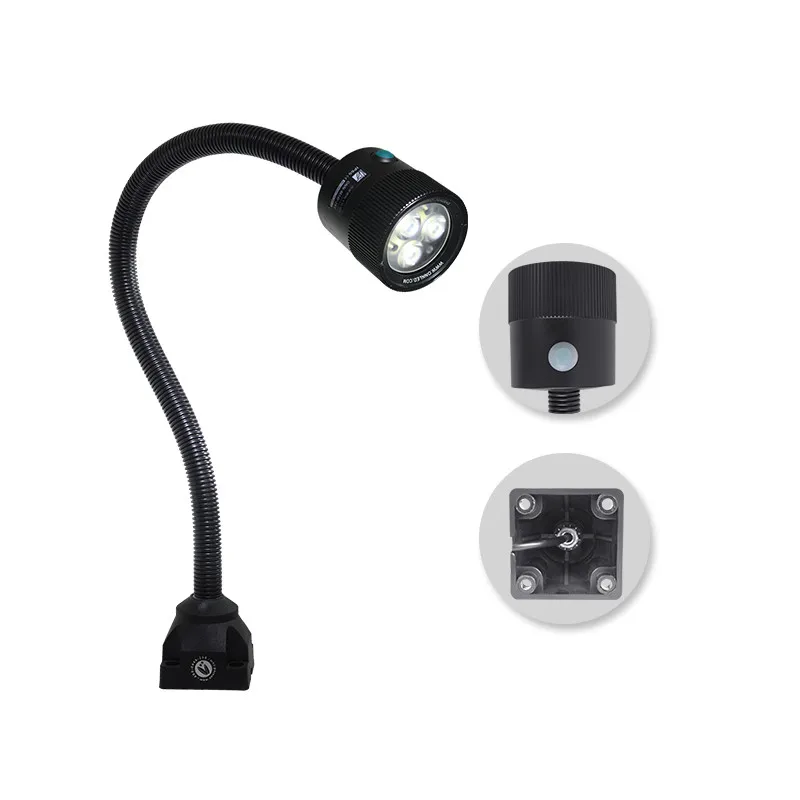

ONN-M3W cnc light IP65 24V machine work light for cnc machines led machine light
Product Description
High Power
High power led, long lifespan
Material
Aluminium lamp head, black anodize.
Strong & High-end.
Waterproof
Water-proof Switch IP65
Metal hose
360°adjustable gooseneck pipe
Installation
Fixed base. Easy mounting with screws.
Features

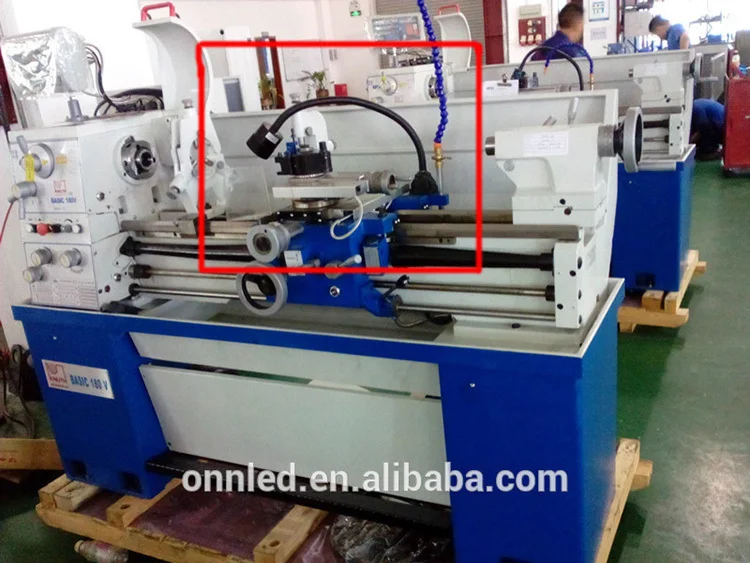

1. ONN-M3W is a convenient LED work light which is ideally designed as a lathe lighting.
2. With 530mm flexible gooseneck arm, very convenient to position lamp and control the lighting direction.
3. Use high lumen LED chip, 400lm output, long lifetime and energy saving.
4. Variety of input voltages optional to fit different applications, AC100-240V 50/60Hz, AC/DC12V,
Specifications
Power | 4.5W | Color temperature | 2800-3200K, 4000-4500K, 6000-6500K |
Input voltage | AC100-240V(50/60Hz), AC/DC24V, AC/DC12V | Material | Aluminum housing, PC lens, PA+15%GF base |
Lumen efficiency | 370lm (80lm/w) | Lifetime | 50,000 hours |
CRI | >80 | Working temperature/ humidity | -20~45℃ / 10%-90% |
IP rating | IP65 | Storage temperature/ humidity | -20~60℃ / 10%-90% |
Beam angle | 40 degree | Installation | Fixed by screws |
Ordering Code
ONN M3W - B 1 - 550 - 4.5W | ||
1 2 3 4 5 | ||
1. Model | M3W | |
2. Input Voltage | A: AC/DC12V B: AC/DC24V C: AC100-240V | |
3. CCT. | 1: 6000-6500K(cool white) 2: 4000-4500K(natural white) 3: 2800-3200K(warm white) | |
4. Length of hose | 550: 550mm Customized length available | |
5. Power | 4.5W | |

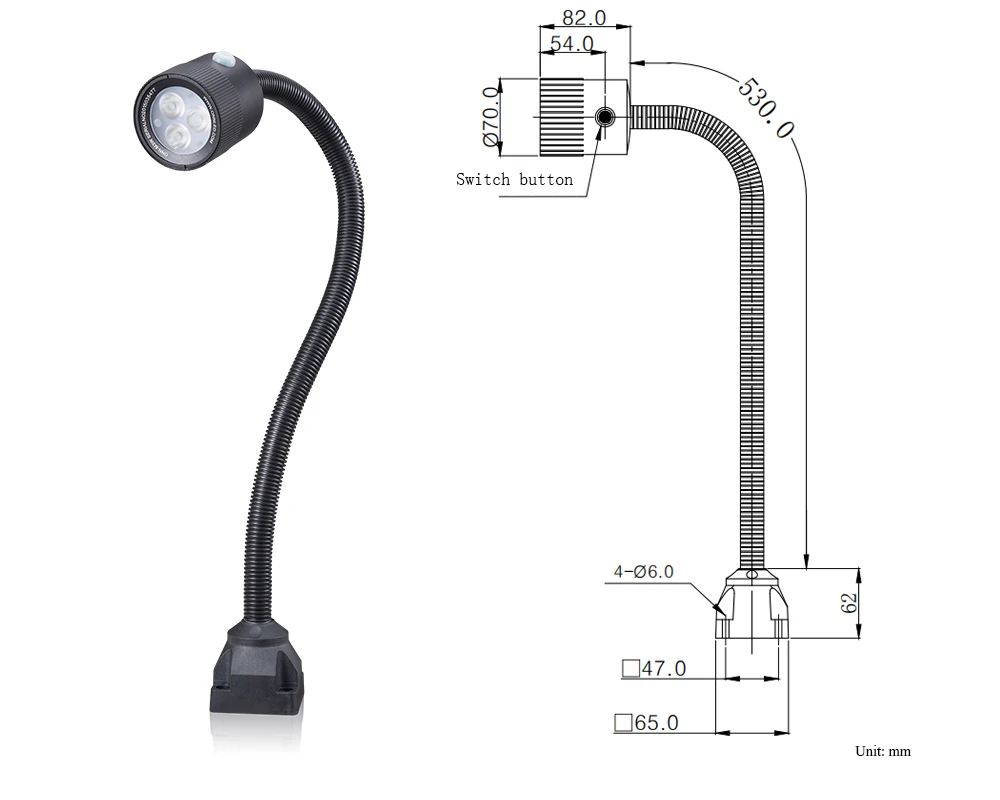

Product Size Drawing

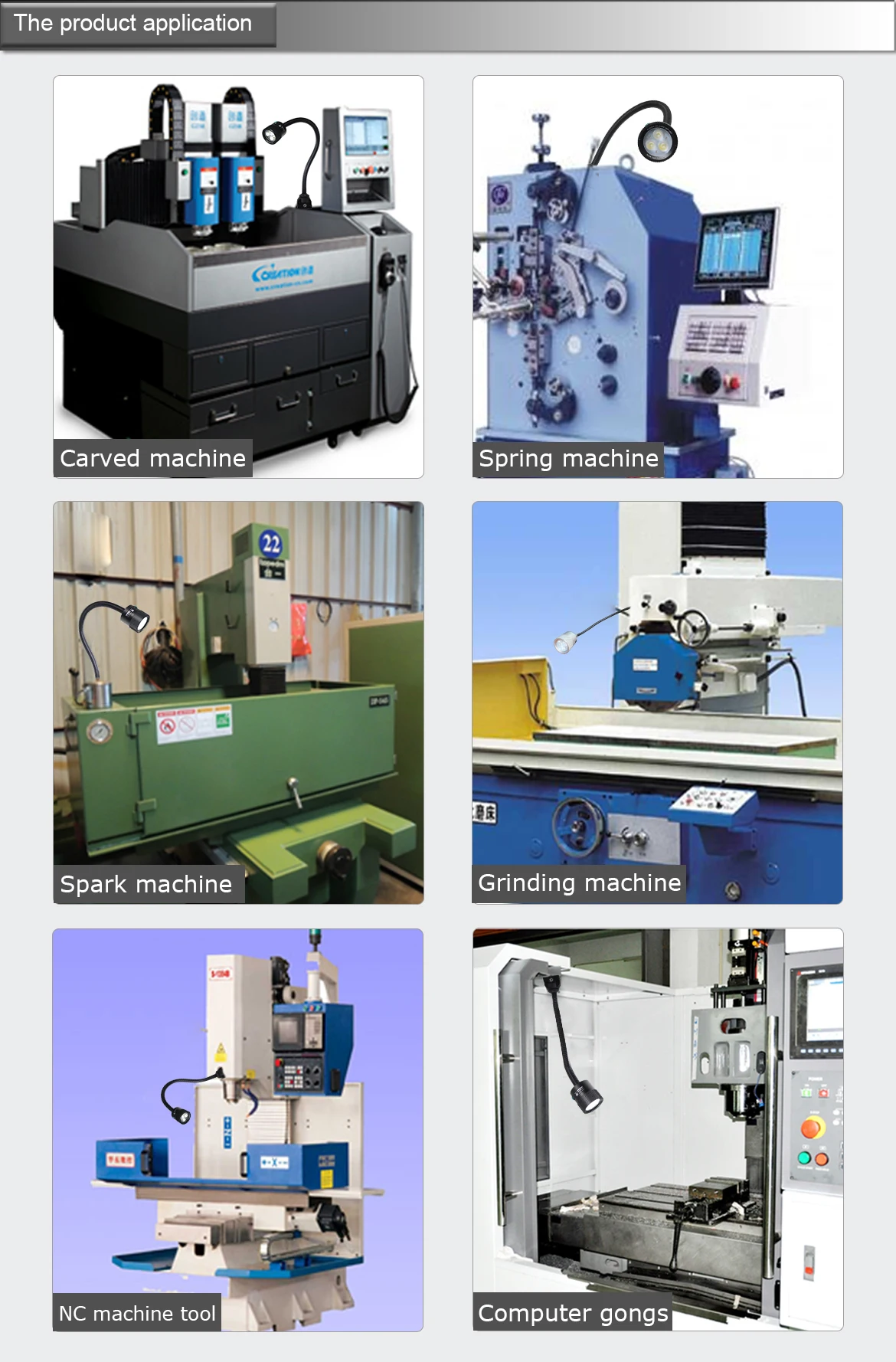

Application
CNC machine work: engraving machine, EDM machine etc.
Assembly and repair work.
Assembly and repair work.
Point lighting.
Laboratories.
Laboratories.

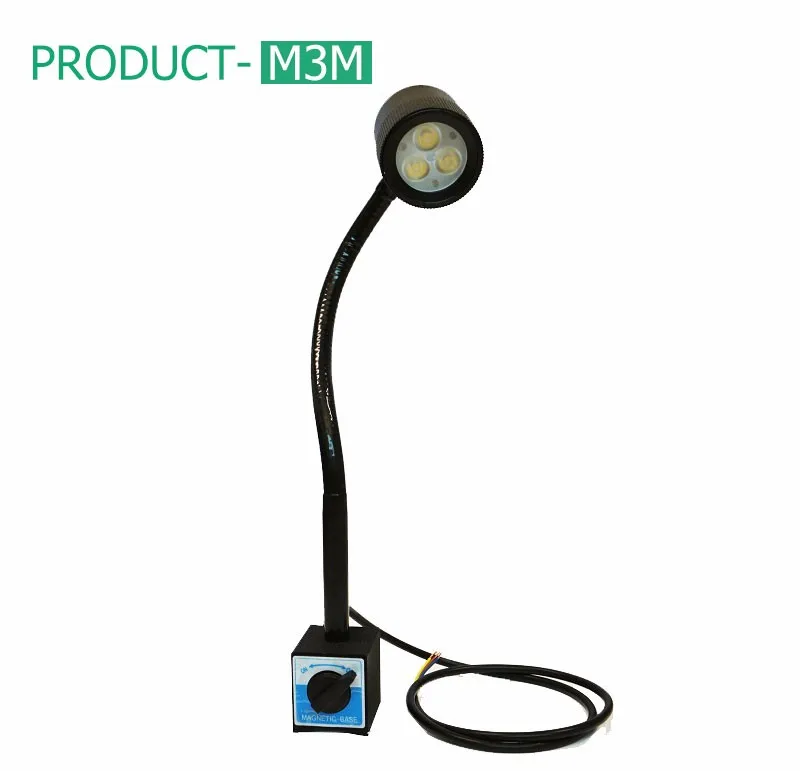

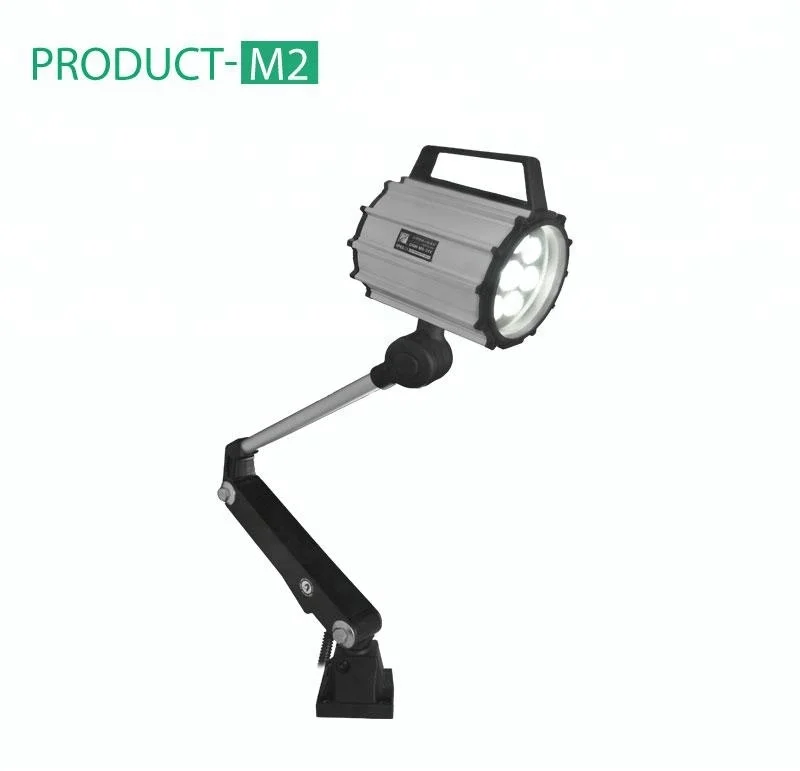

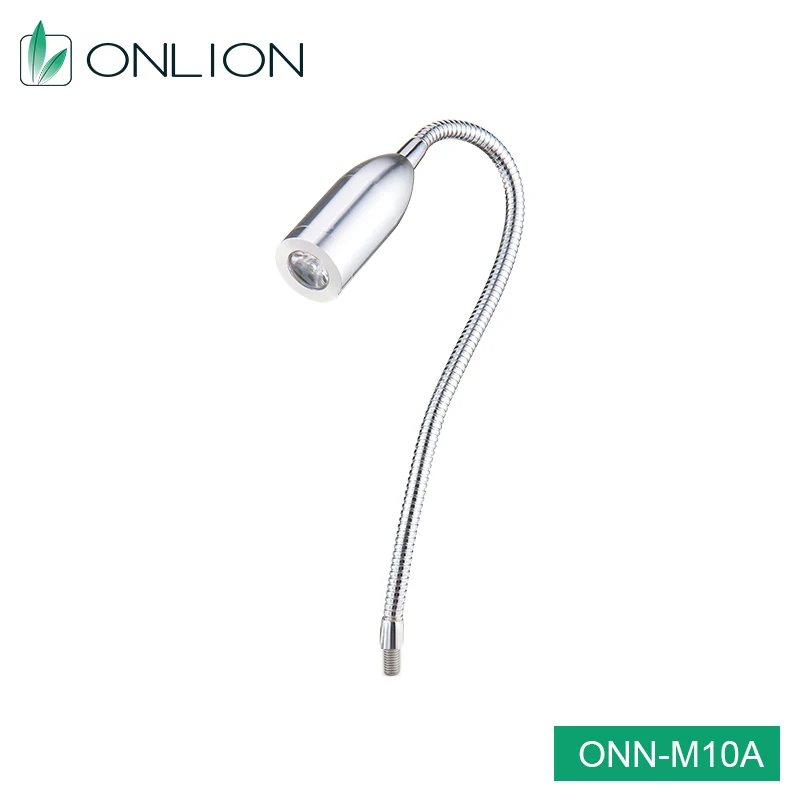

Related Products
VR

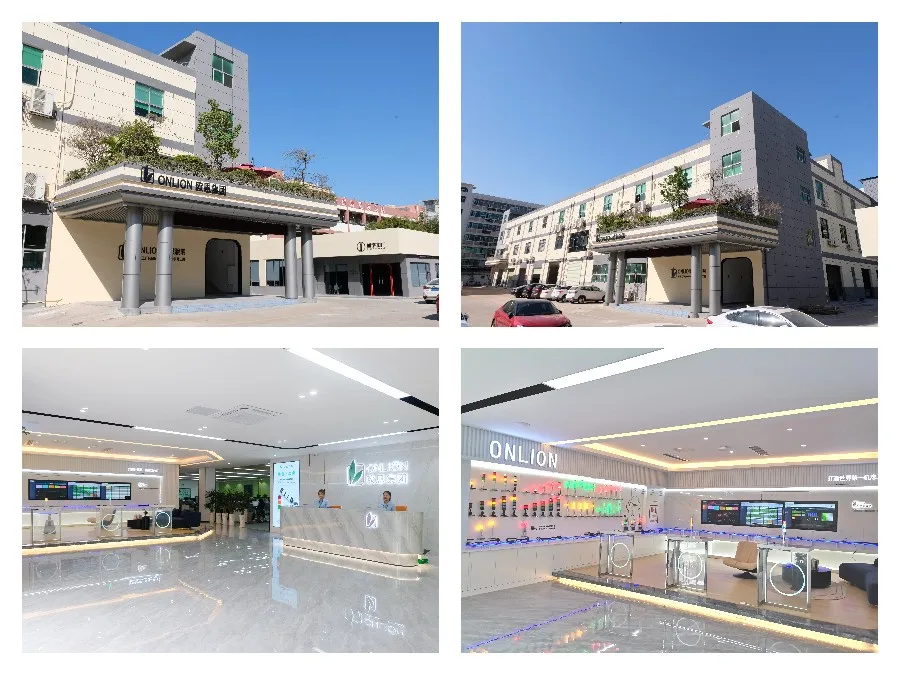

Company Information
Shenzhen ONN Semi-conductor Lighting Co., LTD. established in 2010 and located in Shenzhen, as a National high-tech enterprise, we design, manufacture and supply L E D Machine Light, Signal Tower Light and L E D Freezer Light to global industrial customers.

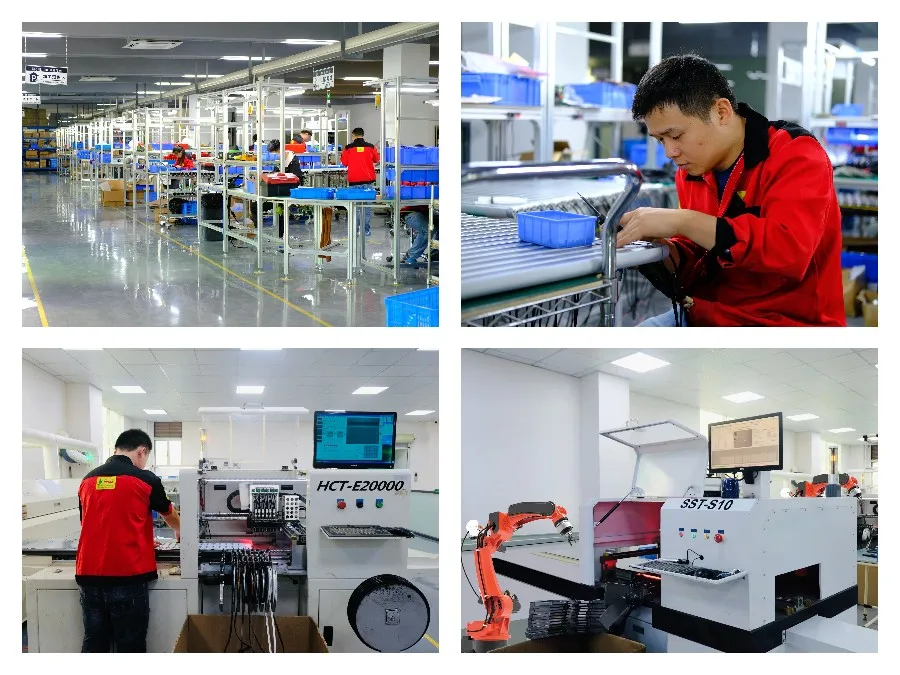

ONN Lighting has a complete range of professional equipment for production, testing and research and development, and we have 6 U shape production lines, 13 workbenches, 2 automated S M T Lines and 1 automation line. Each line equipped LightMES system, we can manage, monitor and trace the status of production on MES Screen and Smartphone. With very strong and flexible production capacity, we can produce average 3500pcs lamps and 160 orders per day.
