Excellent Product DS18B20 Audio Jack Sensor

Product Overview

Description

Excellent Product DS18B20 Audio Jack Sensor:







Features:

• Unique 1-Wire interface requires only one port pin for communication. Multidrop capability simplifies distributed temperature sensing applications. Requires no external components


• Operating temperature range:-55°C to +125°C (-67F to +257F), ±0.5°C accuracy from -10°C to +85°C


• Can be powered from data line. Power supply range is 3.0V to 5.5V


• Thermometer resolution is programmable from 9 to 12 bits.


• Size of Sheath:6*30mm



*Can be produced with different size&material probes as follow for reference:



 probe material:copper,stainless steel,epoxy,PVC,ABS,TPE..



probe size:5.5*16mm,6*25mm,6*30mm,6*50mm,6*100mm,7*25mm,7*38mm,8*25mm,8*30mm...



*Can be produced with different size&material cables as follow for reference:



cable material:PVC,TPE,Silicon,PTFE



cable size:22AWG,24AWG,26AWG,28AWG...



*Can be produced with different connectors as follow for reference:



2.5mm /3.5mm stereo plug, RJ11/12/45,USB,M12/16,BNC,3P-2510.....



Application:





The DS18B20 Digital Thermometer provides 9 to 12-bit (configurable) temperature readings which indicate the temperature of the device. Information is sent to/from the DS18B20 over a 1-Wire interface, so that only one wire (and ground)needs to be connected from a central microprocessor to a DS18B20. Power for reading, writing, and performing temperature conversions can be derived from the data line itself with no need for an external power source.







Because each DS18B20 contains a unique silicon serial number, multiple DS18B20s can exist on the same 1-Wire bus. This allows for placing temperature sensors in many different places. Applications where this feature is useful include HVAC environmental controls, sensing temperatures inside buildings,equipment or machinery, and process monitoring and control



Drawing:





5	Connector	3.5mm audio plug
4	SR	white PVC
3	Cable	28AWG white PVC Shield cable ,Length :2000mm±30mm  7*0.12+45*0.1TC   Diameter Φ3.0 wires color:white,black and red(can be custom-made)
2	Probe	304 stainless steel Φ6*30mm
1	Chip	American original DALLAS DS18b20

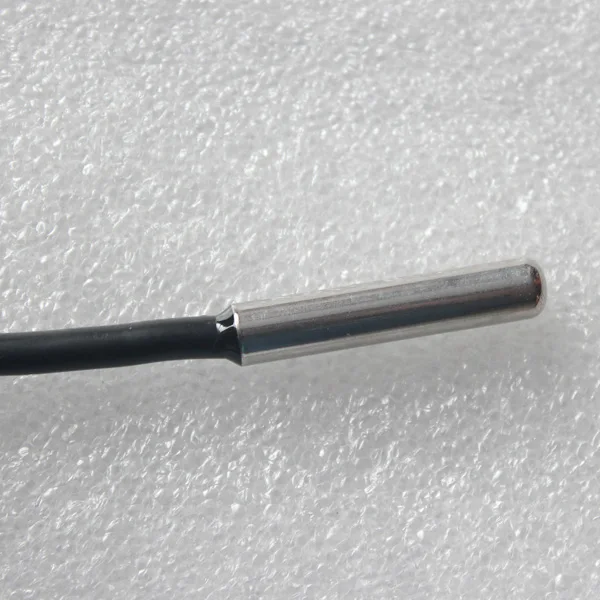

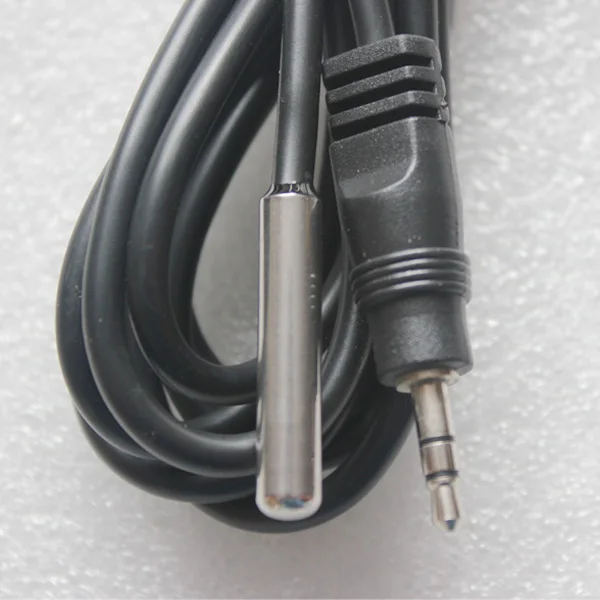

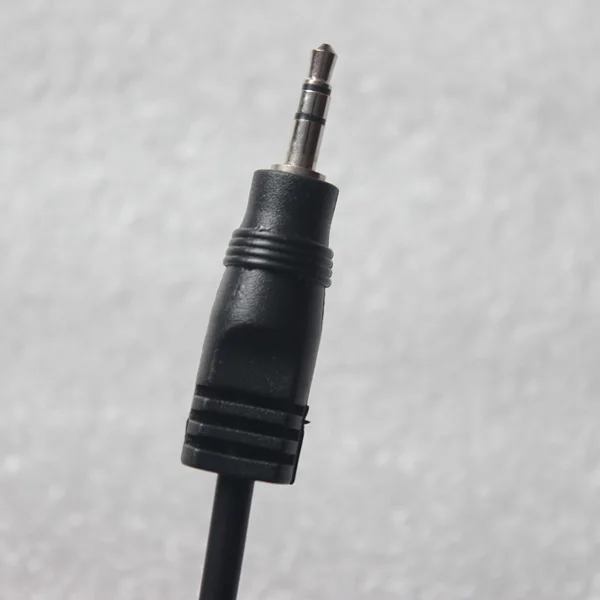

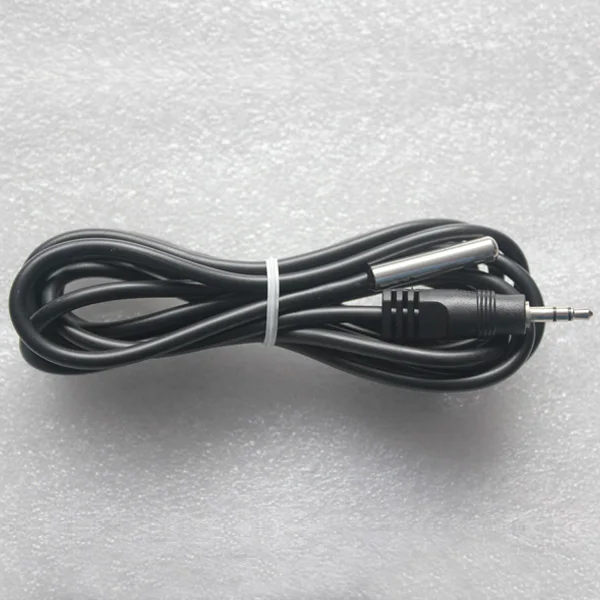

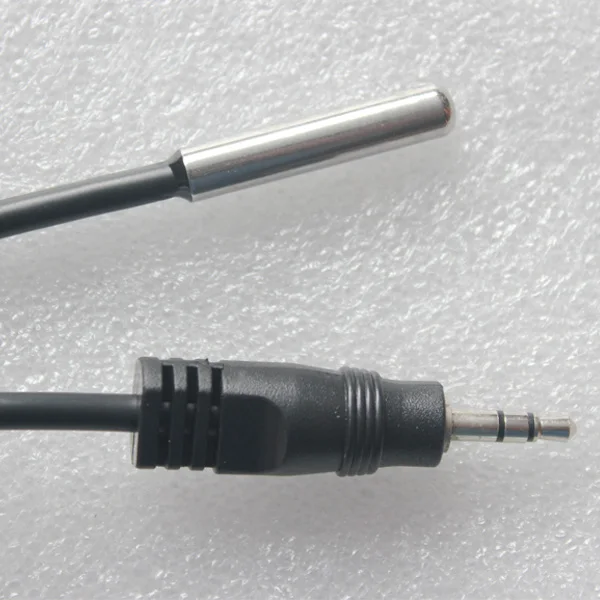

Detail Picture:



























Similar Product:





















Packaging Details:



Packed in Strong Poly bags, Several bags packed in Standard high press-resistance carton. Due to the small size of the sensor, we normally use international Express: DHL, TNT, UPS, FEDEX, EMS etc.

Logistic suggestion



** 1-50KG,by courier

** 50-100KG,by air

** Above 100KG,by sea





How to Order :

In order to help you get the exact model, please offer the following necessary info.:



1, The application of the ds18b20 sensor:__________

2, Working environment of ds18b20 sensor:________

3, The range of operation temperature:___°c to ___°c

4, The dimension and the drawing of the sensor- cable length___, probe diameter___ and probe length__.

5, Connetor model
