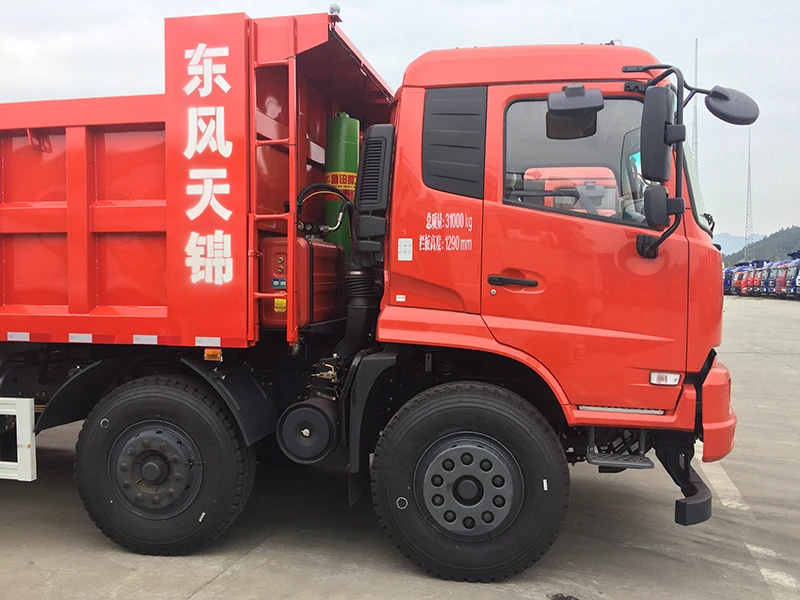

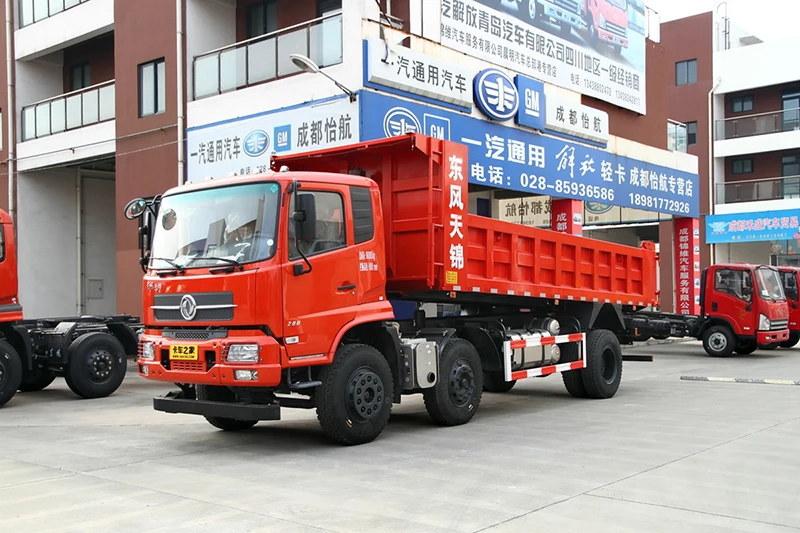

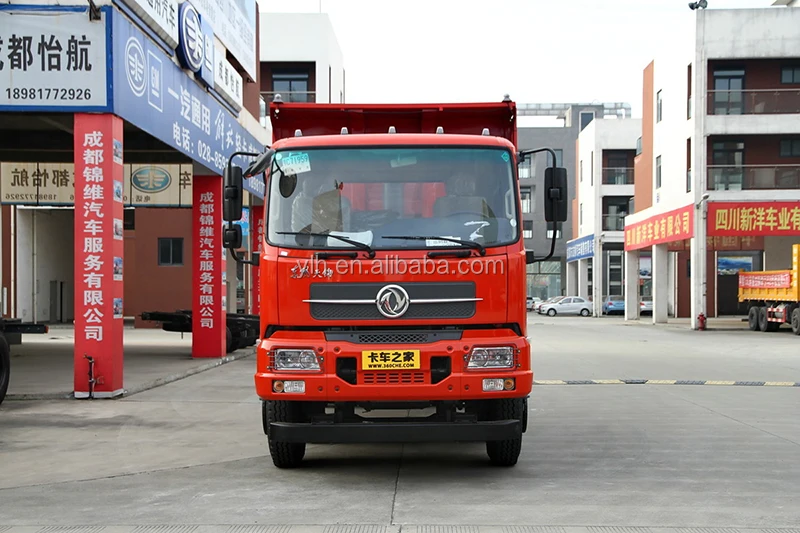

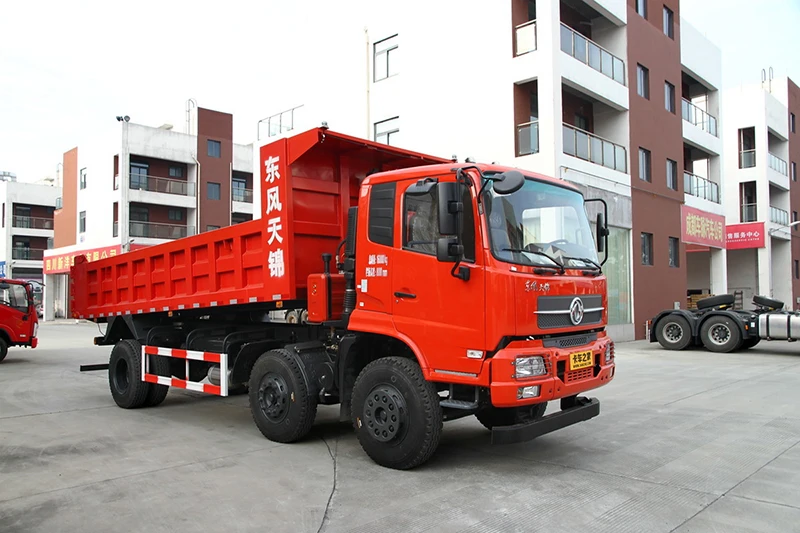

Dongfeng 8 Wheel Tipper 20 Ton Capacity 3 Axle (Tri Axle) Dump Truck 18m3 Dimension



Overall parameters
Overall dimensions	7525x2500x3080mm	Load weight	20T
Wheelbase	1800+3500mm	Driving type	6x2
Engine
Brand	Yuchai	Model	YC6J200-52
Power	200hp	Displacement	6494ml
Type	Common Rail	Cylinder	6 cylinder
Transmission
Brand	Fast	Model	8JS118A
Forward gear	8	Reverse gear	1
Axle
Front axle	6Tx2	Rear axle	10T
Tire	10.00R20	Fuel tank	400L
Body
Box dimensions	5500x2300x1500mm	Capacity	18cbm











 Box:high strenghen steel

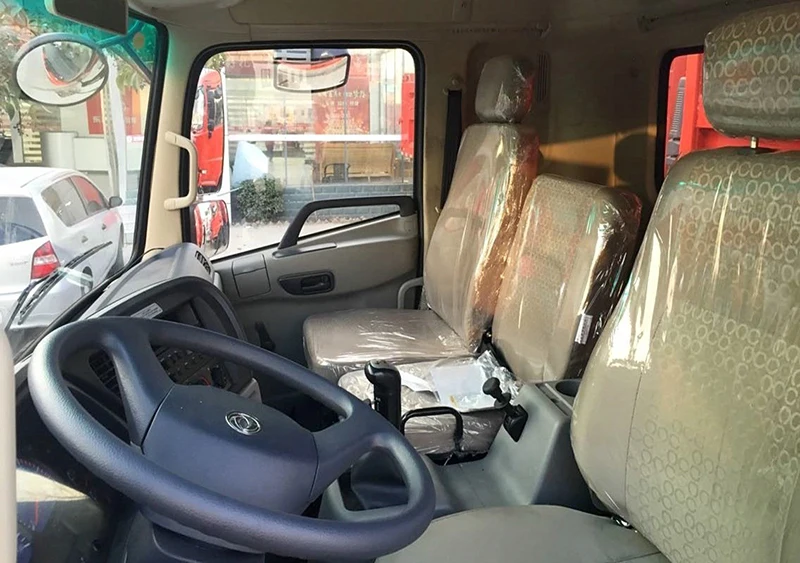

standard with suspension seats, air conditioner, electronic window, central locking
