Vacuum processing SG casting moulding foundry machine
- Category: >>>
- Supplier: Qingdao Shengmei Machinery Co. Ltd.
Share on (60513520085):
Product Overview
Description
Vacuum processing SG casting moulding foundry machine
Features:
- Higher quality and lower cost: Smooth cast surfaces and excellent dimensional accuracy significantly reduces the subsequent finishing process and reduces the machining cost.
- High production efficiency: Sand filling and disassembly are easier than with the self-hardening process and the sand can be recycled.
- Environmentally friendly: The use of dry sand containing no binder leads to environment-friendly casting with less wastes and hazardous gas emissions.
The proceduer of V technology

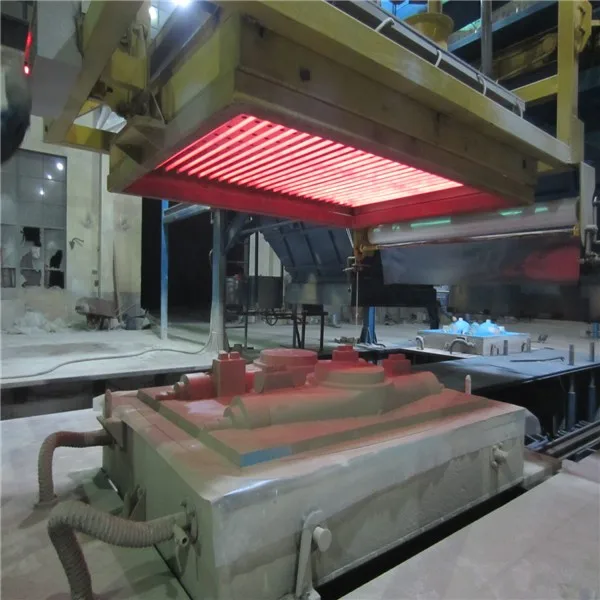

1.A pattern is placed on a hollow carrier plate in advance. Then we heat a thin plastic film (.003″ to .008″) and place it over the pattern.
2.When the softened film covers a pattern, a vacuum (200 to 400 mm Hg) draws it tightly around the pattern, which is then surrounded by a flask.
3.Next, the process uses dry, free-flowing, unbonded sand to fill the special flask set over the film-coated pattern. (*The sand used contains no water or organic binders and is kept under a vacuum during molding.)

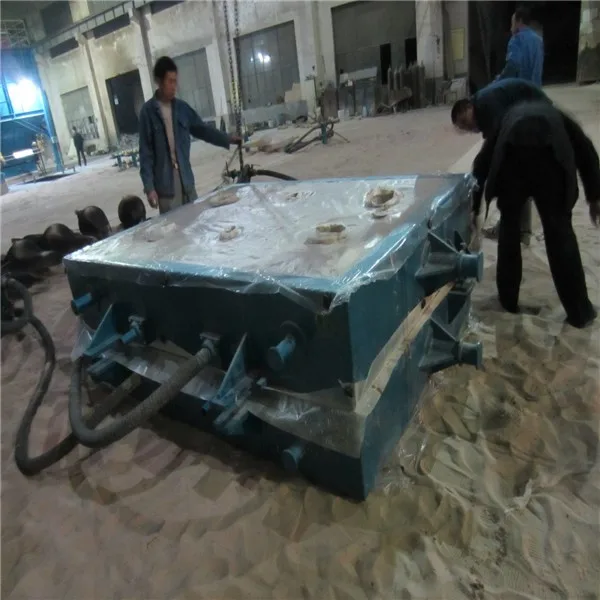

4.After a second sheet of film is placed on the flask, a vacuum draws out the air, and the completed mold is then stripped from the pattern.
5.Each half of the mold is made in a similar fashion and then casting is poured directly from the furnace into the closed halves.
6.The mold is held under vacuum to retain its shape. After the mold cools, the vacuum is released and the sand and completed casting falls free.
components
Our Services
Our service
1,Eight experienced engineers to consider every possibility for customers. Some of them have over 10 years knowledge of casting technology.
2,3D software for auxiliary design will show every design detail in front of you.
3,Experienced technicians for production installation, commissioning & service.
4,All machining parts are out sourced from professional CNC machining company with strict quality control procedure.
FAQ
1. Q: What information do you need before quote?
A: Please give me your casting name, material, size, annual output, your working time per day and so on.
2. Q: What is your minimum order quantity?
A: One set
3. Q: What is your delivery time?
A: It depends on what machine do you want. If it is a single machine, 20-30 days is enough. If for a whole production line, 60-90 days are needed.
4. Q: What is your payment terms?
A: Normally we prefer 30% deposit by T/T, 70% balance before shipment. It is negotiable.
5. Q: What is your normal warranty?
A: 12 months
6. Q: What is your port for shipment?
A: Qingdao port.
7. Q: Are you manufacturer or trading company?
A: Manufacturer. We have our own factory. Welcome you to visit us.
8. Q: What are your products?
A: Vacuum process casting equipment, resin sand reclamation and molding machine, lost foam casting equipment, dust collectors and shot blasting machines. We also sell horizontal molding machine.
