The fully automatic pulp molding machine developed by ZH is composed of pulping system, forming system, drying system, stacking system with some auxiliary equipments.

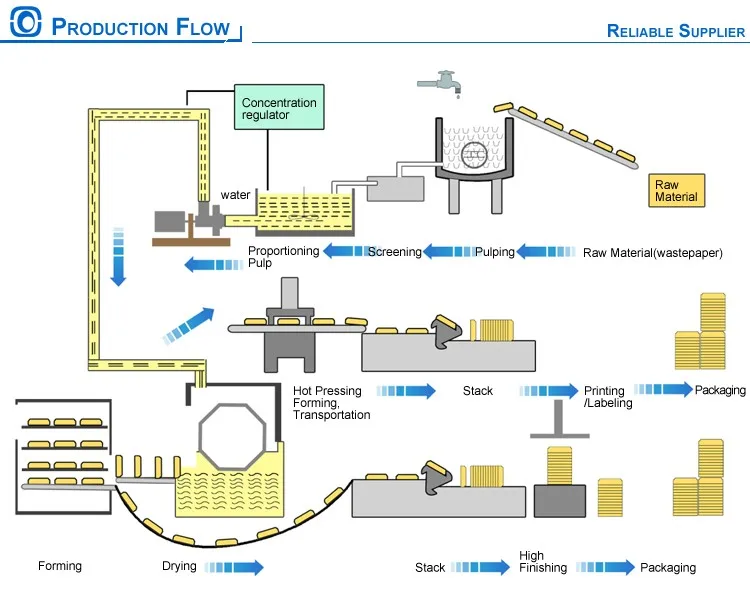

Taking old newsprint, magazine or used cartons, any kind of paper products as the raw material, with the process of pulping, screening, consistency regulating, forming and drying. The same machine can be used to prodce molded pulp egg cartons as well with a higher capacity.

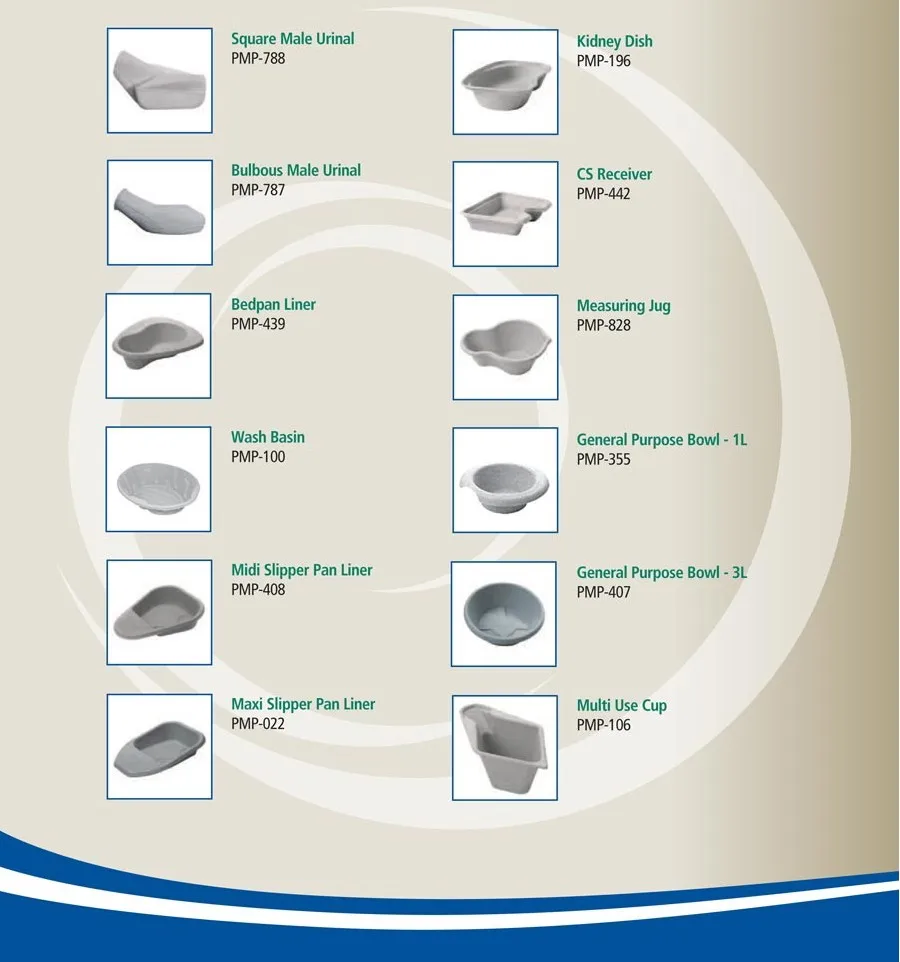

By changing to different molds, the egg tray production line can also produce various kinds of moulded pulp products with large quantity demand and simple structure such as fruit tray(apple tray, avocado tray, pear,etc), Coffee cup tray( 2-cup holder, 4-cup and 5-cup holder) and wine bottle tray. It can also produce some types of inner packages for electric products and disposable medical-care products.

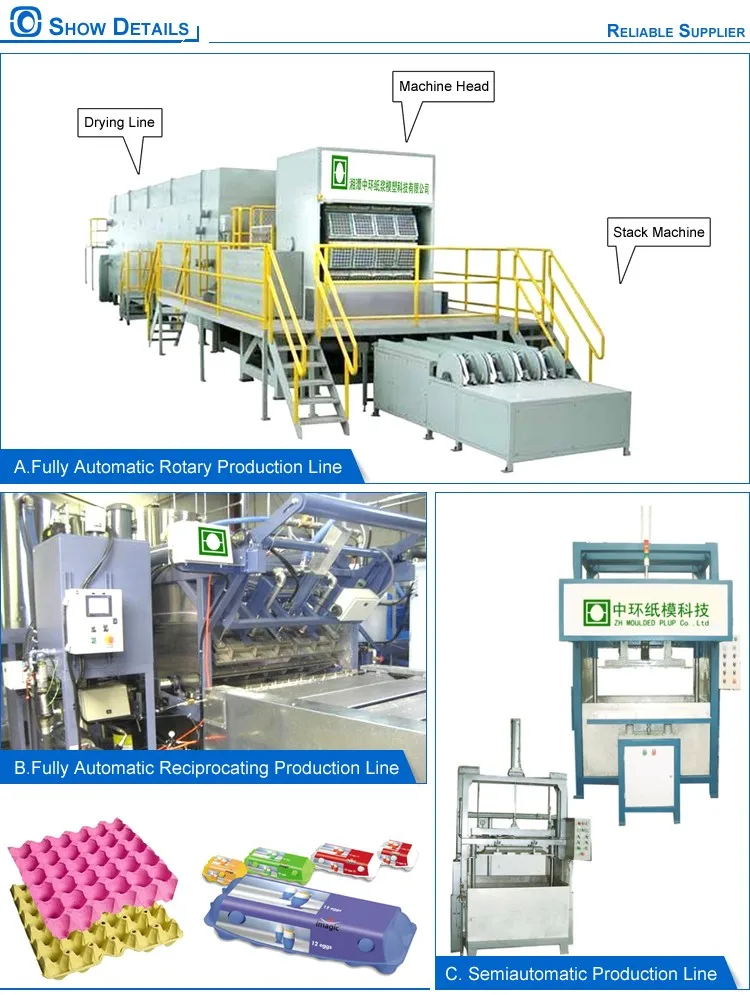

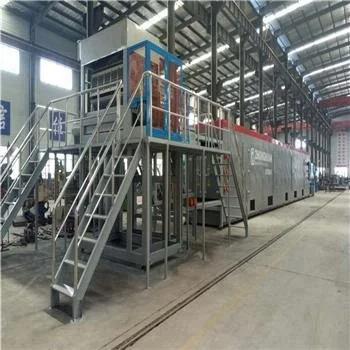

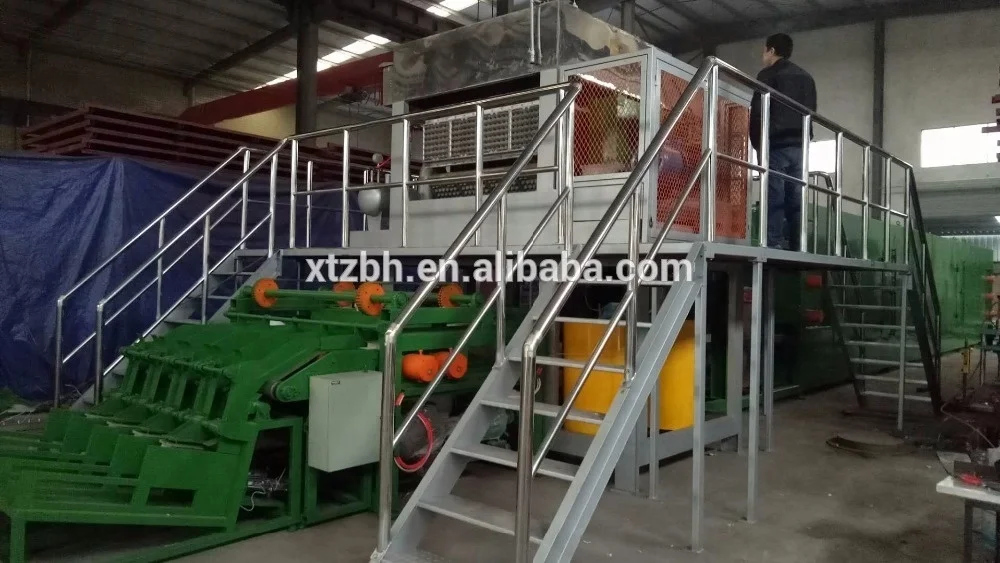

Fully Atutomatic Rotary Forming Machine
The fully automatic rotary forming machine line is for medium and large capacity production, such as 2000pcs/hr, 3000pcs/hr, 3600pcs/hr, 4000pcs/hr, 5000pcs/hr, 6000pcs/hr, etc for choice.
There are some kinds of specification of 2 face platens, 4 face platens, 6 face platens, 8 face platens and other specifications for the rotary machine; and single layer drying line and multi-layer drying line for choose. The drying line can use diesel oil, LPG, natural gas, coal, charcoal and steam heating, etc.
Full Automatic Rotary Forming machine production line Specification
Two-face forming platens, one transferring platen. Mold Platen Size
1800×440mm
Dimension 11100×2230×2550mm
Energy: Natural Gas/LPG/Coal(Steam/Thermal Oil)
5000pcs/hr
Effective Volume 3m3
Power 55kw
Four face forming platens, one transferring platen. Mold platen size: 1500×440mm
Dimension 14800×1880×2550mm
Energy: Natural Gas/LPG/Coal(Steam/Thermal Oil)
6000pcs/hr
Effective Volume 3m3
Power 55kw
Four face forming platens, one transferring platen. Mold platen size: 1800×440mm
Dimension 14800×2230×2550mm
Energy: Natural Gas/LPG/Coal(Steam/Thermal Oil)
Description: The production line capacity isbased on the 30 cell egg tray. (Mold size: 300×290mm, weight: 70g)
For different capacity and other products of the production line, it can be customized according to clients' requirement.
Full Automatic Double Rotary Forming production line Specification
Model/Capacity
Hydrapulper Parameter
Forming Machine parameter

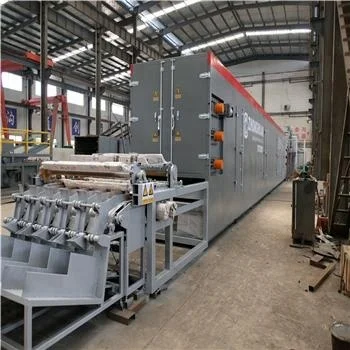

Drying Line
ET3600R
Effective Volume 2m3
Power 30kw
Four face forming platens, Two transferring platens.
Mold platen size: 800×440mm
Dimension 19800×1230×2550mm
Energy: Natural Gas/LPG/Coal(Steam/Thermal Oil)
ET5400R
Effective Volume 3m3
Power 45kw
Four face forming platens, Two transferring platens.
Mold platen size: 1200×440mm
Dimension 19800×1600×2550mm
Energy: Natural Gas/LPG/Coal(Steam/Thermal Oil)
ET7200R
Effective Volume 5m3
Power 75kw
Four face forming platens, Two transferring platens.
Mold platen size: 1500×440mm
Dimension 19800×1880×2550mm
Energy: Natural Gas/LPG/Coal(Steam/Thermal Oil)
ET10000R
Effective Volume 8m3
Power 110kw
Four face forming platens, Three transferring platens.
Mold platen size: 1500×440mm
Dimension 22000×1880×2550mm
Energy: Natural Gas/LPG/Coal(Steam/Thermal Oil)
ET15000R
Effective Volume 8m3
Power 110kw
Four face forming platens, Fourtransferring platens.
Mold platen size: 1500×440mm
Dimension 30000×1880×2550mm
Energy: Natural Gas/LPG/Coal(Steam/Thermal Oil)
Remarks: Capacity of the machine model is based on 30-cell egg tray, with the size 300×290mm, weight: 70g.
For different capacity of the production line, customized allocation is available according to the client's requirement.
The Advantages of Paper Pulp Molding Production Line
1. Waste paper Recycling with low cost
Its raw material are any kind of papers, like wasted newspaper, carton, printers or leftover bits in paper mill, convenient to collect with low cost. The cost of pulp molding product is much lower than EPS products.
2. Best environmental protection:
non-environmental pullution during the whole process of production, utility and waste treatment: no waste water consumption with water recycling, no waste materials with waste paper recycling, and non-environmental pullution.
3. Recycling use
low recycling cost and it can be used repeatedly. Biodegradable as vegetable fiber during one or two month. The finished products can be stacked, space-saving.
4. Good Market prospect
There is a restriction in developed country such as Europe, America ans Japan for importing EPS products, and advocate the use of enviromental packaging materials, encourage for Eco-package replaced of EPS packages in order to reject white pollution.
5. Good Performance.
Anti-shack, anti-static electricity, better efficiency than EPS, PS and PVC products.
ZH Molded Pulp Co., Ltd is specialized in manufacturing pulp molding machines, the first pulp molding machine supplier found in 1986.
Through 20 year’s experience, our company has a professional team in designing, manufacturing, and after-sale service. Our team has know the most advanced technology well in pulp molding machines, which have the types of reciprocating machine, rotary machine. In 2008, we developed an energy-saving, small-space multi-layers drying line, popular in domestic and abroad.
Our machine has been sold well at home and abroad such as South America, Africa, Russia, and Middle-East area, in the quality of energy-saving, advanced design, and reasonable cost.
FAQ
1.What kind of material we can use as the material? Any kinds of waste paper or used paper products like old newspaper,magazines,books, used boxes, abandoned cartons etc, and easy to collect the raw materials.
2.What kind of Fuel can be used for the whole production line? Generally the fuel is coal,natural gas,dieseal oil.
3.What kind of products can be made by this machine? All paper product trays and cartons like paper egg tray,egg carton,egg box,fruit tray,bottle tray, plate and tableware, electric product packing, disposable tray, shoes tray etc.
4. How to install the machine?

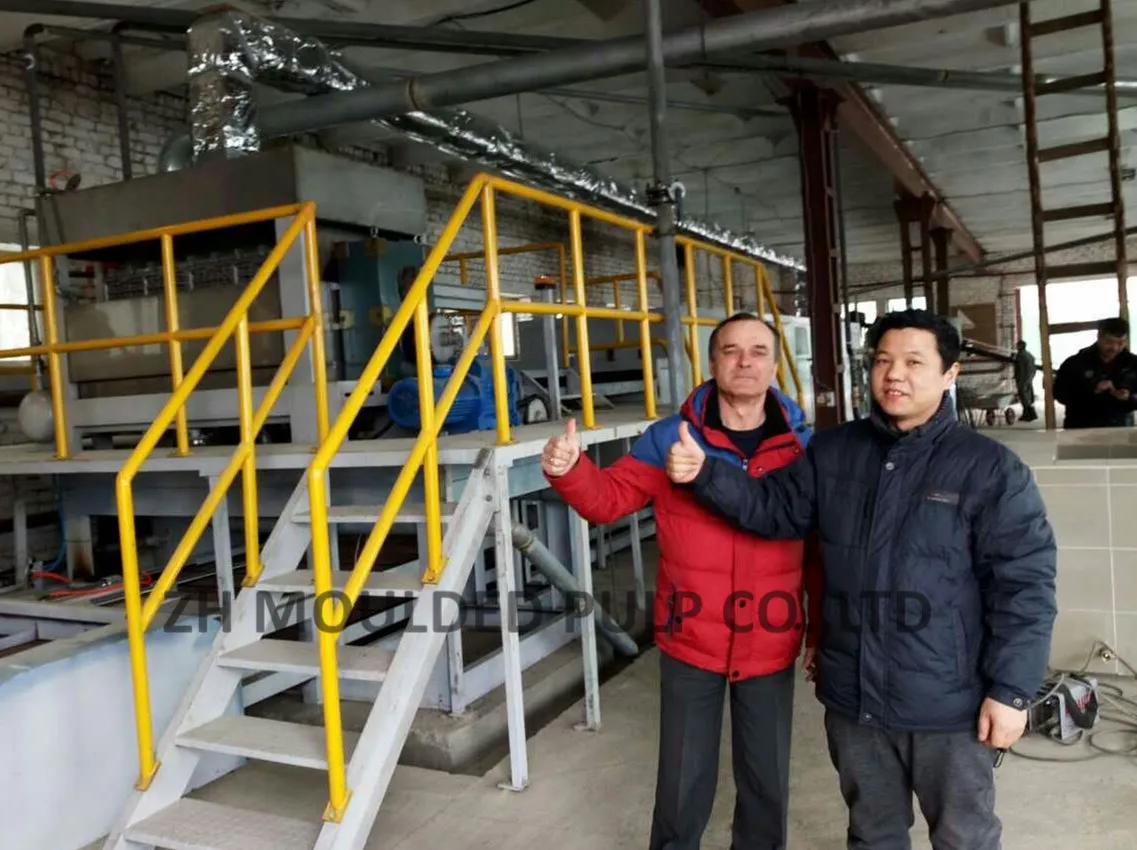

We will send engineers to your country to help install and test the machine,and teach you how to use the machine.
5.How about the warranty? 12 months after installation.
