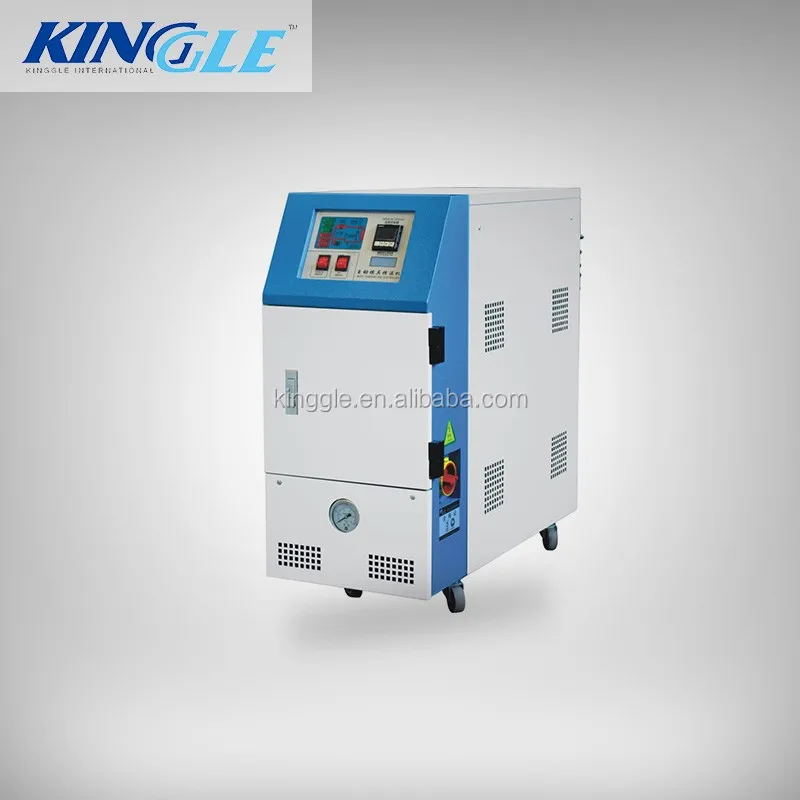

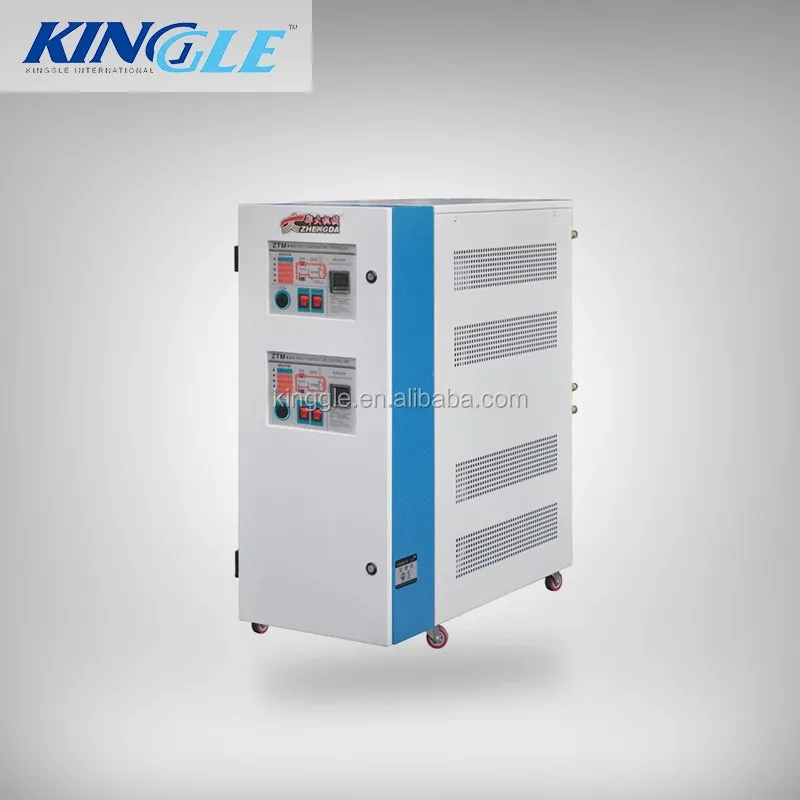

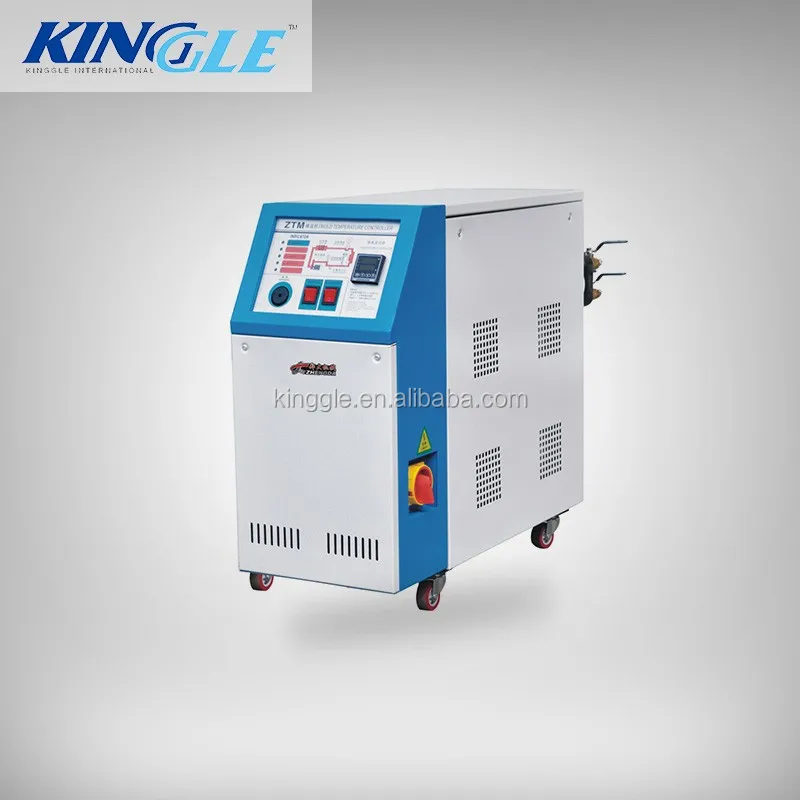

Машина для литья под давлением, машина для выдувного формования, контроллер температуры масляной формы

Product Overview

Description

Features

Automatic molding tool temperature control machine adopts the advanced computer,and match with precise electronice themeter.

Practice two class temperature control.Make the temperaturs's accurate degree attain±0.5℃.

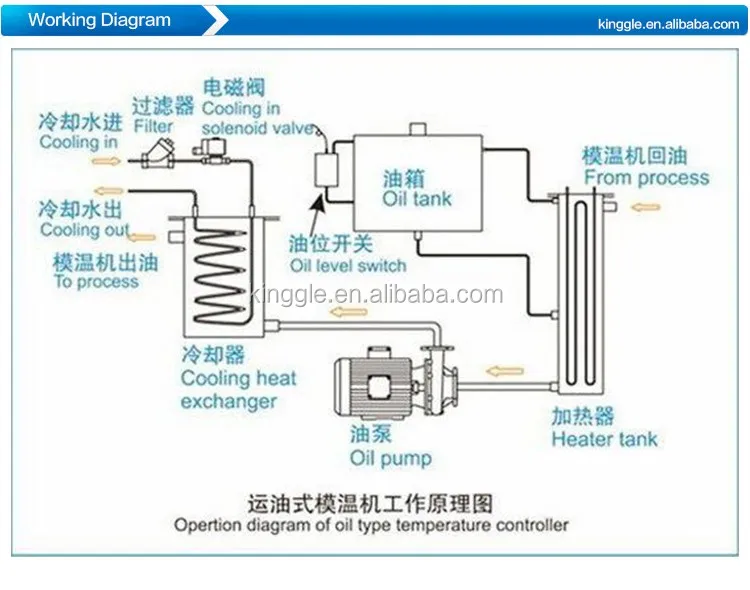

1.Adopt oil or water conduct and actions hot spread to lie the quality,safety dependable.

2.Two sets have fevr the line,and make first temperature is average stability,save time,province electricity.Had to have an oiland exceed the temperature,water to pump to carry its automatic police toshow the system,four roads automatically cat off,insure the safety.

3.Adopt stainless steel permits the bucket,and bear to decay,life span is long.

4.Adopt import computer controller and independent water cooler,and make the temper aure more stable.

.





Model		ZD-6L	ZD-9L	ZD-12L	ZD-18	ZD-24	ZD-36	ZD-48
Heat-transfer medium		Heal Transfer oil
Heating Capcity		180℃
Cooling Method		Indirect Cooling
Heating Method(kw)		6	9	12	18	24	36	48
Pump	Power(kw)	0.37	0.75	0.75	1.5	1.5	3.75	3.75
	Pressure Pump(kg/cm2)	2.5	4	4	4	4	4	4
	Flow volume(L/min)	35	45	45	80	80	380	380
Power supply		380v/460v     50Hz/60Hz
Cooling-water pipe size		1/2´	1/2´	1/2´	1/2´	1/2´	1/2´	1/2´
Heat-transfer pipe size		2x3/8	4x3/8	4x3/8	6x3/8	6x3/8	1x1.5"	1x1.5"
Fuel tank capacity(L)		10	13	16	24	24	38	38
External dimensions(LxWxH)		760x300x640	760x320x640	760x320x640	890x380x690	890x380x690	1050x550x850	1050x550x850
Weight(kg)		47	53	57	95	98	120	125





1. Engineers are available to provide technically machinery services overseas.
2. All the machines enjoy one-year warranty service.
3. 24 hours service both online and on telephone. 4,Prompt production & Delivery
5,Customized Specification Accepted
6,Quick Response to Your Enquiry by email, oline or Telephone.
7. Our factory provide machine testing when customer come to our factory to see this machine.
8.We provide detail machine technical specification, electric diagram, installation book, operating manual, drawings





[1] Q: Are you a factory or trading company?
A: We are a factory.

[2] Q: Where is your factory located?
A: Our factory,near Shanghai & Ningbo port, Ningbo ,zhejiang .

[3] Q: How about quality control in your factory?
A: “ Quality is the key point, do what customers need”
Kinggle machinery factory focuses on quality,quality control from beginning to the end.
Every piece of goods is tested strictly before packing and delivery.

[4] Q: How about guarantee ?
A: One year guarantee.
