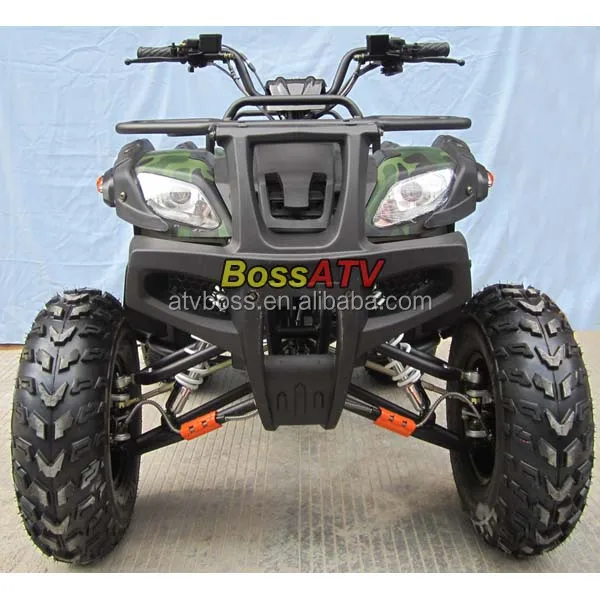

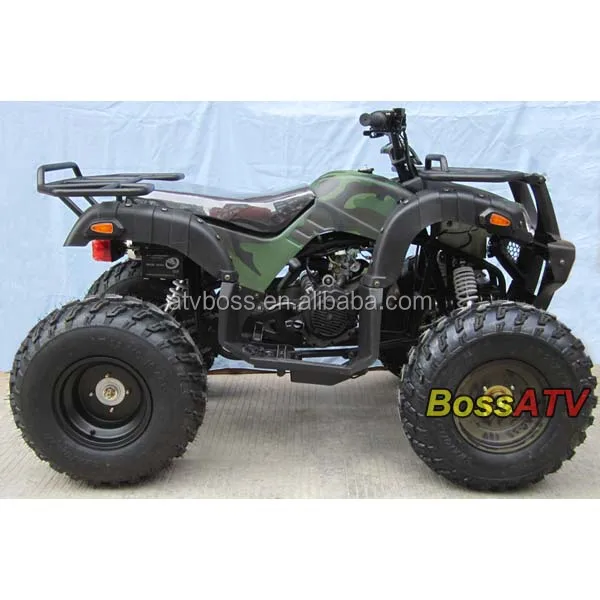

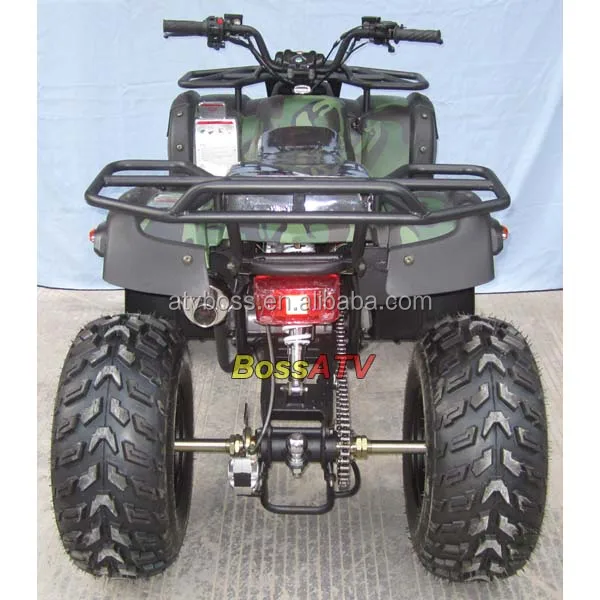

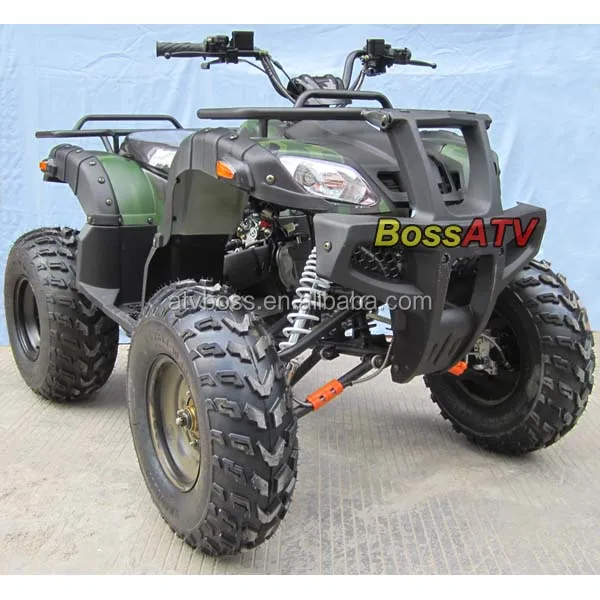

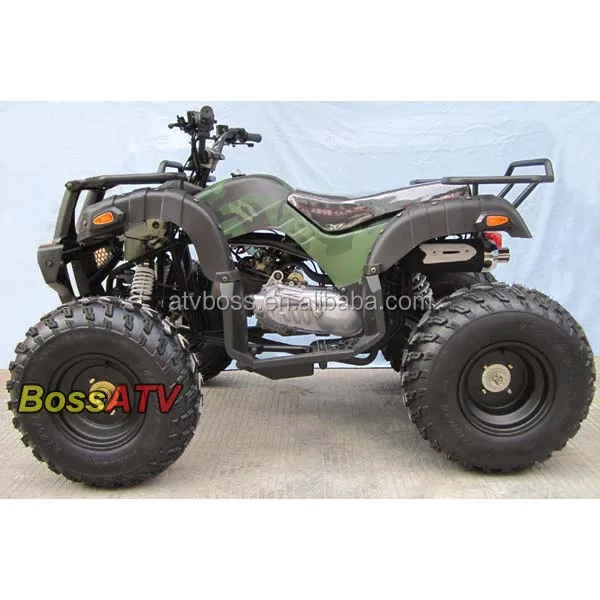

150cc atv prices 150cc atv for adults 150cc atv motor

Engine

Engine Type

Single cylinder, air-cooled, 4-stroke, fully automatic with reverse

Engine Displacement

150cc or 200cc(oil-cooled)

Bore & Stroke

57.40x57.80mm[200cc: 62.5x65.2mm]

Compression Ratio

10:1

Carburetor

Carburetor

Max. Power Output

6.4kW/(7000r/min) [200cc: 7.5kW/(7500r/min)]

Max. Torque

9.0N.m/(6000r/min)[200cc: 10.5N.m/(5500r/min)]

Ignition

CDI

Starter

Electric start + kick start

Drive Train

Clutch

Fully automatic

Gearbox

1 forward, neutral and 1 reverse gear

Final Drive

Chain

Dimensions and Weight

Length x Width x Height

1,830 x 1,100 x 1,370mm

Wheelbase

1,210mm

Front Tread

1,000mm

Rear Tread

760mm

Seat Height

890mm

Foot Step to Seat

480mm

Fuel Capacity

7.8L, metal tank

Dry Weight

154kg

Max. Load

167kg

Wheels, Suspension and Brakes

Wheels Front

10 inch iron rim

Wheels Rear

10 inch iron rim

Tyres Front

23x7-10

Tyres Rear

22x10-10

Suspension Front

Independent double-wishbone

Suspension Rear

Swing arm with single shock

Brakes Front

Dual hydraulic disc brakes(Hand operated + foot operated)

Brakes Rear

Hydraulic disc brake(Hand operated + foot operated)

Packing

Carton Size

1,500x830x810mm

G.W./N.W.

174/154kg

Container Load

20pcs/42pcs/63pcs
