china factory alibaba price of Ultrasonic Copper Tube welding machine Ultrasonic Copper Tube welder cutter

Title goes here.

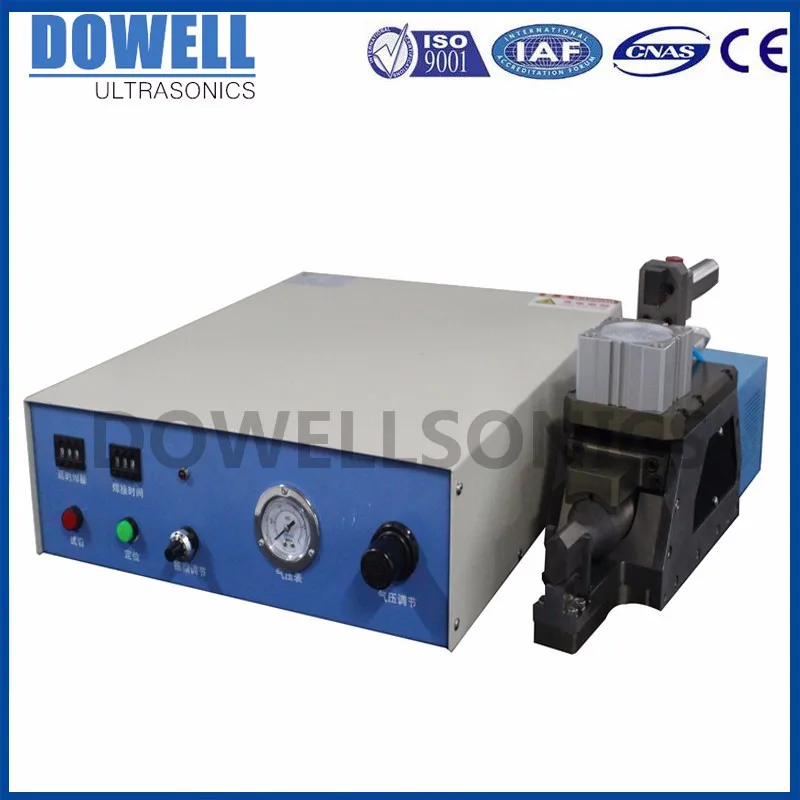

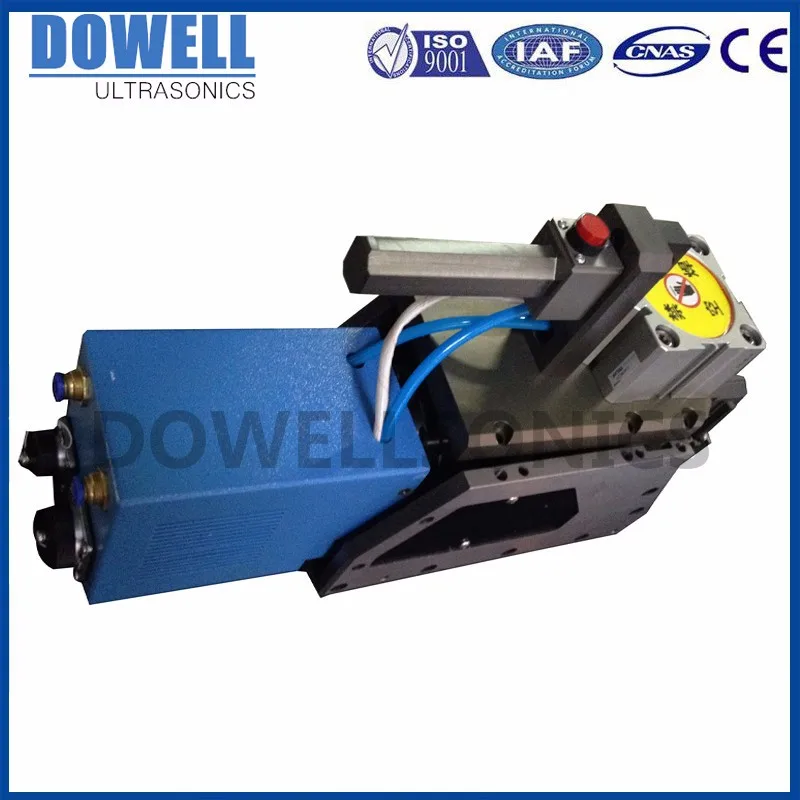

The copper and aluminum pipe sealing machine for the refrigeration industry such as the refrigerator, air conditioner, solar energy, and piping.The copper and aluminum pipe sealing machine is capable of reliably and conveniently completing cutting and sealing procedures for various copper and aluminum pipes under Φ 18mm in one process, which produces strong seals with no air or liquid leakage, there by realizing the new welding process. It is mainly used as gas tube in a temperature sensor in a shape of a pipe or a ball in the industry of air conditioner, refrigerator, and refrigeration controller. Products are especially designed to work in inflammable and explosive environment. It is a portable 20 kHz ultrasonic metal welding machine as well as highly reliable equipment.
The precision control system of the ultrasonic metal pipe sealing machine may ensure stable welding quality and is simple to use. This model eliminates adverse effects resulted from conventional spark welding, lead welding, acetylene welding, and the like. The operations of bending, sealing, and cutting may be quickly completed within one second. The product is provided with optimum process control and high reliability, which is suitable for automatic operation.
ultrasonic metal pipe sealing machine is the most advanced ultrasonic metal pipe sealing system in the world, which is a product of constant improvement since the first copper pipe sealing machine in the world in 1983. Today, this mature system is highly reliable in sealing and cutting pipes for refrigerators and refrigeration controllers, and in sealing and cutting capillary tubes. The maximum operatable copper diameter is up to 1/2” (12mm), the corresponding wall thickness ranges from 0.5 to 0.8 mm, or 0.5 to 2.0 mm for aluminum pipes.

Features

1.\tQuality controlled: Constant precision control is ensured for pipe sealing, which has low requirements on the operator’s skill.
2.\tEconomically efficient: No acetylene, welding flux, brass, or solder is required.
3.\tLabor-saving: Minimum preparation is required before pipe sealing.
4.\tSpeedy: A simple procedure is completed within one second.
5.\tProgrammable and automatic: Ultrasonic pipe sealing is highly programmable and reliable, and the pipe sealing procedure is automatic.
6.\tEasy-to-use: With the help of a balance crane, the pipe sealing machine may be operated by only one hand.

Machine datas:

Equipment requirements:
Voltage \t\tSingle-phase 200–250 V, 50/60 Hz, with voltage fluctuation range +10%
Air source \t0.4–0.8 Mpa
Air flow \t\t425 liter/minute
Technical specifications:
Weight: \t\tAbout 8 kg (portable part of the welder) and 12 kg (circuit box)
Frequency: \t20 kHz
Power:\t\tMax. output 2000 W
Voltage: \t220 V, 50/60 Hz
Current: \t5–15 amp

\tSealing and welding for gas tubes and filler pipes of air conditioners, HVAC systems, and refrigerators
\tCapillary tubes and bulb temperature sensors
\tOther products requiring copper or aluminum pipes filling air or liquid
\tDiameter of pipes to be welded: 1.5–15 mm, wall thickness: 0.25–1.6 mm

Company introduce

HANGZHOU DOWELL ULTRASONIC TECHNOLOGY CO.,LTD
Dowellsonic was founded in 2009,we are the manufacturer of ultrasonic transducer,booster and horn,generator by ourself.We are the industry profession in the design, development, manufacture, and marketing of plastics joining welding machine, precision cutting machine, ultrasonic sonochemistry processing, and ultrasonic non standard equipment. We are committed to providing solutions to the needs of our customers, and providing the latest in technology, we mainly provide ultrasonic equipment with factory price and willing to solve the customers' application problems.
We welcome customers from all over the world for inquiring and purchasing.

Factory view:

Our exhibitions:

Our team:

A corner of warehouse:

Our customer application:

We provide customer services:

★ Customer & Supplier Alliances
★ Technology & New Product Development
★ Marketing & Sales
★ Manufacturing
★ Product Quality
★ Services & Support

After  sale service:

★1 year free maintence

★spare parts provide within factory price

★whole life technical support

1. Do you have it in stock?

We only have common products in stock but not for the nonstandard products.Because all the products need make based on customers’ different requirements
2. Could you advise to us the design based on our special requirements or based on our object samples?
Of course, we can do. Please tell us your idea or your application.
If you have sample object,send it to us or send detail pictures.
3.How long do you make the order product?
Common products for 7days,big qty and none standard products for 20days
4. Do you have operating manual?
Of course, we will put it with the goods together.
5. How about the quality?
We have export to many other customers from all over the world,the feed back is good,quality is the first of our company
6. Could you do OEM?
Yes, of course.We can produce according customers’ requirement,just send us your requirements and design of drawing and sample
7. Could we as your agent?
Of course.We are looking for sole agent in Country who have the willing to cooperate with us for long business term.
8.Payment:100%T/T in advance for small order.30%T/T in advance as deposit,70%T/T paid before shipment
9.Delivery?
1-2 units we could send by EXPRESS(DHL,UPS,FEDEX,TNT,EMS),heavy weight more than 50kg,we suggest to use sea freight LCL or by air
10.Warranty:
1 years Warranty with none human damage.In this period factory will responsible for repair fix it for free or factory will send the new parts to customer instead of the broken parts for free.After warranty time,factory will repair fix it or send the new parts on cost price
We can produce according customers’requirements,OEM is available,pls send me inquiry for quotations.
