Top Quality Elastic yarn winding machine and Elastic thread winder machine

Product Overview

Description

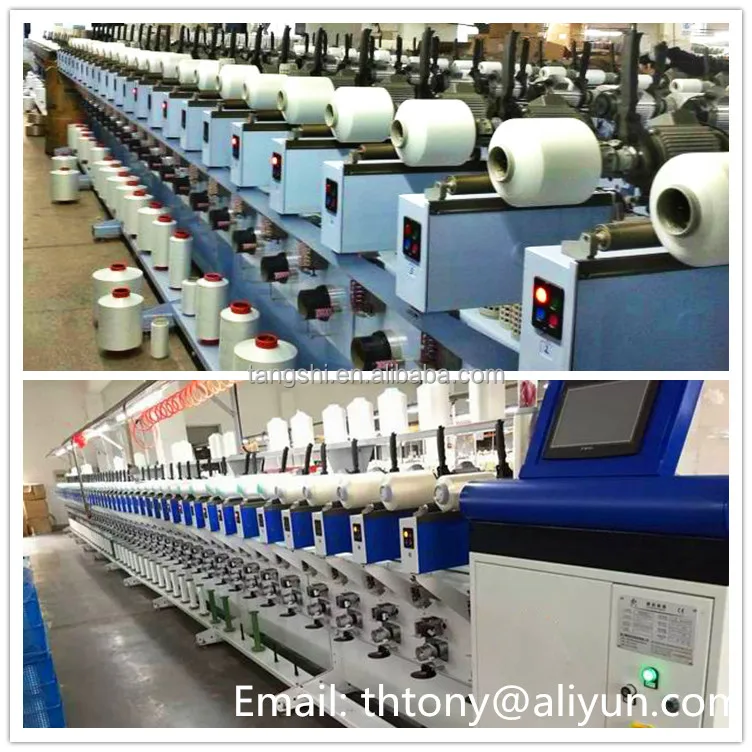

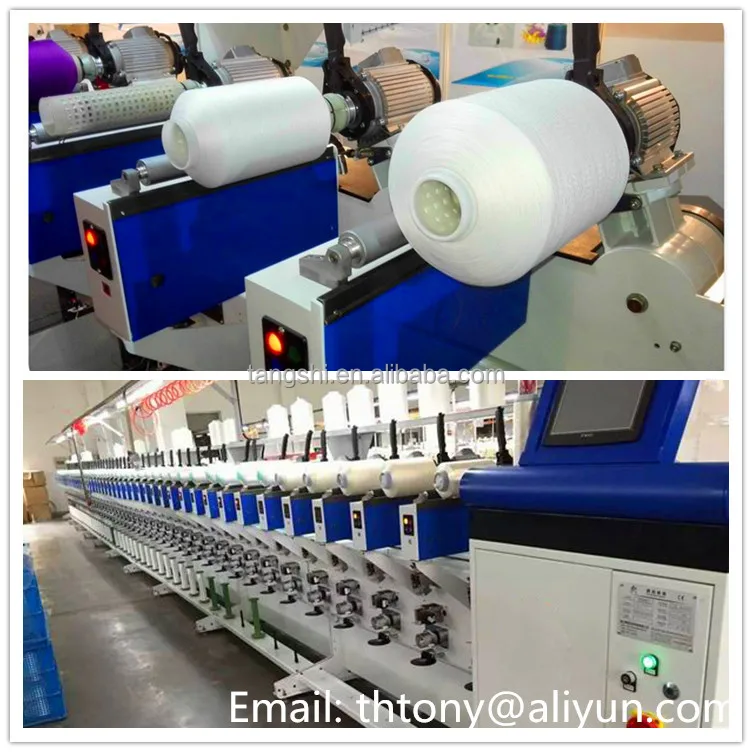

    TH-11A-1 Precision soft winding machine(Cheese bobbin winding machine), Innovative scheme, advanced technology and application. The winding speed of this machine is controlled by computer, which has the maximum of 1000 m/min. it can do soft package winding, also can do hard package winding, it has both functions,Precise and sensitive speed testing system can even ensure the winding length (weight). It suit to wind like Nylon, Filament yarn, FDY, DTY, Polyester, cotton, Acrylic, High stretch yarn, spun yarn and etc.





Types of winding	program or precision
Mechanical speed	up to 1000m/min (process speed depending on process parameters)
Package shape	freely programmable
Traverse length	147-250mm infinitely variable
Take-up package diameter	up to 280mm
Package weight	up to 4kg
Supply package diameter	up to 320mm
Yarns	Nylon, Filament yarn, FDY, DTY, Polyester, cotton, Acrylic, High stretch yarn, spun yarn and etc

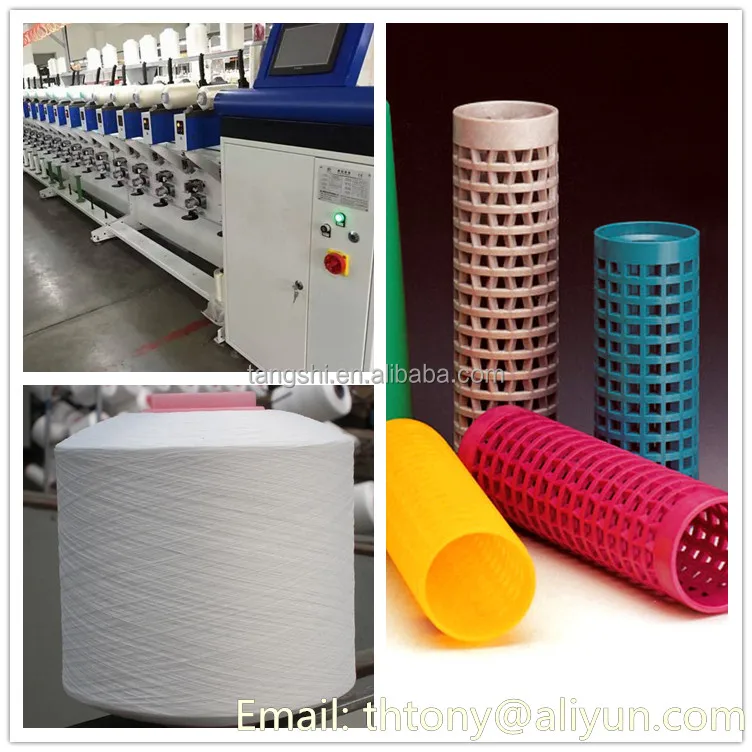

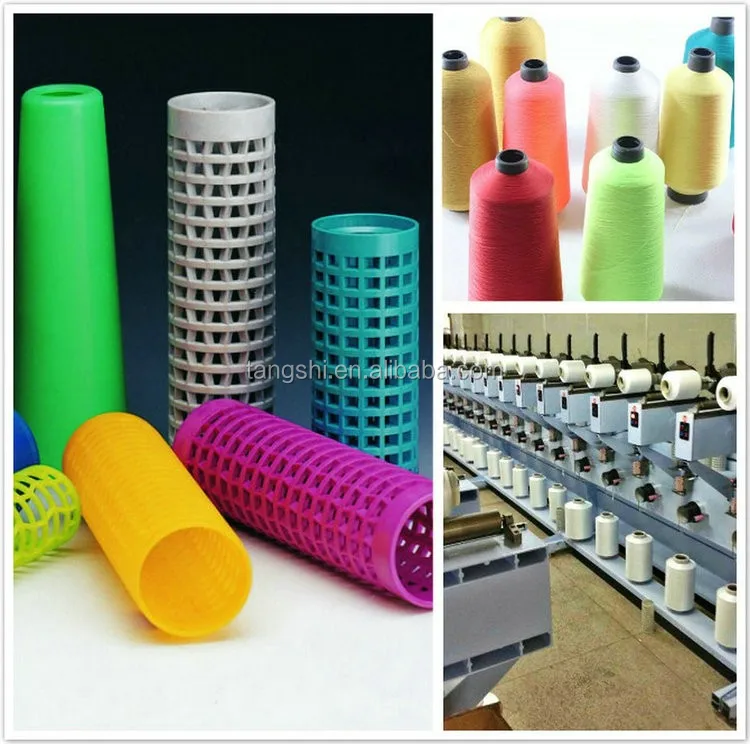

Take-up tubes	cylindrical and conical up to 3°30′ conicity
Layout	single sided machine
Number of spindles per section	5
Min. / Max. number of spindles	5/60 spindles
Gauge	360mm
Drive	individual
Installed power	~280w per spindle
Power consumption	~100w per spindle
Density of winding	automatic control
Volume per section (L*W*H)	1880*780*1720mm
