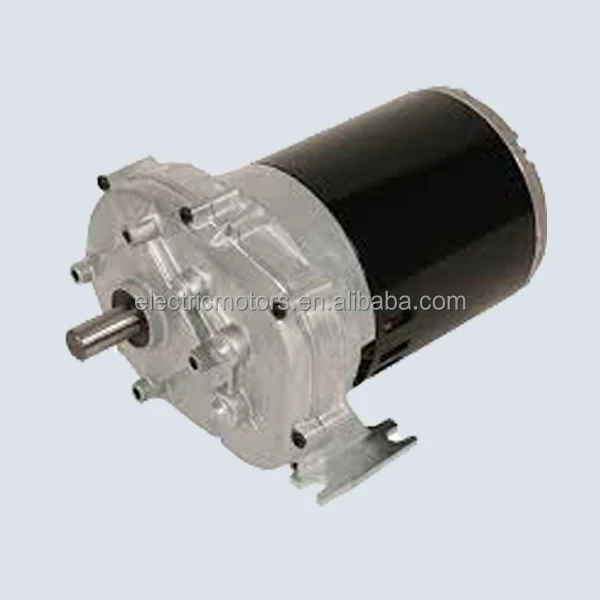

25W 220V AC Gear Motor 30 RPM
- Category: >>>
- Supplier: Ningbo Jigu Motor Technology Co. Ltd.
Share on (60513997602):
Product Overview
Description
25W 220V AC Gear Motor 30 RPM
Product Overviews
| Diameter | Motor & Gearbox 12/28/36/42/60/90/115 to 160mm (Customized) |
| Voltage | DC Input 3v, 6v, 9v, 12v, 24v, 36v, 48v, 60v (Customized) AC Input 110v, 220v, 230v, 380v (Customized) |
| Power | 12/20/50/75/100/125/200/250/300 to 800w (Customized) |
| Speed | Variable Speed (Customized) |
| Torque | 0.3/3/5/20/25/30 to 50N.m (Customized) |
| Shaft | Bare / D-Cut / Double D-Cut / Pin Hole / Keyway shaft (Customized) |
| Bearing at output | Ball Bearing |
| IP Class | IP55 / IP65 / IP68 (Customized) |
| Accessories | Gearbox, Encoder, Brake, Cool Fan etc (Optional) |
| Note | Ratios and shaft configuration can be designed |
Product Description
Product Name | Shaded Pole Gear Motor |
| Model No. | GP-SPGM95 |
| Voltage | 220-240V/110-120V |
| Frequency | 50/60Hz |
| Output Speed | 2.4-78rpm |
| Output Power | 5-20W |
| Shaft Length | According to your requirements |
| Stator Thickness | 8-40mm |
| Reduction Ratio | 1:134, 1:253, 1:394, 1:494, 1:587, 1:720, 1:1269, 1:1601, 1:192, 1:2709 |
| Net Weight | 2.5kg |
| Technical Data | |||||||||||
| Reduction Ratio | 36 | 66 | 94 | 149 | 196 | 211 | 277 | 394 | 624 | 830 | 1166 |
| Rated Speed RPM | 77.7 | 42.4 | 29.7 | 18.7 | 14.2 | 13.2 | 10.1 | 7.1 | 4.4 | 3.3 | 2.4 |
| Torque kg.cm (L25mm) | 5.78 | 10.6 | 15.1 | 21.3 | 28 | 30.2 | 39.6 | 51.1 | 80.0 | 80.0 | 80.0 |
| Torque kg.cm (L30mm) | 7.36 | 13.5 | 19.2 | 27.1 | 35.7 | 38.4 | 50.4 | 65.1 | 80.0 | 80.0 | 80.0 |
| Torque kg.cm (L35mm) | 8.20 | 16.9 | 24.0 | 33.9 | 44.6 | 48.0 | 63.0 | 80.0 | 80.0 | 80.0 | 80.0 |
| Torque kg.cm (L40mm) | 10.5 | 19.3 | 27.4 | 38.7 | 50.9 | 54.9 | 72.0 | 80.0 | 80.0 | 80.0 | 100 |
| Torque kg.cm (L50mm) | 13.6 | 25.1 | 35.7 | 50.3 | 66.2 | 71.3 | 80.0 | 80.0 | 80.0 | 80.0 | 80.0 |

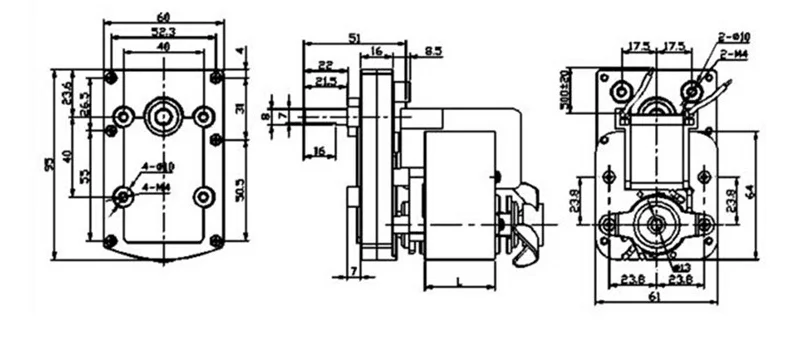

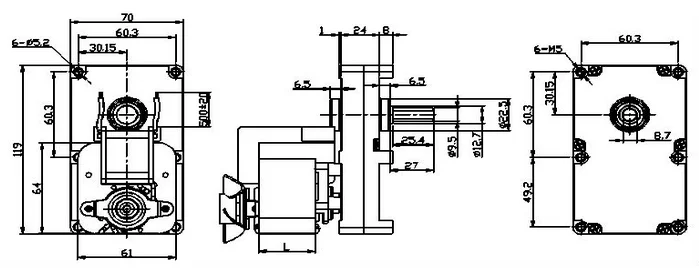

| Outline Drawing |
 |
|
All of the ac gear motor technical datas and the output shaft length can be customized
according to your requirements.
Application
Widely used in Vending Machine, Banking equipment, BBQ Oven, Oven Pallet and
other home appliance.
Customized Solutions
Customized Motor Solutions GP Motor specialize in design, custom and manufacture electric motors, including DC motors, Brushless Motors, Gear Motors, Motor Drivers, etc. All of them can be fully and easily customized (see some of the many customization options listed below). We committed to offer high quality, high performance, cost effective options to meet customers specific demands. Choosing to customize one of the motors in our Product Categories now! |
