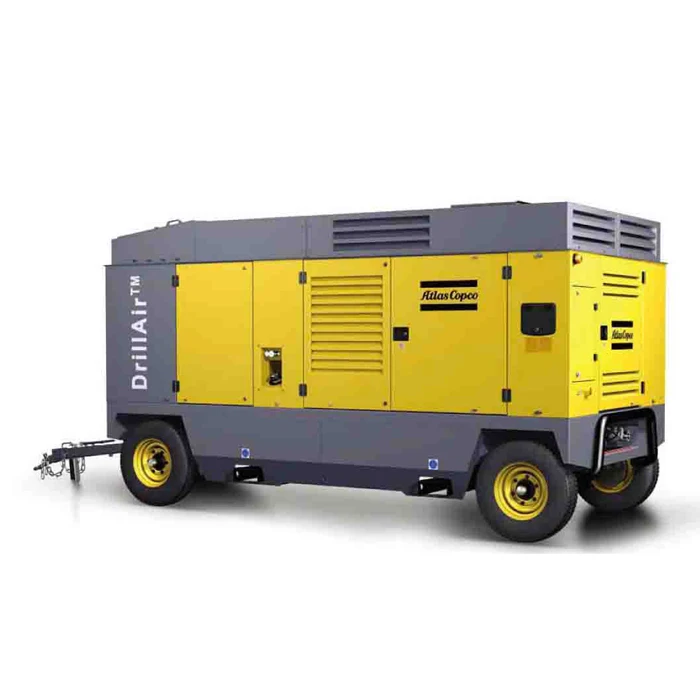

Atlas Copco 1225cfm 25bar Portable diesel Air Compressor for Drilling Rig
- Category: >>>
- Supplier: Liuzhou Tuozhi Mine Tech Co. Ltd.
Share on (60514038710):
Product Overview
Description
Atlas Copco is a leading manufacturer of portable compressed air machines in the world. Over the years, we have consistently listened to our customers and developed machines that exceed their expectations.
ATLAS COPCO portable air compressor technical data
| Compressor Data | XRVS1210 Cd |
| Free Air Delivery @ Normal Working Pressure | 34.3 m³/min |
| Normal Working Pressure | 25 bar |
| Minimum / Maximum Unloading Pressure | 22 / 37 bar |
| Unloaded Speed / Maximum Loaded Speed | 1300 / 1800 rpm |
| Fuel Consumption @ 75% Load / 100% Load | 64.9 / 81.1 kg/h |
| Air Receiver Capacity | 143 L |
| Fuel Tank Capacity | 975 L |
| Screw Oil Capacity | 82 L |
| Approximate Air Outlet Temperature | 100° C (Standard) |
| Outlet Temperature within Aftercooler | 35° C (Standard) |
| Typical oil content of compressed air | <3ppm / 0.01ppm (with assist) |
| Sound Pressure Level (ISO2125) | 76 dB(A) |
| Outlet Valve Configuration | 1 x 2" G |
| Nominal working condition | Inlet pressure 1bar, Humidity 0%, Temp 20 ° C |
| Maximum Ambient Temperature at sea level | 50 ° C / 45 ° C (with assist) |
| Maximum Altitude | 3000 m |
| Minimum Starting Temperature | -10 ° C / -25 ° C (with assist) |
| Diesel Engine Data | C15 ACERT T3 |
| Horsepower Developed @ Rated Speed | 403 kW |
| Cylinders | 6 |
| Cooling System | Coolant liquid |
| Engine Coolant Capacity | 52 L |
| Engine Oil Capacity | 58 L |
| Load Factor | 100% |
| Dimensions | Standard Towing Speed 20 km/h |
| Length | 4910 mm |
| Width | 2100 mm |
| Height | 2460 mm |
Working show:
