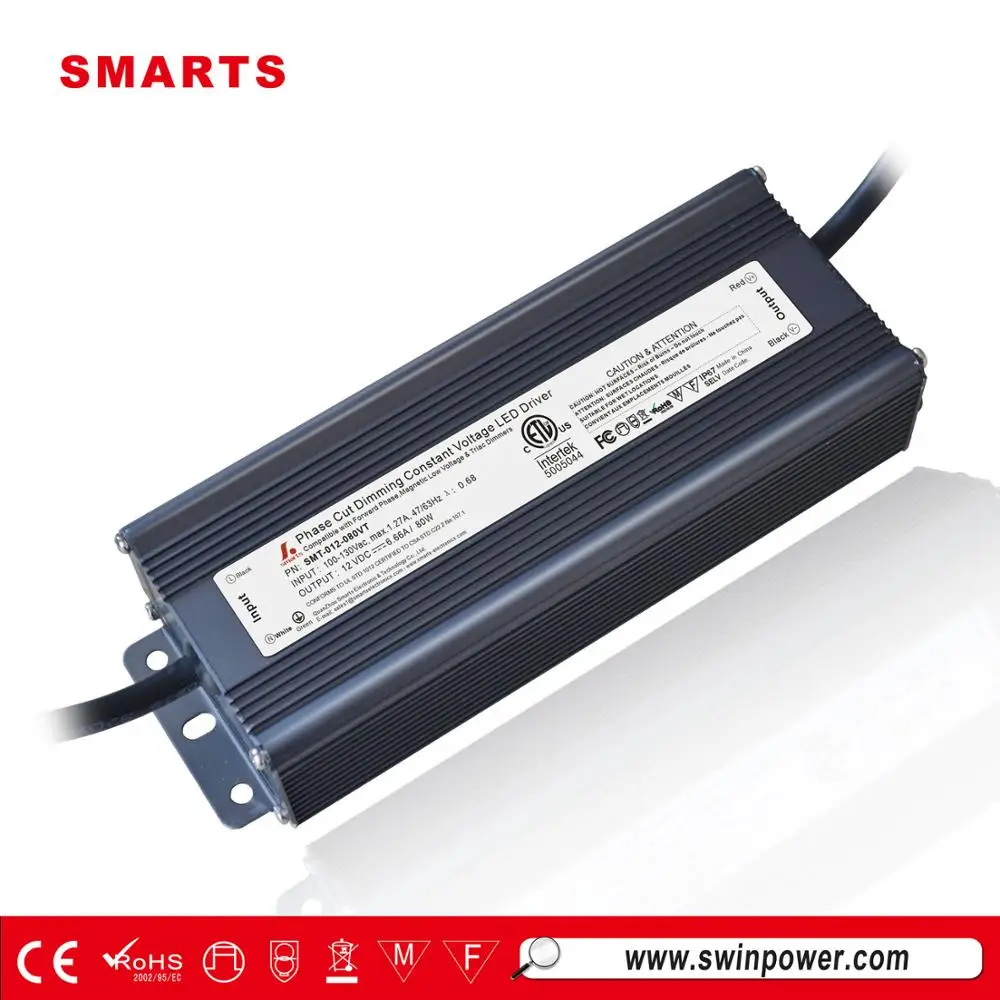

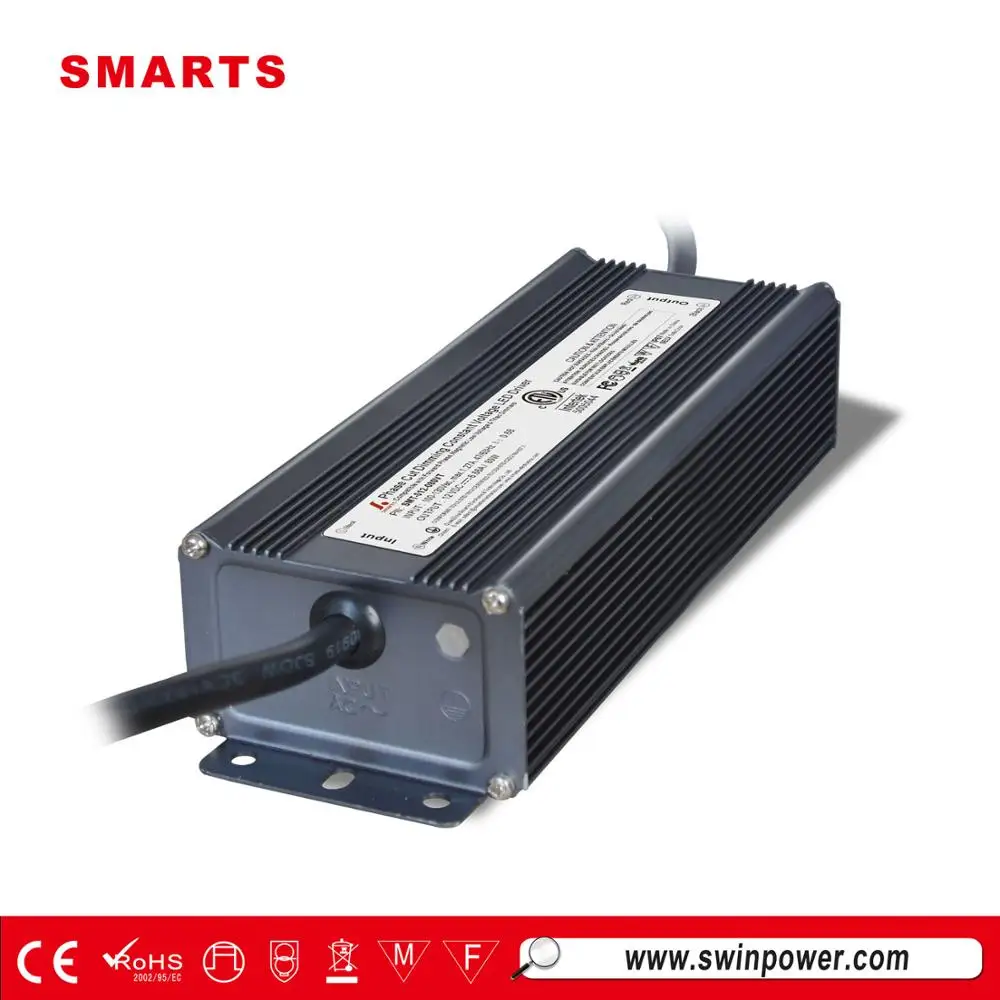

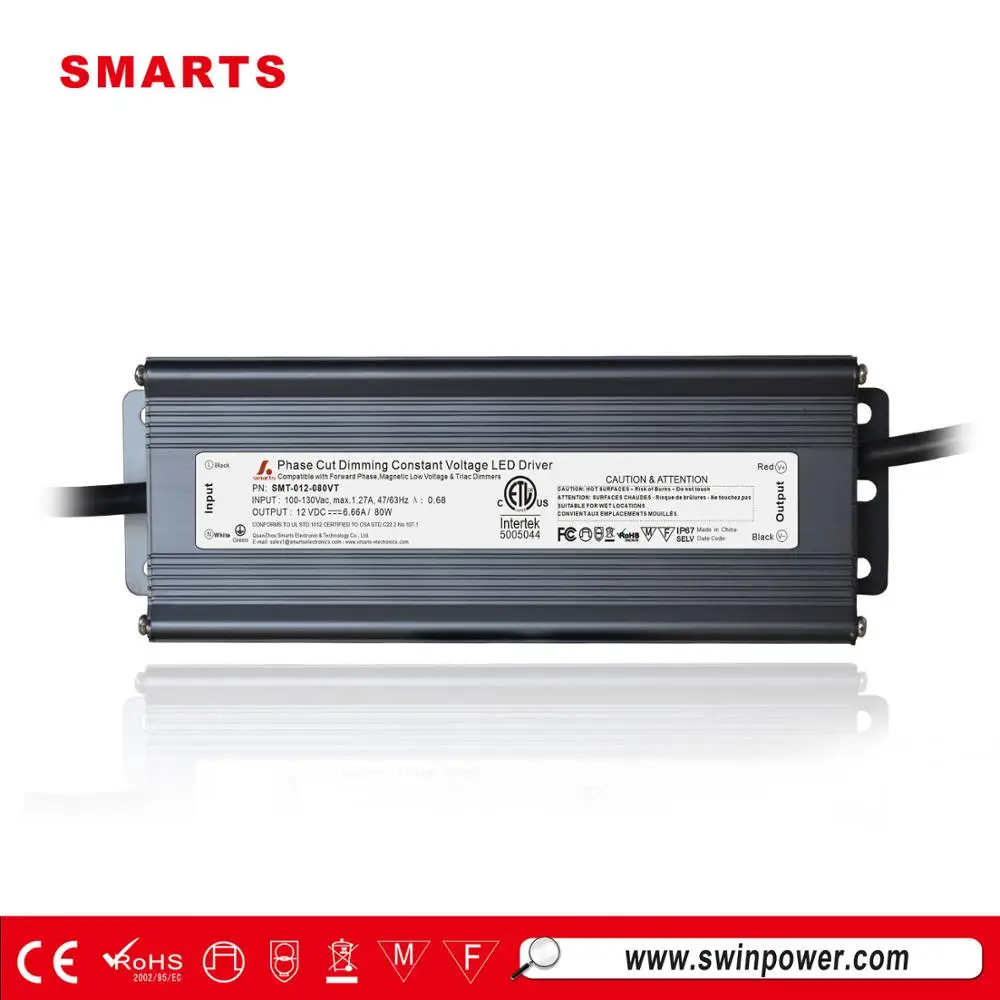

220vac to 12 volt triac dimmable led driver 12v 80w led transformer
- Category: >>>
- Supplier: Quanzhou Smarts Electronic & Technology Co. Ltd.
Share on (60514246208):
Product Overview
Description
220vac to 12 volt triac dimmable led driver 12v 80w led transformer
Product Description
model | SMT-012-080VT | SMT-024-080VT | |
Output | DC Voltage | 12V | 24V |
Voltage Accuracy | ±0.5V | ±0.5V | |
Rated current | 6.66A | 3.33A | |
Rated power | 80W | ||
Input | Voltage Range | 180~250V AC | |
Frequency Range | 50~60HZ | ||
Power Factor ( Typ.) | PF>0.7/180V,PF>0.7/220V,PF>0.7/265V | ||
Full Load Efficiency(Typ.) | >83% | >83% | |
AC Current(Typ.) | 0.58A/180VAC 0.46A/220VAC 0.41A/265VAC | ||
Leakage current | <0.25mA/180V/220VAC | ||
Protection | Short Circuit | Hiccup mode, recovers automatically after fault condition is removed. | |
Over voltage | <270VAC(180~265V) | ||
Environment | Working TEMP. | -40~+60℃ | |
Working Humidity | 20~90%RH,non-condensing | ||
Storage TEM.,Humidity | -40~+80℃,10~95%RH | ||
TEMP.coefficient | ±0.03%/℃(0~50℃) | ||
Vibration | 10~500Hz,2G 10min./1 cycle,period for 60min. each along X,Y,Z axes | ||
Safety&EMC | Safety standards | EN-60950-1, EN61347-1/-2/-13 | |
Withstand voltage | I/P-O/P:3.75KVAC | ||
Isolation resistance | I/P-O/P:100MΩ/500VDC/25℃/70%RH | ||
EMC EMISSION | Compliance toEN55015,EN61000-3-2 (>50%load) | ||
EMC IMMUNITY | Compliance to EN55015; EN61000-4-2,3,4,5,6,8,11,EN61547 Alight industry level (surge4KV) | ||
Others | Weight | 0.99Kg | |
Size | 210*68.5*43mm(L*W*H) | ||
packing | 324*298*176mm | ||
Notes | 1. All parameters NOT specially mentioned are measured at 110V/230VAC input , rated load and 25℃of ambient temperature. 2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor. 3.Tolerance:includes set us tolerance,line regulation and load regulation . | ||
100-130Vac\\UL(E507826)\\IP67 | |||
180-265Vac\\SAA\\C-TICK\\IP67 | |||
100-130Vac\\ETL\\FCC\\IP67 | |||
170-265VAC\\CE\\FCC\\IP67 | |||
Specifications
- AC-DC Dimmable LED Driver
- wide input volt and freq: 90-135vAC/170-265vAC /47~63Hz
- Ambient temp.:-20 degree~40 degree @ full load
- Efficiency > 86%
- PF>0.7
- size: 200*68*45mm
- waterproof rate: IP67
- packing: 50pcs/ctn
- Vi=110/220V
- THD:<10%
- 5 years warranty
- Isolated Designing solution
Product Features
1.Universal AC input (100~130V/170~265V)
2.Protections: Short circuit/Overload/Over voltage/Over temp.
3.Built-in active PFC function
5.designing standard: Ul1310 Class 2 power unit
6.Cooling by nature
7.Suitable for dry location
8.Suitable for LED lighting and moving sign applications
9.Follow the global lighting safety regulations
Environment
1. Working temperature:-40 -80°C
2. Store temperature:-40 -85°C
3. Working humidity:10-90%
4. Lifespan:(MTBF)50,000 hours
5. Case machine specifications
6. Case: plastic case
Safety
- Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529
- Withstand Voltage : I/P-O/P: 3000KVAC
- Isolation Resistance : I/P-O/P:100M Ohms/500VDC
parameters
Item No. | Input voltage(vAC) | Working Frequency | Output voltage | Output Current | power(Watt) | Working Temp. | IP rate |
SMT-012-080VT | 100-130vAC/170-265vAC | 47~63Hz | 12V | 6.6A | 80W | -25~50°C | IP67 |
SMT-024-080VT | 100-130vAC/170-265vAC | 47~63Hz | 24V | 3.3A | 80W | -25~50°C | IP67 |
Applications
Our products are widely used in various industries, such as
- indoor/outdoor LED illuminating lights,
- LED Neon,
- LED urban Decoration
- LED Lighting Advertising,
- LED Display,
- Safety Protection Apparatus,
- Telecommunications,
- Networks,
- Vehicle Lights, Controller Panels, etc
