Laminated glass high pressure water jet cutting machine
- Category: Glass Production Machinery >>>
- Supplier: YC Industry Co. Ltd.
Share on (60514518285):
Product Overview
Description
Product Details
A high pressure water jet cutting machine is a tool which slices into metal and other materials, using a jet of water at high velocity and pressure. Because of its advantages of low noise, no pollution, high precision and good reliability, it has been widely used in mining, automobile, paper-making, food, art, construction and other industries.Waterjet can cut almost every thing, including metal, glass,
plexiglass,ceramic,marble, granite, rubber and compound material etc.
Cutting accuracy:+/- 0.1mm
Repeat accuracy:+/- 0.05mm

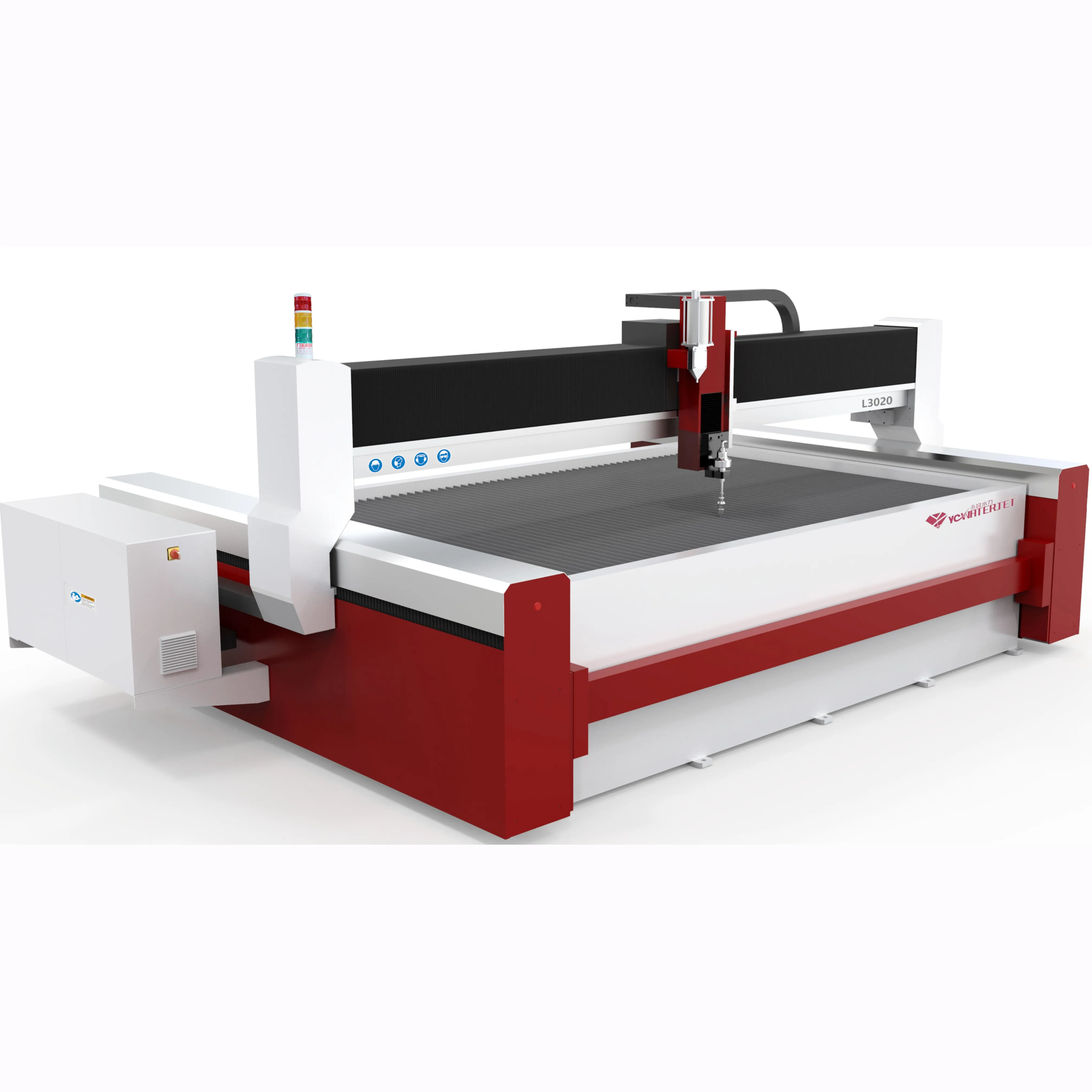

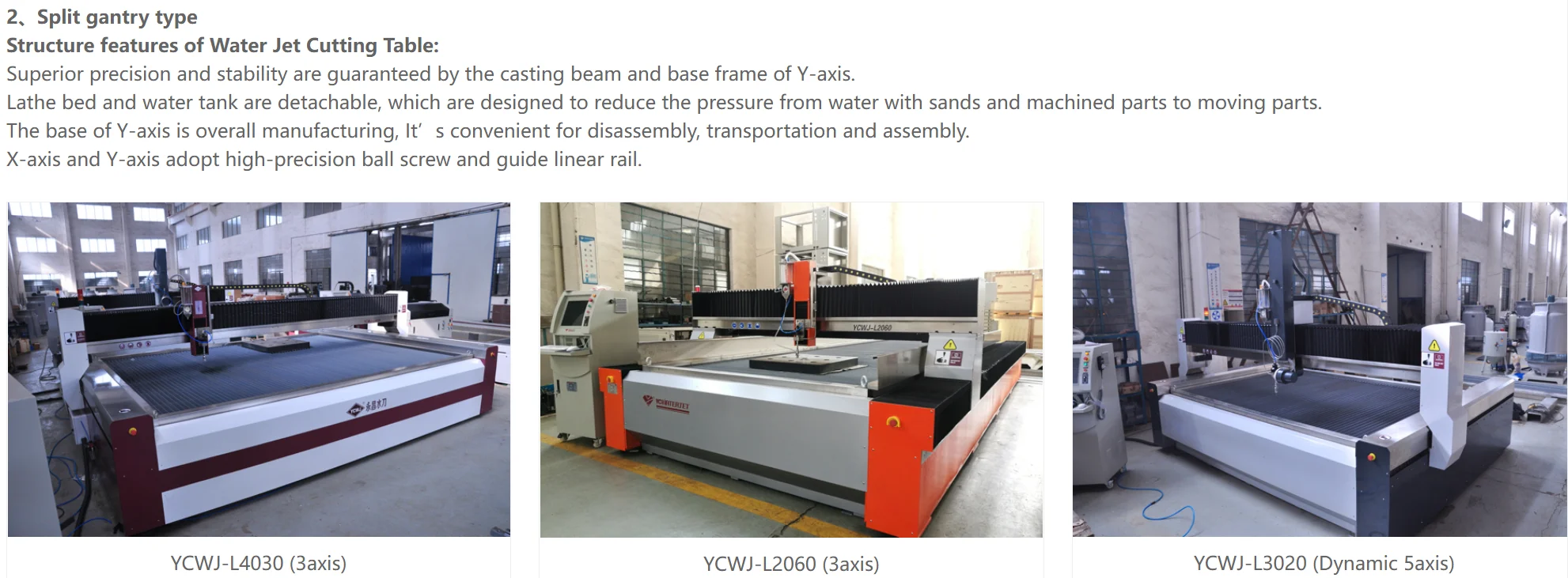

CNC Water Jet Cutting Machine Parameter(L=Gantry type) | ||||||||||||||
Parameters | Unit | YCWJ-L1010 | YCWJ-L2015 | YCWJ-L3015 | YCWJ-L3020 | YCWJ-L2060 | ||||||||
Efficient Cutting Area | mm | 1000×1000 | 2000×1500 | 3000×1500 | 3000×2000 | 2000×6000 | ||||||||
Axis Travel | X | mm | 1000 | 2000 | 3000 | 3000 | 2000 | |||||||
Y | mm | 1000 | 1500 | 1500 | 2000 | 6000 | ||||||||
Z | mm | 150-180 | 150-180 | 150-180 | 150-180 | 150-180 | ||||||||

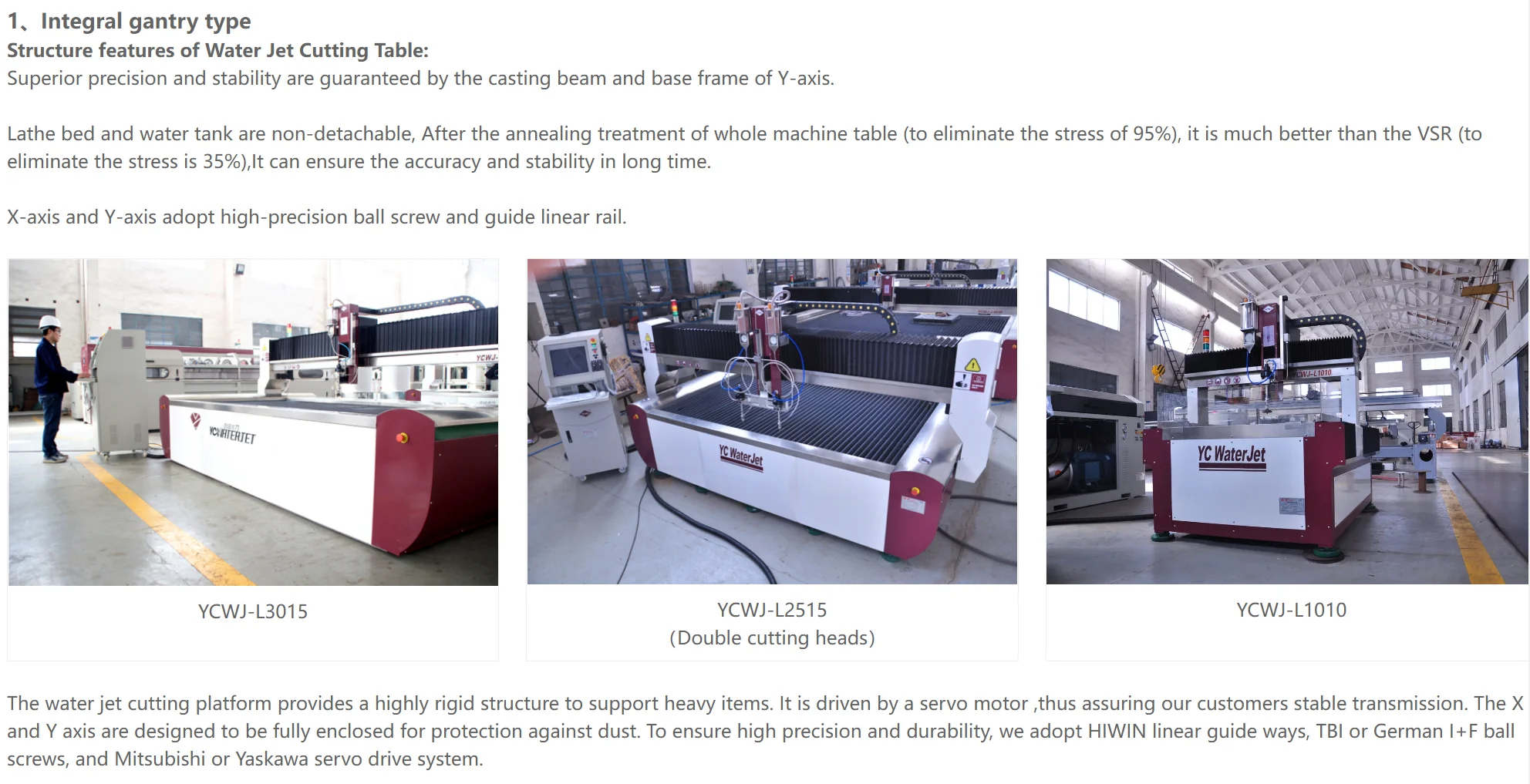

X axis and Y axis adopt HIWIN or I+F ball screw and guideway;The servo motor to drive we adopt MITSUBISHI or Yaskawa | ||||||||||||||
Cutting Accuracy | mm | ±0.1 | ||||||||||||
Positioning Accuracy | mm | ±0.2 | ||||||||||||
X,Y Dry-run Speed | m/min | 0-15 (if need 30m/min speed,we can do as request ) | ||||||||||||
Cutting Speed | m/min | as to detail material and thickness | ||||||||||||
Main Feature:
Control: PLC
Shifting: electro-hydraulic
Control Cooling: cooler/oil heat exchanger
Inlet water filter accuracy: ≤0.45μm
Oil-return filter accuracy: 20 μm
Working temp: 0-50°c
Outlet: UNF 3/8" Cooling in/out-let: NPT1"
Max orifice size: 0.33mm

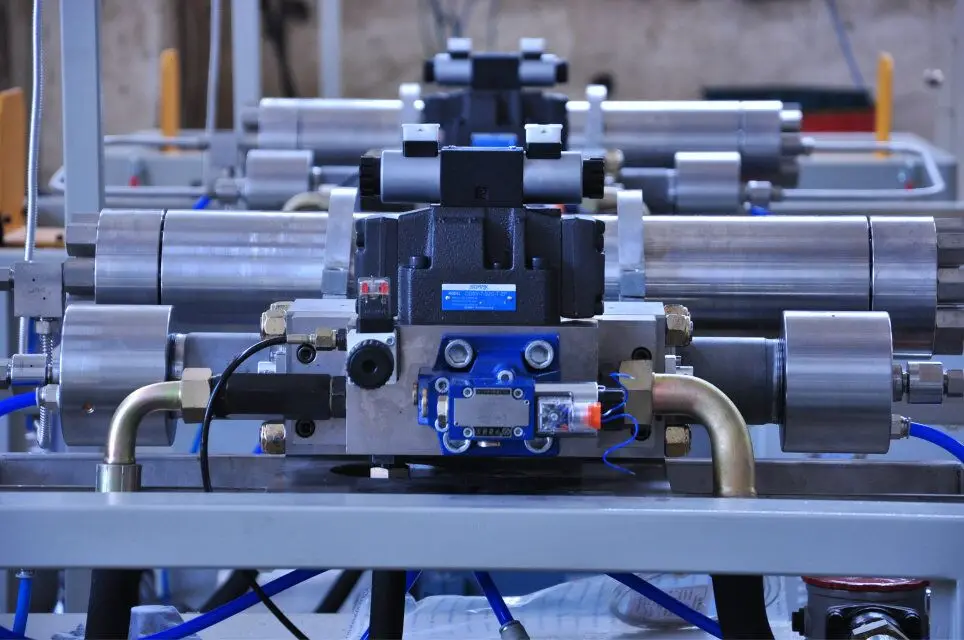

Unique design of this water jet pump makes the installation and the maintenance easier. Stable working pressure to ensure the working efficiency.
We cooperate with Accsutream/Hypertherm since 2008,most water jet parts of the high pressure pumps are imported from USA directly.
We cooperate with Accsutream/Hypertherm since 2008,most water jet parts of the high pressure pumps are imported from USA directly.

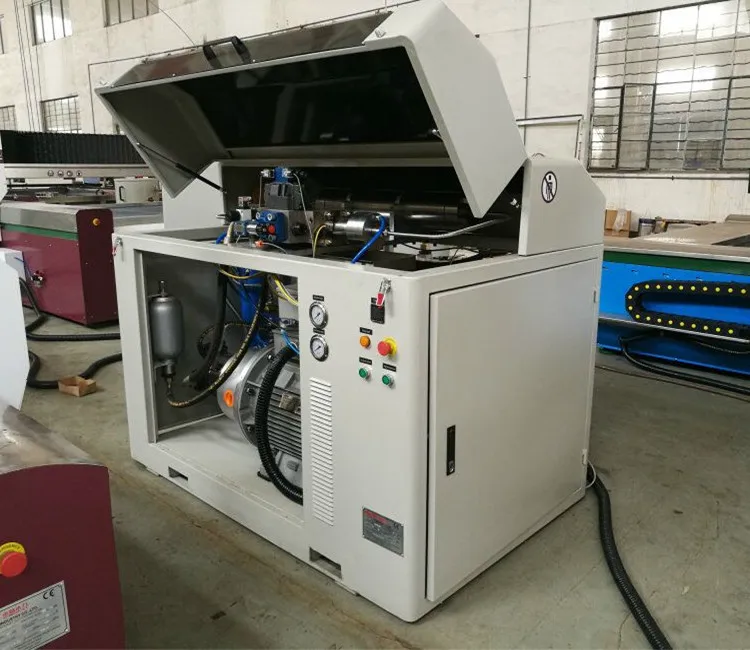

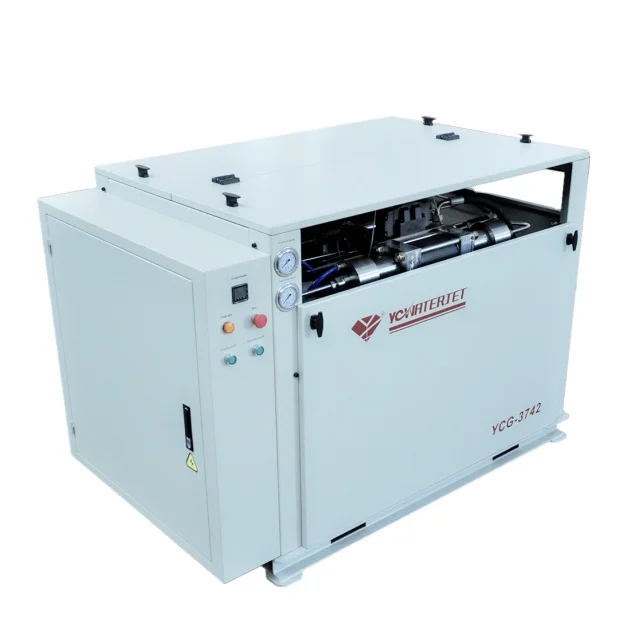

High Pressure Pump | ||||||
Model | YCG-3038 | YCG-3742S | YCG-7542S | |||
Max Pressure | 3800Bar/55,000Psi | 4137Bar/60,000Psi | 4137Bar/60,000Psi | |||
Max Water Flow | 3.7L/min | 3.7L/min | 7.4L/min | |||
Max Orifice/Nozzle | 0.011/0.03 | 0.013/0.04 | 0.016/0.05 | |||
Power | 30KW/40HP | 37KW/50HP | 75KW/100HP | |||
Hypertherm high pressure pumps are all available.
1. 17ʺLCD liquid crystal display.
2. DNC on-line working function.
3. Functions of returningarbitrary point,bending and circular are working auto deceleration.
4. Function of cutting figure imitation display.
5. 80GB memory hard disk.
6. MITSUBISHI AC servo driver and motor.
7. 1GB memory card.
8. Multilingual function(Chinese English etc.).
9. Drive-by-wire and hand-hold controller.
10. NAIKY PCIMC-6A special software is special for YC.
Italian ECS Controller for your choice
Specification Parameters：
1. Up to 16 axes interpolated.
2. Hardware Architecture dual core
1. Up to 16 axes interpolated.
2. Hardware Architecture dual core
( Kontron).
3. With high performance and low power.
4. Monitor 15" LCD - Integrated Touch Screen(Optional).
5. Peripheral interface: EtherCAT.
6. Node EtherCAT to manage EcsLink.
7. Mechatrolink® 2 and analogic drives.
8. Up to 2048 I/O with EtherCAT.
9. Modular machine panel (Optional).
10. Alphanumeric keyboard (Optional).
3. With high performance and low power.
4. Monitor 15" LCD - Integrated Touch Screen(Optional).
5. Peripheral interface: EtherCAT.
6. Node EtherCAT to manage EcsLink.
7. Mechatrolink® 2 and analogic drives.
8. Up to 2048 I/O with EtherCAT.
9. Modular machine panel (Optional).
10. Alphanumeric keyboard (Optional).
Auto abrasive delivery system & Cooling system
Abrasive delivery system
Air cooler
Water chiller （Optional）
\t\t\t\t\t\t\t\t\tOptional Accessories \t\t\t\t\t\t\t
Auto sludge removal system
Remove the abrasive from the tank automatically, separate the abrasive and water.
Reduce the labor force,improve work
efficiency.The absorption pump sucks up the mixture of sand and water from the tank into a collection box when it works.There are
plastic woven filter bags in the collection box,water is recycled to the machine tank, sand and the mixturefrom cutting are
collected into filter bags Inside. So as to achieve the purpose of automatic collection to make it easy to clean.
efficiency.The absorption pump sucks up the mixture of sand and water from the tank into a collection box when it works.There are
plastic woven filter bags in the collection box,water is recycled to the machine tank, sand and the mixturefrom cutting are
collected into filter bags Inside. So as to achieve the purpose of automatic collection to make it easy to clean.
Water Soften System
Hydraulic Loading System
Cutting Head With Drilling
\t\t\t\t\t\t\t\t\tOptional Accessories \t\t\t\t\t\t\t
\t\t\t\t\t\t\t\t\tCertifications \t\t\t\t\t\t\t
\t\t\t\t\t\t\t\t\tCutting Samples \t\t\t\t\t\t\t

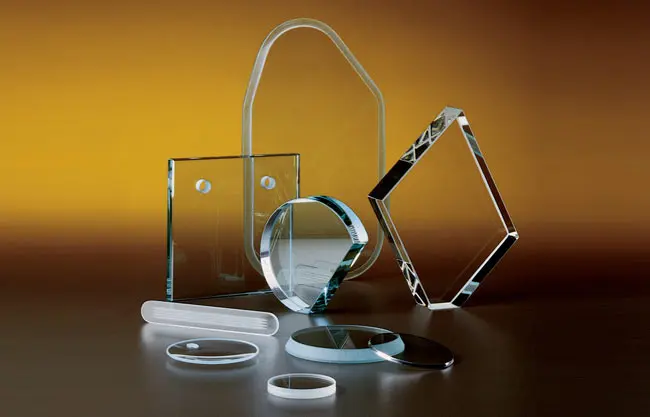

Glass Cutting
Metal Cutting
Stone Cutting
Composite material cutting
Leather cutting
Crystal Cutting
