3D Printers Full Colors Servo Motor 500 watts 100w 200w 1.5kw
- Category: >>>
- Supplier: Ningbo Jigu Motor Technology Co. Ltd.
Share on (60514864883):
Product Overview
Description

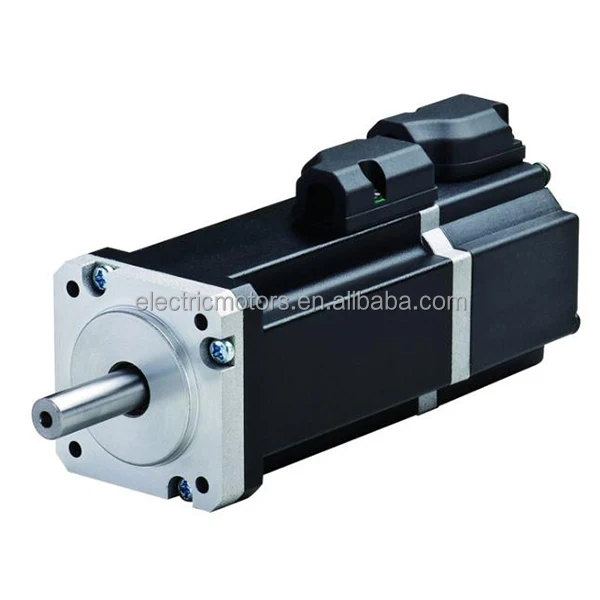

3D Printers Full Colors Servo Motor 500 watts 100w 200w 1.5kw
Product Overview
Datasheet Download
| Product Name | Industrial Sewing Machine Servo Motor |
Acceleration torques range | from 1000rpm~3000rpm |
| External diameter range | 40-180mm |
High output torque at low speed | 0.32Nm~71.6N.m |
Voltage range | 24~80VDC,220VAC,80VAC |
| Power range | 100w~9000w |
Bearing | Maintenance-free ball bearings |
Operating temperature/humidity | oC to + 40 oC / 5% to 85% RH |
Applications | indexers, form/fill/seal, flying shears, cut-to-length, robotics, insertion, packaging, capping machines, laser trimming, marking/labeling |
Product Description
Rated output voltage | 200w |
| Rated output torque | 0.64N.m |
| Rated output speed | 3000rpm |
| Maximum output speed | 3600rpm |
| Rated output current | 1.27A |
| Insulation resistance | 500VDC 100MΩ Min |
| winding inductance | 41.2mH |
| Rotor Inertia (Servo) | 0.264/kg.cm² |
| Insulation Class | B |
| Weight | 1.3kgs |
| Outline Drawing |
 |
Applications
Customized Solutions
Customized Motor Solutions GP Motor specialize in design, custom and manufacture electric motors, including DC motors, Brushless Motors, Gear Motors, Motor Drivers, etc. All of them can be fully and easily customized (see some of the many customization options listed below). We committed to offer high quality, high performance, cost effective options to meet customers specific demands. Choosing to customize one of the motors in our Product Categories now! |
Company Information
Our Services
GP Motor has been a sophisticated designer and manufacturer of topnotch custom DC motors, Brushless Motors, Gear Motors, Motor Drivers, etc. for different applications since 1991.All of our custom electric motors are engineered and manufactured in our 120,000 square foot state-of-the-art manufacturing plant located in Ningbo, Zhejiang.
3D Printers Full Colors Servo Motor 500 watts 100w 200w 1.5kw
