Used in Marine Winch 72V DC Contactor Winch Relay, 100A 400A Precharging Winch Relay<



Brand: AK/AOKAI



Name: DC Reversing Contactor



Model: ADC100(AD400)/DC88P



Rated Voltage: DC12/24/48V



Rated Current: 100A, DE400A



Connection Mode:  Screw Type



Dimension: 53*82*104(mm)



Weight: About 950g

                          winch relay.jpg

ELECTRIC CONTACTOR

SPECIFICATION

Coil Rated VoltageDC12V, 24V, 36V, 48V
Main Circuit Rated Current (A)Continuous 100A, DE short work interrupted 400A
Main Circuit Contact Voltage Drop Of (load:100A)

80mV

Under (20±5℃), Cooling Pull-in Voltage70%
Under (20±5℃), Cooling Release Voltage≥5%, ≤40%
Acceptable Fluctuation Range of Coil Voltage±20%
 Electrify Time30ms
 Disconnecting Release Time20ms
 The Max Disconnecting Time of Contacts5ms
 Insulation Resistance50MΩ
 Dielectric Strength50Hz/60Hz 1000VAC/1min
 Overload Current≤7Ie, ≤1s
 Coil Consumption (W)Continuous  ≤10.0W, DE ≤28.0W
 Electrical LifeContinuous 30000 times, intermittent 5000 times
 Mechenical Life 300,000 Times
 Working ModeContinuous or intermittent
 Contacts Type2 NO and 2 NC
 Contact MaterialAgCdO / AgCuO
Starting Current  ≤4A
Technical StandardGB14048.4-2010

   Battery Powered Winches               Battery Powered Winches     Battery Powered Winches

USAGE ENVIRONMENT

Altitude≤2KmAmblent temperature-25~+55℃
International protectionIP56Installation typeIII
Way to installAnyVibration2.5g(5~50)Hz
Impact50g,11ms(Half-sine wave)

 Electric Contactor   Electric Contactor       Electric Contactor     Electric Contactor     Electric Contactor

SCHEMATIC DIAGRAM

winch relay.jpg Electric CONTACTOR        ELECTRIC  CONTACTOR       ELECTRIC CONTACTOR       ELECTRIC CONTACTOR

INSTALLATION DIAGRAM

  Battery Powered Winches       Battery Powered Winches      Battery Powered Winches    Battery Powered Winches

winch relay.jpg

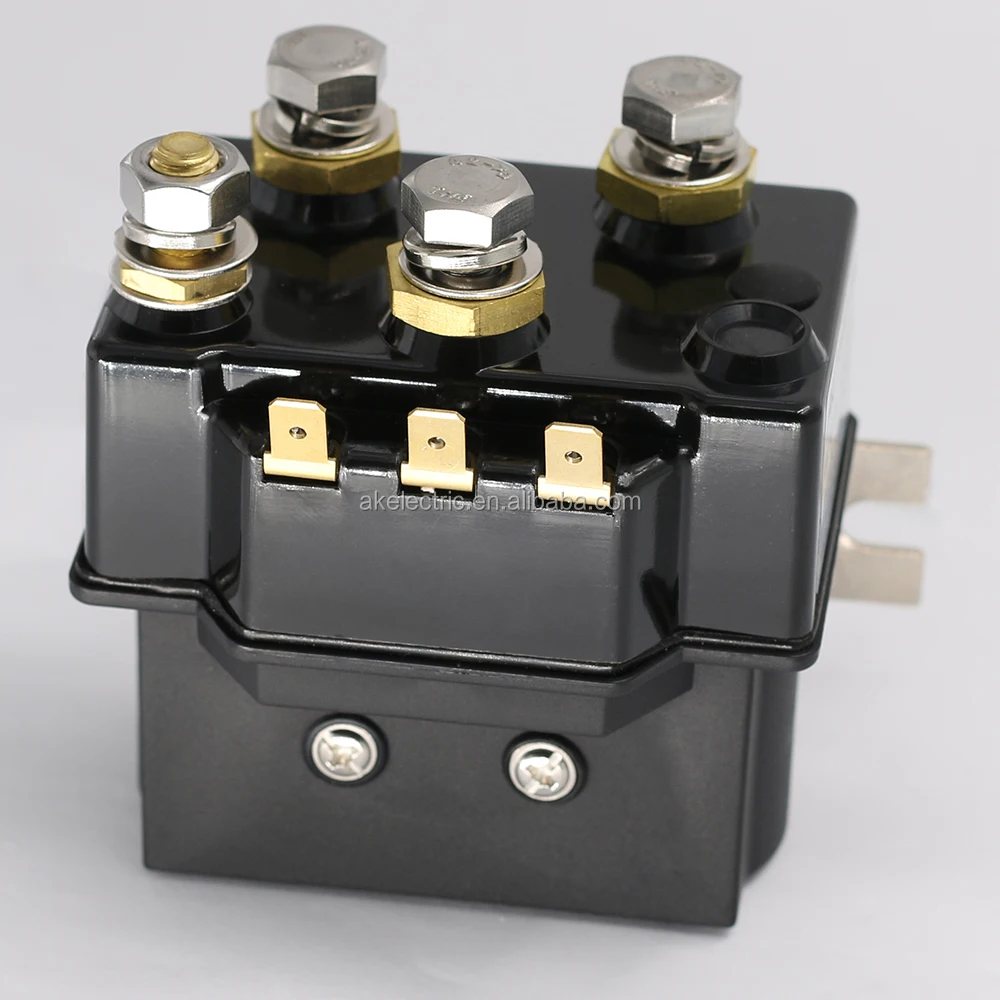

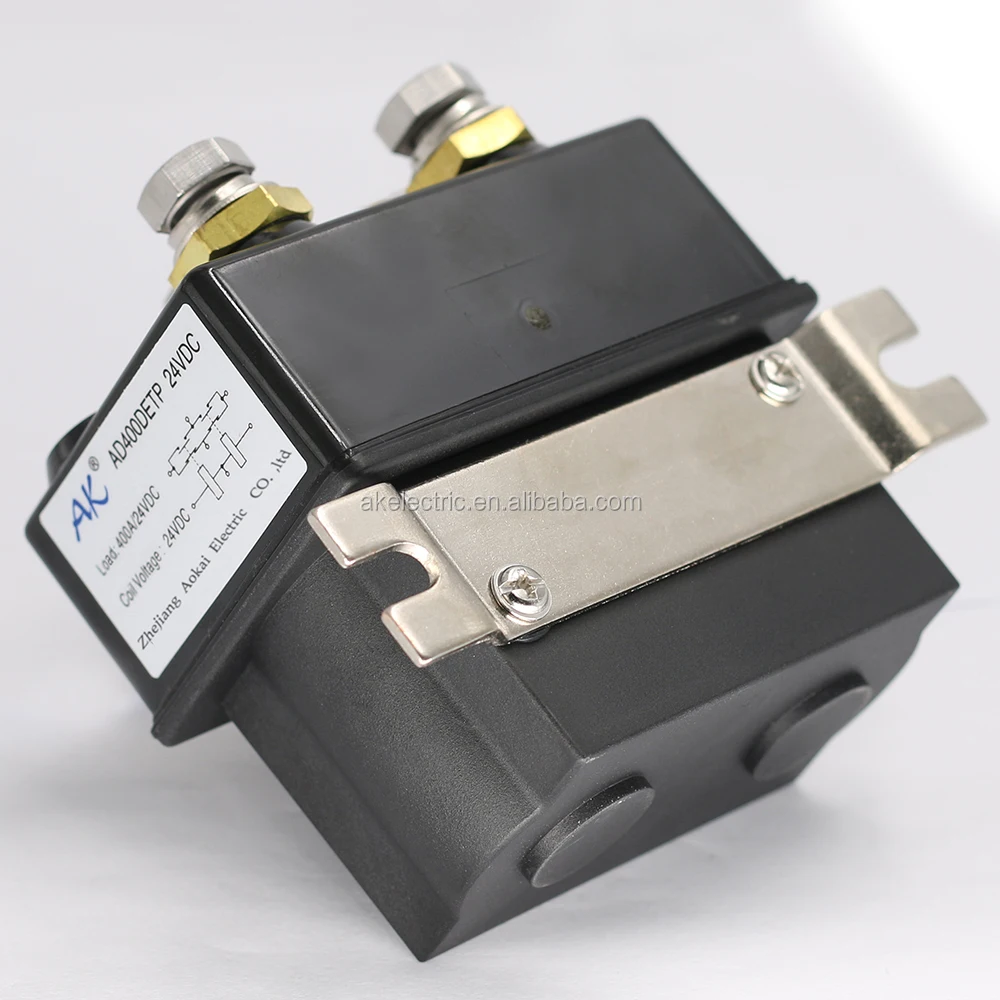

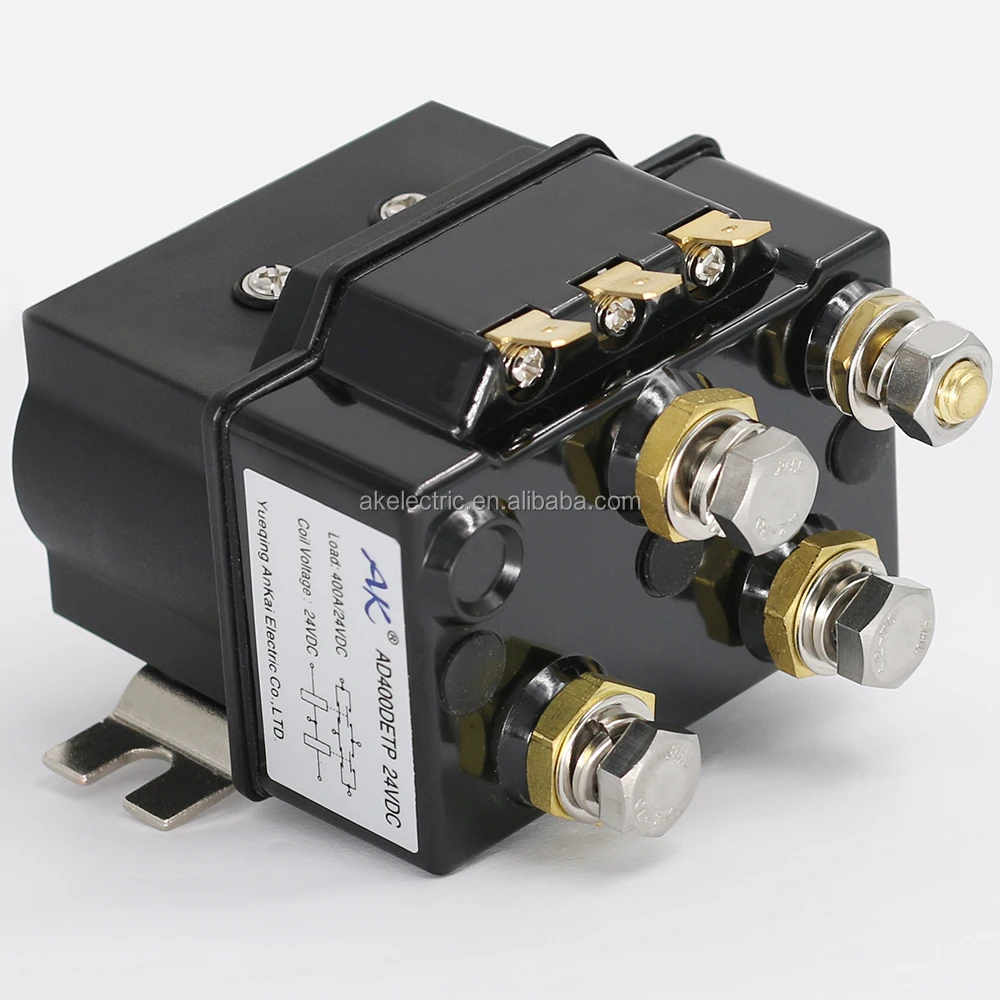

Product Photo Show
