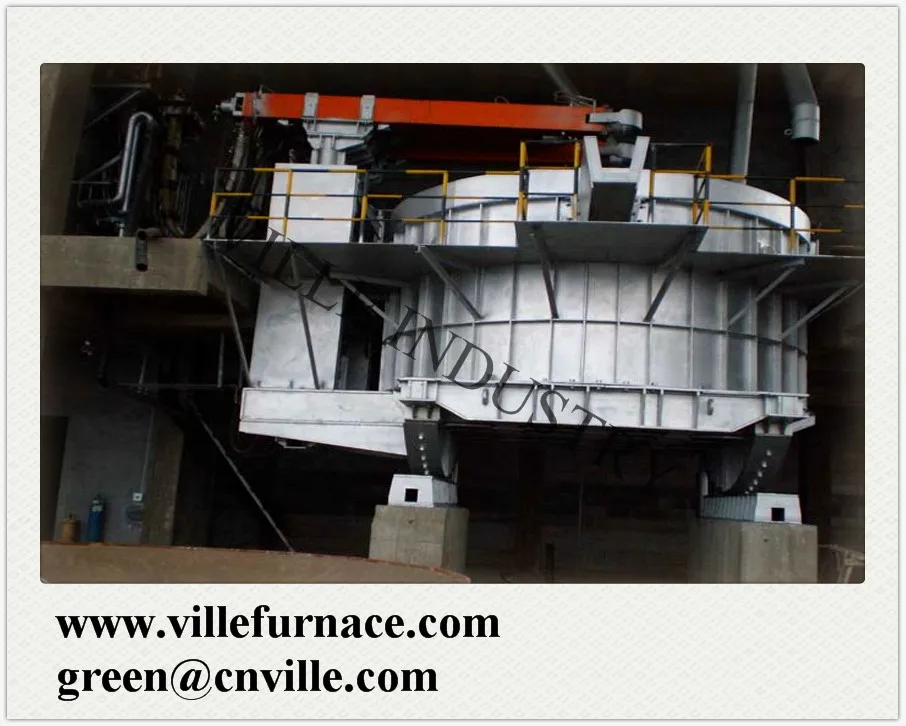

6300kVA ferro alloy Ladle Furnace

Product Overview

Description

1. Furnace working conditions

1.1 Environment

1.1.1 The altitude is less than 1500m;

1.1.2 Environment temperature: -20-45 centidegrees;

1.1.3 Monthly average maximum humidity is less than 90% during rainy season;

1.1.4 No electric dust, detonating gas and aggressive gas;

1.1.5 No obvious vibration and shaking.

1.2 Power supply

High tension                                          AC 10KV ± 10%

Low tension                                           AC 415/230V ± 10%

Frequency                                             50Hz ± 2%

Control voltage                                     AC 230V

Electromagnetic valve                           DC 24V

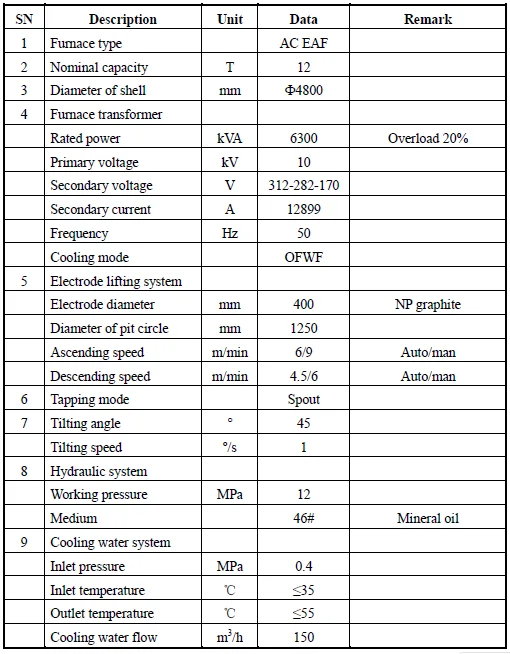

3. Main technical parameters

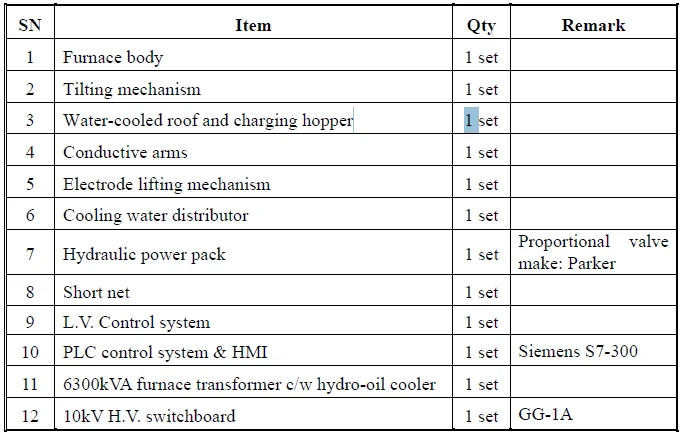

3. Scope of Supply
