electric 1.5v dc brush motor used mobile phone,toothbrush motor JMM1406
- Category: >>>
- Supplier: Yichang Flourishing Import & Export Trade Co. Ltd.
Share on (60515667579):
Product Overview
Description
electric 1.5v dc brush motor used mobile phone JMM1406
Product Description
Advantage :
1) Energy-saving:
High energy conversion efficiency,more than 70%.
2) Fast Response:
Rapid starting and braking with fast response, mechanincal time constant is
less than 28 milliseconds. Some can reach 10ms or less.
3) Reliable Operational Stability:
Operates quietly and quickly with high efficiency and low resistance.
4) Low Noise
Starting and braking quietly, running with low noise.
5) High Speed
The rpm can reach 4500~51000±10%.
6) Durable
Running stably and reliably, can keep working for longtime.
Mechanical:

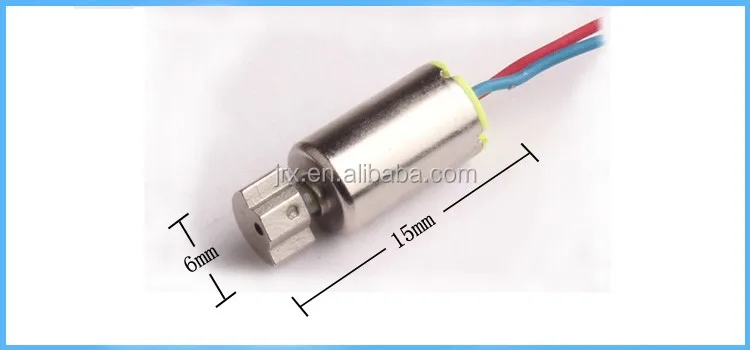

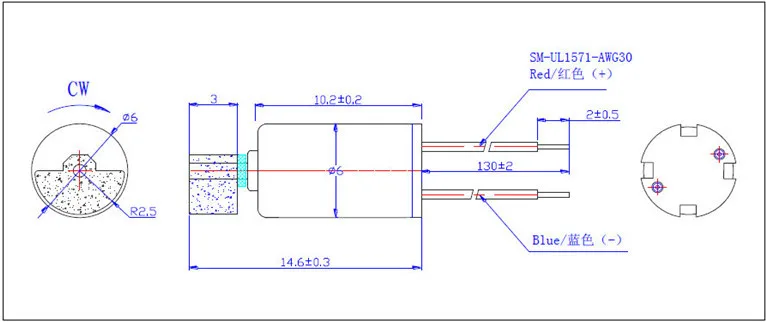

See the attached CAD drawing:
Note:
Lead wire can be custom-made.
| NO | Item | Specifications | Remark |
| 1 | Model Number | JMM1406-0610Z | |
| 2 | Rated Voltage | 1.5V DC | |
| 3 | The use of Voltage range | 1.0-2.0V DC | |
| 4 | Rotation Direction | CW | |
| 5 | The use of temperature range | -10℃-60℃≤60%RH | |
| 6 | Rated Current | 55mA Max | |
| 7 | Rated Speed | 11000±10%rpm | Under the rated voltage motor operates on load |
| 8 | Stall Current | 140mA Max | Rated Voltage |
| 9 | Starting Voltage | 0.8V DC | In any one position,voltage slowly rises |
| 10 | Terminal Resistance | 9.9±5%Ω | Mersure between two terminals |
| 11 | Insulation Resistance | 10MΩ | ohmmeter,measure between the wires and the shell |
| 12 | Appearance | The machine no damage and rusting | |
| 13 | Weight | About 1.6g | |
| 14 | Clearance between shafts | 0.10-0.20mm |

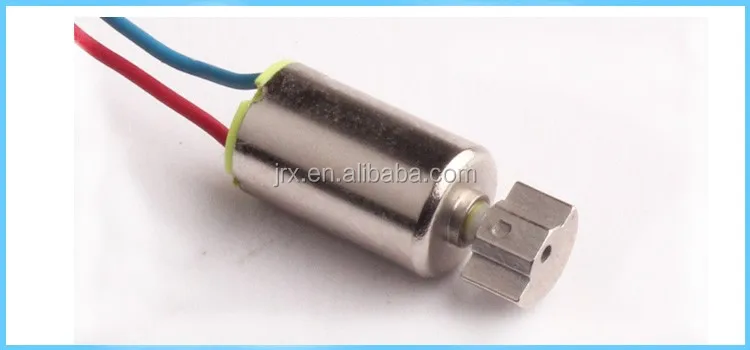

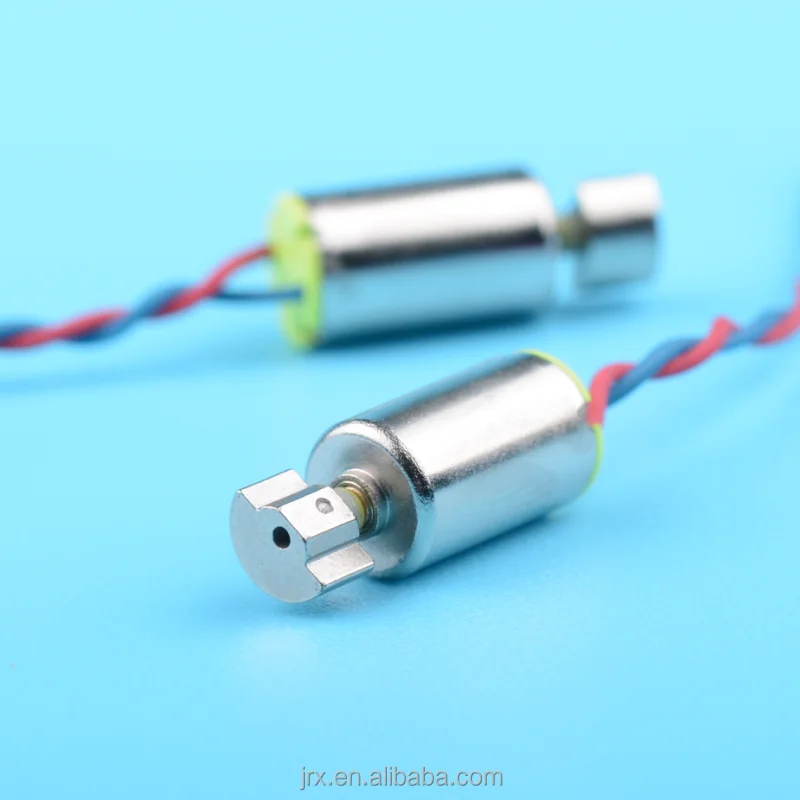

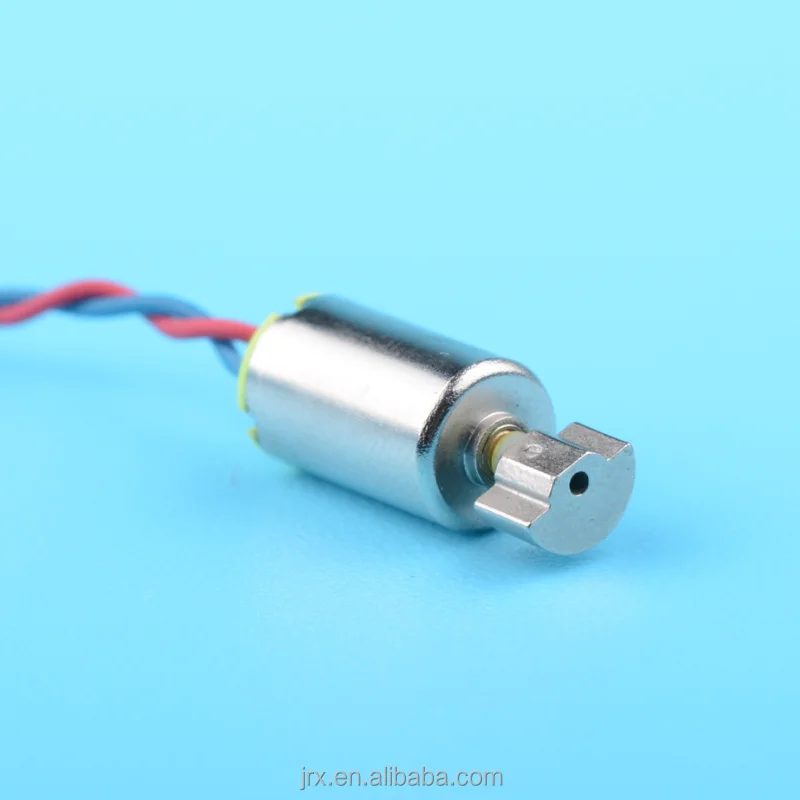

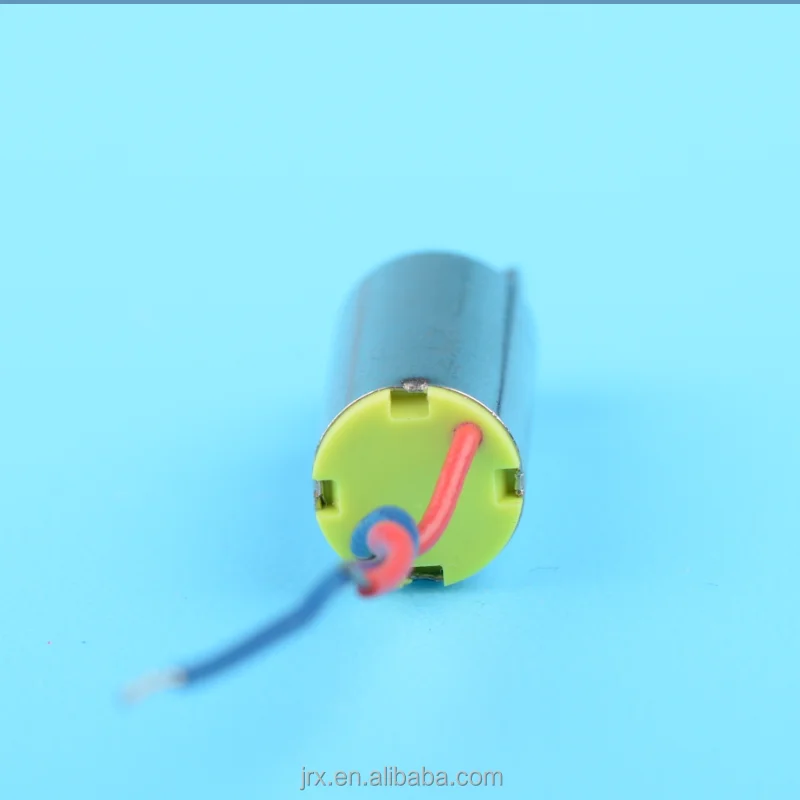

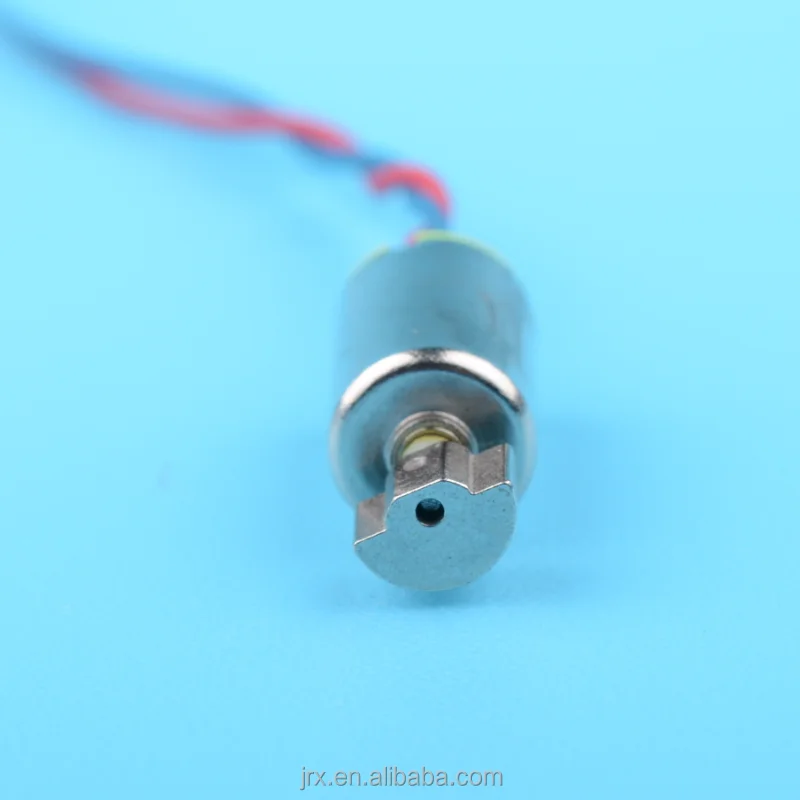

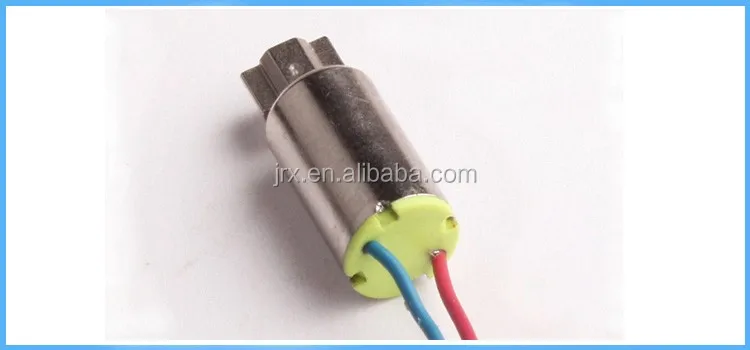

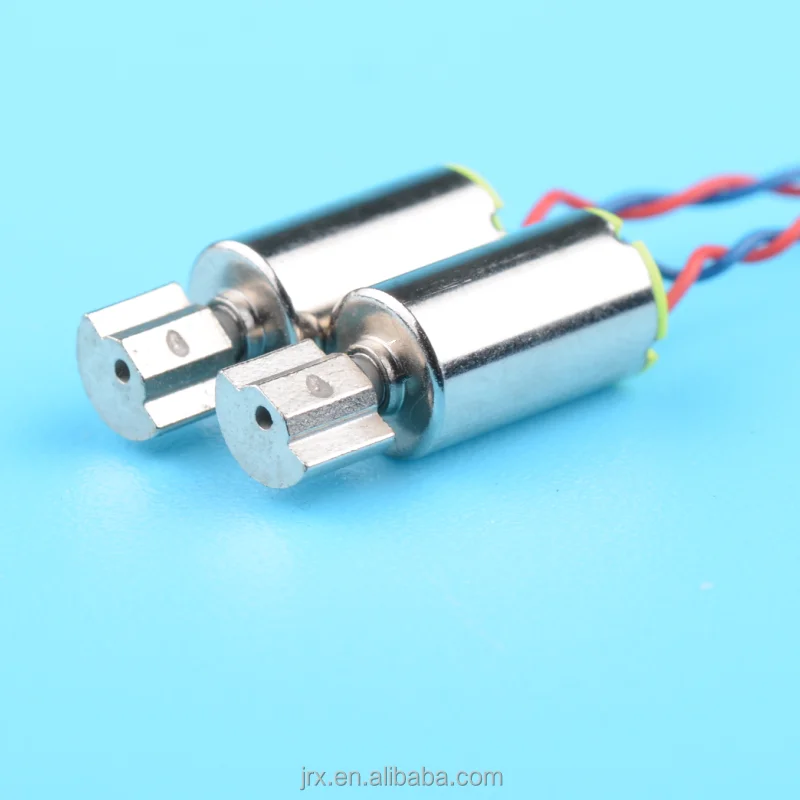

Photos & Drawing:
Packaging & Shipping

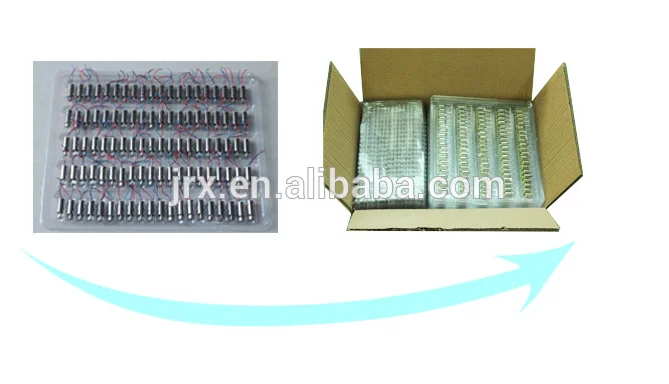

The product is packaged using a two-tier, each carton fitted 5000 pieces motors, the details is as below:
Inner plastic tray size 205*165*7(mm) per pack 50 pieces motors;Outer carton size 330*215*350(mm) each fitted 100 pieces plastic trays.
Shipping Ways :Internatinal Express or By Sea Available
Our Services
| WHAT WE DO | |
| Designing | Testing |
Contact us for motor customisations. Voltage,Speed,Size,Motor rotation | Extensive post-manufacturing testing. Customised testing available. |
| Manufacturering | After-sale Services |
We own a factory specialises in Micro Motors. Over 100 skilled workers ensure reliable product quality and fast delivery. | Solve problems in positive way. Improve our product quality with your valuable suggestions and comments. |
Company Information
Yichang Flourishing Import & Export Trade Co., Ltd.
100% Manufacturer, Fast Delivery, Free Sample, Reliable Quality.
1)Micro Motor manufacturer for many years since 2003 years with our own trade company ;
2)Variable dc brush motors (eg: coin motor ,coreless motor ,iron motor etc.) are available.
3)Super A+++ Quality with competitive price.
| Main Products | Micro driving motor Micro vibrating motor DC coreless motor Coin type vibrating motor Precious-mental brush motor Carbon-brush motor |
| Products Applications |
Electrical Toys,Toy Car ,Toy Boat,Model Train,Toy Airplane , Electric Shaver ,Small Electric Fan ,CPU Cooler Fan RC Toys ,RC Car,RC Helicopter,Quadcopter,Aeromodelling Game Machine, Game Handle, Game Controller Household Appliances, Electric Appliances Sex Toys, Vibrating Toothbrush, Mobile Phone, Pager Massager, Massage Rod, Eye Massagers,Medical Products PCS (Personal Communication by Satellite) PDA (Personal Digital Assistants)
|
FAQ
Q: What kind of motors you can provide?
A: we mainly provide permanent magnet brushed dc (vibration and driving )motors, voltage from 1v to 24v ,diameter range from 4~52mm and with different conect ways ,like lead wire ,pins,spring .....;
Q: Is there a MOQ for your motors?
A: Yes. The MOQ is 1,000pcs for different models after sample approval. But it's also okay for us to accept smaller lots like a few dozens, hundreds after sample approval.
Q: Could you send me a price list?
A: For all of our motors, they are customized based on different requirements like lifetime, noise, voltage, and shaft etc. The price also varies according to annual quantity. So it's really difficult for us to provide a price list. If you can share your detailed requirements and annual quantity, we'll see what offer we can provide.
Q: Is it possible for you to develop new motors if we provide the tooling cost?
A: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we'll make our evaluation to see if we can arrange or not .
