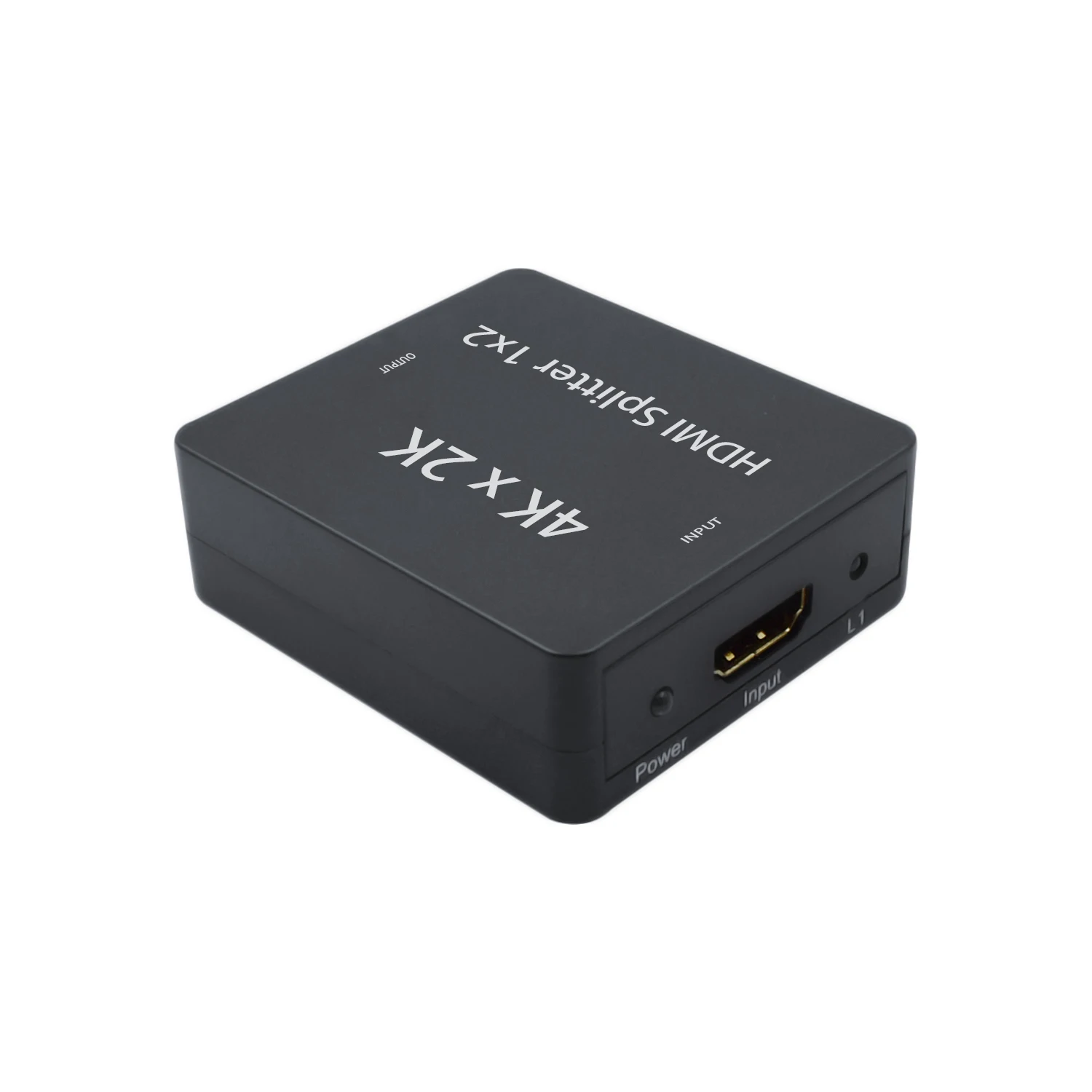

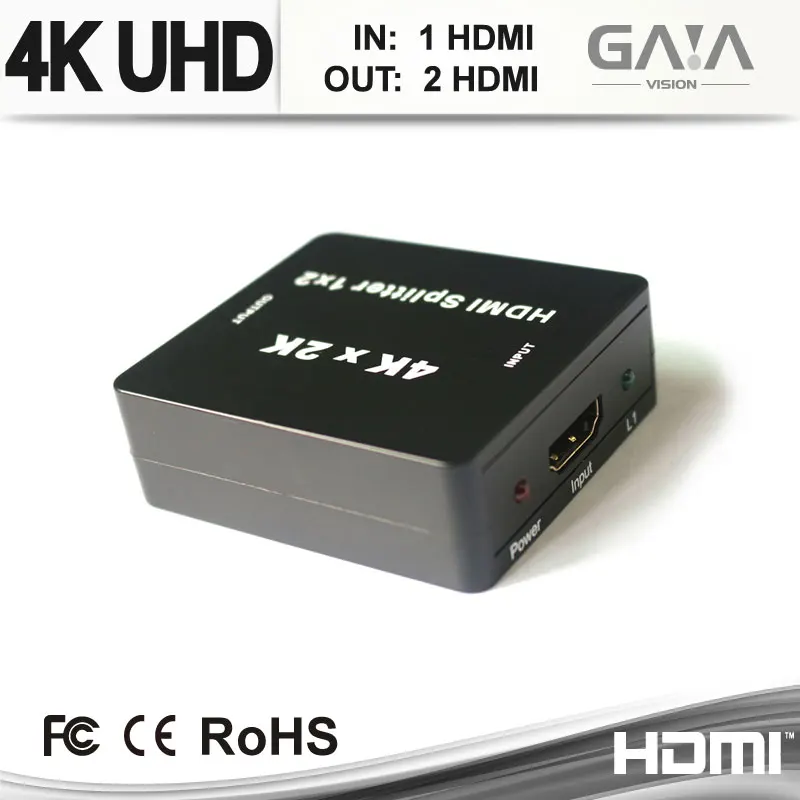

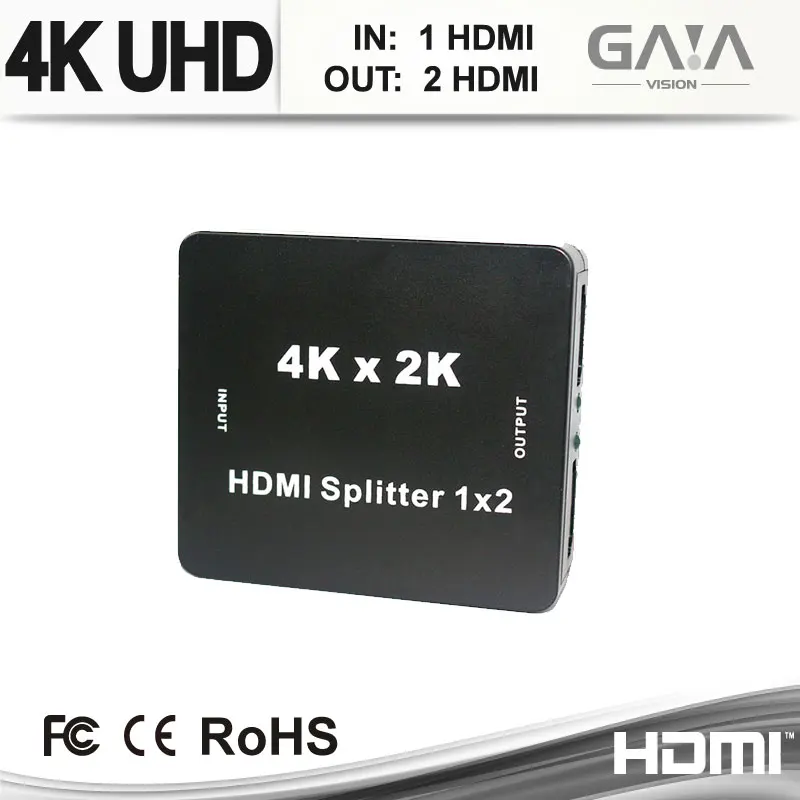

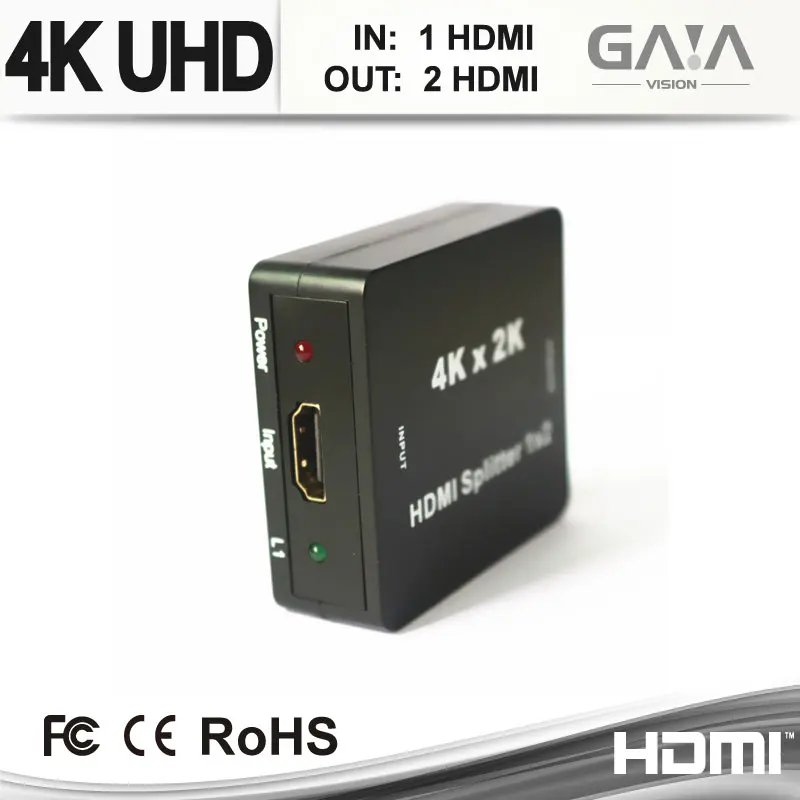

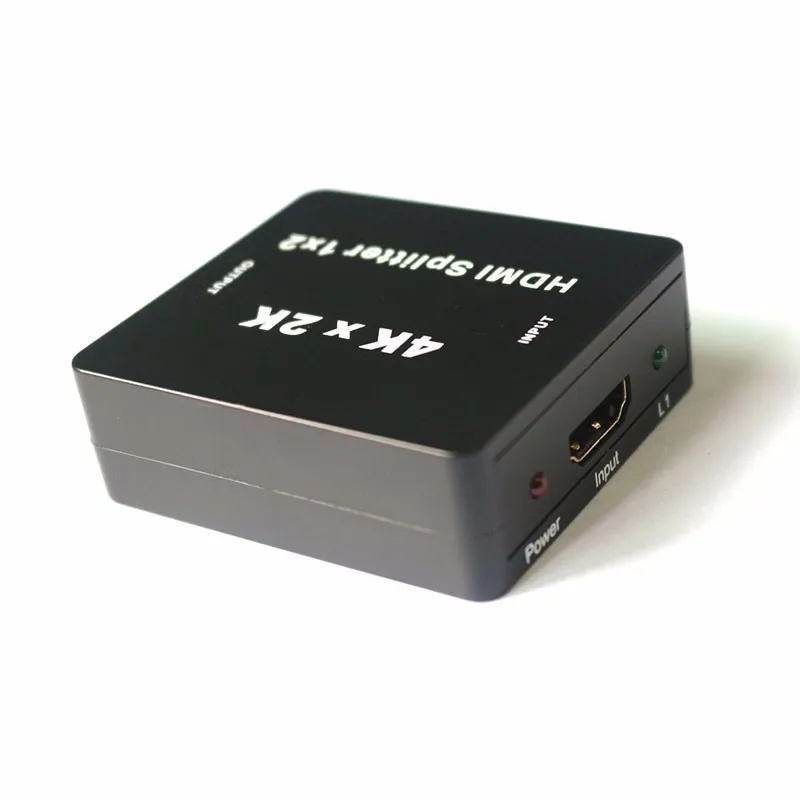

HDMI Spliter 2 Port 1.4V Hdmi Splitter 3D 1x2 HDMI Splitter DC 5V Adapter,1 In 2 Out Switcher Support HDTV 1080P
- Category: >>>
- Supplier: Shenzhen Gaia Vision Technology Co. Ltd.
Share on (60515668480):
Product Overview
Description

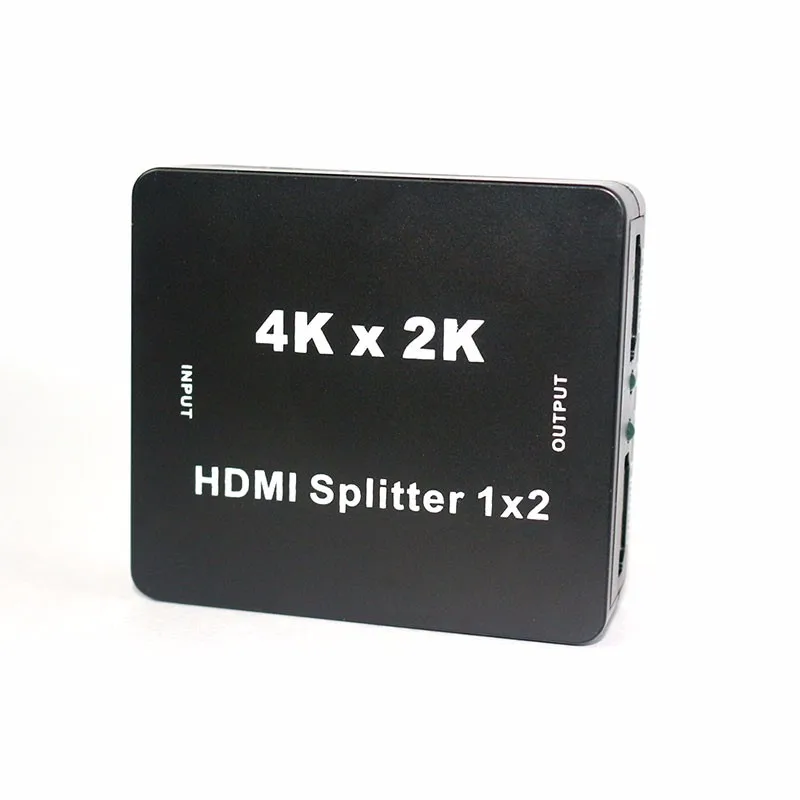

Full HD 1x2 Port HDMI Splitter Amplifier 3D Splitter HDMI 4Kx2K
Product Description
HDMI Splitter 1 into 2 out, so that an HDMI port to allocate two HDMI ports high-definition audio and video distributor. Allows for distribution of set-top boxes, DVD players, D-VHS players and other HDTV devices with HDMI signals in a two-way, simultaneous, HDMI output. Users can output a single signal can also be connected to high-definition projectors, DLP, LCD high-definition television and other audio equipment.
Support HDMI version: HDMI1.3
Support HDCP version: HDCP1.2
HDMI Resolution: 480i @ 60Hz, 480p @ 60Hz, 576i @ 50Hz, 576p @ 50Hz, 720p @ 50/60 Hz, 1080i @ 50/60 Hz, 1080p @ 50/60 Hz, 1080P 24Hz 3D, 720 60Hz 3D
The maximum transmission rate: 10.2Gbps
Audio signal transmission format: left and right stereo audio Input and output
TMDS signal: 0.5 ~ 1.5Vp-p (TMDS)
Input and output DDC signal: 5Vp-p (TTL)
Input cable length: ≤5m (AWG26 HDMI1.3 cable standard)
Output cable length: ≤5m (AWG26 HDMI1.3 cable standard)
Material: ABS Colour: Black
Specifications
HDMI version…………………………………………….……………………………….. HDMI 1.4v
HDMI resolution……………24/30fs/2160P, 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support video color format ……………………………..……. 24bit/deep color 30bit,36bit, 48bit
Support audio format………DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD HD(HBR)
Max bandwidth………………………………………………………………………………..340MHz
Max baud rate……………….…….………………….……………………………………..10.2Gbps
Input/Output TMDS signal ………….…………………………..……......… 0.5~1.5Volts p-p(TTL)
Input/Output DDC signal ………………………………………………..………… 5Volts p-p (TTL)
Input cable distance..…...…………….…………………….≤15m AWG26 HDMI standard cable
Output cable distance…………………………………..…...≤20m AWG26 HDMI standard cable
Max working current……………………………………………………………………….....500mA
Operating Temperature range……..…………….…………………………………… (-15 to +55℃)
Operating Humidity range………………………….….………….5 to 90%RH (No Condensation)
Dimension (L x W x H) …………………………………….…………………….…60x55x20(mm)
N. Weight…..………………………………………………………..…….……………..………….65g
Certifications
Company Information
Packaging & Shipping
Shipping:
1. UPS / DHL / FEDEX /EMS / TNT and so on express(door to door)
2. For Air Shipment, Please choose your favorite, shipping method according your detail requirement
3. The shipping discount is different in different seasons and depend different weight, we will choose the cheapest and safest way according your detail quantities
4. Normally, it will take around 3-7days from China to destination country. Please note that some remote place will need 1-3 days more.
Delivery:
1. Sample within 1-3 days
2. Wholesales Orders : 5-10 days according various quantities
3. OEM 10-20 days after receiving your sample confirmation and payment.
Warranty:
1. One year warranty.
2. Please send back the defective goods which are within the warranty period, we will repair them or send you new one for free.
3. If it is the sample or only few pcs accessories (the fee is less or around shipping fee) are damaged, please send us some pictures and video about it need to confirm your problem, then we will send you free new goods instead.
