JIMI CT10 3G GPS Tracker for Container Asset Cargo Tracking
- Category: >>>
- Supplier: Shenzhen Jimi Iot Co. Ltd.
Share on (60515691980):
Product Overview
Description

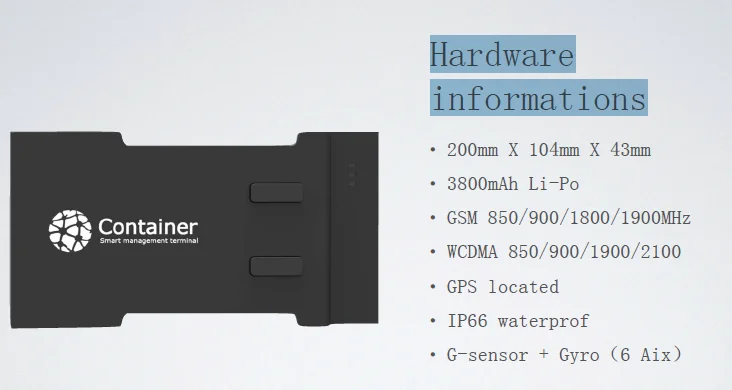

HARDWARE
CT10 3G Container GPS Tracker

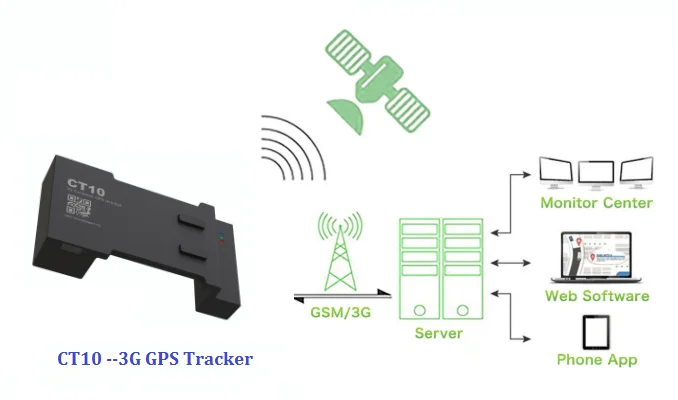

Designed for container transportation and cargo shipping, the CT10 3G GPS tracker is a useful security solution providing enhanced visibility of assets in-transit across the world. Using WCDMA technology, this ALL NEW cost-effective, long-life GPS tracking device is able to provide accurate information on the whereabouts of the containers from port to port.

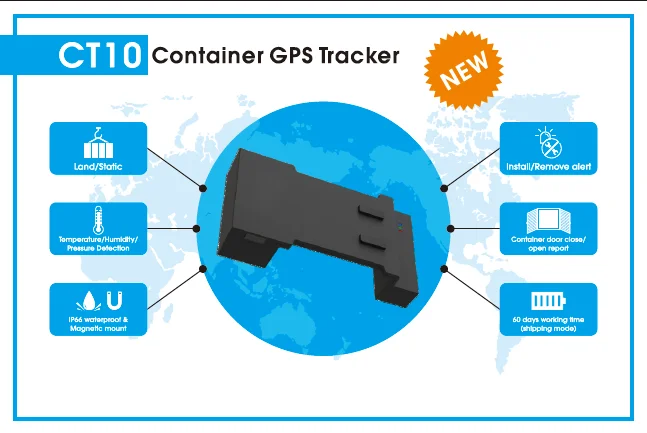

Features:
●Seamless global roaming
Seamless global coverage makes the device always stay connected
●Installation/Remove alert
●Installation/Remove alert
Be notified of any removal from original installation
●Strong magnetic mount
●Strong magnetic mount
Strong magnetic cover allows for flexible mounting on vehicles or assets
●Automatic land/sea/static mode switching
●Automatic land/sea/static mode switching
With gyroscope & G-sensor, the device can change to land, sea & static mode automatically
●Container door close/open alert
●Container door close/open alert
Get instant alert when your container's door is opened unexpectedly
●60-day working time (static mode)
3800mAh battery enables extra-long standby
●60-day working time (static mode)
3800mAh battery enables extra-long standby
●IP65 dust and water resistance
Ensure stable operation in open air
Specifications:
GSM Specification | ||
Communication system | GSM &WCDMA communication module | |
Communication frequency | GSM: 850/900/1800/1900MHz WCDMA: BAND1/BAND2/BAND5/BAND8 | |
Sensitivity | <-104dBm | |
GPRS | Class 12, TCP/IP | |
Receive sensitivity | Class II RBER2%(-102dBm) | |
Memory | 32+32Mb | |
Phase error | RMSPE<5,PPE<20 | |
Max output | GSM850/GSM900:33±3dBm GSM1800/GSM1900:30±3dBm | |
Max frequency error | ±0.1ppm | |
GPS Specification | ||
GPS chipset | MTK high sensitivity chip | |
Frequency | GPS L1, 1575.42MHz | |
GPS channel | 66 | |
Location accuracy | <10 meters | |
Tracking sensitivity | -165dBm | |
Acquisition sensitivity | -148dBm | |
TTFF (open sky) | Avg. hot start≤1sec Avg. cold start≤38sec | |
Function & Package | ||
GPS antenna | GPS ceramic antenna | |
Operating temperature | -20℃～ 70℃ | |
Water/Dustproof | IP65 | |
Standby time | 60 days (upload one GPS data every 6 hours in static mode) | |
Battery | 3800mAh Li-Polymer battery | |
Device Dimension | 43*104*200mm | |
Device Weight | 370g | |

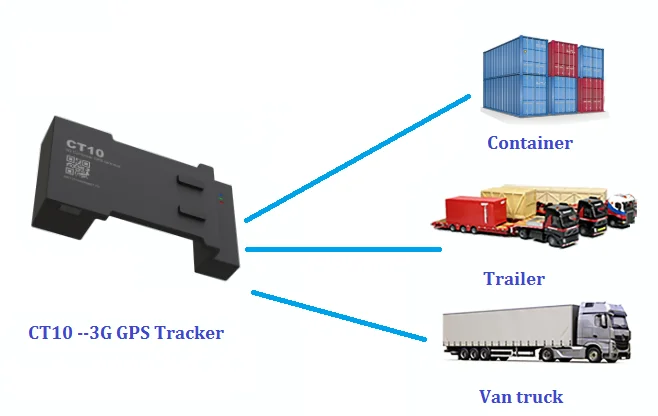

Market Application:
Certificates:
CE FCC
SOFTWARE
Tracksolid
