Product Overview

Description

 refrigerator iec reactor emc filter

Summary:



This equipment is used in the production process of hydrolysis, neutralization, crystallization, distillation, evaporation and other processes in  chemical, food and light industries. It is acid resistance, high temperature resistance, wear resistance, and corrosion resistance. It can also be produced as per users' requirements.



Features:



Material: SUS304 or S.S.316L

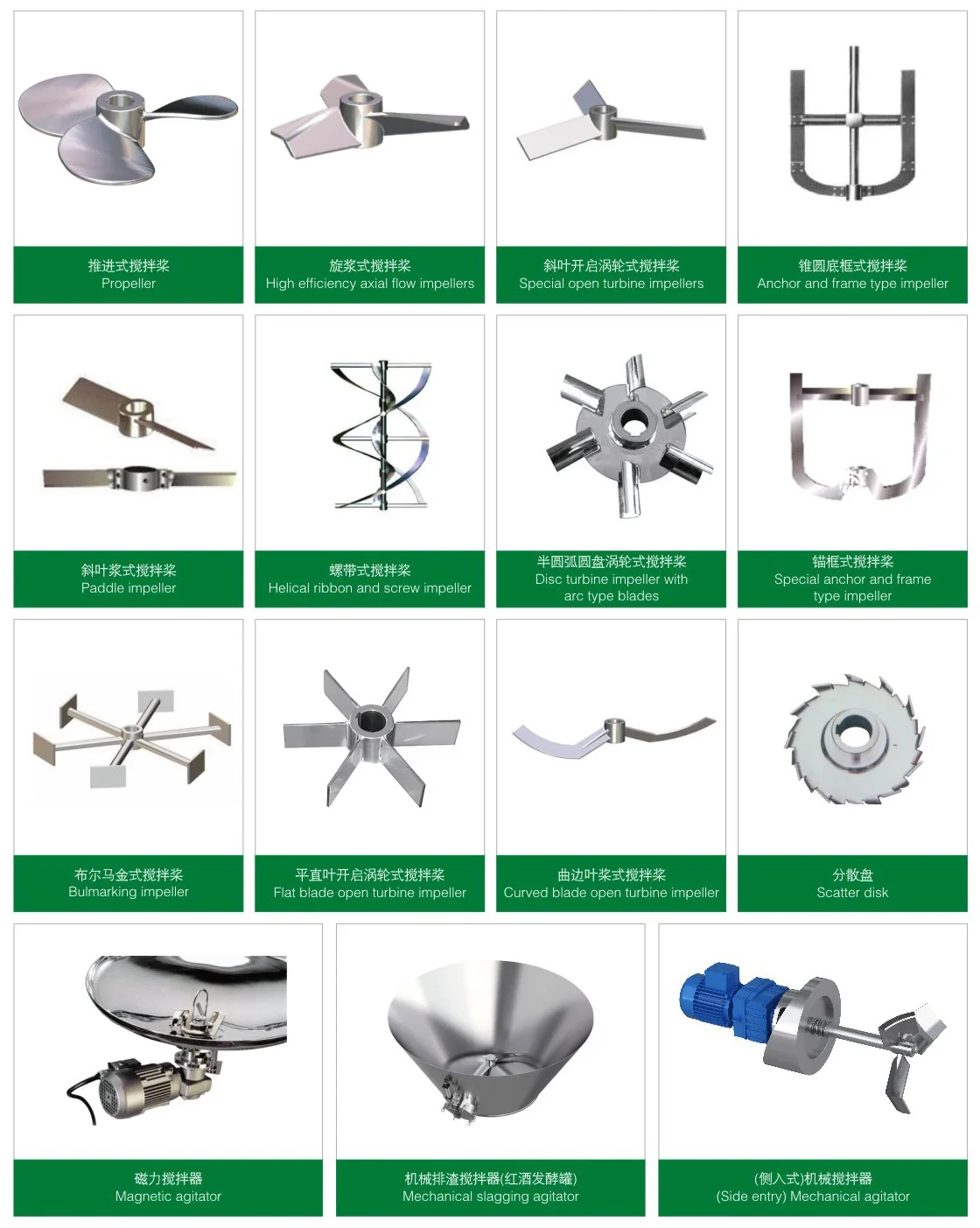

Mixing type: anchor type, frame type or paddle type

Mixing structure: cycloid pin wheel reducer or stepless reducer

Sealing equipment: Mechanical sealing

Heating or Cooling: jacket, half pipe or coil pipe

Heating way: steam heating, electrical heating or heat conduct oil.

Volume: can be made as per customer requirements

Measure: can be made as per customer requirements



Technical Parameter:



	FYG100	FYG200	FYG500	FYG1000	FYG1500
Volume L	100	200	500	1000	1500
Diameter mm	500	600	800	1000	1200
Tank Pressure MPa	0.25-0.5
Jacket Pressure MPa	0.30
Motor Power kw	1.1	1.5	2.2	4.0	4.0
Agitation Speed r/min	85
Tank Type	First Grade Pressure Tank



	FYG2000	FYG2500	FYG3000	FYG4000	FYG5000
Volume L	2000	2500	3000	4000	5000
Diameter mm	1200	1400	1400	1500	1600
Tank Pressure MPa	0.25-0.5
Jacket Pressure MPa	0.30
Motor Power kw	4.0	5.5	5.5	5.5	7.5
Agitation Speed r/min	85
Tank Type	First Grade Pressure Tank

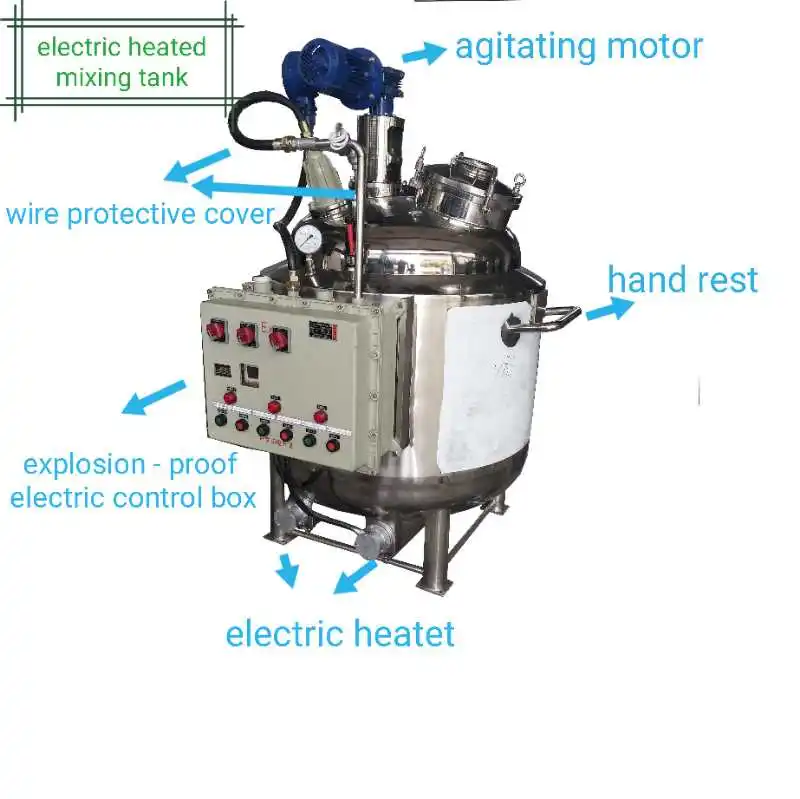

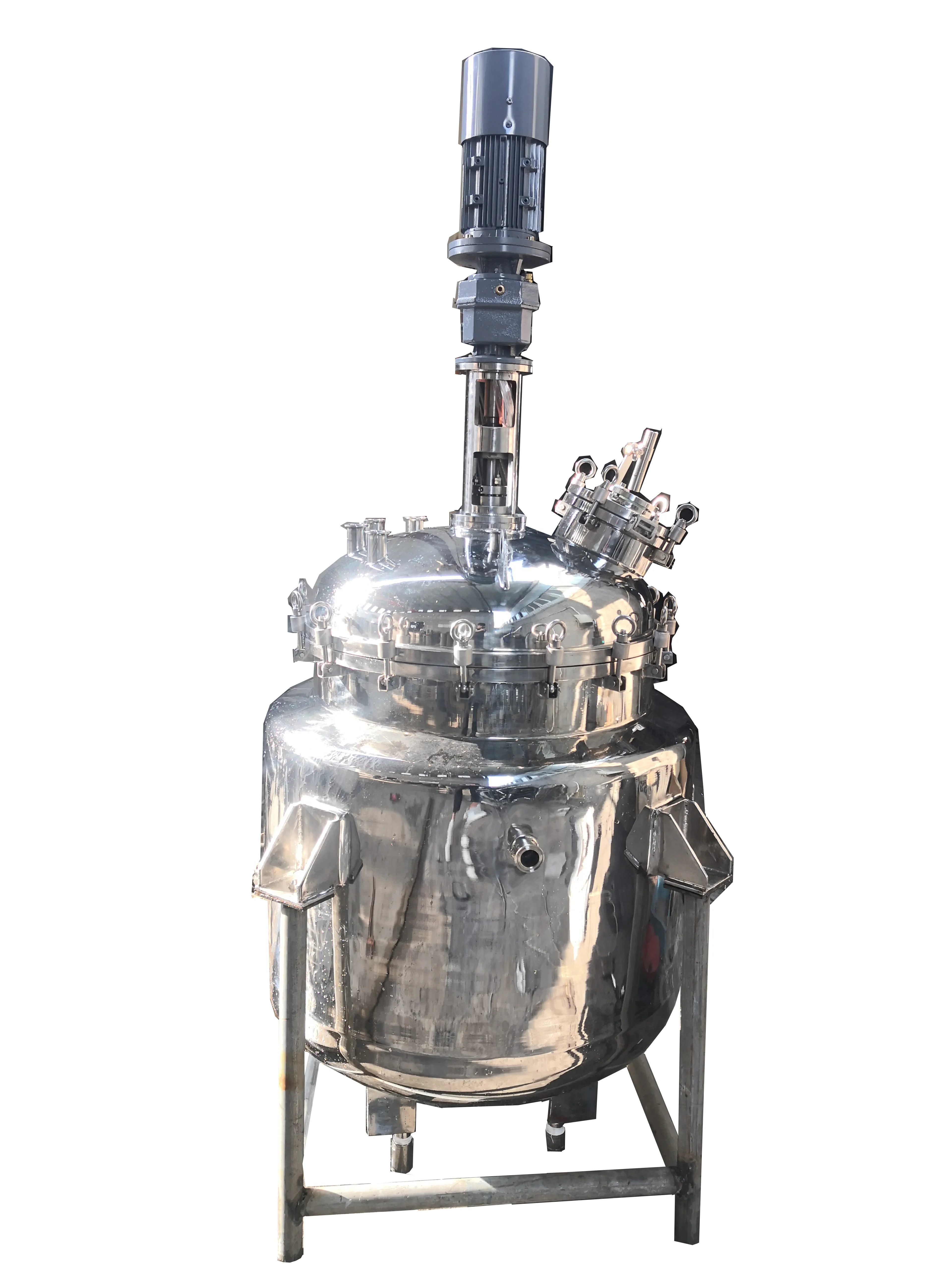

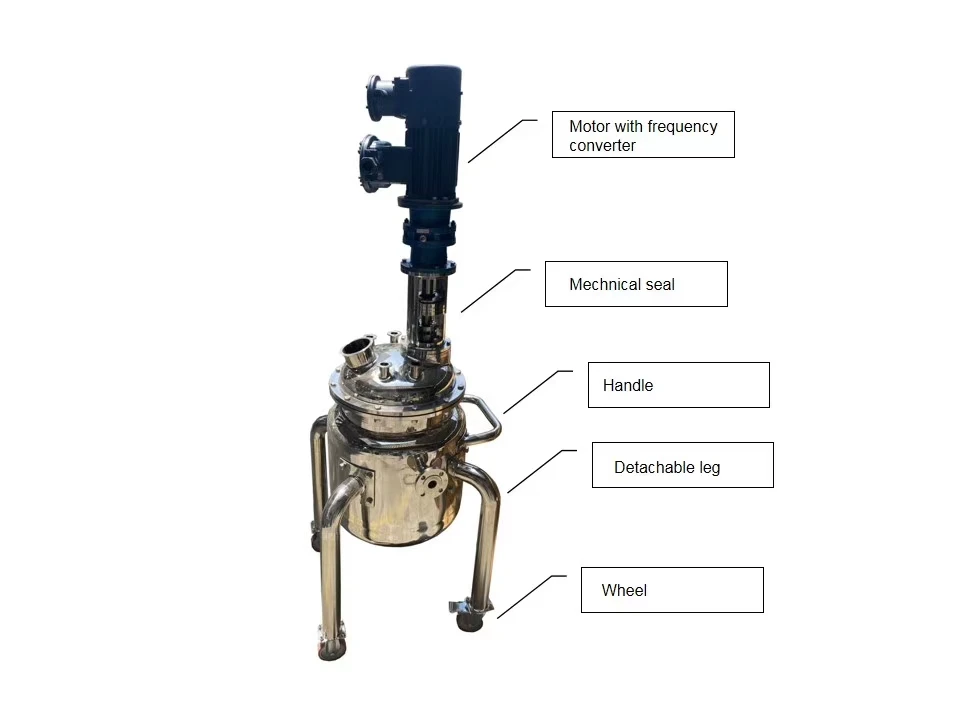

 Machine Photo:





















Project Show Case:
