NC Control Steel Pipe End Forming Machine Processing Metal Pipe
- Category: Other Metal & Metallurgy Machinery >>>
- Supplier: Jiangsu Hefeng Mechanical Making Co. Ltd.
Share on (60516359805):
Product Overview
Description
Automatic pipe end shaping
tube end forming machine

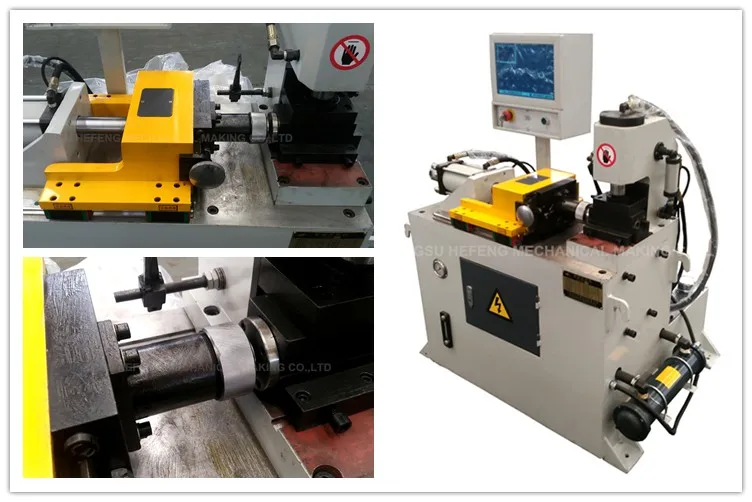

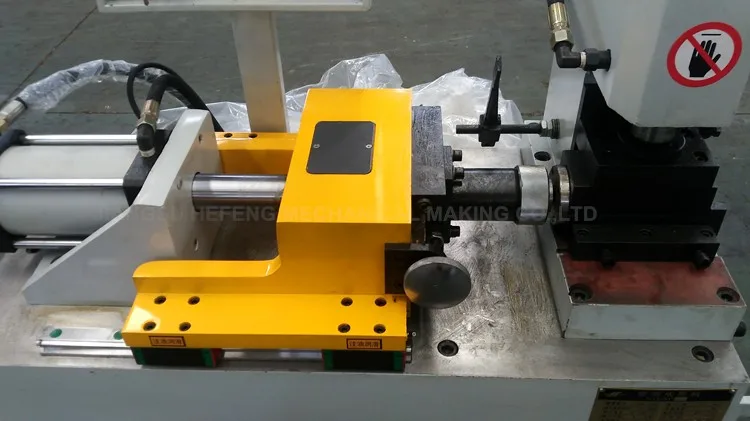

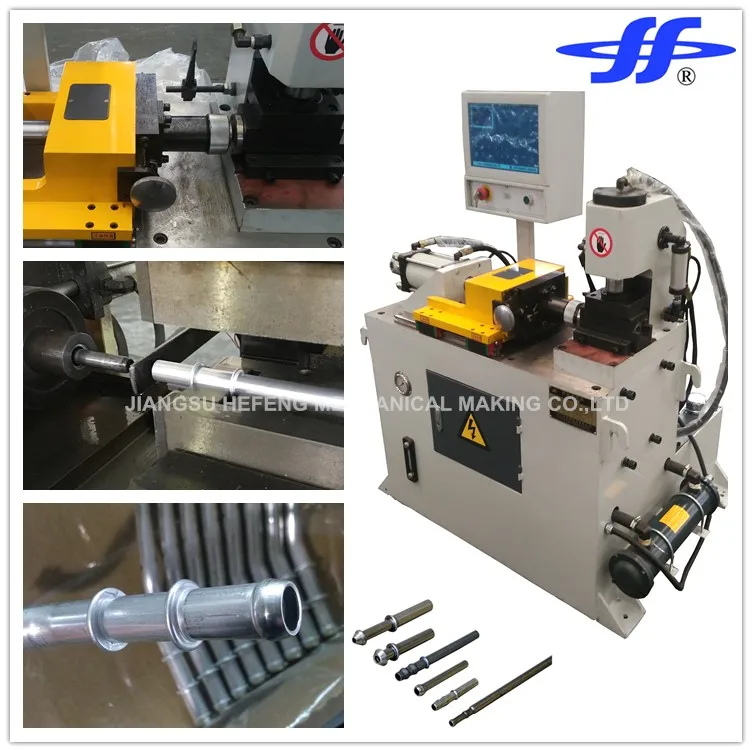

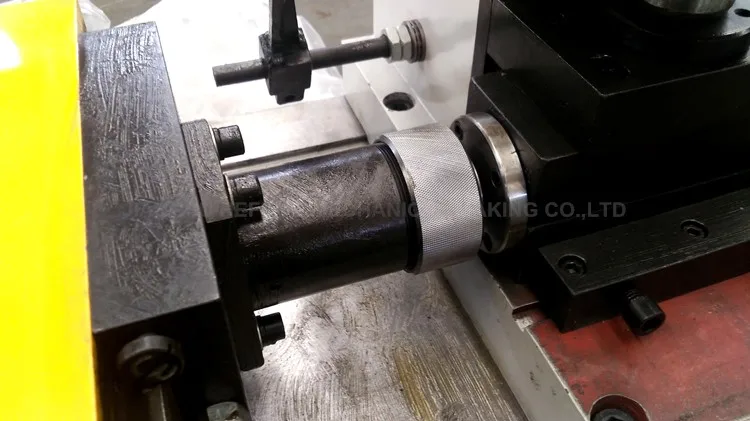

NC Control Steel Pipe End Forming Machine Processing Metal Pipe
| Machine Model | Units | SG40NCA | SG40NCⅡA | SG40NCⅢA |
| Max Pipe O.D. x W.T. | mm | 40x1.5 | 40x1.5 | 40x1.5 |
| Max processing length | mm | 110 | 110 | 60 |
| Oil pressure(Mpa) | / | 12 | 12 | 12 |
| Pushing force | T | 8.5 | 8.5 | 10.5 |
| Processing speed | Sec | 5-6 | 5-6 | 5-6 |
| Size | mm | 1270*930*1450 | 1270*930*1400 | 1350*1200*1600 |
| Weight | kg | 755 | 850 | 1225 |
| Remark: The max processing length can according to customers requirement. |
||||
