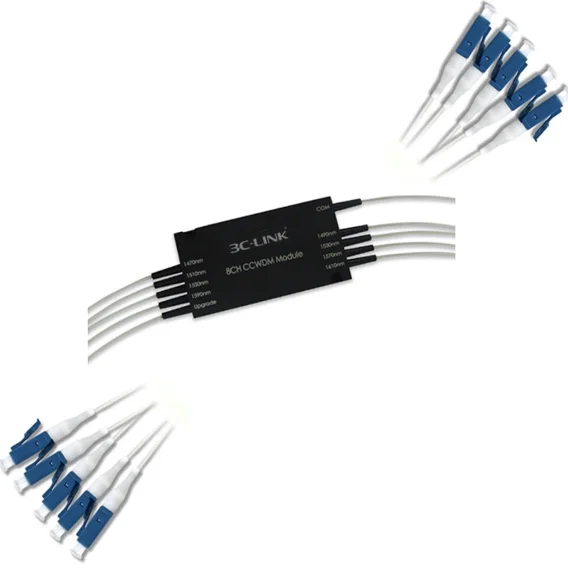

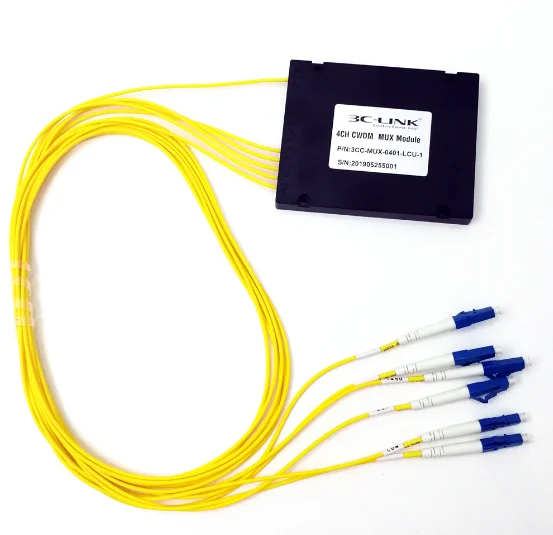

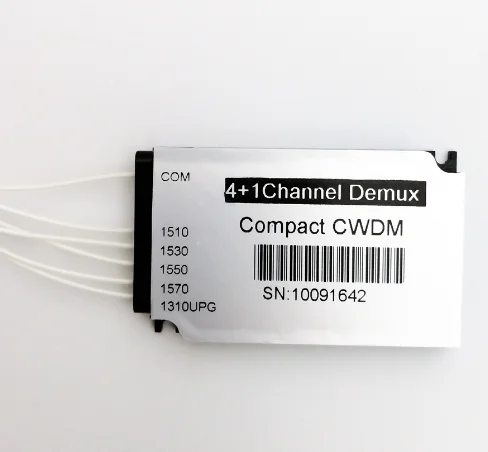

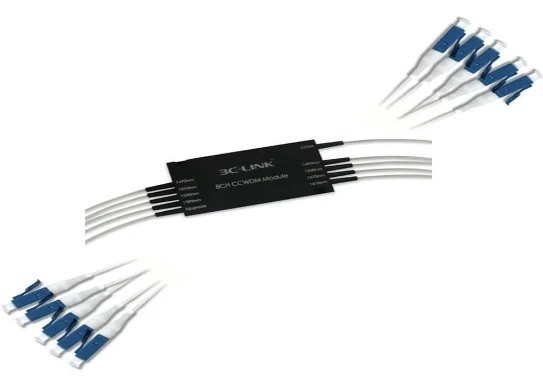

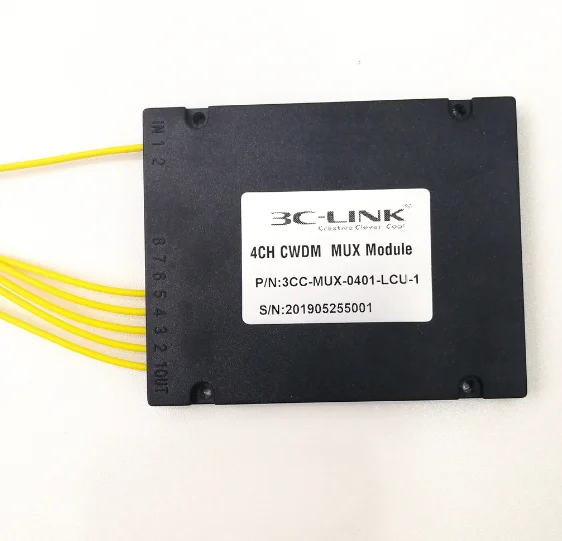

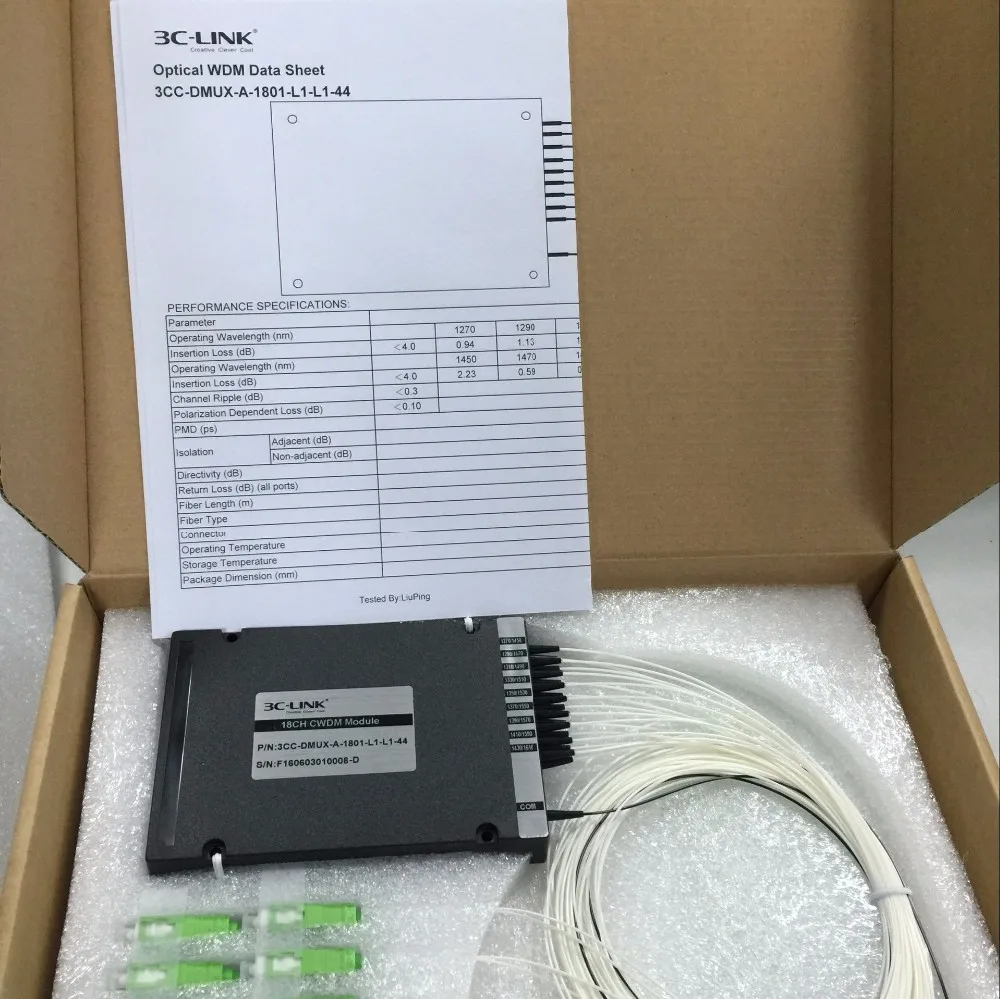

The Free Space CCWDM 18 channels Compact CWDM Mux/Demux Module

Product Overview

Description

      18-CH COMPACT CWDM MUX/DEMUX MODULE (18CH CCWDM)

The Free Space CCWDM--18 channels Compact CWDM Mux/Demux Module



        3C-LINK’s compact size Coarse Wavelength Division Multiplexers (Mini CWDM, Compact CWDM, CCWDM), are integrated optical modules using 3C-LINK’s proprietary optical bench platform which can significantly improve optical performance, while also reduce manufacturing cost. Compare to the common standard CWDM module, 3C-LINK’s Mini CWDM takes much smaller package size. Much space can be saved in the application and meanwhile the performance and parameters are also better. All 3C-LINK’s CWDM modules are Telcordia qualified.(Meet TELCORDIA GR-1221-CORE)

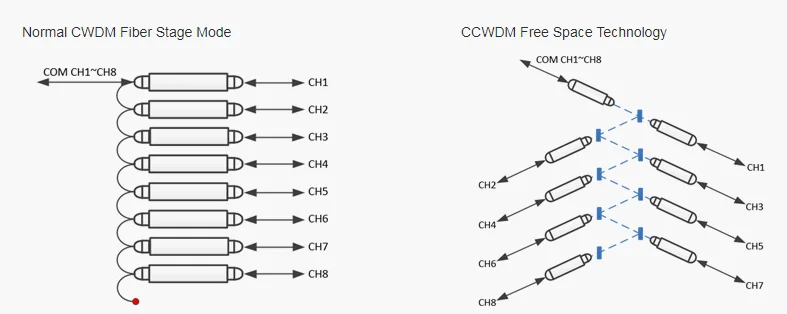

Free Space Technolog

        The CCWDM module of 3C-LINK uses free space technology and uses an independent sealed space to transmit optical signals. It works in the same way as CWDM. It inputs (outputs) optical signals from COM, and then outputs (inputs) optical signals through TFF (thin film filter) at other ports.

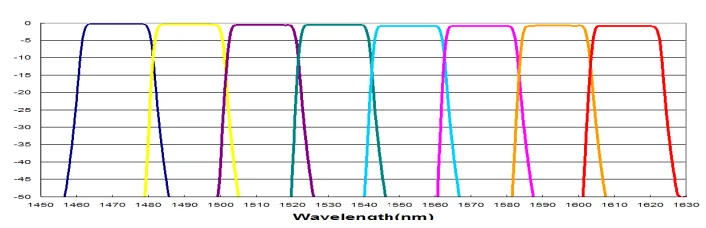

Typical Spectrum

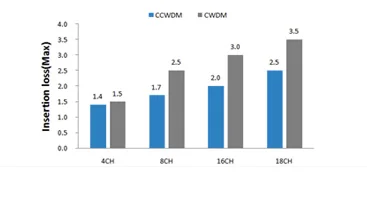

Lower Insertion Loss

        Lower insertion loss makes CCWDM module have lower signal attenuation in operation, thus reducing the power requirement of signal transmitter.

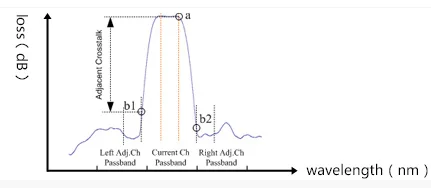

High Isolation





        The higher isolation value enables sufficient signal isolation during multi-signal transmission in the CCWDM module.









Items	Unit	CCWDM Module
Channels	CH	4	8	16	18
Operating wavelength	nm	1260~1620
Transmission band	nm	±6.5,±7.0,±7.5
Transmission band insertion loss	dB	≤1.4	≤1.7	≤2.0	≤2.5
Transmission Adjacent Isolation	dB	≥30
Transmission Non-adjacent isolation	dB	≥45
Return loss	dB	≥45
Directivity	dB	≥50
Ripple	dB	≤0.5
Package dimension	mm	L50xW27xH7.7,L50xW44xH7.7
Operating temperature	℃	-25~+70
Fiber type		900um loose tube
Connector type		LC/PC(or customize)

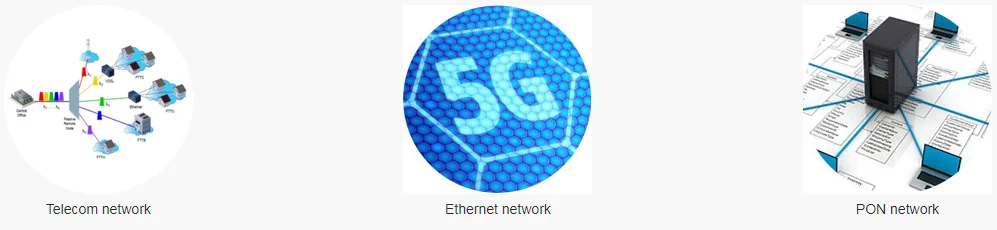

 Application





         The product of CCWDM module of 3C-LINK has the characteristics of low insertion loss, high channel isolation and high environmental stability and reliability. It adopts free space technology and compact package size design. It can replace CWDM products and be used in TC, enterprise network, PON network, CATV and other fields.









 Order Information



3C-CC	XX	X	XX	X	X	XX
	Number of Ch	Upgrade	First Wavelength	Fiber	Fiber Length	Connector
	04=4   Channel	0=None	27=1270nm	B=Bare   fiber	1=1m	0=None
	08=8   Channel	1=   1310 (+/-50nm)	……	L=900um   loose tube	2=2m	1=FC/APC
	16=16   Channel	2=   (1260~1458nm)	47=1470nm		S=Specify	2=FC/PC
		S=Special	49=1490nm			3=SC/APC
			……			4=SC/PC
			61=1610nm			5=ST
			SS=special			6=LC
						S=Specify
