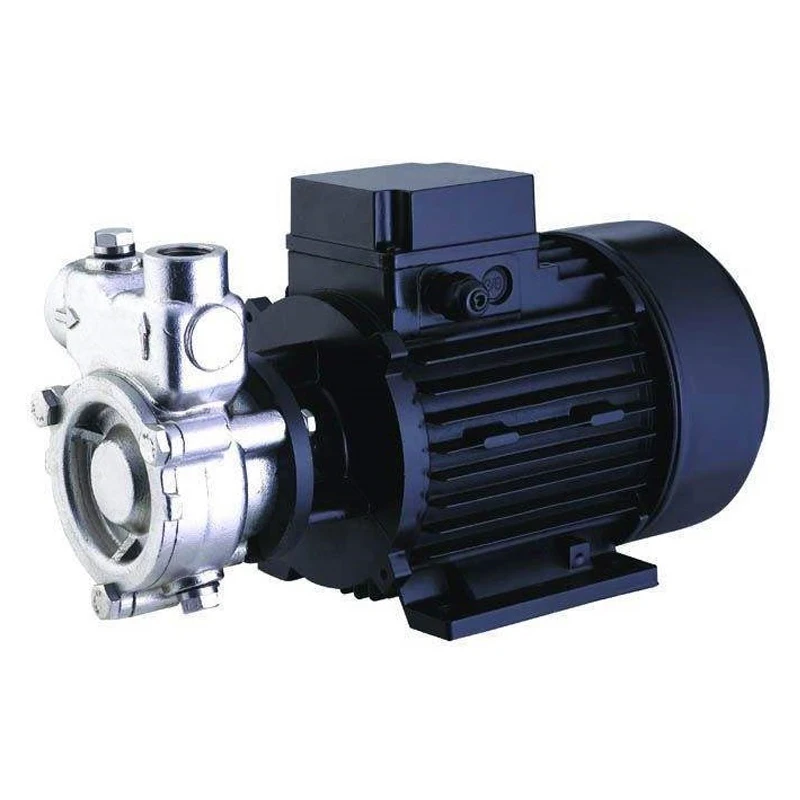

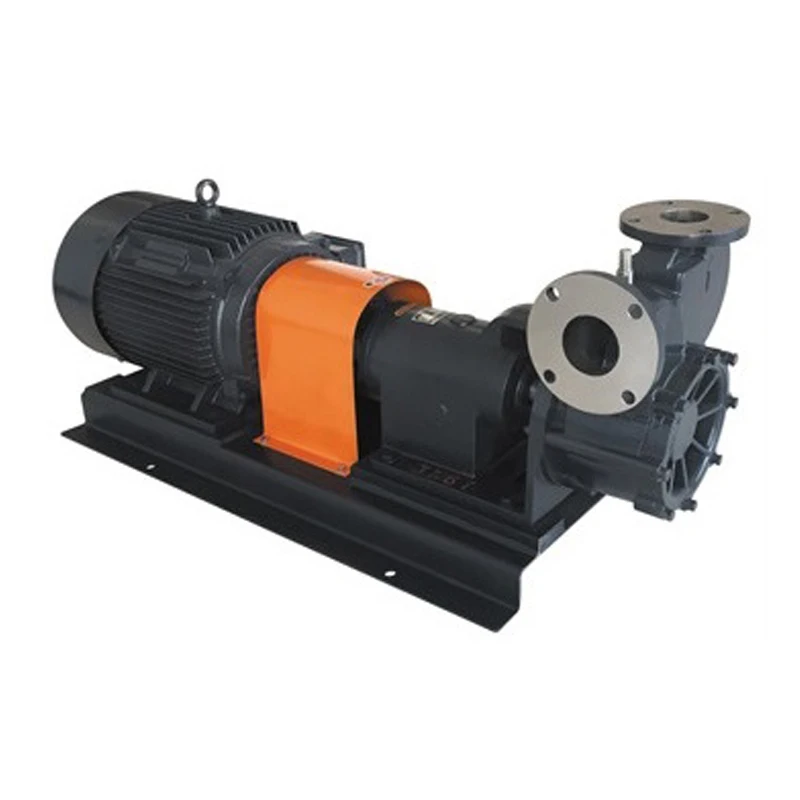

Jet Model 1~12T/hr Nano Bubble Water Generator Centrifugal Pump for Oxygen Ozone Gas Liquid Mixing for Sewage Circulation
- Category: >>>
- Supplier: Shenzhen Ozonegreenplant Technology Co. Ltd.
Share on (60516420655):
Product Overview
Description
1~12T/hr Nano bubble water generator Oxygen Ozone gas-liquid mixing pump
Nano bubble Mix Pump
Nano Bubble Gas Liquid Mixing Pump
Product Features
1. Easy to install and operation, save time
2. Compact structure, save place
3. Good stable performance, easy to maintain
4. Low noise ,Running smoothly, safe and reliable
5. Energy efficient, environmentally friendly
6. High efficiency , long using life.
Product Application
1- Oxygen supply in fish farming,mixed oxygen to increase the amount of dissolved oxygen in aquaculture.
2- River purification, livestock drainage purification
3- Increase of dissolved oxygen during hydroponic cultivation
4- Decolorization and deodorization of ozone mixing generator
5- Food fermentation promotion
6- Iron and manganese oxidation and aeration treatment of well water
7- Mix ozone to disinfect water
8- In agriculture, ozone is mixed into water to replace pesticides,and irrigation.
9- Mixed ozone disinfection of sheds in poultry breeding.
Working Condition
QY and QYL designed for clear and low viscosity liquid,or liquid containing extra-fine foreign matters.
QYB and QYLB designed for clear and low viscosity liquid,or explosive flammable liquid which containing very little solids.
Liquid temperature:-15 ℃ - 105 ℃
Max. ambient temperature: +40 ℃
Gas-liquid ratio 1:9 (gas suction volume 8-10%)
Inlet: horizontal, Outlet: vertical.
Product parameters
Pump model | Rated flow (m3/h) | Rated head (m) | Motor power (kw/hp) | Power supply | Porting inlet | Porting outlet | Pump body material |
15OWS-0.4 | 0.4 | 30 | 0.3/0.4 | 1/3HP*50HZ | 1/2" | 3/8" | SS304/316 |
20QY-1 | 1 | 40 | 0.55/0.75 | 1/3HP*50HZ | 3/4" | 1/2" | SS304/316 |
25QY-2 | 2 | 40 | 1.1/1.5 | 1/3HP*50HZ | 1" | 3/4" | SS304/316 |
40QY-6 | 6 | 50 | 4/5.5 | 3HP*50HZ | 1.5" | 1.25" | SS304/316 |
50QY-12 | 12 | 50 | 5.5/7.5 | 3HP*50HZ | 2" | 1.5" | SS304/316 |
15QY-0.6/6 | 0.6 | 30 | 0.45/0.6 | 1/3HP*60HZ | 1/2" | 3/8" | SS304/316 |
20QY-1/6 | 1 | 40 | 0.75/1 | 1/3HP*60HZ | 3/4" | 1/2" | SS304/316 |
25QY-3/6 | 3 | 40 | 1.5/2 | 1/3HP*60HZ | 1" | 3/4" | SS304/316 |
40QY-8/6 | 8 | 50 | 4/5.5 | 3HP*60HZ | 1.5" | 1.25" | SS304/316 |
50QY-17/6 | 17 | 50 | 7.5/10 | 3HP*60HZ | 2" | 1.5" | SS304/316 |

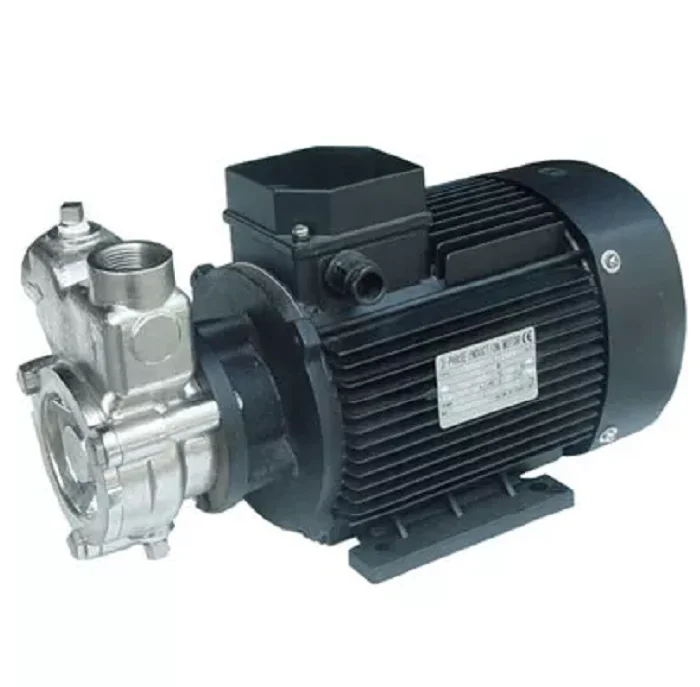

Mixing pump

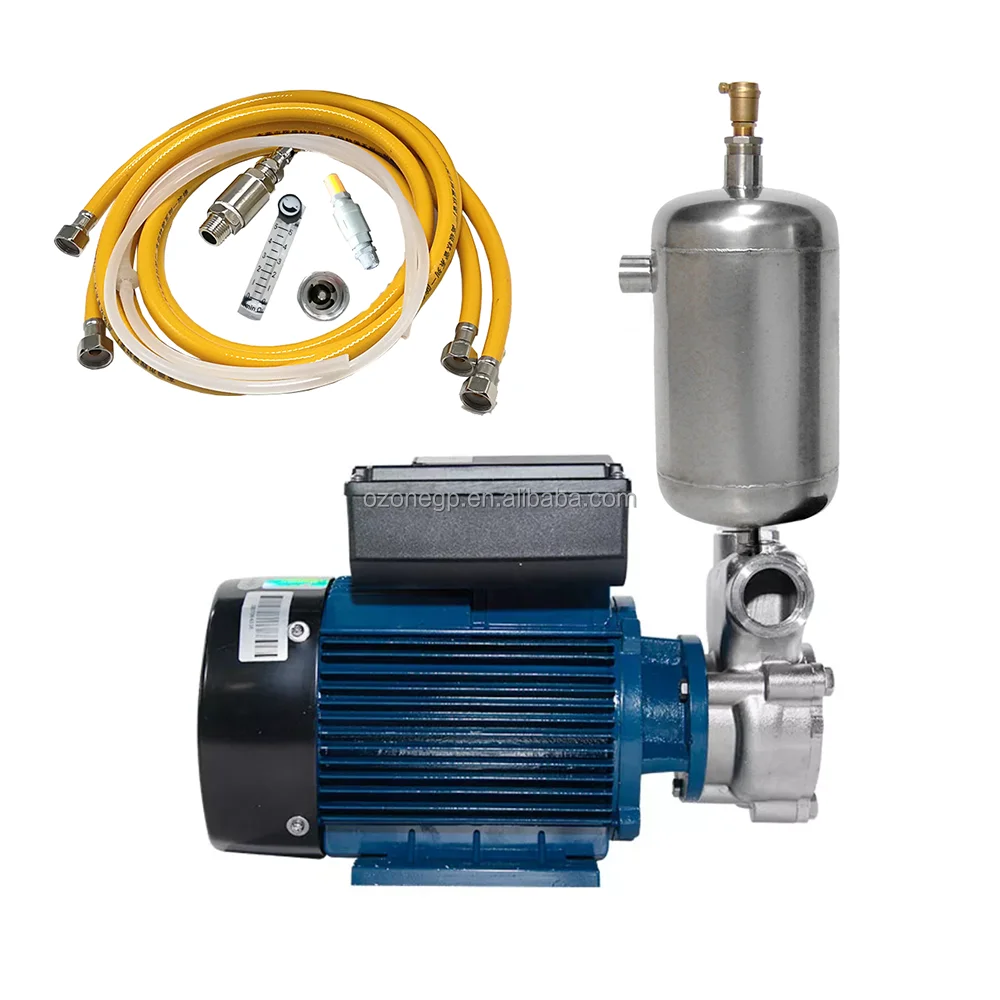

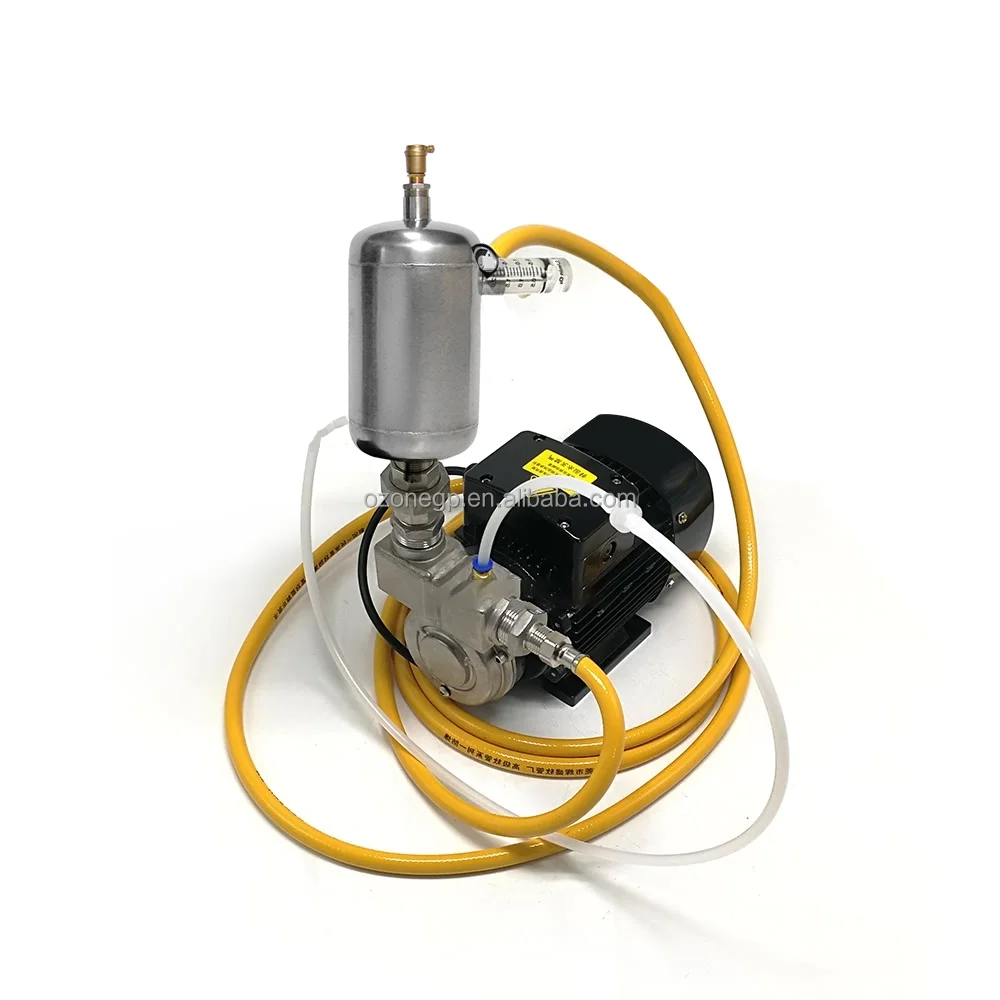

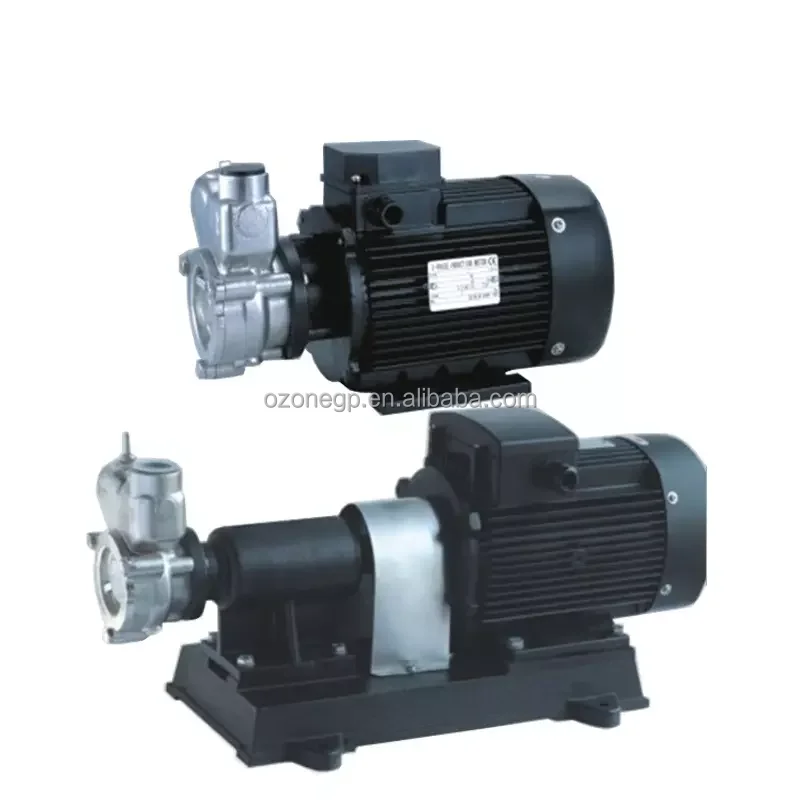

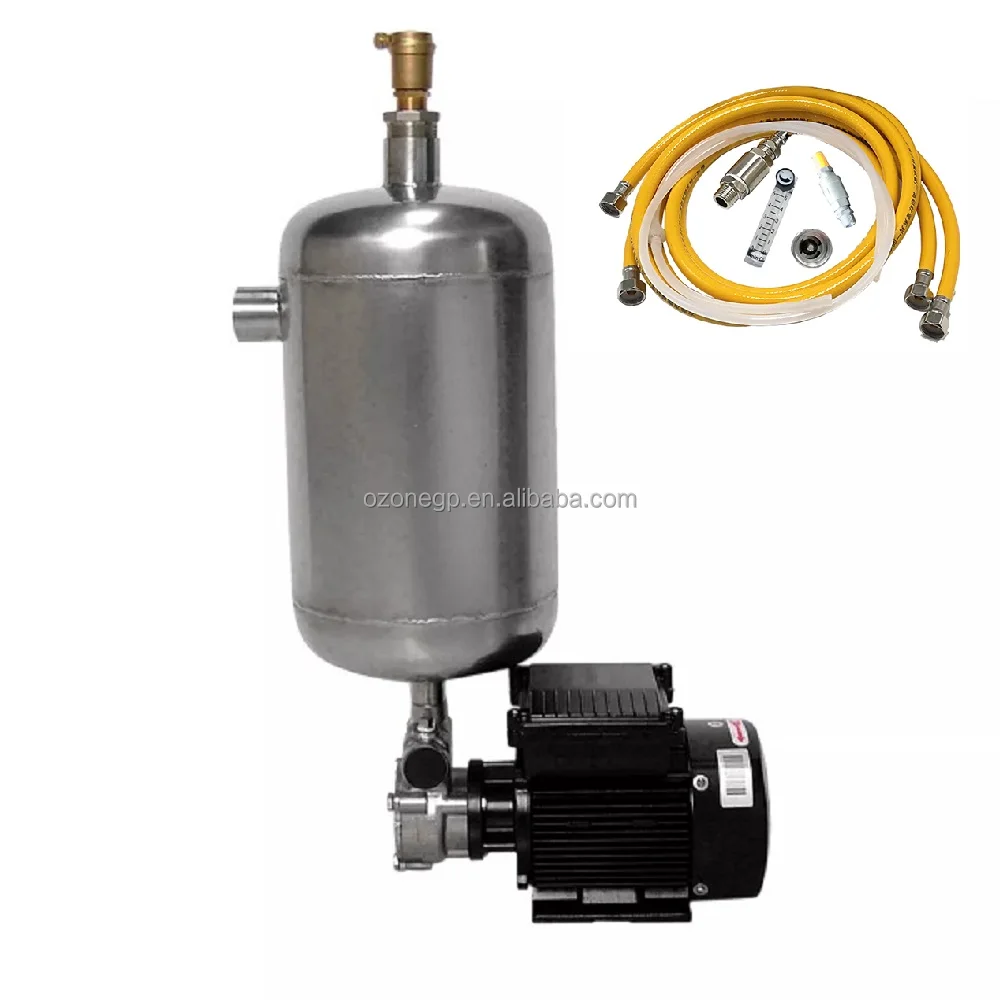

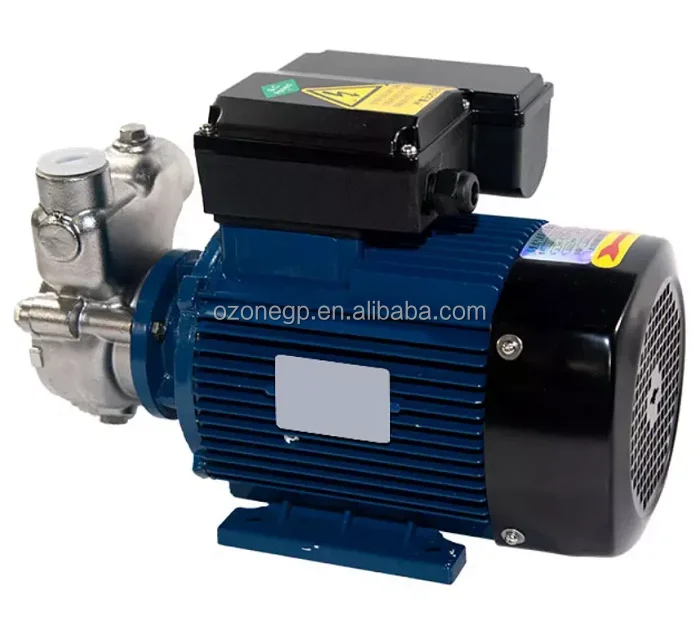

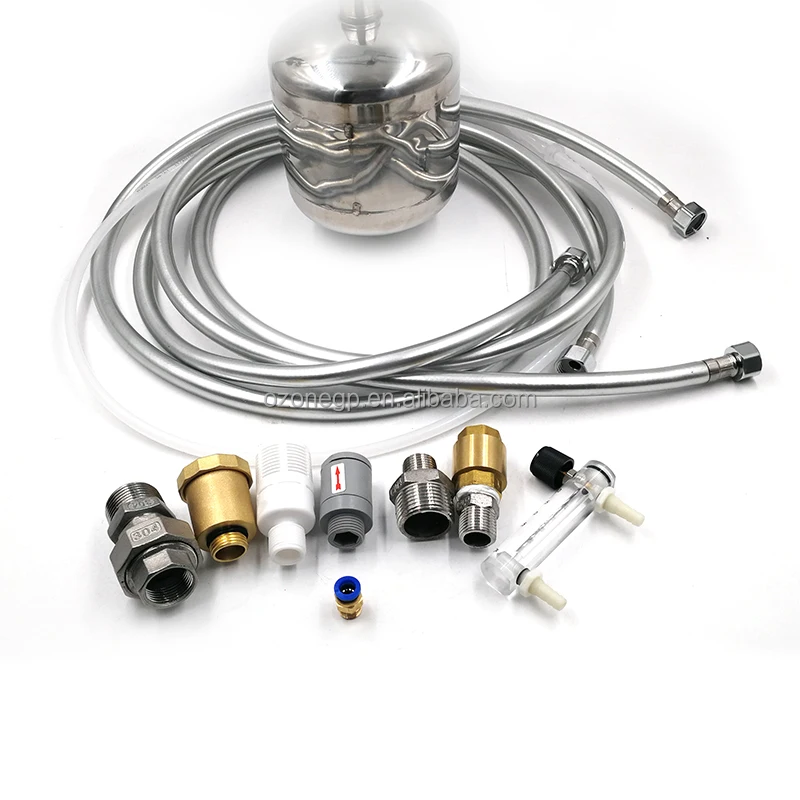

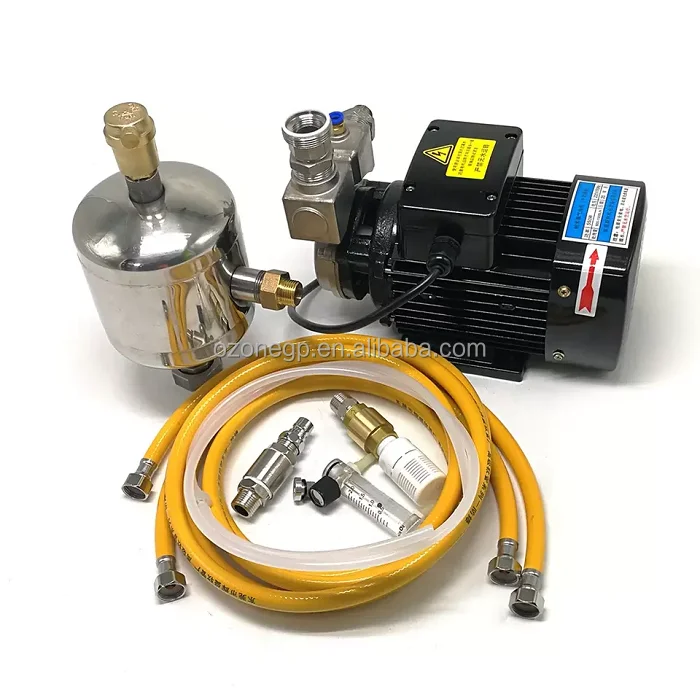

Product pictures

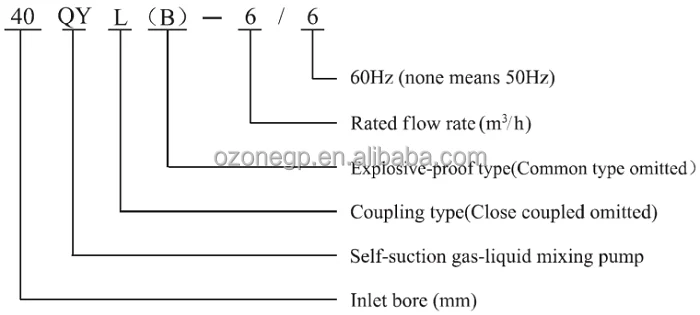

Definition of model
Product details

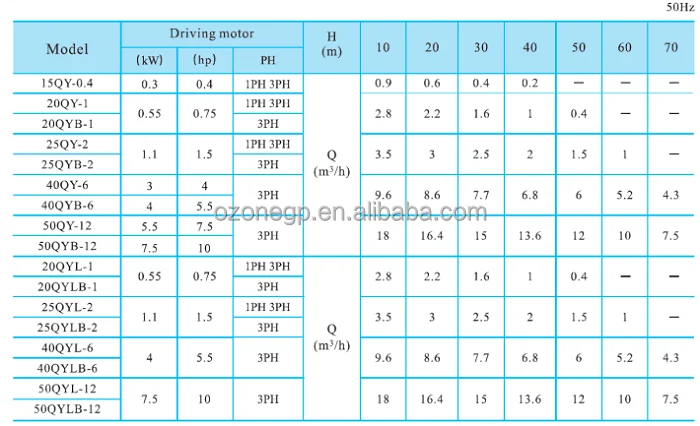

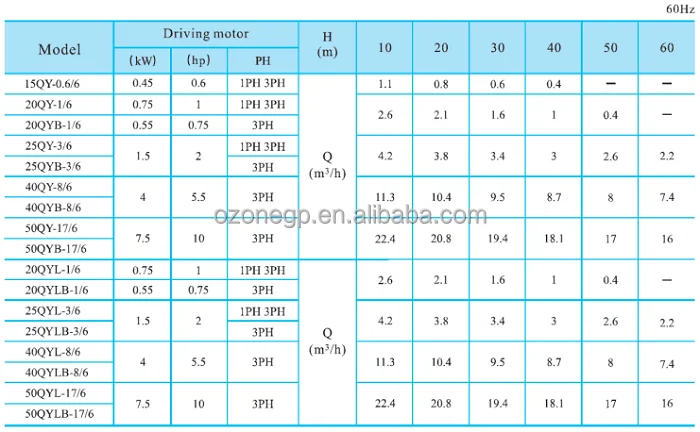

Performance table

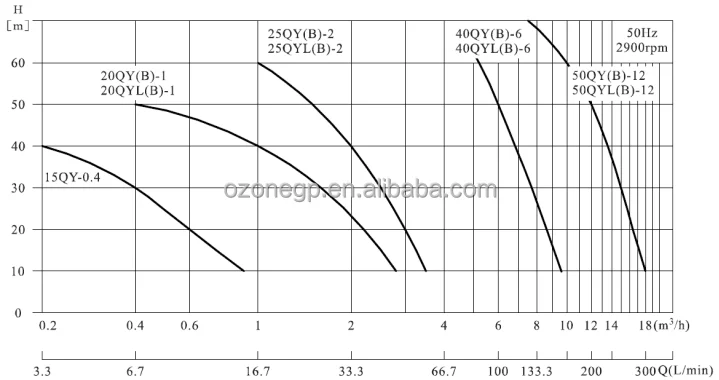

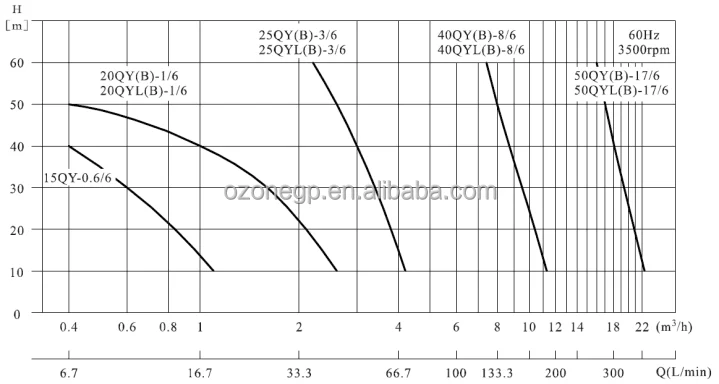

Performance curve

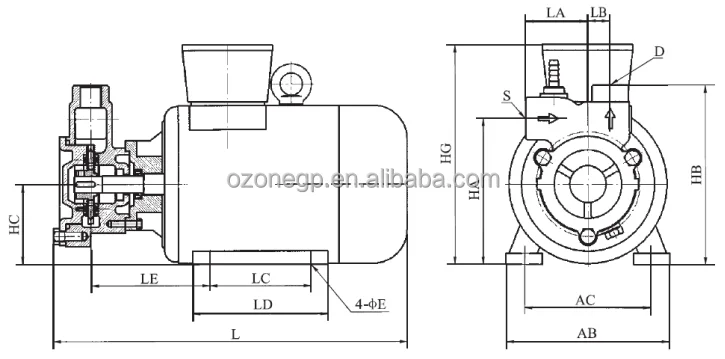

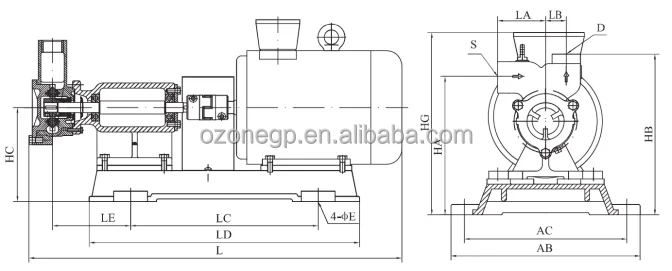

Installation sketch

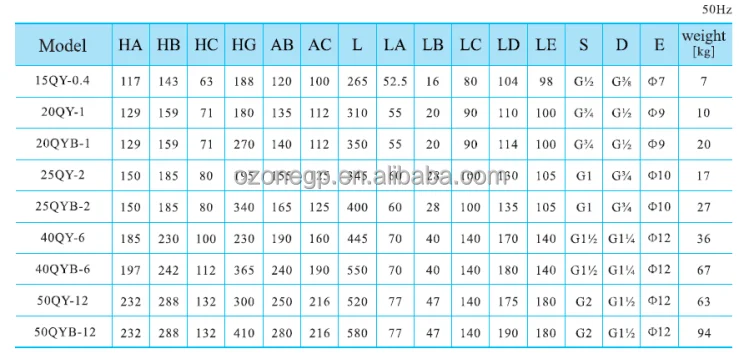

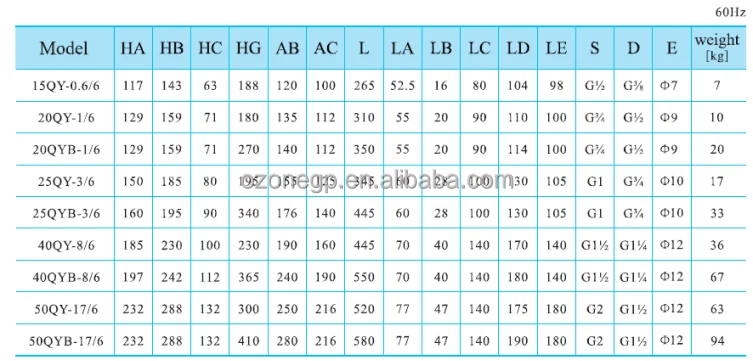

Installation dimensions

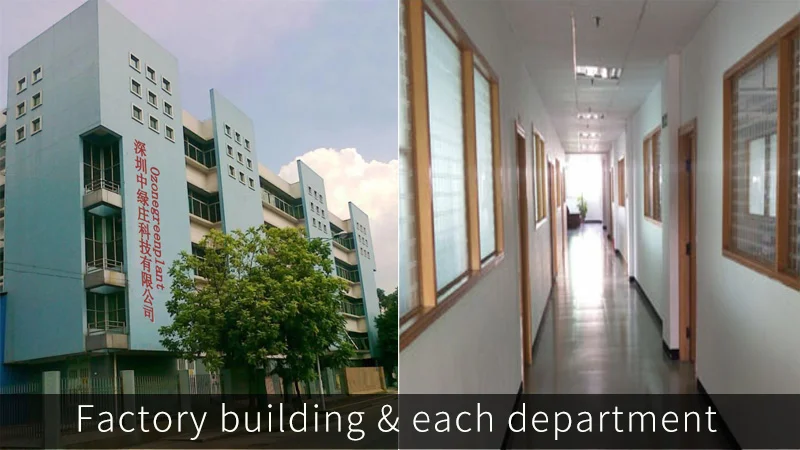

Company Information
Ozonegreenplant is specialized in the research of ozone production mechanism, design and manufacture of ozone equipment, design of ozone application engineering scheme, and the installation, debugging, running and maintenance of ozone system equipment. As the representative enterprise of domestic ozone industry, the company is gradually becoming a global ozone system supplier. We always make our best efforts to meet the requirements of customers with our many years' experience, continuing research and technical innovation in Ozone industry. We ensure the product with good quality,suffcient quantity and diversification.all the customer appeals can be dealed with quickly and effecively provide the most perfect sevice to all customers. We are confident that our products can get your one hundred percent of trust and help you to achieve your success with our geart efforts.
OUR SERVICE
1.Your inquiry related to our products or prices will be replied in 24 hours
2.Well-trained and experienced staffs to answer all your inquiries in fluent English
3.We can follow your design to produce
4.Protect your sales area,ideas of design and all your private information
5.We have Technical staff with 10 years of ozone experience.
6.Products passed CE certification.
