Nomex Fiber braided sleeving for High tech Field

Product Overview

Description

Nomex Fiber braided sleeving For High-tech Field



Product introduction:

Nomex braided sleeving is weave by pure nomex fiber braided sleeving. Product has strong mechanical toughness, flame retardant, anti-acid, anti-corrosion, light proportion.
This sleeving can maintain its performance at extremely high temperature ( more than 245℃), moist or other extremely bad environment.







Product application:
Products are widely used in the racing car, spaceflight, war industry, fire protection and other high-tech fields.

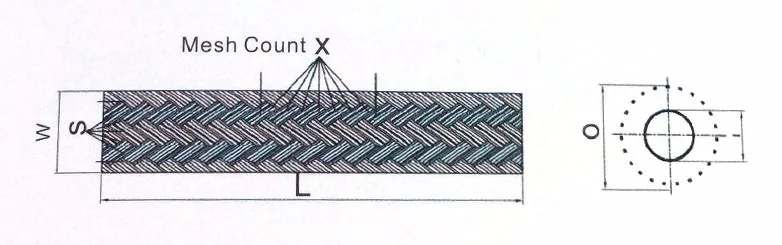

Product size drawing:





Technical parameters:
1, Material quality: NOMEX fiber
2, Working temperature: 196 ℃ to + 350 ℃
3, Melting point: Do not melt
4, Standard color: white
5, Certification: ROHS and halogen free
6, Cutting tools, scissors
7, Other features: Anti-acid, anti-alkali, bleach resistant, is not affected by
   (freon, gasoline, jet fuel, glycol, methanol).





Part NO.	Lay flat(W) (mm)	Developed width ( mm )	Packaging(L)
NOMEX-003	3.0	1.0--4.0	500m/roll
NOMEX-006	6.0	5.0--8.0	500m/roll
NOMEX-008	8.0	6.0--10.0	350m/roll
NOMEX-010	10.0	7.0--13.0	350m/roll
NOMEX-012	12.0	8.0--16.0	300m/roll
NOMEX-015	15.0	10.0--20.0	250m/roll
NOMEX-020	20.0	14.0--26.0	200m/roll
NOMEX-025	25.0	18.0--33.0	200m/roll
NOMEX-030	30.0	20.0--39.0	150m/roll
NOMEX-040	40.0	30.0--52.0	150m/roll
NOMEX-050	50.0	40.0--65.0	150m/roll













































Remark:
1, Product size is fold sleeving width ( lay flat width).
2, We can provide braided sleeving with special packing and size according to customers’ requirement.
3, All the dates above are common value, not include customized size.
4, Nomex is one of one of the registered trademark of Dupont company in the United States.
