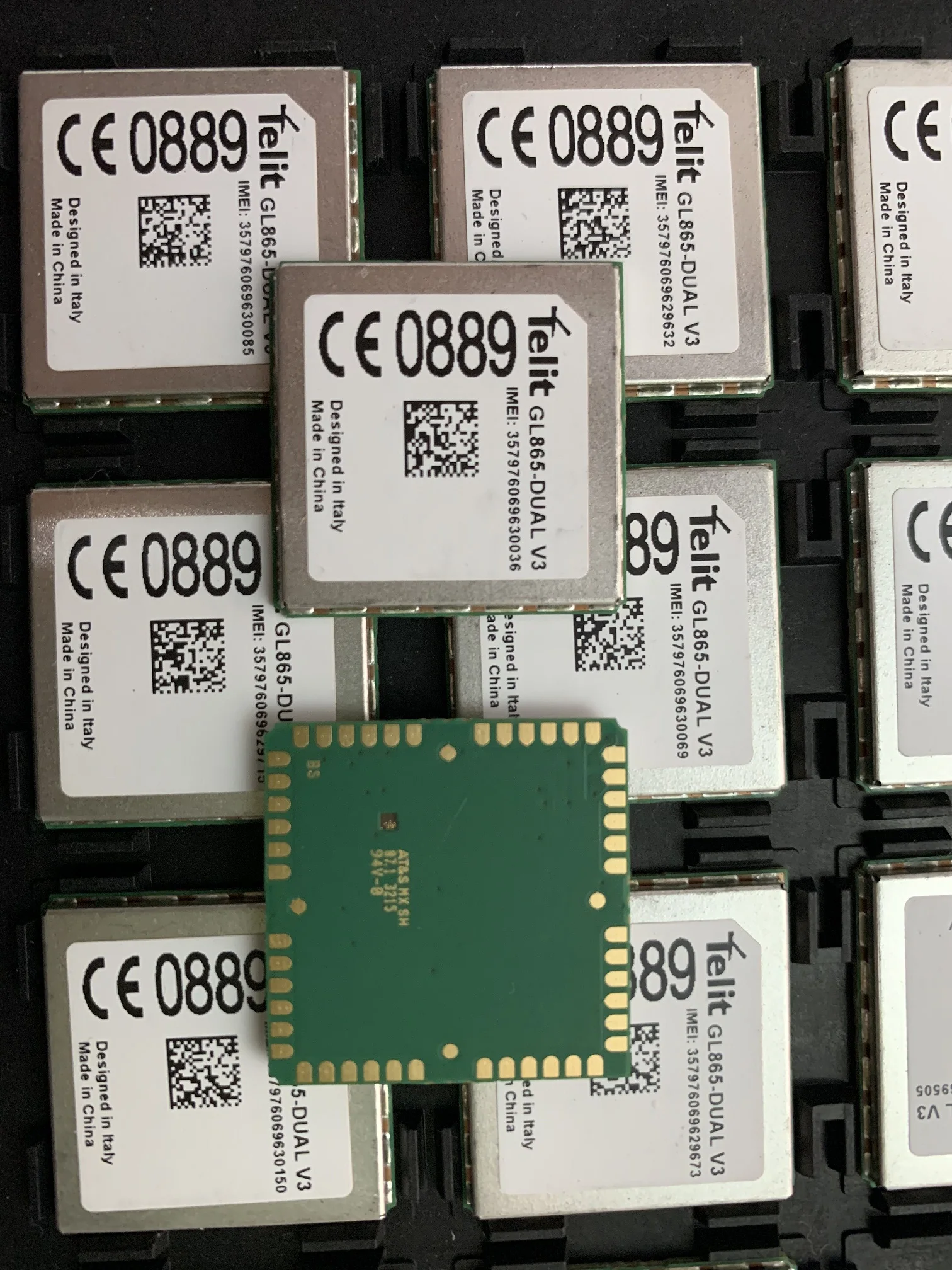

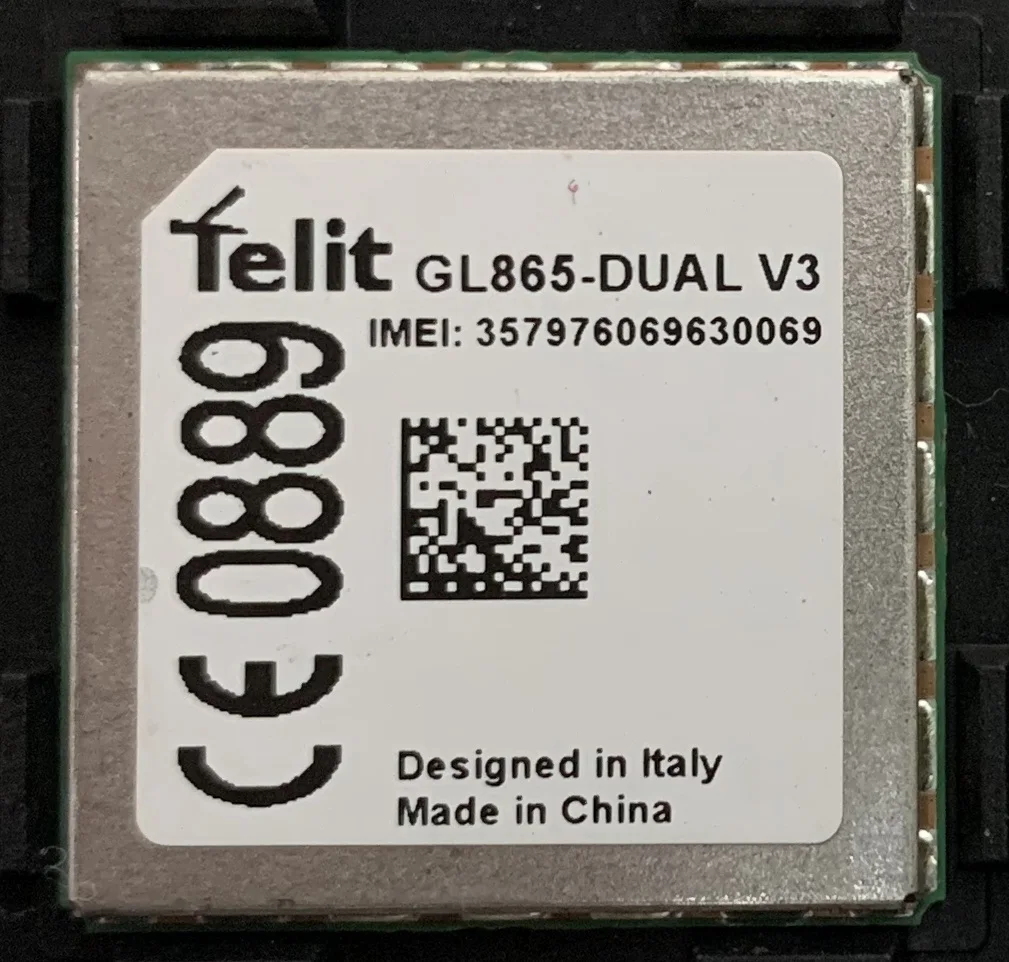

Telit GL865 dual V3 gsm module
- Category: >>>
- Supplier: High Cloud Electroics S&T Co. Ltd.
Share on (60516737208):
Product Overview
Description
Detail description:
The GL865-DUAL V3 is the new generation wireless module in GL865 family. It ensures backwards-compatibility with the popular and widely adopted GL865-DUAL, but it is based on the latest Intel 2G chipset, protecting our customers' design investments with a long-term availability solution.
It is highly recommended for new designs requiring 2G coverage in a sleek and robust QFN package, which implies easy integration and low impact on final application costs. Ease of production and small foot print makes it the ideal solution for applications in security alarms, automated meter reading, and pos terminals.
The new GL865-DUAL V3 minimizes power consumption, becoming even more ideally suited for battery powered and wearable device applications.
The GL865-DUAL V3 can be easily bundle-designed with Telit's GPS or GPS/GLONASS receivers for applications requiring location awareness such as fleet management and track-and-tracing; with the aid of available reference designs and global technical integration support from Telit.
The GL865-DUAL V3 makes it possible to run the customer's application inside the module by means its embedded Python Script Interpreter, thus making it a complete SMT platform for m2m solutions.
All Telit modules, support Over-the-Air firmware update by means Premium FOTA Management. By embedding Red Bend Software vRapid Mobile® agent, a proven and battle-tested technology powering hundreds of millions of cellular handsets world-wide Telit is able to update its products by transmitting only a delta file, which represents the difference between one firmware version and another.This module is ideal for use with the M2M Sim Service currently offered.
As a part of Telit’s corporate policy of environmental protection, all products comply to the RoHS (Restriction of Hazardous Substances) directive of the European Union (EU Directive 2002/95/EG
)
Product Features
- VQFN form factor
- Dual Band EGSM 900/1800MHz
- GSM/GPRS protocol stack 3GPP Release 4 compliant
- Control via AT commands according to 3GPP TS 27.005, 27.007 and Telit custom AT commands
- Serial port multiplexer 3GPP TS 27.010
- SIM access profile
- SIM application toolkit 3GPP TS 51.014
- Dimensions 24.4 x 24.4 x 2.6 mm
- Weight: 2.8 grams
- Output powerSupply voltage range: 3.2 - 4.5V DC (3.8V DC recommended)
- Class 4 (2W) @ 900MHz
- Class 1 (1W) @ 1800MHz
- Power consumption (typical values)
- Power off: 2 uA typical
- Idle (registered, power saving): 0.9 mA @ DRX=9
- Dedicated mode: 200mA @ max power level at GPRS cl 10
- 330 mA @ max power level
- Sensitivity:
- 108 dBm (typ.) @ 900MHz
- 107 dBm (typ.) @ 1800MHz
- Extended temperature range
- -40 to +85°C (operational)
- -40 to +85°C (storage temperature)
Interface
- Interface
- 8 I/O ports maximum (1.8 V logic level)
- Analog audio (balanced), digital audio
- 2 A/D plus 1 D/A converter
- Buzzer output
- ITU-T V.24 serial link through CMOS UART:
- Baud rate from 300 to 115,200bps
- Autobauding up to 115,200bps
Audio
- Telephony, emergency call
- Half rate, full rate, enhanced full rate and adaptive multi rate voice codecs (HR, FR, EFR, AMR)
- Superior echo cancellation and noise reduction
- Multiple audio profiles pre-programmed and fully configurable by mean AT commands
- DTMF
Approval
- Fully type approved conforming R&TTE directive
- CE, GCF
GPRS Data
- GPRS Class 10
- Mobile station class B
- Coding scheme 1 to 4
- PBCCH support
- GERAN Feature Package 1 support (NACC, Extended TBF)
Additional Features
- SIM phonebook
- Fixed dialing number (FDN)
- Real-time clock
- Alarm management
- Network LED support
- IRA, GSM, 8859-1 and UCS2 character set
- Jamming detection
- Embedded TCP/IP stack, including TCP, IP, UDP, SMTP, ICMP and FTP protocols
- PFM (Premium FOTA Management) Over-the-Air Update service
- Remote AT commands
- Event monitor
Python Application Resource
- Python script interpreter (module takes the application code directly in the Python language)
- Memory: 800kB of NV memory for the user scripts and 1MB RAM for the Python engine usage
