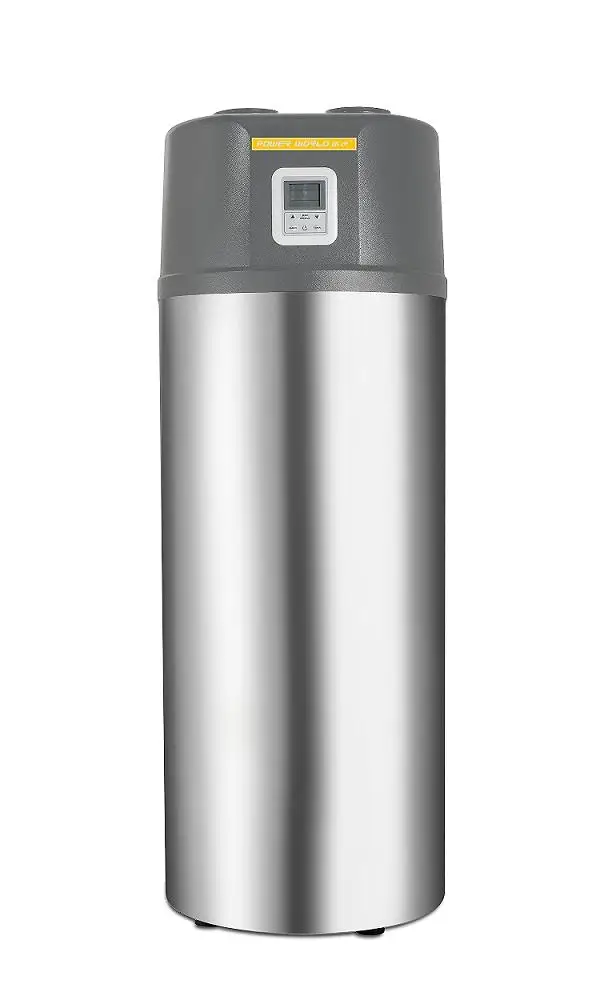

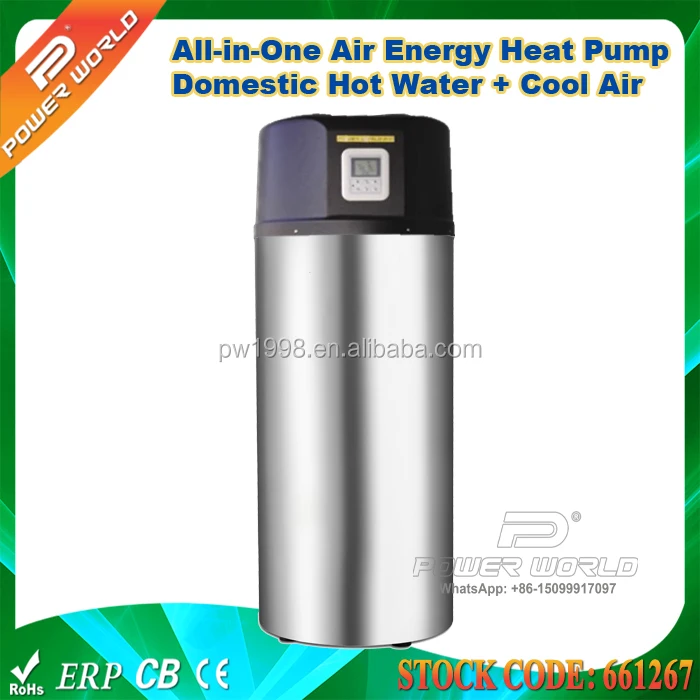

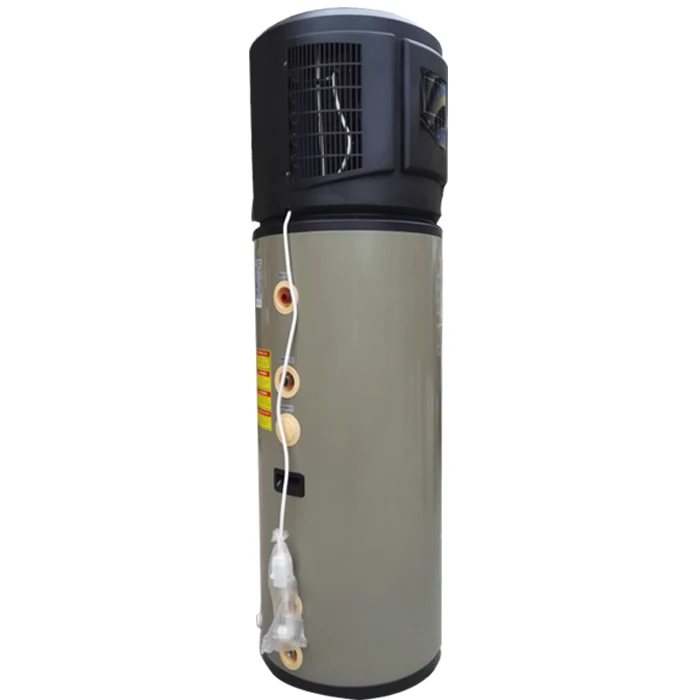

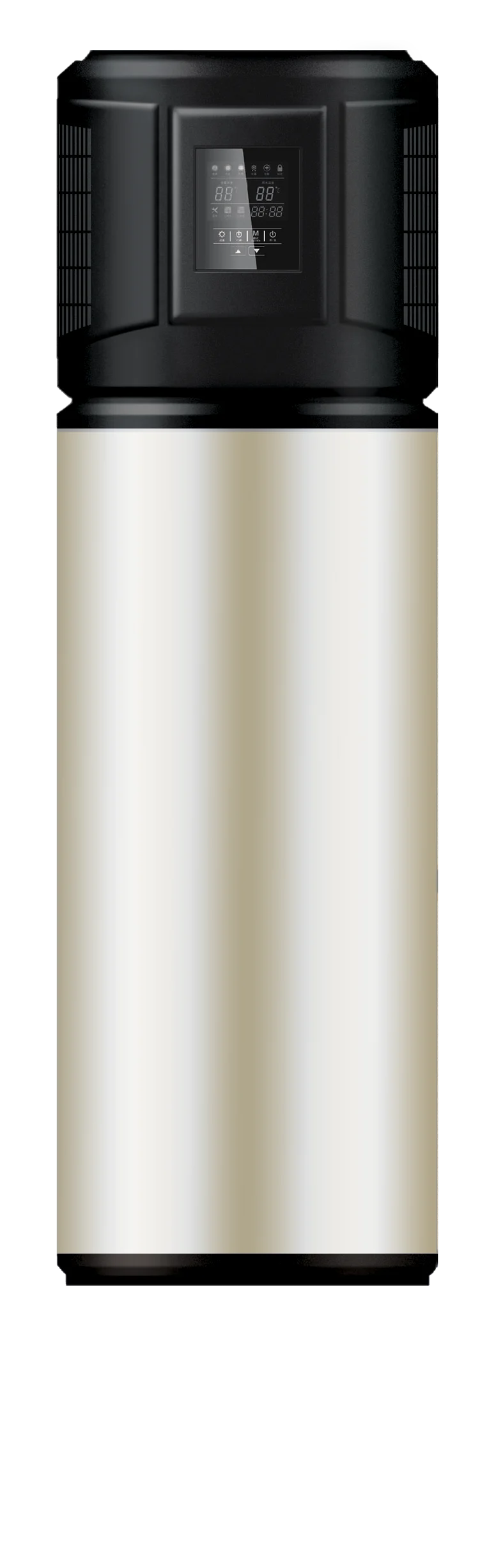

3KW 300L Storage Tank Inside All in One Free Cool Air Hot Water Forced Air water heat Pump Heater
- Category: >>>
- Supplier: Shenzhen Power World New Energy Technology Co. Ltd.
Share on (60516762331):
Product Overview
Description
Products Description

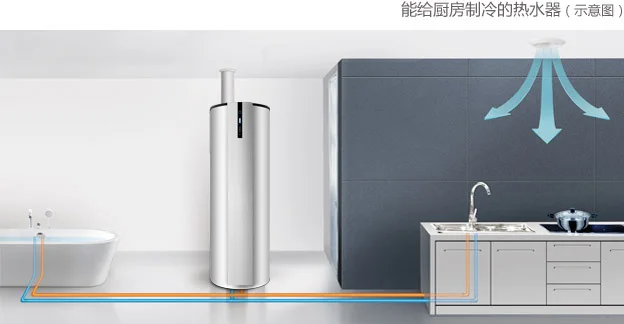

All In One Heat Pump for Domestic Hot Water
All-in one water heap pump is one of the most economical system to heat the water for family usage-offering hot water to the bathroom and kitchen by using free renewable energy from the air.Its efficiency can be up to 3~4 times more than conventional gas boiler or electrical heater.
Our Vantage
1.Easy to install:There are no refrigeration connections to be made – just water fittings and an electrical plug. Any plumber can do it.
2.Energy efficient heating performance:It’s much cheaper to operate than electric element or gas bottle water heaters
3.Space efficiency:Unlike split system units, all components of a complete heating and cooling system are contained in one location, making package units ideal for situations in which indoor space is at a premium.
4.Security and stability:Digital controller will continually monitor performance
5.Low noise operation :Low Noise,just 48 dba
6High quality components:All our components imported by famous brand like Copeland,Danfoss,Emerson,Sanyo...
7High efficient heat pump rotary compressor:Famous brand such as Hitachi Rotary,Toshiba Rotay
8.External aluminium coil:The condenser coil is wrapped around outside the tank,no contamination potential
9.Centrifugal fan motor:Improve more high efficiency
10.With Auxiliary electrical heating:Enlarge the heating capacity
11.Thermal Electronic Expansion Valve:For the throttling high efficiency
12.Intelligent defrosting:With reverse valve inside for defrosting
13.Compact structure:Save space and easy to install
14.Fins coils with hydrophilic aluminum foil:Improve the heat exchange performance more efficiently
15.Temperature security protection:Insure running more safely and reliable
16.Multi-protection:PT valve,double high water temp protection switches (manual /automatic)
17.Good Case material:Galvanized steel or Unitary plastic mold
18.Close refrigerate circuit :Easy for plumber installation
19.Eco-friendly refrigerant:R134A / R417A
Model No. | Unit | MG010-KZJRS-S150 | MG010-KZJRS-S200 | ||||
Rated heating capacity | W | 3000 | 3000 | ||||
BTU/H | 10000 | 10000 | |||||
Rated hot water | L/h | 70 | 70 | ||||
Rated input power | W | 865 | 865 | ||||
Running current | A | 4.2 | 4.2 | ||||
Max power | W | 1250 | 1250 | ||||
Auxiliary electrical heating | W | 1000-2000 | 1000-2000 | ||||
COP | 3.5 | 3.5 | |||||
Rated temperature outlet | ℃ | 55 | 55 | ||||
Maxt temperature outlet | ℃ | 60 | 60 | ||||
Power supply | V/Ph/Hz | 220-240/1/50/60 | |||||
Compressor quantity | pc | 1 | |||||
Compressor type | Panasonic Rotary | ||||||
Fan motor quantity | pc | 1 | |||||
Fan motor input power | W | 175 | 175 | ||||
Fan speed | RPM | 1400 | 1400 | ||||
Air volume | M³/h | 700 | 700 | ||||
Noise | dB(A) | 48 | 48 | ||||
Tank volume | L | 150L | 200L | ||||
Case material | 304 Stainless steel | ||||||
Water connections | Inch | G3/4" | |||||
Ambient temperature | ℃ | 36 | 36 | ||||
Unit dimension | D | mm | Φ555 | Φ555 | |||
H | mm | 1830 | 1830 | ||||
Packing dimension | L | mm | 625 | 625 | |||
W | mm | 625 | 625 | ||||
H | mm | 1880 | 1880 | ||||
Weight | NW | kg | 62 | 62 | |||
GW | kg | 72 | 72 | ||||
Container loading qty ( 20GP/40GP/40HQ) | PCS | 24/48/48 | 24/48/48 | ||||
Measuring conditions | Dry bulb 20℃ Wet bulb 15℃ | ||||||

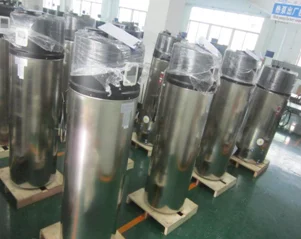

Product packaging
Packaging | Packed by Plywood case/ cardboard case |
Timing | Send out next day after payment if in stock 4-7 working days to deliver |
Logistics | DHL ,UPS,FedEx or as you request |
Company Profile

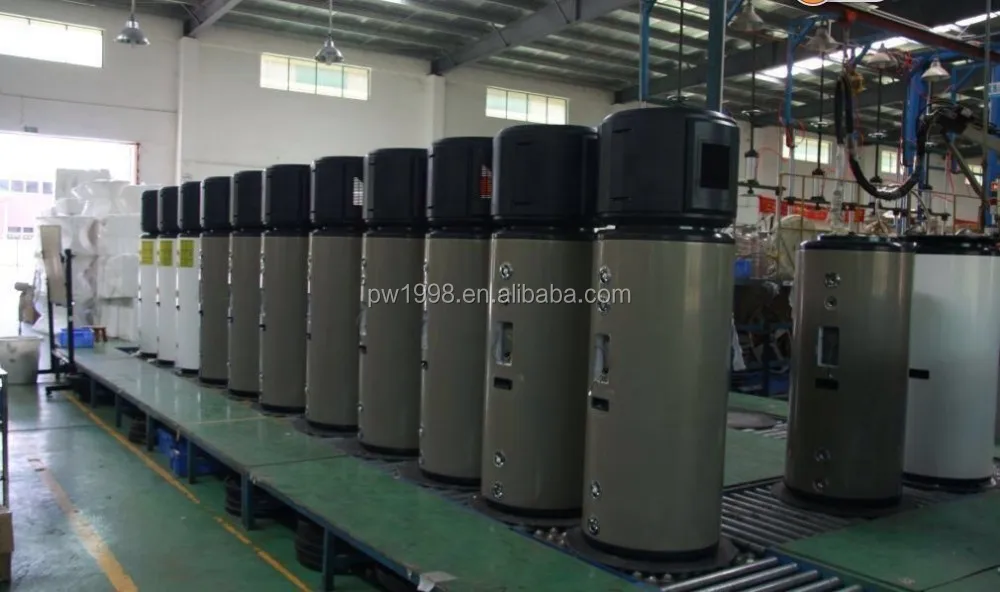

Power World is a professional heat pump manufacturer since 2004,successfully publicly listed on the NEEQ in 2016 with stock code 870092.It covers an area of 30000 m2 factory in Dongguan,China and has more than 500 emplyees.With 8 flexible production line, it's honored to be top 10 brand heat pump supplier in China with one billion USD output value per year.
Power World has a heat pump R&D center with a team of more than 20 engineers and 4 professional laboratories.Complying with ISO9001:2008 & ISO14001:2004,all products get CE,CB(IEC)certificate and ERP Energy Label based on EN14825,EN14511,strictly according to latest EHPA requirement.
Market Overview
Through years of technological innovation and strategic market expansion, power world has become one of the
most famous and influential brands of heat pump in china. Now power world committed to development of the international market, the products sold to more than 60countries ,serving more than 1/10 of the world’s population.get highly praised by customers
