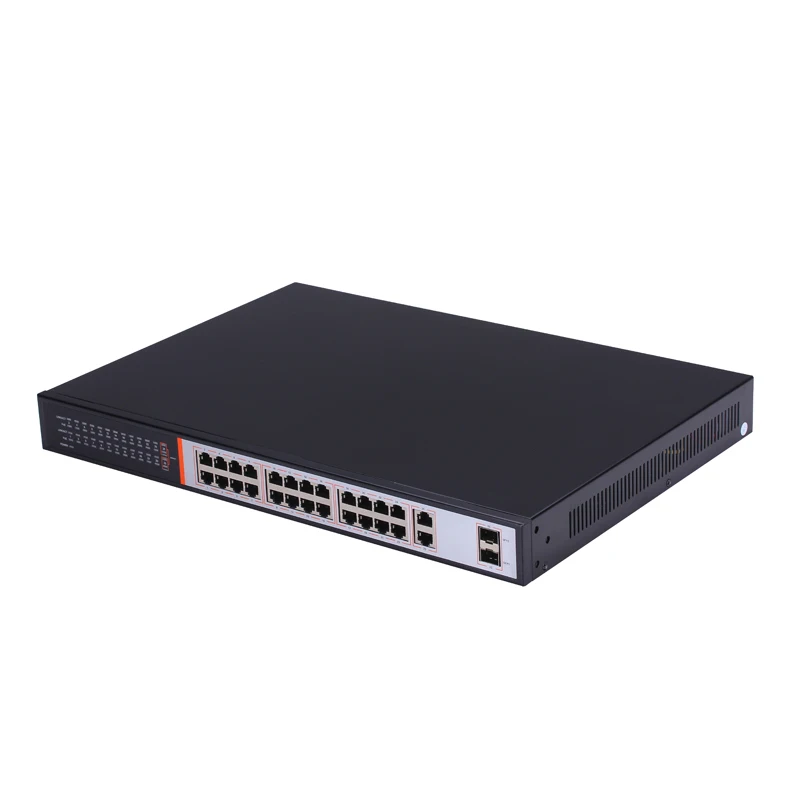

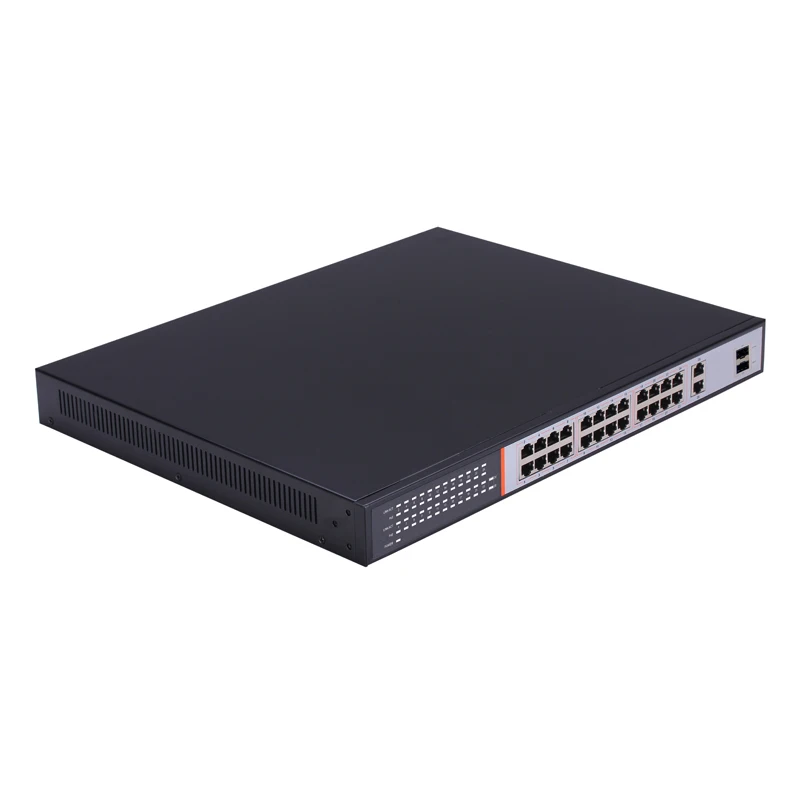

2 Uplink 100Mbps Unmanaged 24 Ports PoE switch
- Category: >>>
- Supplier: Shenzhen Fengrunda Technology Co. Ltd.
Share on (60516834678):
Product Overview
Description
Product Description
The 24 -Port unmanaged PoE Switch with 24 100Mbps RJ45 PoE ports,2 Gigabit combo, model PS3024, reduces equipment and installation costs by delivering data and power over existing Ethernet cables (CAT5 cable)to Power over Ethernet (PoE) enabled devices such as Access Points and IP Cameras.
Boost office efficiency and reduce network congestion with a total switching capacity of 8.8Gbps. LED indicators display device status for easy power management and troubleshooting. An internal power supply reduces clutter and delivers 15.4 Watts to each PoE port. A convenient on/off button is located on the back of the switch. Non-PoE devices can connect to the switch—auto-sensing PoE technology cuts power to non-PoE connected devices. Use PoE Splitter with the PS3024 to install non-PoE devices in remote locations
Features
24 10/100Mbps PoE port, 2 Gigabit combo port unmanaged PoE Switch
24 -Port supply power to PoE Powered Device
Complies with IEEE 802.3af standard
Each switch port support auto-negotiation-10/20, 100/200Mbps (Fast Ethernet) , 1000/2000Mbps (Gigabit Ethernet)
Prevents packet loss with back pressure (Half-duplex) and IEEE 802.3x PAUSE frame flow control (Full-duplex)
High performance Store and Forward architecture, runt / CRC filtering eliminates erroneous packets to optimize the network bandwidth
Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
8.8 Gbps Switching Capacity
On/Off power switch
| Technical specifications | |||
| Product name | 24-port unmanaged POE switch | ||
| Order No. | PS3024 | ||
| Network protocols and standards | IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX | ||
| IEEE 802.3ab 1000BASE-T , IEEE 802.3z 1000BASE-X | |||
| IEEE 802.3x Flow Control , IEEE 802.3af Power over Ethernet | |||
| Power Specifications | Power consumption: maximum 390W | ||
| PoE Power: 400W | |||
| Voltage: 100 - 240 VAC, 50 -60 Hz | |||
| Network interface | 24 10/100M ports with PoE features | ||
| 2 10/100/1000M Gigabit combo (MDI / MDIX adaptive) | |||
| Environmental norms | Operating Temperature: 0 ° - 50 ° C (32 ° - 104 ° F) | ||
| Storage Temperature: -20 ° - 70 ° C (-4 ° - 158 ° F) | |||
| Operating Humidity: Maximum relative humidity 90% without condensation | |||
| Storage humidity: 95% maximum relative humidity, non-condensing | |||
| LEDs | Power, PoE, Link / Activity | ||
| Certification | CE, FCC, RoHS | ||
| Performance Specifications | Forwarding modes: Store and forward | ||
| Bandwidth: 8.8 Gbps (non-blocking) | |||
| network latency: 100 Mbps to 100 Mbps transmission, storage and forwarding mode under a 64-byte frame delay is less than 20 microseconds | |||
| Mean failure interval (MTBF): 300,000 hours (about 34 years) | |||
| Warranty | 1 year | ||
| Physical Specifications | Dimensions: 440 x 290x 44 mm , Weight: 5 kg | ||
| Package Contents | 24 port POE switch , Power cord , 1U Rackmount Brackets , User guide | ||
Related Products
PS504
PS1081G
PS3016L

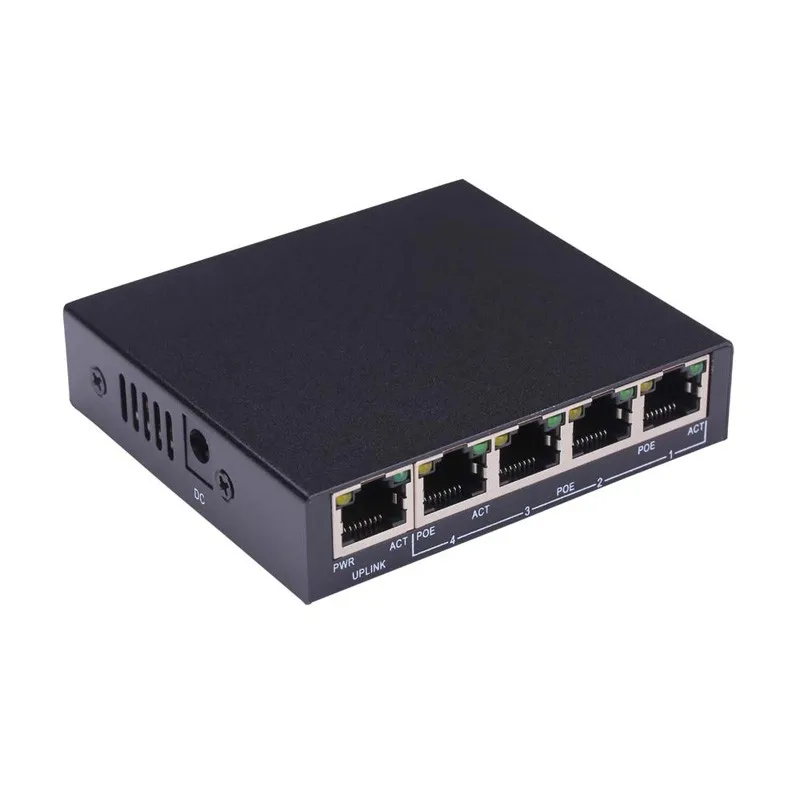

PS504
4 100Mbps + 1 100Mbps uplink

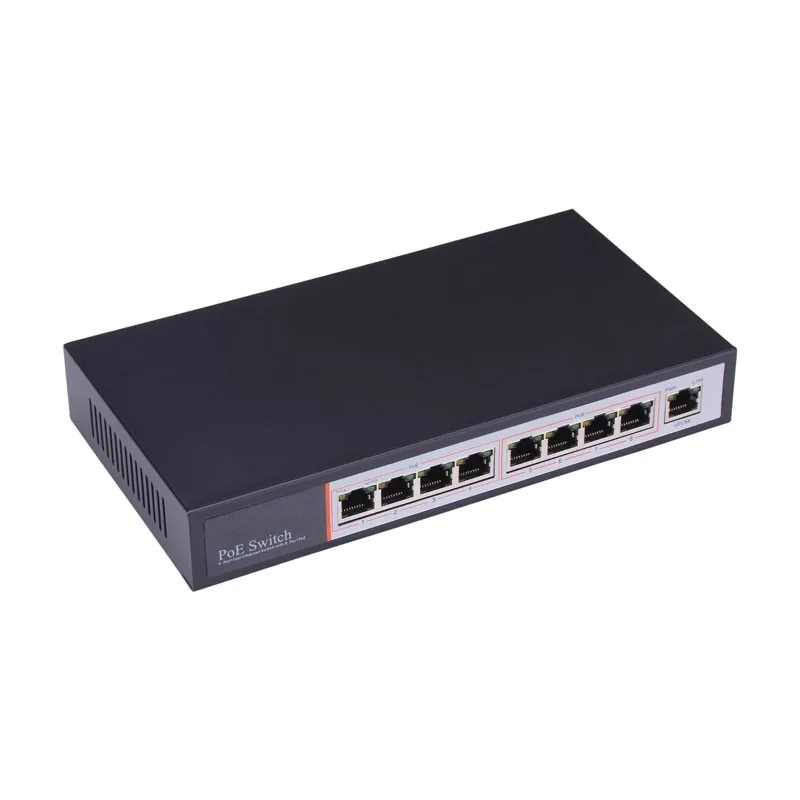

PS1081G
8 Gigabit + 1 Gigabit uplink
PS3016L
16 100Mbps + 2 Gigabit uplink + 2 Gigabit fiber optical (SFP)
Our Company

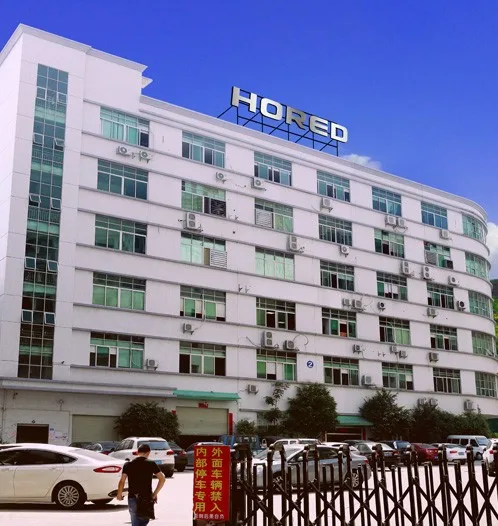

Shenzhen Fengrunda Technology Co., Ltd (HORED) is a global leader in PoE devices supply. Established in 2006, we has been committing to R&D on PoE devices and solutions, we have obtained many national patents. We offer full line products and high quality and cost-effective solutions. Besides PoE switches, produces also covers ethernet switches, power line communication, wireless access points.
Headquarter in Shenzhen, offices in home markets like Beijing, Shanghai, Guangzhou, Hangzhou, Nanjing, Chengdu, Jinan, Zhengzhou, international markets like Germany, Britain, Canada, Russia, the United States, Italy, France, Spain, Poland, Singapore, Hongkong, India, Vietnam, Australia ect., more than 20 million sets of our devices are applied in over 120 countries until the end of 2014.
We are devoted to research & design, production & processing, sales & marketing, integrating global resources to keep us a leading position. HORED is a worldwide leading brand in network and communication field
Certifications
Packing & Delivery
Packing
With years of export experience along with excellent quality, advanced services and competitive prices, Fengrunda (HORED) has won numerous customers' trust and support.
Delivery
FAQ
A.What's the after-sale service?
a.One year warrnty or negotiable
B.Why choose Fengrunda (HORED)?
a.Prompt delivery and remarkable services
b.Competitive selling prices
c.Rich experience of OEM&ODM co-operation , accept orders according to coustomers demands
d.We have R&D team, our product has been approved by IOS9001, CE, FCC and ROHS etc.
C.How about Minimum Order?
a.To satisfy customer's requirements, we accept sample oder, even one piece
