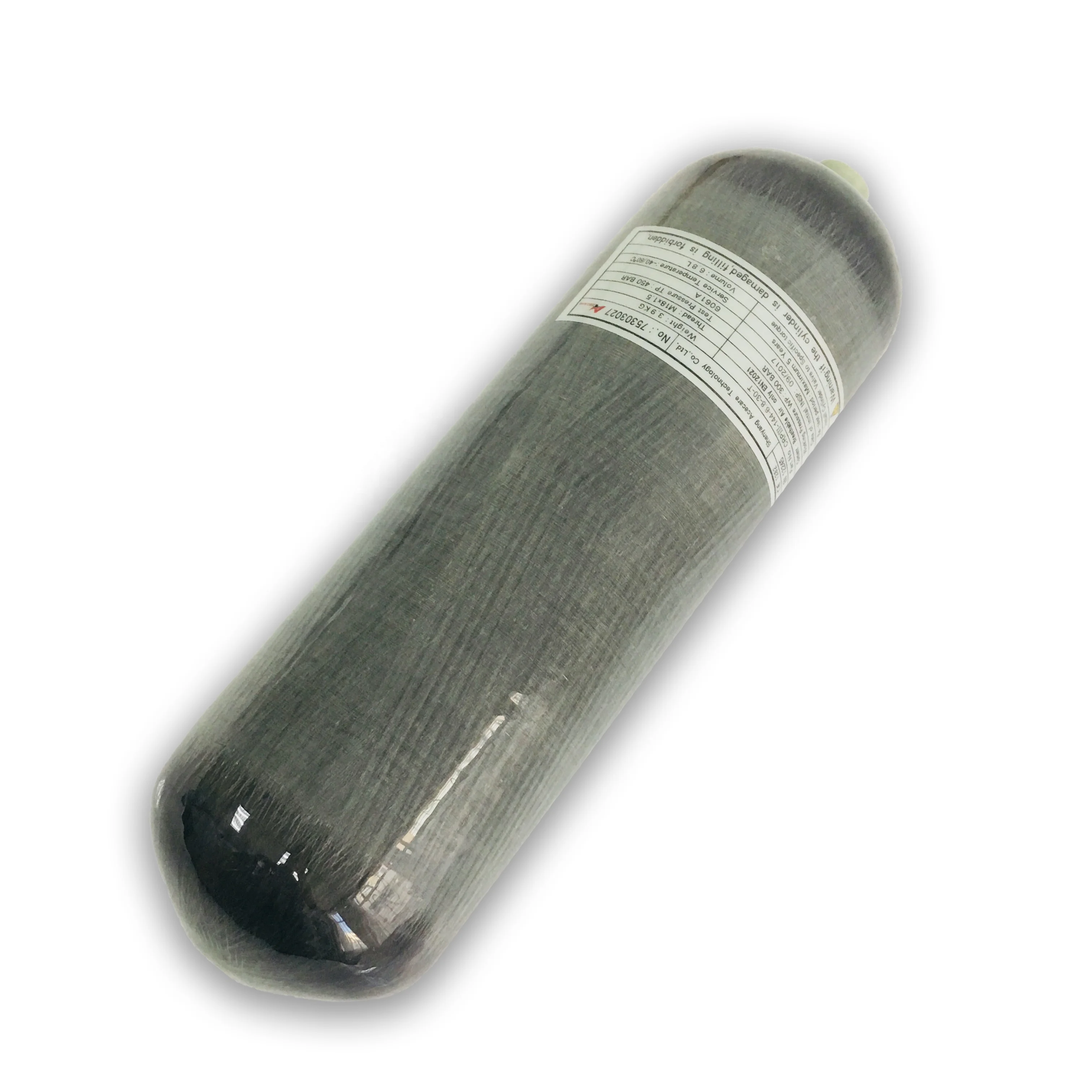

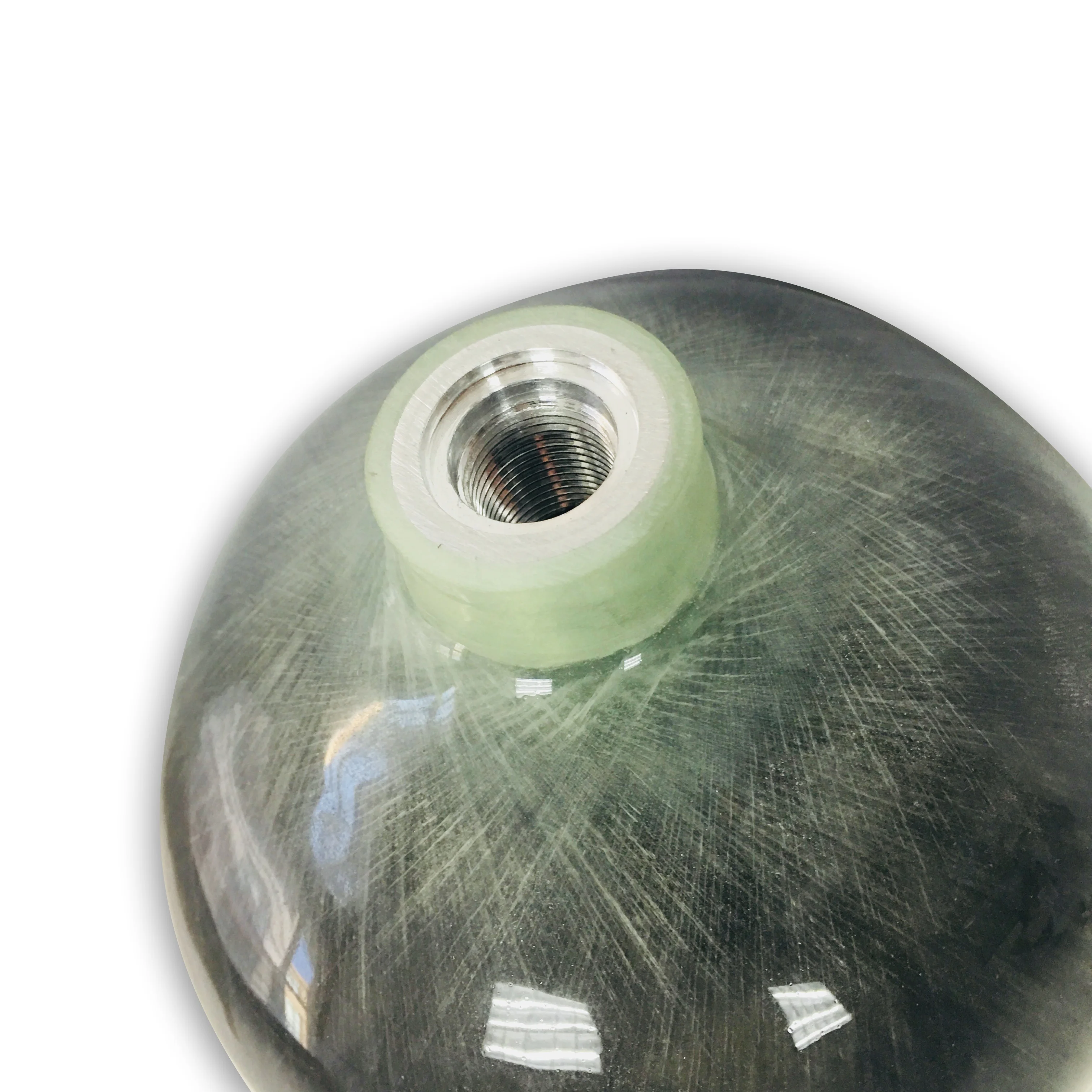

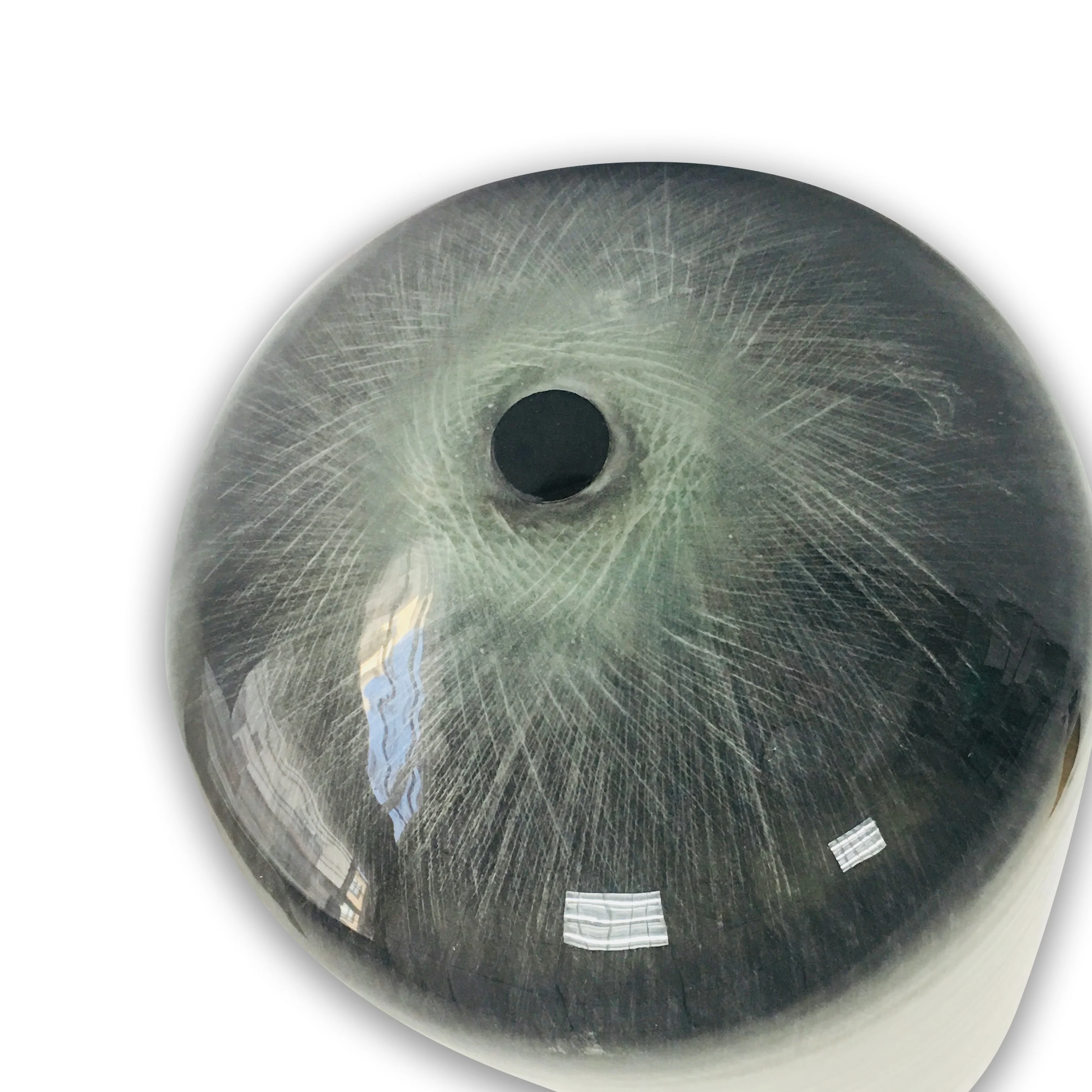

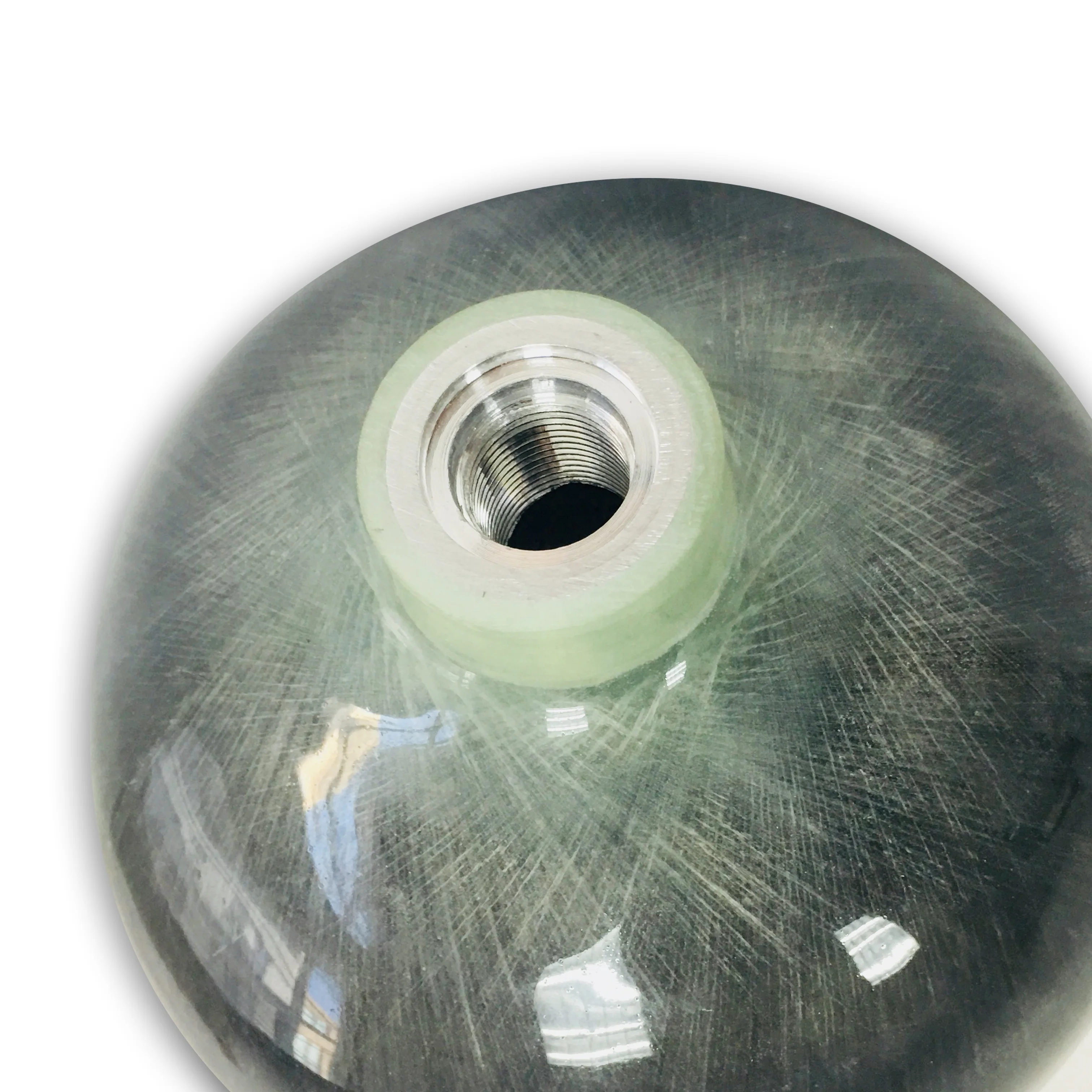

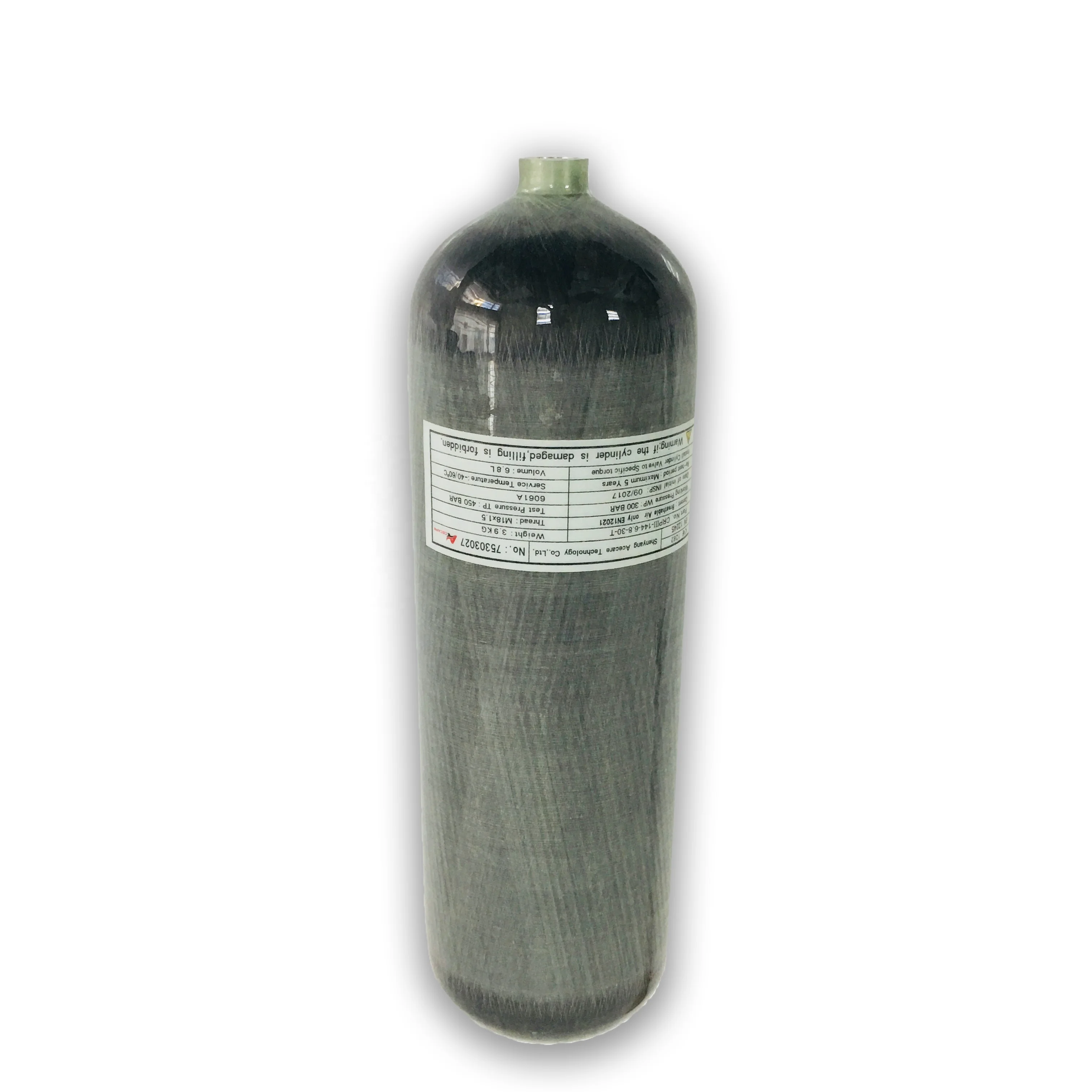

6.8 L Carbon Fiber Breathing Air Dive Gas Cylinder with 4500psi High Pressure
6.8 L Carbon Fiber Breathing Air Dive Gas Cylinder with 4500psi High Pressure
6.8 L Carbon Fiber Breathing Air Dive Gas Cylinder with 4500psi High Pressure
6.8 L Carbon Fiber Breathing Air Dive Gas Cylinder with 4500psi High Pressure
6.8 L Carbon Fiber Breathing Air Dive Gas Cylinder with 4500psi High Pressure
6.8 L Carbon Fiber Breathing Air Dive Gas Cylinder with 4500psi High Pressure
6.8 L Carbon Fiber Breathing Air Dive Gas Cylinder with 4500psi High Pressure

6.8 L Carbon Fiber Breathing Air Dive Gas Cylinder with 4500psi High Pressure

Share on (60516980804):


Price:$141.00-150.00

Quantity:


Product Overview

Description



Gas cylinder


        Acecare Tech produces portable gas cylinders through advanced technology. Compared with conventional respirators, we use aluminium or aluminium composite cylinders instead of steel ones, with weight reduction of 40%-70%, so they are more preferable for people with breathing problems.
Gas cylinder introduction:
      Gas cylinder liners are made of high quality 6061 aluminium alloy materials. The manufacturing procedure includes punching, drawing, heat treatment, CNC flow forming spinning, inner surface treatment, etc. The wall thickness is uniform with little difference. The shape of shoulder and base are produced with high precision and consistency.
1. 15-year lifetime warranty;
2. 5-year requalification period; 15-year life;
3. Smooth, high quality, easy-care exterior finish.



Carbon Fiber Composite Cylinder lined with
Aluminium Alloy
Standard
Part
No.
Thread size
Water
Capacity
 (liters)
Empty
Weight
(kg)
Diameter

(mm)
Length

(mm)
Working
Pressure
(Mpa)
GB
CRPIII-55-0.35-30-T
M18*1.5
0.35
0.45
61
235
30
CRPIII-55-0.5-30-T
M18*1.5
0.50
0.65
61
295
30
CRPIII-79-1.1-30-T
M18*1.5
1.10
1.10
85.5
315
30
CRPIII-101-1.5-20-T
M18*1.5
1.50
1.0
108
207
20
CRPIII-105-1.6-20-T
M18*1.5
1.60
1.20
112
268
20
CRPIII-88-2.0-30-T
M18*1.5
2.0
1.50
96
433
30
CRPIII-120-2.17-30-T
M18*1.5
2.17
1.5
112
380
30
CRP-III-120-2.4-20-T
M18*1.5
2.40
1.70
128
307
20
CRPIII-120-2.5-20-T
M18*1.5
2.50
1.80
128
312
20
CRPIII-125-2.7-20-T
M18*1.5
2.70
1.90
133
308
20
CRPIII-125-4.7-30-T
M18*1.5
4.70
3.0
137
492
30
CRPIII-145-6.8-30-T
M18*1.5
6.80
4.10
157
528
30
CRPIII-161-9.0-30-T
M18*1.5
9.0
5.20
174
560
30
CRPIII-192-12-30-T
M18*1.5
12.0
6.80
208
575
30
CRPIII-220-20-30-T
M18*1.5
20.0
12.0
222
770
30
CE
CRPIII-105-3.0-30-T
M18*1.5
3.0
2.10
114
446
30
CRPIII-144-6.8-30-T
M18*1.5
6.80
3.90
157
530
30
CRPIII-162-9.0-30-T
M18*1.5
9.0
5.30
175
560
30
DOT
TC 6.8L-30MPA
ISO M18*1.5
6.8
3.90
157


/
30
TC 4.7L-31MPA
0.875-14UNF-2B
4.7
2.90
140.4
31
TC 6.8L-31MPA
0.875-14UNF-2B
6.8
3.90
172.5
31
TC 8.5L-15MPA
0.750-16UNF-2B
8.5
3.10
166.8
15
TC 9.0L-31MPA
0.875-14UNF-2B
9.0
4.90
174.3
31
