dlc listed type A B 12W 150LM/W electronic ballast compatible or Ballast bypass 4FT Glass T8 LED tube
- Category: >>>
- Supplier: Ark Lighting (shenzhen) Co. Ltd.
Share on (60517232407):
Product Overview
Description
Product Description

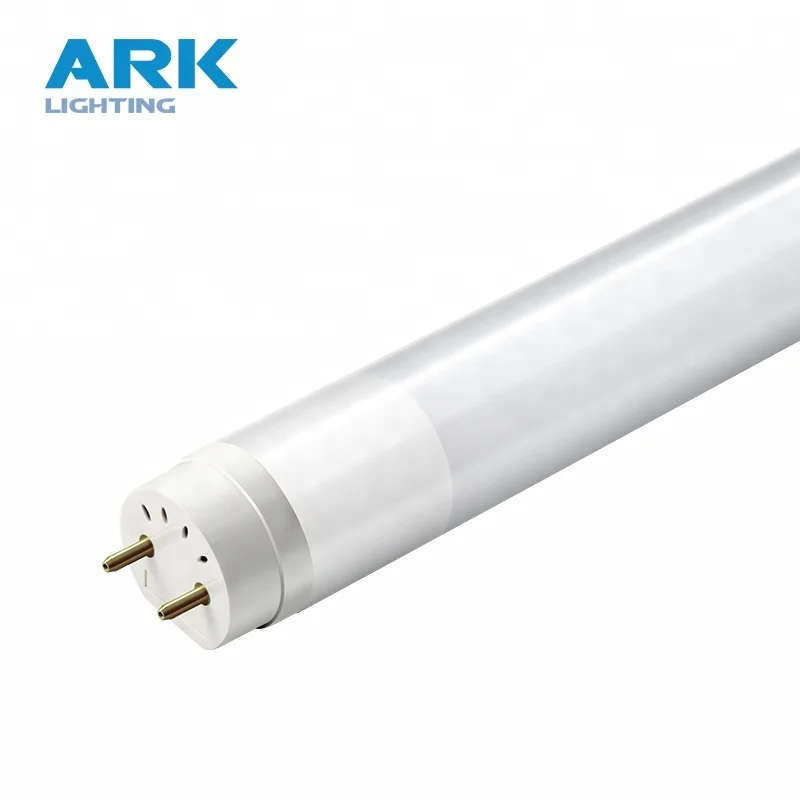

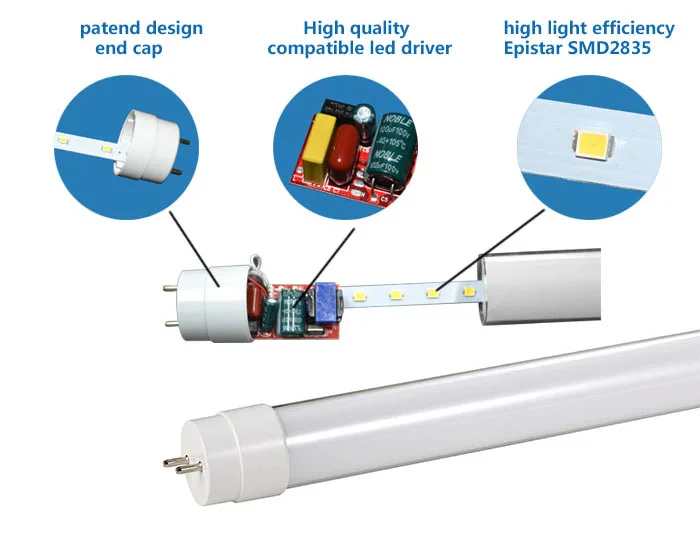

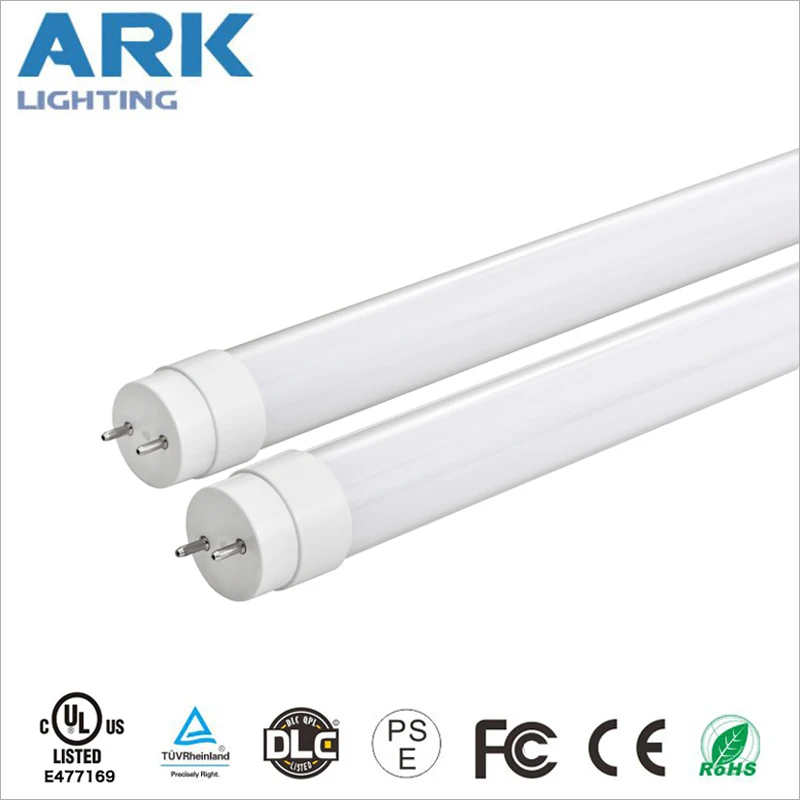

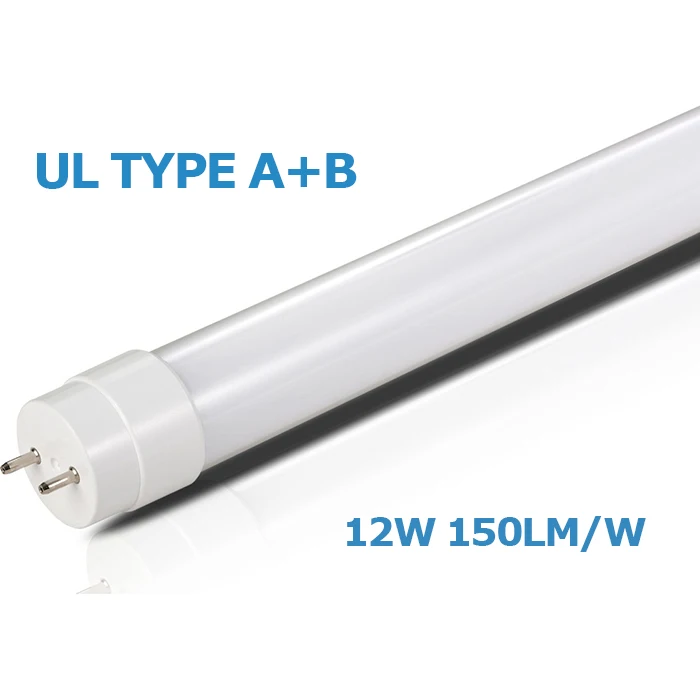

Photo of dlc listed 12W 150LM/W electronic ballast compatible or Ballast bypass 4FT Glass T8 LED tube
specfications of dlc listed 12W 150LM/W electronic ballast compatible or Ballast bypass 4FT Glass T8 LED tube
Tech Data |
| |
Model | ARK/UB/12K | |
LED Type | Epistar 2835 smd LED | |
LED Power | 12W | |
LED Color | 3000K-5000K | |
Input Voltage | AC100-277V | |
Frequency Range | 50Hz – 60Hz | |
Power Factor | >95% | |
Power Efficiency | >90% | |
Luminous Efficiency | 150LM/W | |
Dimension | L1260mm x D25mm | |
Color Temperature | WW | 2700-3500K |
PW | 4000-5500K | |
CW | 6000-7000K | |
CRI | WW | Ra>80 |
PW / CW | Ra>83 | |
Lumens Output | WW | 145lm/w |
PW | 150lm/w | |
CW | 155lm/w | |
Beam Angle | >330° | |
PC Housing | Frosted | |
Working Temperature | -20°C ~ +40°C | |
Storage Temperature | -25°C ~ +65°C(25°Cbest) | |
Life span | 35000~50000hrs | |
Certification | DLC, CE, RoHS, FCC,TUV | |
Net Weight | 0.65Kg | |
package | 126*21*21cm (25pcs/box) 13.0kgs | |
ARK lighting
ADVANTAGE:
1.330°beam angle!
2.High Efficiency,high lumen150lm/w,12w 1800lumen,save energy!
3.Elecctronic ballast compatible,No need to remove ballast,no rewiring, direct replacement.
4.Directly replace fluorescent tubes, plug and play.
5.Direct wire to AC 100-277V power without ballast, even if ballast fails, ARK led tube still work well.
5.Direct wire to AC 100-277V power without ballast, even if ballast fails, ARK led tube still work well.
Advantages of dlc listed 12W 150LM/W electronic ballast compatible or Ballast bypass 4FT Glass T8 LED tube
- Perfect compatibility with instant start Electronics ballast with no floating power .
- And ARK glass LED tube can work well with single tube with Magnetic ballast.
- AC Power 100-277Vdirectly by two ends.
- Specialized Glasss cover design for optimal light distribution and smooth visual effect.
- Highly energy efficiency, meet the requirement of DLC.
- Power factor:same as ballast in use,usually>0.95.
- High-tech optical design.
Application of dlc listed 12W 150LM/W electronic ballast compatible or Ballast bypass 4FT Glass T8 LED tube
- School/universities/hospital
- Conference/meeting room, show room
- Commercial complex
- Factories/offices
- Supermarkets
- Residential/institution buildings
Installation of dlc listed 12W 150LM/W electronic ballast compatible or Ballast bypass 4FT Glass T8 LED tube
using method :
1,work with electronic ballast ,no need rewiring
2,work with magnetic ballast
3,If ballast broken, can AC100-277v directly
a.Connect with electronic ballast:
b.Connect with magnetic ballast with single tube:
c.AC100-277V Connect Directly:
Packaging & Shipping
Shipping way:
1. By Express: such as DHL, UPS, TNT, FEDEX etc. The dispatch time is about 3-5 days.
2. Air Freight: when your order more than 100kgs which will be more economical than express.
3. Sea Freight: we will update sea freight once we know your sea port where goods will be delivered.
4. Agent designated by client: please tell us the contact detail of your shipping agent and we will arrange to deliver the items.
Packing way:
Certifications
DLC certificate:
More info about DLC,you please search at //www.designlights.org/,type our company's name
ARK Lighting(shenzhen)co.,LTD to find it!
Company Information
In Lighting fair:
2018 ARK Lighting Lighting Fair information:
"HK Lighting Fair"(Spring Edition 2018);6-9th APRIL ,2018,Booth No.:1C-E33
Chicago LFI 2018 :8-10th May 2018,Booth No.2479
FAQ
Q:Is the glass led tube safety when shipping?
A:Yes,is safe when shipping,
1,we use the strong bubblepak safe packing for evey tube!
2,For 25 CTNs ,we put them in a plank bored to protect it!
3,And also we can ship 3‰ Free tube for your reserve !
Q:How many years warranty do you have for LED tubes ? In case something goes wrong and we need to use warranty, what is procedure for getting new lamps?
A: 1,we offer 5 years warranty for led tube
2,We have our warranty letter, in warranty period, in case of any our product is found to be defective
in materials or workmanship,we will send replacement or rearing the defect and return back to you!
we offer 3‰ more glass led tube for your reserve!
More documents(IES file, integrating sphere test report,DLC cert) or samples required,please contact me!
