Product Overview
Description
Stainless Steel Stirred Tank Reactor Applies to Chemical
Can not view pictures? Please visit m.alibaba.com to search key words via your mobile browser.
Product Description
Stainless Steel Stirred Tank Reactor Applies to Chemical

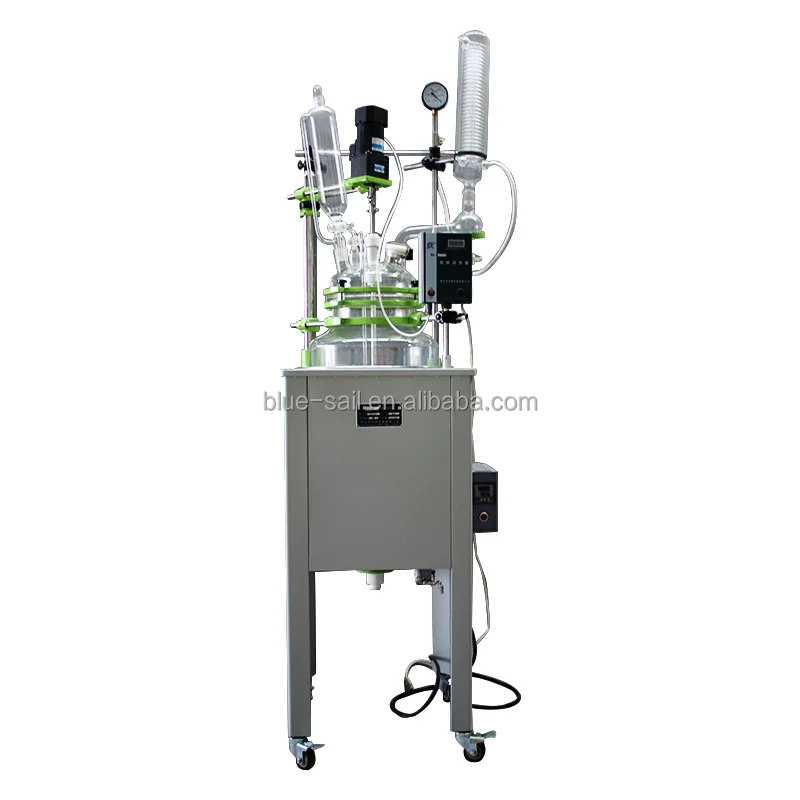

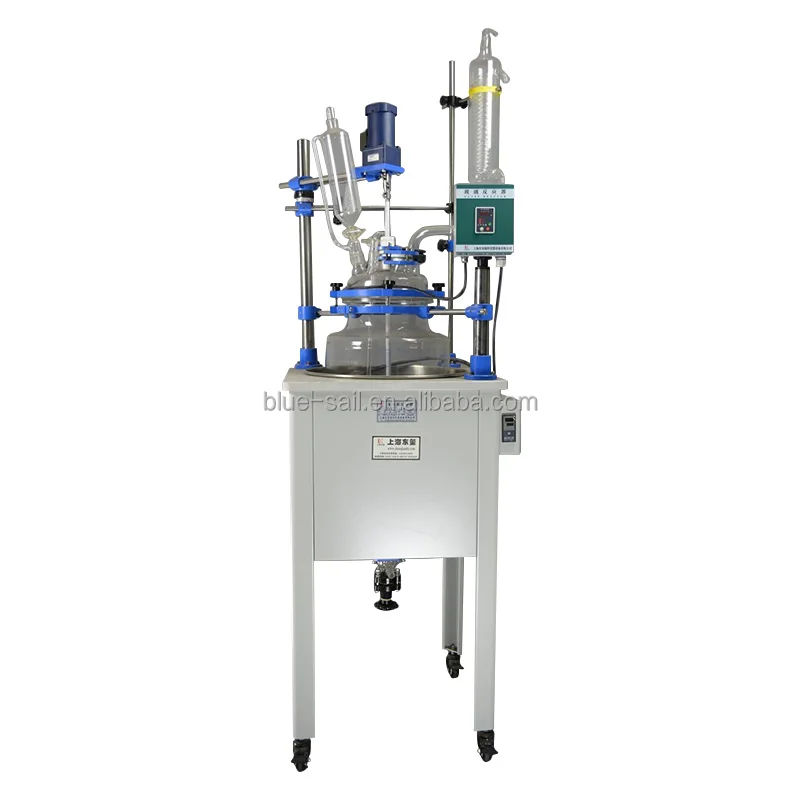

F-100L single layer glass reactor is a series product of single layer glass reactor, its max volume is 100L, max rotating speed can reach to 450rpm, its reaction bottle volume is 100L, that’s why it is known as F-100L single layer glass reactor, also called: glass vacuum reactor, extractor, multifunctional reactors, it can make various of solvent synthesis reaction under the condition of constant temperature. The reactor part is controllable sealed structure, which can use negative pressure continuous inhalation of various liquids and gases, and make reflux or distillation under different temperature.
Working principle of F-100L single layer glass reactor:It is through the oil bath pot (tank) into the constant temperature (high temperature or low temperature) heat solution or coolant to heat or cool the material in the reactor, and can provide stirring. The device can process vacuum stirring reaction, distillation condensation reaction, extraction and separation, and reaction heat experiment, we can through the water by condensing coil in the oil bath to achieve the effect of rapid cooling, material react in the reactor, and can control the reaction solution’s evaporation and reflux, after the reaction is completed, the materials can be released from reactor lid opening or the discharge port, the operation is very convenient. Our company absorb domestic and international advanced technology, launched the latest multipurpose products. It is convenient to use and beauty in appearance, affordable, and it is a ideal equipment for modern chemical, new material synthesis test.
Product features of F-100L single layer glass reactor:
- Use GG17, G3.3 high borosilicate glass, owns excellent chemical and physical performance.
- Applicable for conducting experiment under normal temperature, high temperature(200°C) and low temperature(-80°C) reaction condition.
- Applicable for working under normal pressure or negative pressure, negative pressure can reach to -0.098MPa range in stationary state.
- Digital display of stirring speed, imported high torque reinforcement electrical machine, frequency conversion constant temperature stirring system, stable working state.
- PTFE stirring valve, sealing between stirring shaft and reactor is made from special material.
- Large charging valve without any dead space, anti-corrosion, you can put both liquid and solid.
- Thorough remove solution, no liquid remain.
- Scientific overall structure, novel, practical and beauty in appearance.
Spectifications
Specifications of Stainless Steel Stirred Tank Reactor Applies to Chemical
| Basic parameter | Model | Single layer glass reactor |
| Volume of the reactor bottle | 100L | |
| Glass material | GG-17 | |
| Spraying plastic anti-corrosion shell size(mm) | 640*640*1200 | |
| Stainless steel container size(mm) | 550*650 | |
| Movement method | Universal castor with brake | |
| Reaction bottle number | barrel shape 6 pieces | |
| Lifting of discharging port | 450mm | |
| Reaction temperature | -80-250℃ | |
| Vacuum degree | 0.098Mpa | |
| Stirring speed | 0-450rpm | |
| Stirring shaft diameter | 15mm | |
| Stirring power | 200W1/3 220V/50Hz | |
| Heating power | 8KW 380V/50Hz | |
| Overall dimension(mm) | 730*630*2600 | |
| Packing dimension(mm) | 1900*780*870 | |
| Package weight(KG) | 120 | |
| Function device | Electrical machine | Low speed reinforcement electric machine, speed rate 3: 1 |
| Rotating speed display mode | Liquid crystal digital display | |
| Pot temperature display mode | Digital display | |
| PTFE sealing | ¢60 Flange stirring port | |
| Condenser | 120*600mm | |
| Backflow(distillation) device | Backflow elbow with discharging switch, 50# ground port | |
| Drop device | 2L/40 standard port | |
| Pressure reduce device | 34# standard port pressure reduce valve | |
| Temperature measuring tube | 24# standard port | |
| Solid discharge(washing) port | ¢80 flange port | |
| Discharging method | Inclined discharging glass valve, ¢80 flange port | |
| Vacuum display method | Vacuum meter | |
| Stirring connection method | Universal joint connection | |
| Stirring rod | Anchor type stainless steel rod, covered with PTFE | |
| Optional device | Shell | 304 stainless steel |
| Collecting device | Collection bottle | |
| Cooling circulating device | Cooling cooper coil tube | |
| Explosion-proof | Explosion-proof inverter/Explosion proof motors 180W/370W 0-1400rmp | |
| Main body | Spraying PTFE of whole instrument | |
| Heating device | electric heating jacket heating | |
| Our laboratory equipment can be customized according to customers actual needs . | ||
Packing List of Stainless Steel Stirred Tank Reactor Applies to Chemical
| No. | Name | Quantity |
| 1 | Constant temperature water bath | 1 unit |
| 2 | Stirring Electrical Machine | 1 unit |
| 3 | Speed Controller | 1 pc |
| 4 | Stirring Plug | 1 set |
| 5 | Stirring Rod | 1 pc |
| 6 | Bottleneck clamp | 2 sets |
| 7 | Tray bottle ring | 1 pc |
| 8 | Condenser clamp | 1 pc |
| 9 | Lock nut | 1 set |
| 10 | Discharging valve | 1 set |
| 11 | Six-Port Glass Reaction Bottle | 1 pc |
| 12 | Backflow valve | 1 pc |
| 13 | Condenser | 1 pc |
| 14 | Air exhaust mouth | 1 pc |
| 15 | 24# charging switch | 1 pc |
| 16 | Thermowell | 1 pc |
| 17 | PTFE cover of washing port | 1 pc |
Product Details
- Single layer glass reactor corollary use with circulating water vacuum pump to offer a vacuum environment for reduced pressure distillation, they are widely used for vacuum filtration, vacuum evaporation, vacuum degassing, etc..
- Single layer glass reactor corollary use with DLSB series low temperature cooling liquid circulating pump to conduct chemical reaction and medicine storage which requires low temperature environment. Especially suitable for chemical, biology and physics labs that needs low temperature working condition.
Application
F-100L single layer glass reactor belongs to multifunctional single layer glass reactor, which is widely used in chemical, fine chemical industry, biological pharmaceutical new materials synthesis and other experiments and production. The product can be used with the circulating water vacuum pump, the low temperature coolant circulating pump, the circulating oil bath pot to be a system device, or used for pilot production.
Our Services
Pre-sale Service
- Provide 24-hour technical consulting reply;
- Provide professional quoted price;
- Provide detailed product performance specification;
- According to product’s using condition, technicians will offer rationalization proposals to assist clients to select proper product types;
- Provide other corollary equipment according to client requirements.
In-sale Service
- Begin to supervise from raw material, its qualified rate can reach to 100%;
- Whole manufacturing process are in strict accordance with promised procedure requirements, product qualified rate can reach to 100%;
- Provide product’s inspection record of key junctures to customers;
- Provide production schedule photos to customers at regular intervals;
- Package and transport products strictly accordance with export standard;
- Provide transportation schedule information to clients timely.
After-sale Service
- Provide targeted installation video;
- Under the premise of correct installation, normal maintenance and using, we guarantee one-year warranty period;
- When warranty period has expired, our sold products enjoys lifetime guarantee repair, we only charge cost price for changing product’s standard component and sealing component;
- During installation and adjustment period, our after-sale service staff will communicate with customers frequently to know product’s running state in time. Assist customers to install and adjust products until customers are satisfied;
- If product has malfunction during operation period, we’ll offer you satisfied answer in time. We’ll reply you within 1 hour and provide solution or send staff to spot within 24 hours after receiving maintenance notification.
- Lifelong free technical support. Conduct satisfaction survey and inquiry equipment running condition to clients by telephone or e-mail semiannually from the first day of equipment running, put on records of acquired information;
- Provide assistant service if product is damaged during transportation.
FAQ
Frequently asked questions of Stainless Steel Stirred Tank Reactor Applies to Chemical
- what is the main material of the machine?
the main structure is made of stainless steel, aluminum alloy. - what can be equipped with the device?
optional Electric heating sleeve, cooling coil. - what is the standard of the plug?
European standard, German standard, American Standard, etc., can be customized. - what is the minimum quantity?
1 set at present. - what is the payment terms?
T / T, Paypal, Western Union, Ali credit insurance, L/C etc..
Packaging:
- Carton+wooden cases.
- Customized packaging can be available.
Shipping:
- We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on.
- You can also choose the appropriate one based on your timeline and budget.
- You can choose to use your own shipping agent.
| Shipping method | Note |
| Express | Door to door, very convenient, don't need to clearance or pick-up |
| By air | Airport to airport, you need to do the customs clearance and pick up the goods at your local airport, which you can have a local shipping agent to do for you. |
| By sea | Port to port and you need to do the customs clearance and pick-up the goods at your local port, which you can have a local shipping agent to do for you. |
Advantages
Comparing to similar products, Stainless Steel Stirred Tank Reactor Applies to Chemical owns a lot of superiority:
- Lanphan F-100L single layer glass reactor use PTFE sealing material, stand-out properties of sealing, corrosion resistance, wear resistance.
- Electronic stepless speed regulation, stable operation.
- Clear display control and data information plane, rotating speed digital display.
- Intelligent temperature sensor, temperature is digital displayed.
- Distillation and reflux can be carried out at the same time.
- Large diameter emptying valve, solid and liquid is applicable.
- Large access opening, convenient for wash.
- Double backflow, integrated standard condenser pipe.
- Main structure is made from stainless steel and aluminium alloy, anti-corrosion.
- Efficient and stable, beautiful and generous, durable in use.
